Product introduction
Designed for various types of Spiral Hot Runner Coil Heater for hot runners, using Saxony oxidized powder, Swedish resistance wire and German technology to make round, square and flat sections, and with J-type K-type E-type thermocouple .
It provides flexible and convenient self-winding heating elements for hot runner manufacturers, which solves the contradiction between standard and non-standard hot nozzles and nozzle outer diameter length. In the manufacture of hot runner standards, the heating coil is particularly important. The SUWIE heating coil has stable heating performance and uniform heat distribution. At the same time, the plastic parts that are naturally balanced in the flow path can be dimensionally stable, and long-term production can not cause abnormal shutdown.
Hot runner heating coils are widely used in heating, drying and heat preservation of hot runners. Generally, hot runner heating coils include ceramic heating coils, stainless steel heating coils, mica heating coils, spring heating coils, etc., power, voltage, size, And the hairline hair style can be customized according to the needs of customers.
Technical Specification of Hot Runner Coil Heater
1. Maximum Sheath Temperature: 700°C
2. Voltage: 12V~380V
3. Wattage: 70W~1000W
4. Sectional area: 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5, 3.3 X 3.3, 3.5 X 3.5, 4 X 4, 2.2X1.3
5. Available sheath: Nylon, metal braided, fiberglass, silicone rubber, kevlar
|
Sheath Material |
Cr Ni-Steel |
|
Insulation Material |
MgO |
|
Resistance Wire |
Ni Cr 80-20 |
|
Maximum Sheath Temperature |
700°C |
|
Voltage |
800V A/C |
|
Power |
> 5 M W |
|
Thermocouple |
J type (Standard) or K type |
|
Length Tolerance (Straight) |
5% |
|
Wattage Tolerance |
+ 10% ( + 5% Available Upon Request) |
|
Resistance Tolerance |
+ 10% ( + 5% Available Upon Request) |
|
Unheated Length |
35mm (Standard) |
|
Dimensional Tolerance |
Coil I.D + 0.1 to 0.2mm |
|
Coil Length + 1mm |

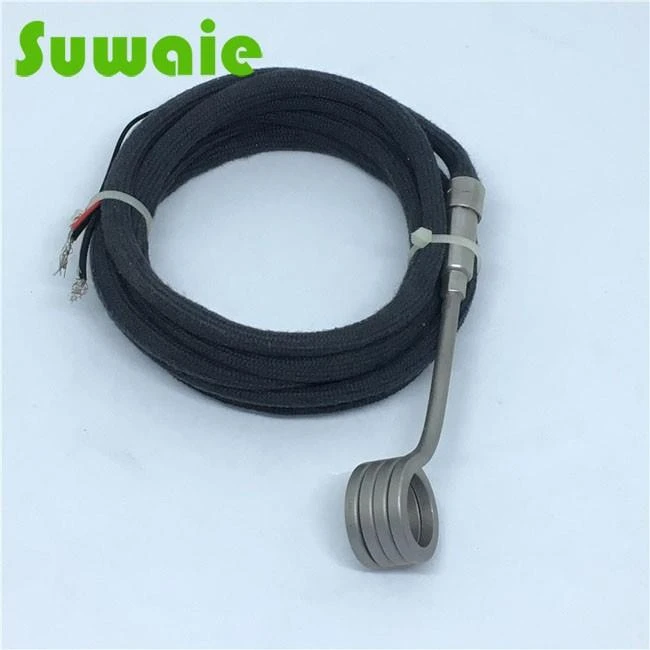

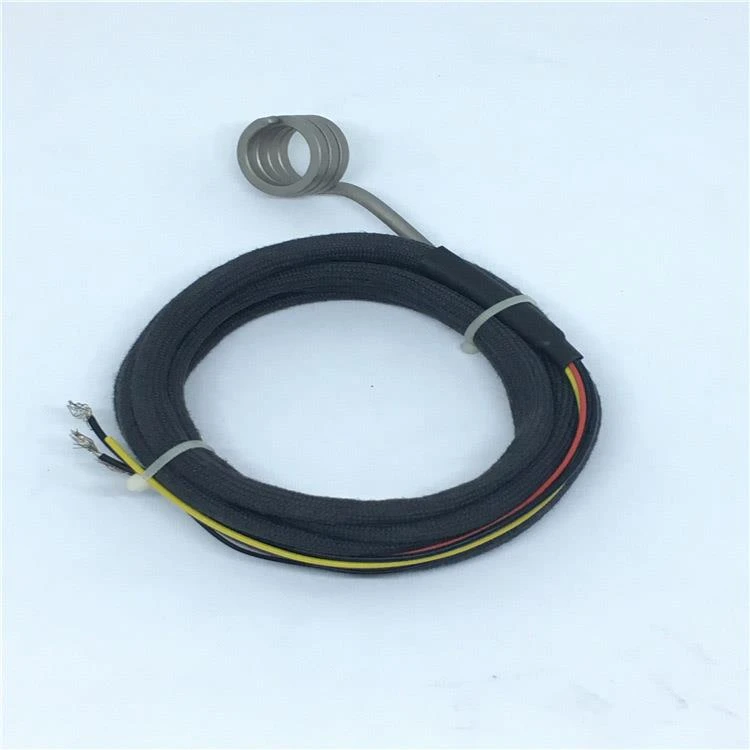

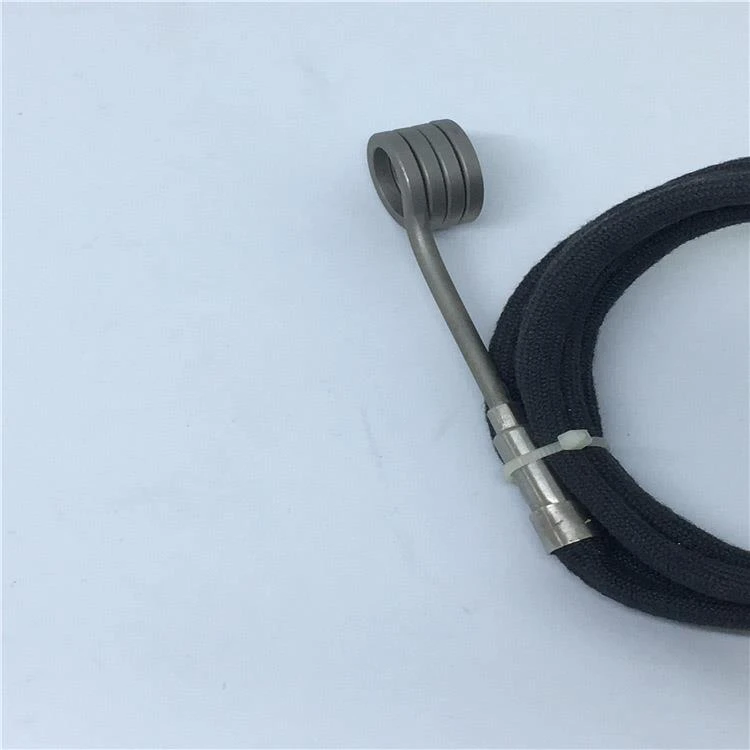

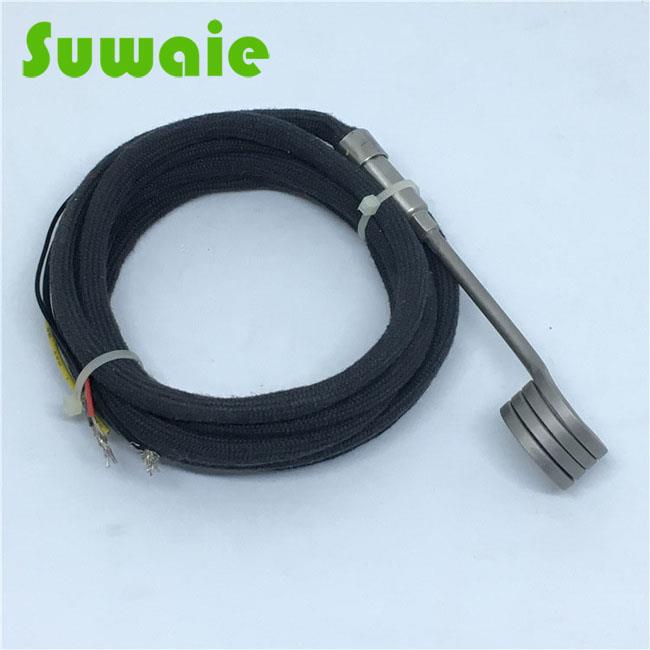

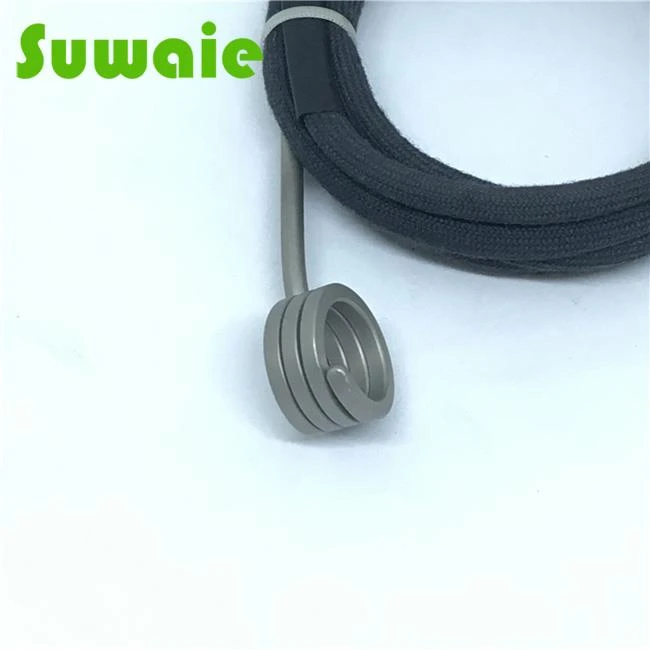

Product show

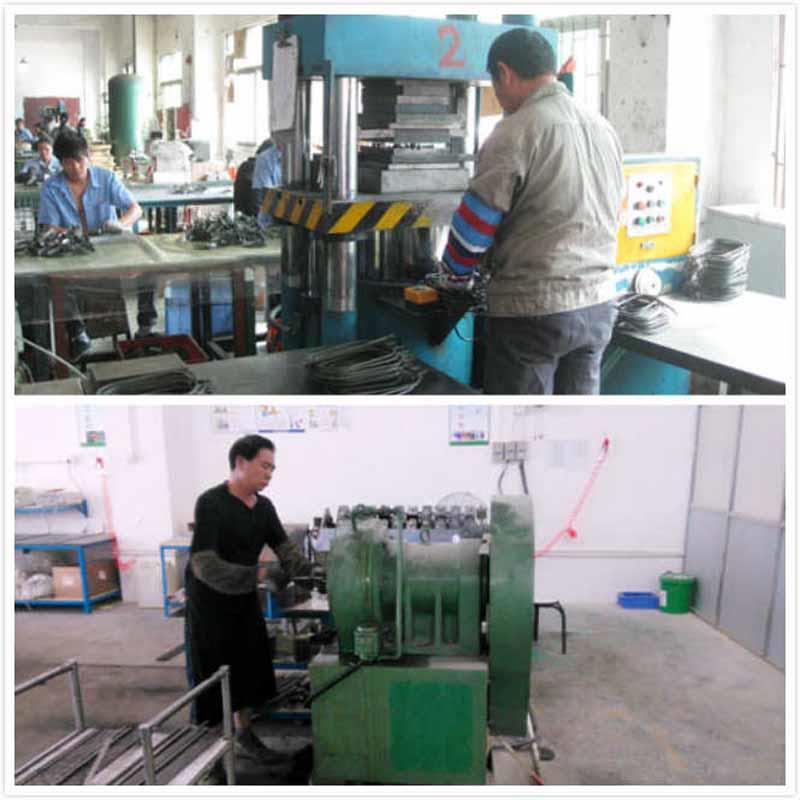

Machine show
Our Service
As a manufacturer with 12 years
R&D experience in China, we would like to offer any support you need as following:
1) Immediate reply to your inquiry.
2) Exact recommend of our machine for the job you do.
3) Detail information of our products, and our company if you need.
4) Best quotation.
5) Immediate answers to your questions about our produts.
6) Technical support, or alternative accessories if necessary.
FAQ
1. Q: How to proceed the order if I have logo to print?
A: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
2. Q: Who bears the bank transfer fee?
A: The total amount of the order is relatively small, the clients bears bank transfer fee, and the amount of the order is large, we bear bank transfer fee.
3. Q: What about the warranty? What if the products go wrong?
A: All our products have 1 years warranty, should you have any problems, please contact us directly and we will do our best to solve it.
