Product introduction
The Industrial Electric Pencil Heater is made of stainless steel 304 or SUS321, Incoloy 800, incoloy 840. The electric heating alloy wire (nickel chrome 8020) is evenly distributed along the center of the Mgo rod. The gap is filled with magnesia sand with good thermal conductivity. The nozzle is made of liquid glue or silica gel or ceramic glue. Sealed (wet environment can be used for moisture-proof design), the connecting wires are made of pure nickel (copper), high-temperature wire,glass fiber wire and silicon wire and so on. This Pencil Heater can heat air, metal molds and various liquids.
Features:
1. Conditions of use: ambient temperature -20 ° C ~ +60 ° C, relative temperature <80%;
2. Electrical strength: cold state withstand voltage AC work 1500V 50HZ duration 1MIN no breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50HZ duration 1MIN no breakdown phenomenon;
4. Leakage current <0.5MA; insulation resistance >30MΩ;
5. Power deviation +5%, -10%; surface load up to 25W per square centimeter;
6. Tubu diameter: 3mm - 30mm
7. Tube length: 40mm - 1000mm
8. Tube material: SUS304, SUS321,INCOLOY800,etc.
9. Product name:Low Voltage Industrial Electric Pencil Heater
10. Lead-out wire length: 300mm, or clients requriement.
11. Lead out wire type: PTFE wire, Silicone wire,etc.
Application
1. Used to dry wood, paper, printing and dyeing, paint and so on.
2. Melting low melting point alloys, such as molten lead furnaces, tin melting furnaces, etc.
3. Infrared radiant heating device
4. In the food industry, it is used to bake various breads, biscuits, pastries, and electric heating devices in flowing water tunnels.
5. Medical sanitation equipment, such as sterilizers, sterilizers, etc.
6. Heating, enameled wire drying device, etc. of motor vacuum dip coating equipment.

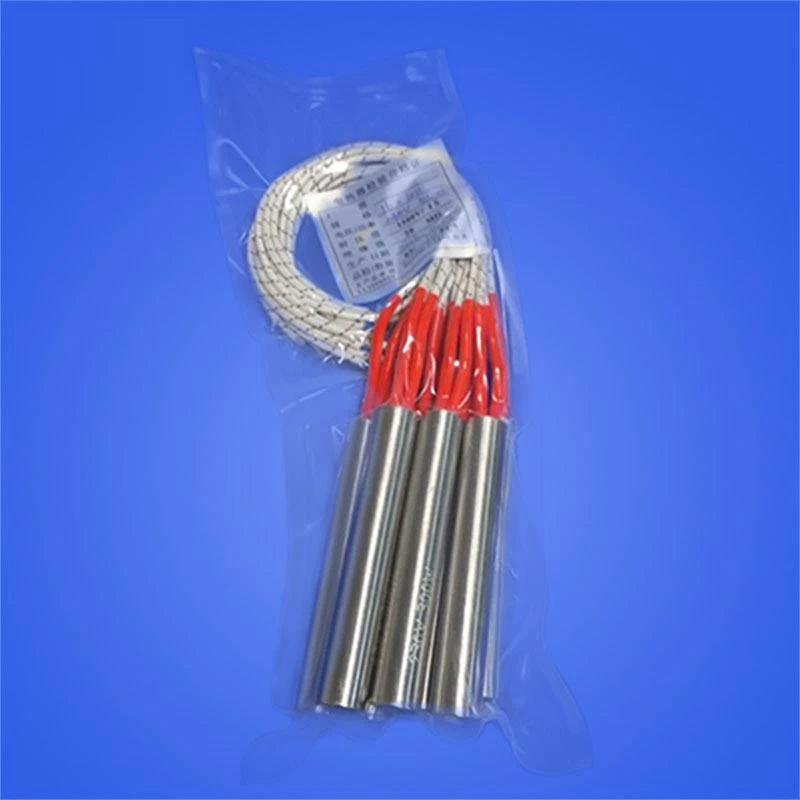

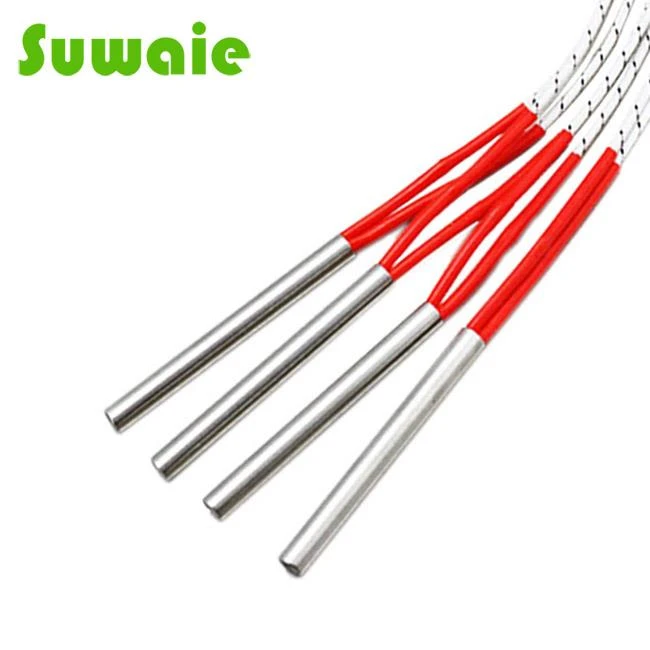

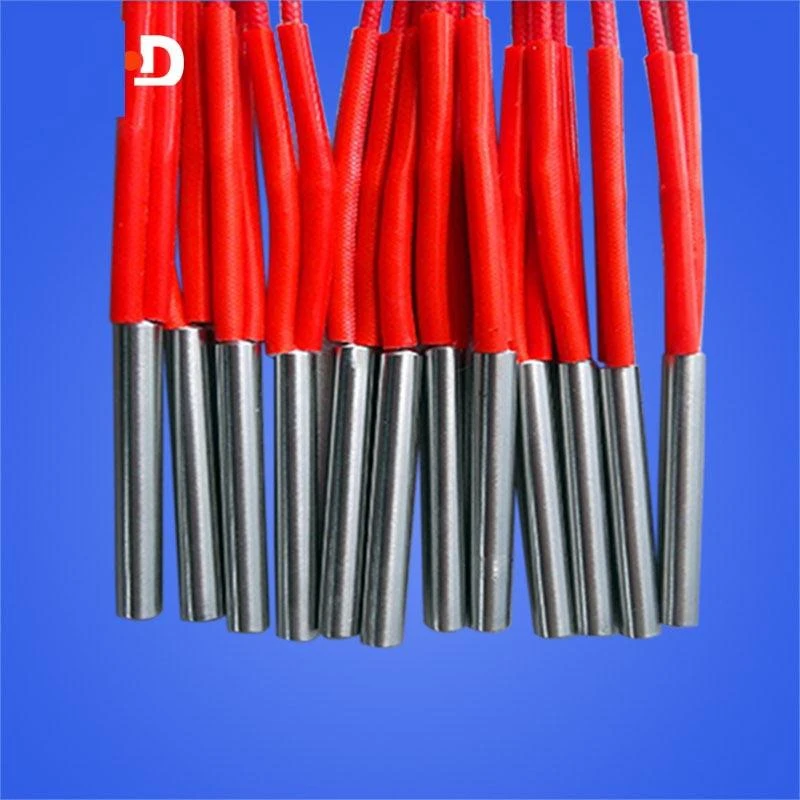

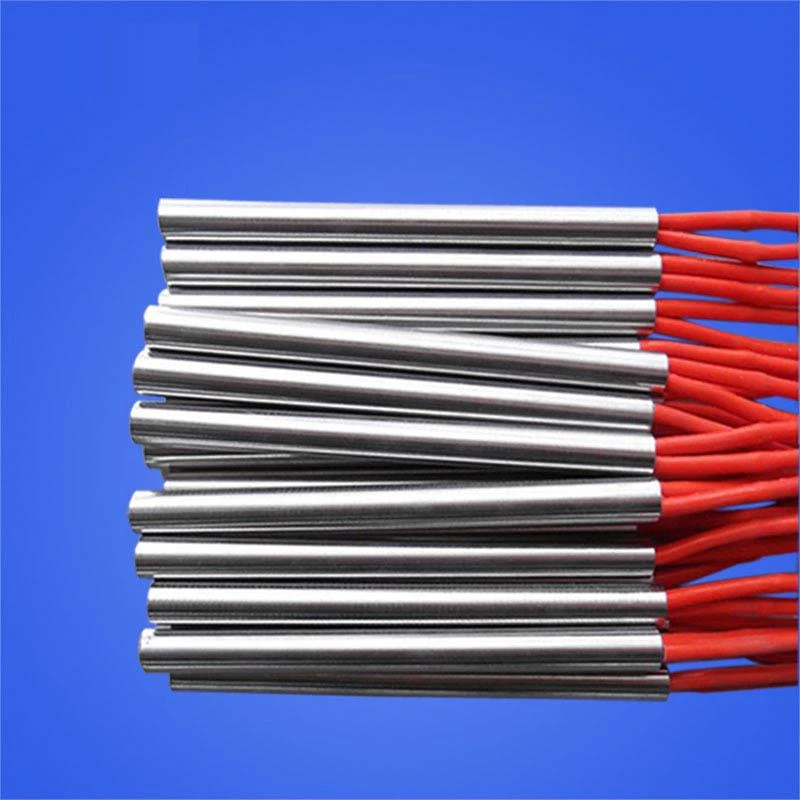

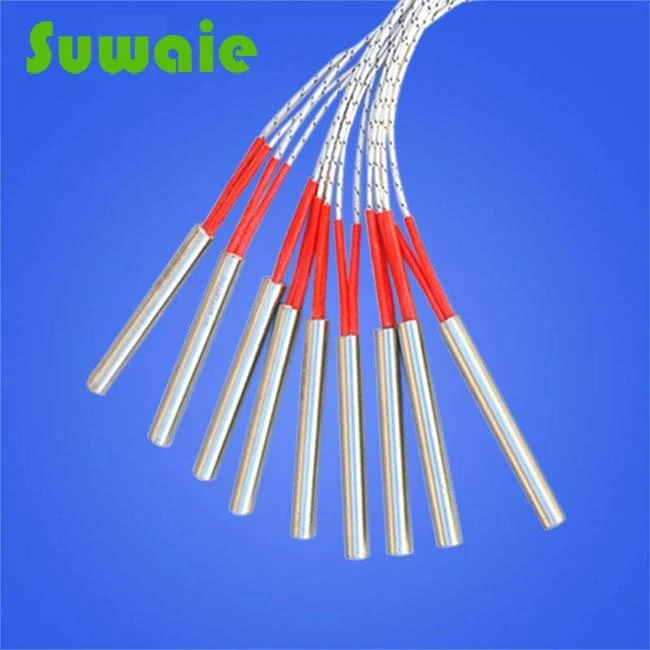

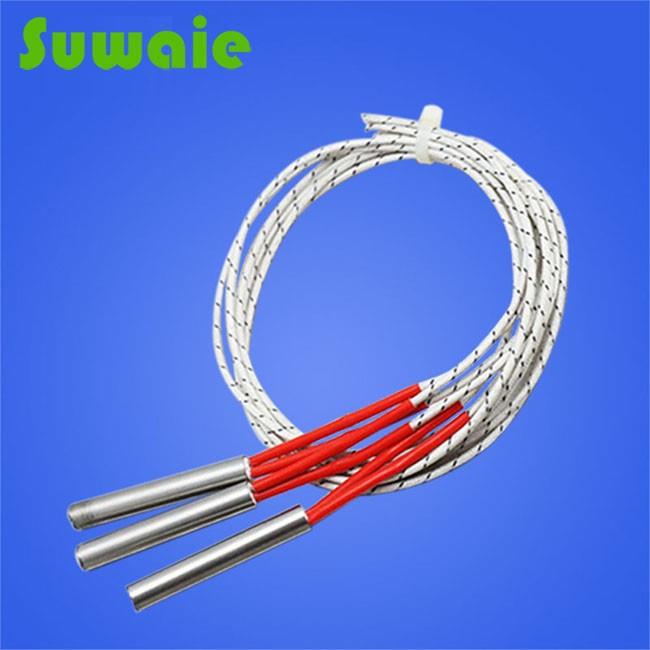

Product show
FAQ
1. Q: Who bears the bank transfer fee?
A:The total amount of the order is relatively small, the clients bears bank transfer fee, and the amount of the order is large, we bear bank transfer fee.
2. Q: Can you sent the product drawing to me?
A: Pictures on website was just for reference, More correct information and some special requirements,
Please kindly contact us.
3. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
