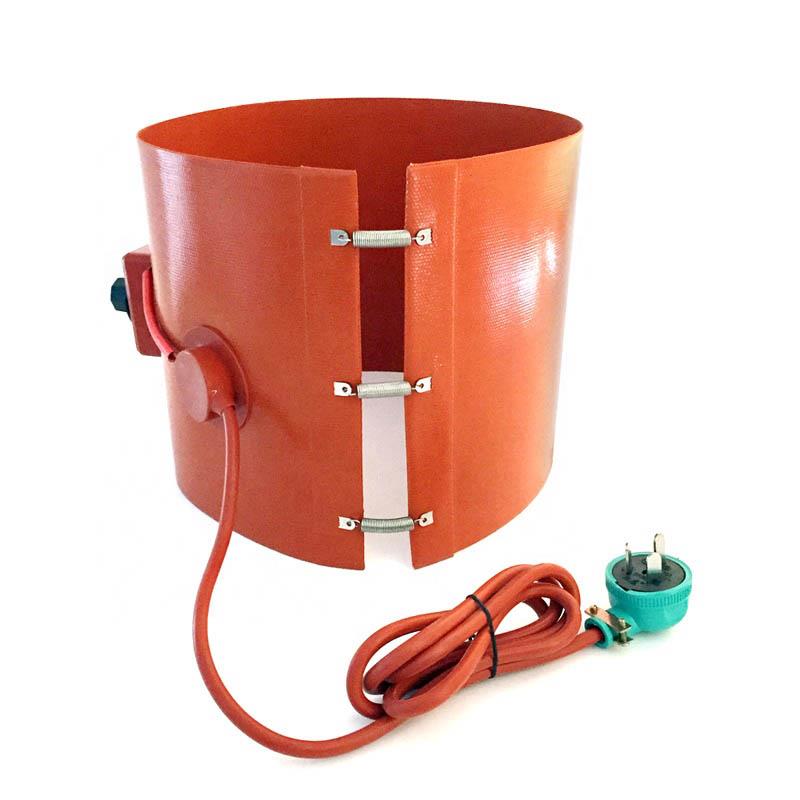

Flexible Silicone Drum Heaters
Suwaie Heating design and manufacture a range of flexible silicone drum heaters suitable for use on 200 litre metal or plastic drums and 60 and 20 litre drums and pails.
Flexible silicone drum heaters are specifically designed to reduce the viscosity of products or melt solids so they can be poured. These can be used with other Suwaie Heating products such as a drum insulated jacket for greater heating efficiency and/or a drum base heater in situations where the drum and product will accept additional heat.

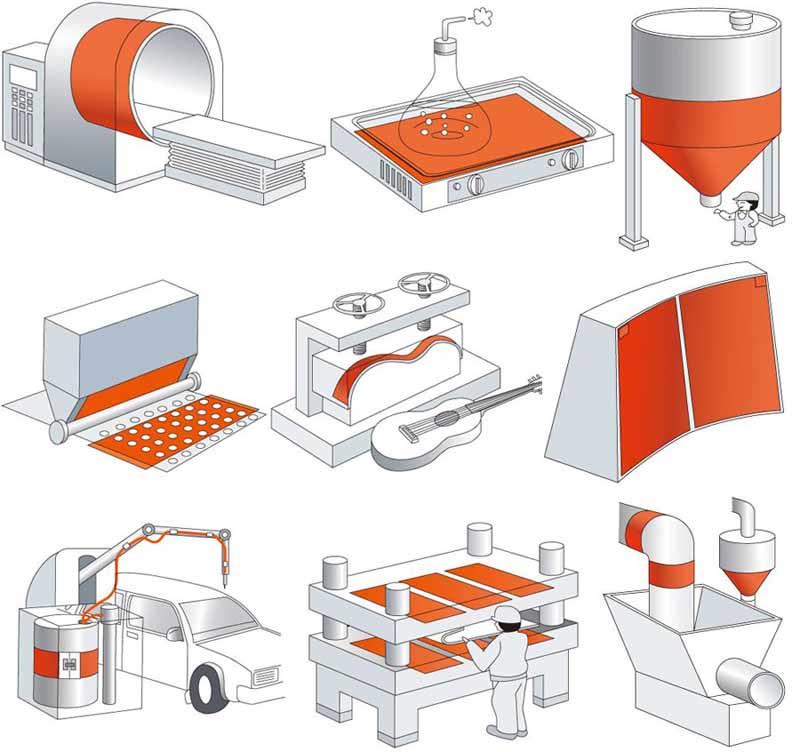

Applications:
Viscous fluid
Grease
Fats
Paints
Chemicals
Fruit concentrates
Inks
Adhesives

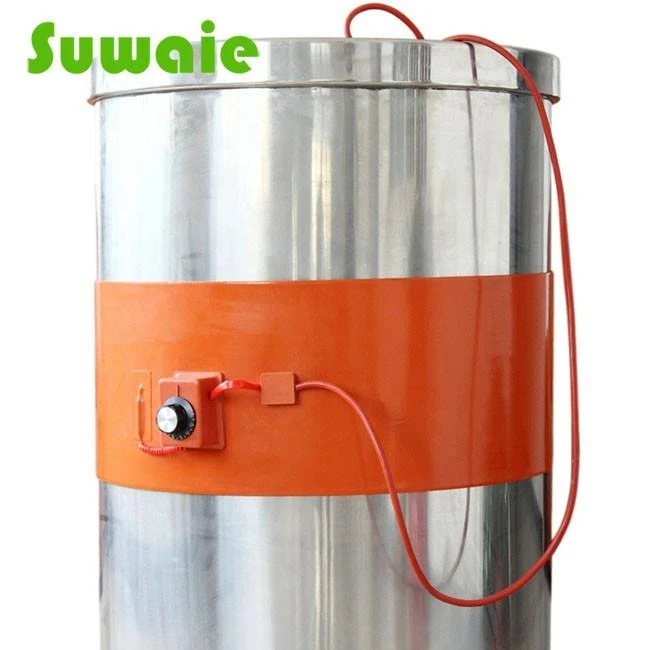

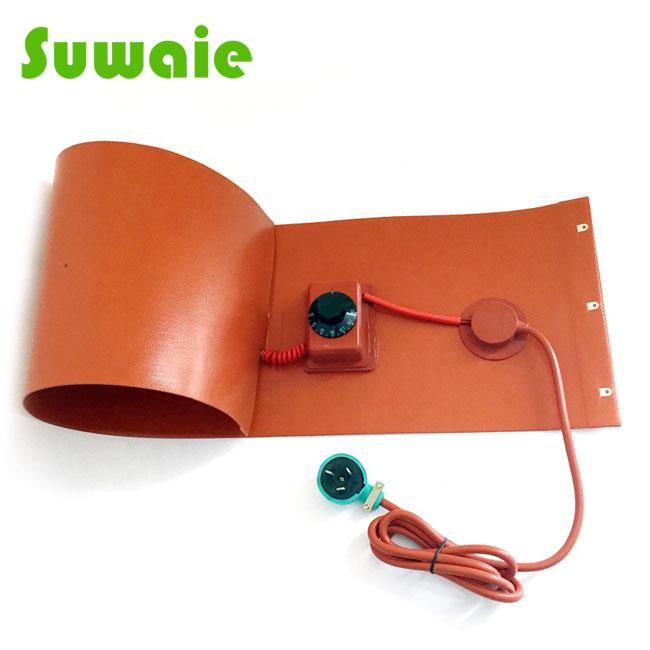

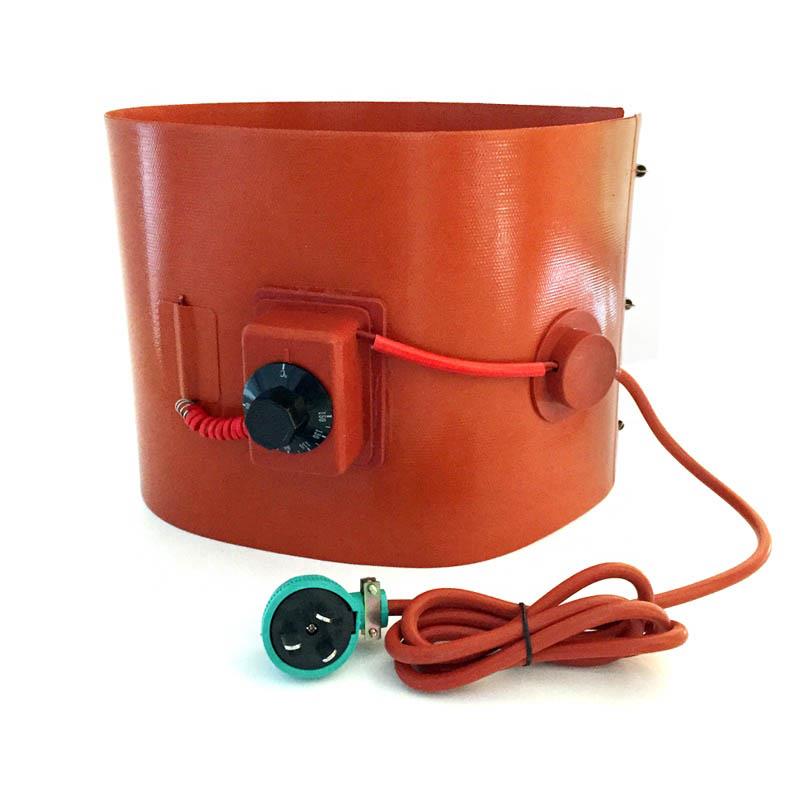

Products show:
It consists of high temperature resistance wire wound around a fiberglass core for added support and flexibility while still allowing for expansion and contraction during heat up and cool down. The element is laid out in a computer designed pattern to provide maximum heat transfer and temperature uniformity. After the element is laid out, it is vulcanized between two sheets of silicone rubber until they become one. The silicone rubber sheets also have a layer of fiberglass for added strength and tear resistance. The same vulcanization process is used to attach the power leads and cord sets to the heater windings.
Number | Description | Parameter |
1 | Maximum temperature resistant of insulant | 300°C |
2 | Maximum Operating Temperatures | 250 °C |
3 | Power deviation | 5% |
4 | Insulating resistance | ≥ 5 MΩ |
5 | Compressive strength | 1500V/5S |
6 | Size of drum heater | Any size,by cutomized |

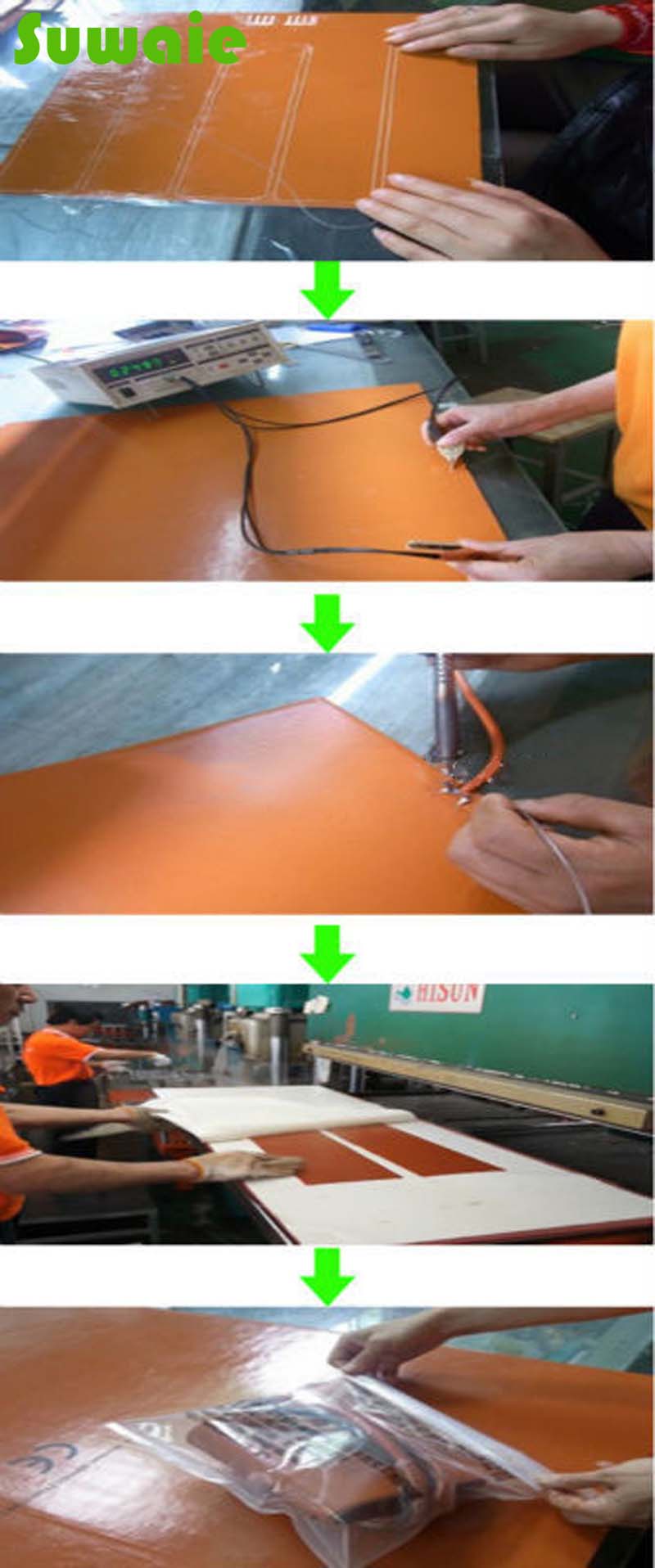

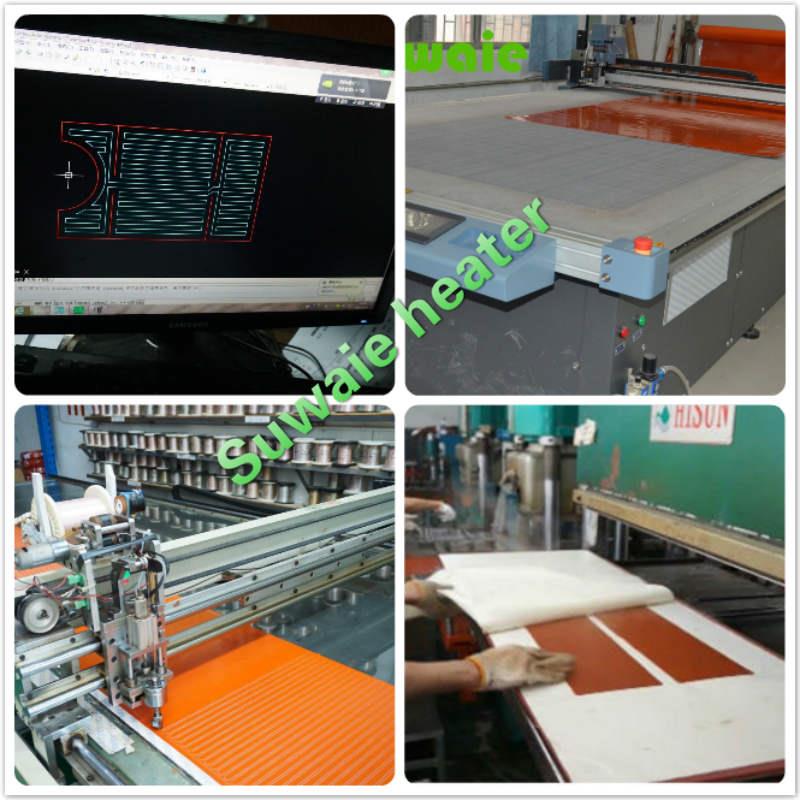

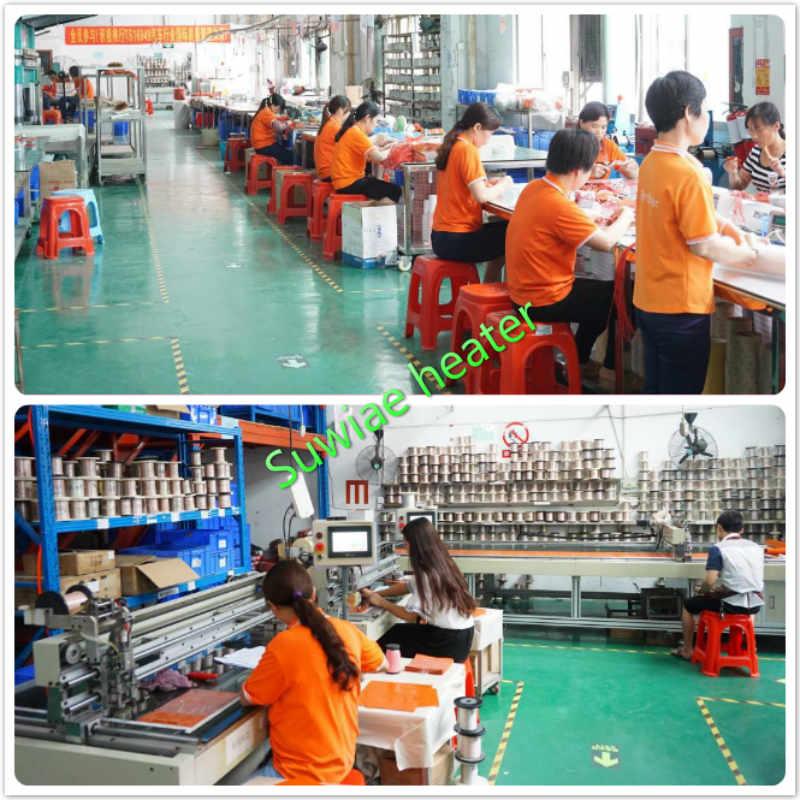

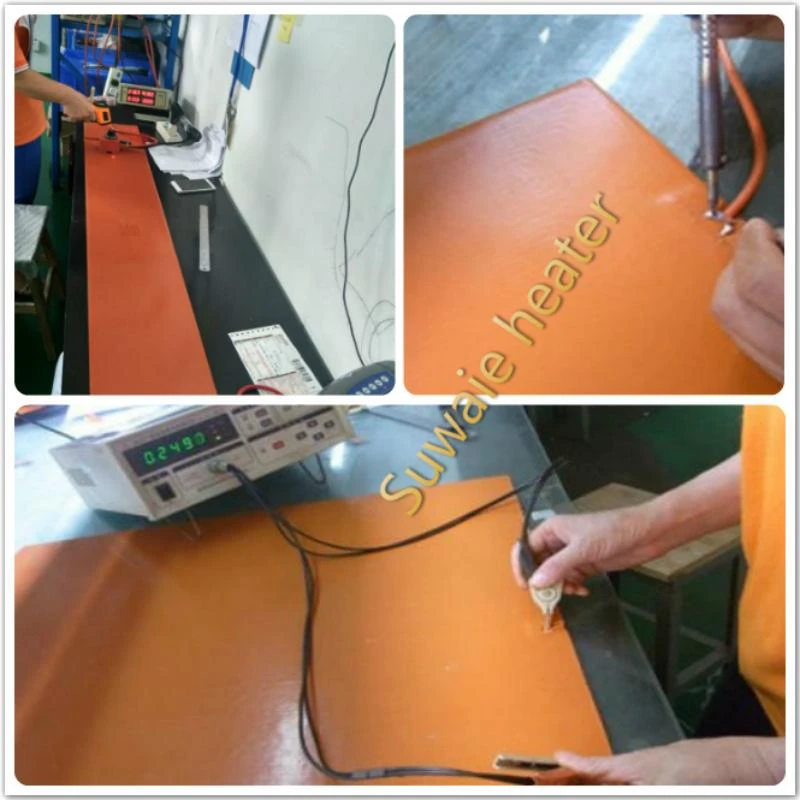

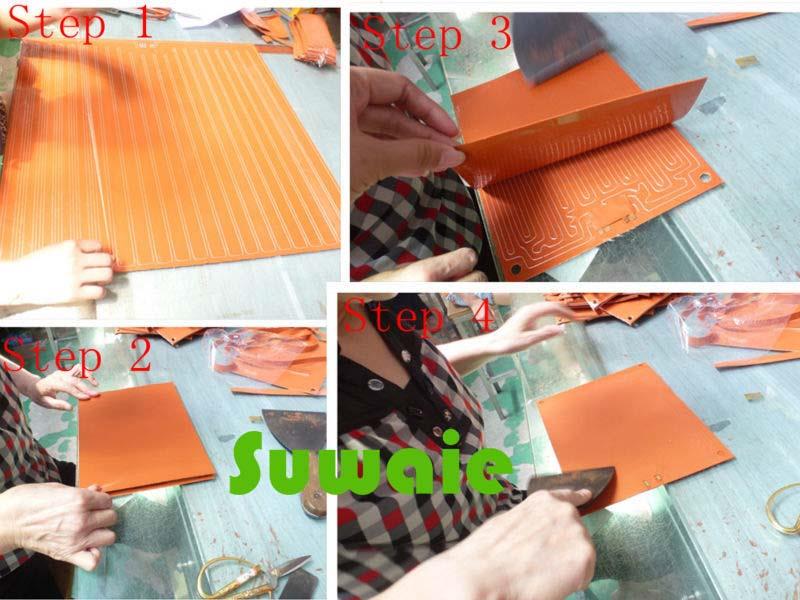

Process and working , test show
Packing and shipment case show
Why so many clients choose SUWAIE?
Our heating element has applied many countries in the world. Many countries have our projects.
Suwaie heating element advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------Price
Our price is based on the quantity, We have the basic price for 1000pcs. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose SUWAIE, you choose the cost-effective , high quality and good service.
FAQ
1. Q: Where are the main markets for sales?
A: Mainland China, UK, Thailand, Turkey, Canada, Mexico, Brazil, Argentina, Chile, India, Vietnam, Colombia, Malaysia, Australia, etc.
2. Q: How can I know the status of my products ?
A: We will keep you posted for the every production progress like material purchasing, production status, delivery time, tracking number until you recieved the products.
3. Q: What is your main product line made?
A: We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
4. Q: When can I get the price?
A: We usually quote within 2-3 days after we receive the RFQ or feedback within 2 days if any questions on prints need to be confirmed.
5. Q: What Inspection Equipments do we have?
A: Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.
6. Q: What about the payment terms?
A: 50% T/T deposit before production, 50% T/T balance before shipment.
