A cartridge heater is a heavy-duty industrial metal tube-shaped device with an electric heating coil enclosed, usually custom manufactured to a specific watt density, based on its intended application. These types of heaters are typically manufactured as low watt density, medium watt density or high watt density models. Each model offers a different approach to heating and covers different heat applications. The primary use of cartridge heaters is in the following industries: manufacturing, automotive, laboratory, or food equipment.
Medium Watt Density Cartridge Heaters are a value alternative to High Watt Density Heaters. They are the optimal choice for a high temperature that do not require an integrated thermocouple, precise wattage distribution, are less than 65 watts per square inch on the heater sheath, and have lengths greater than 7 inches. They are used for:
Heating of Manifolds
Heating of Dies
Heating of Platens
Packaging Machines
Injection Molding Machine
Extrusion Machines
Specification
|
Product nama |
Cartridge heater |
|
Cartridge heater diameter |
3mm,4mm,5mm,6mm,8mm,9mm,10mm and so on. |
|
Resistance wire |
NiCr8020 |
|
Voltage |
220V 110V,380V,24V,12V |
|
Insulation resistance |
≥50M Ohm |
|
Leakage current |
≤0.5mA |
|
Length tolerance |
±0.5mm |
|
Wattage tolerance |
+5%, -10% |
|
Input voltage |
12V, 24V,110V,220V,240V |
|
Material |
Stainless steel |
|
color |
White |

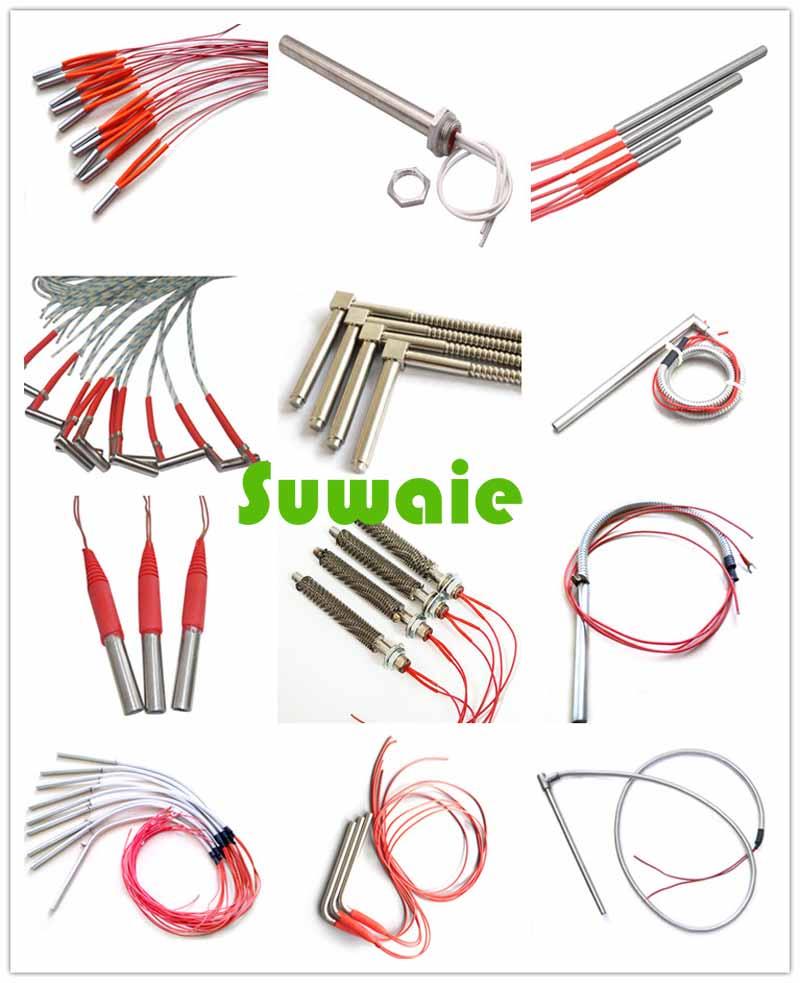

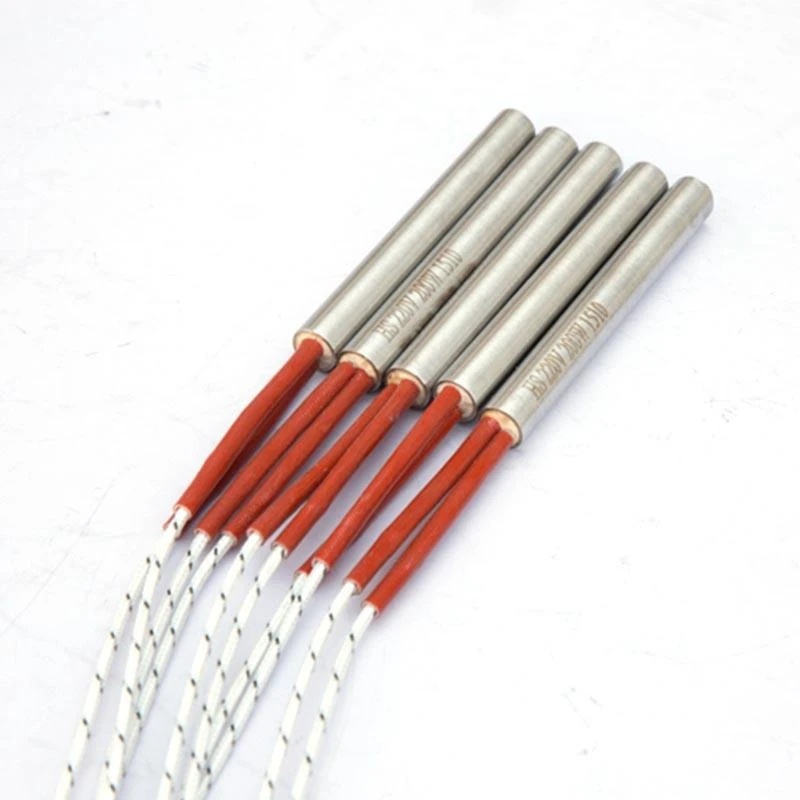

Products show

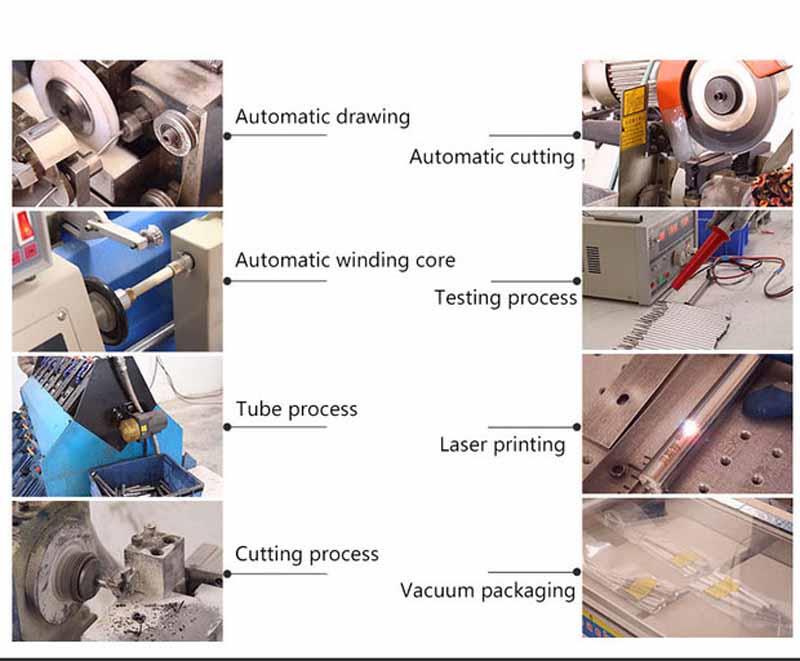

Process
Packing and shipment
Our Service
As a manufacturer with 12 years
R&D experience in China, we would like to offer any support you need as following:
1) Immediate reply to your inquiry.
2) Exact recommend of our machine for the job you do.
3) Detail information of our products, and our company if you need.
4) Best quotation.
5) Immediate answers to your questions about our produts.
6) Technical support, or alternative accessories if necessary.
FAQ
1. Q: Will my drawings be safe after sending to you?
A: Yes, we will keep them well and not release to third party without your permission.
2. Q: I Want to Keep Our Design in Secret, Can We Sign NDA?
A: Sure! We Will Not Design Any Customers' Design or Show to Other People, And We Can Sigh NDA.
