Product Details

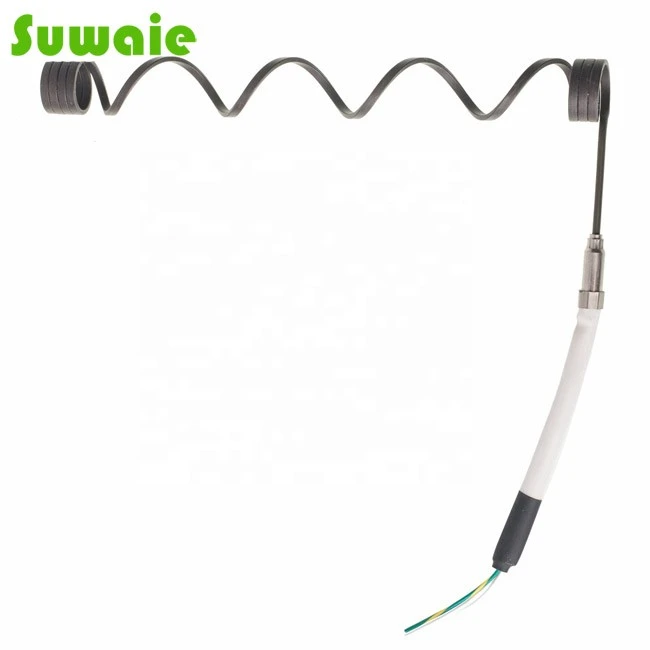

Our hot runner heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MGO powder and compact for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermo couple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

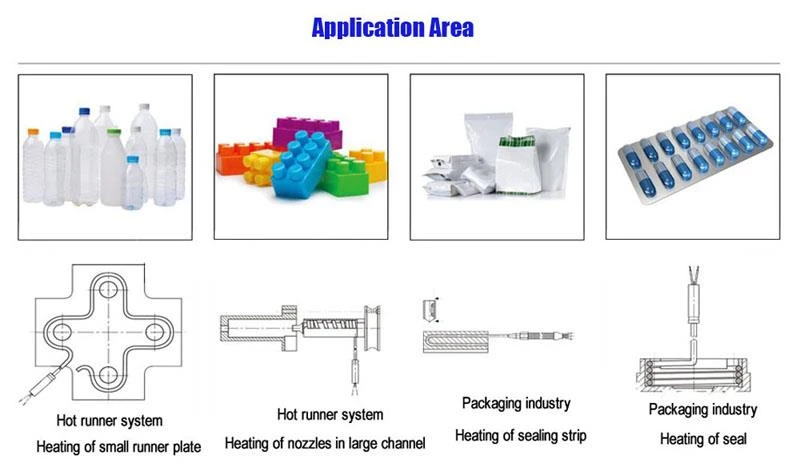

Application
- Moulds and dies - Manifolds
- Hot runner nozzles and spruce bushes
- Injection moulding machine nozzle
- Packaging machineries
Available in Following Cross Section
- 3.0×3.0, 3.30×3.30, 4.50×4.50 mm
- 4.20×2.20, 4.50×2.50, 3.20×1.80, 1.30×2.30 mm
- 3.30, 1.80, 1.60 mm

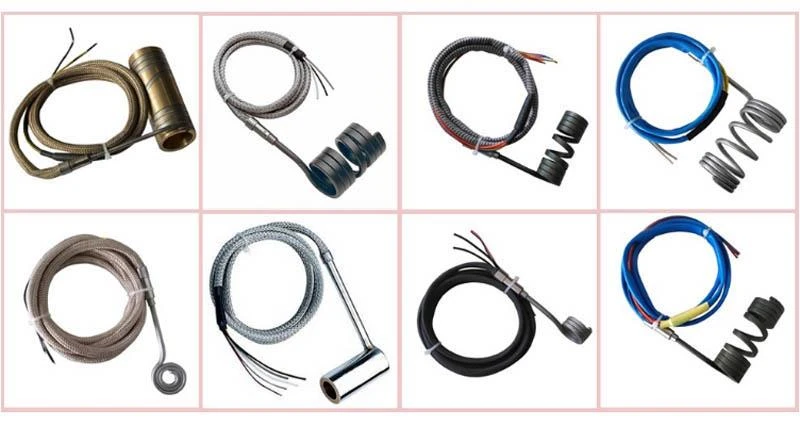

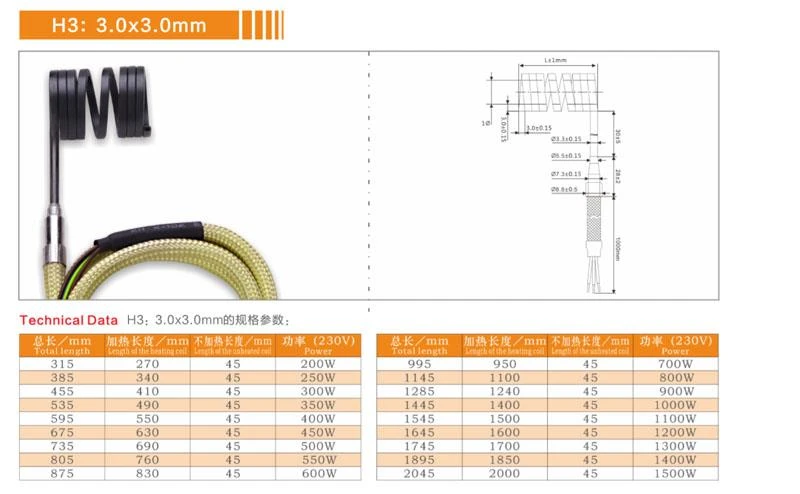

Coil heater picture show
Technical key features:
Voltage: Up to 250 V
High voltage flash test (cold): 800 V (AC)
Insulation resistance (cold): > 5 MΩ for 500 V (DC)
Leakage current (cold): < 0.5 mA for 253 V (AC)
Surface temperature: Max. 750°C
Length : Max. 3000 mm
length tolerance: ± 5%
Diameter tolerance: ± 0.15 mm
Leads: PTFE insulation, heat resistant up to 260°C
Power tolerance (cold) Standard: ±10%
On request: ± 5%
Sheath material: Quality 1.4541
Power density: Max. 15 W/cm²
Resistance per meter heated length: 20 to 1400Ω
Thermocouple: Type J / K
Test Following to EN 60335/2/11 & EN 60204-1

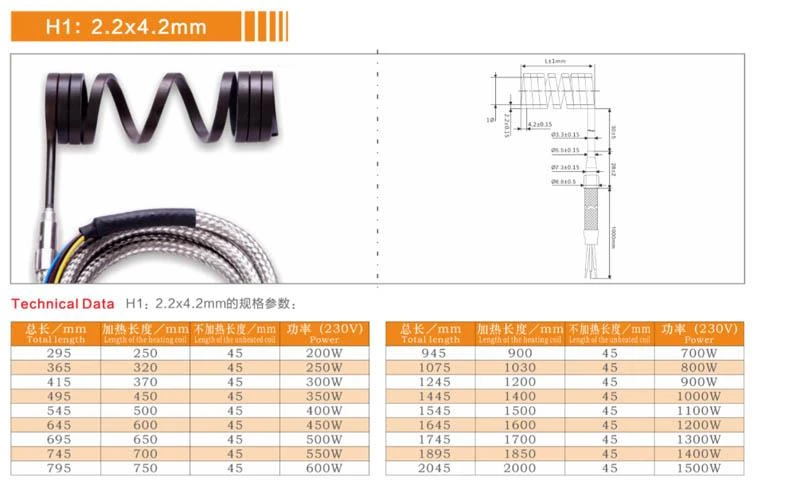

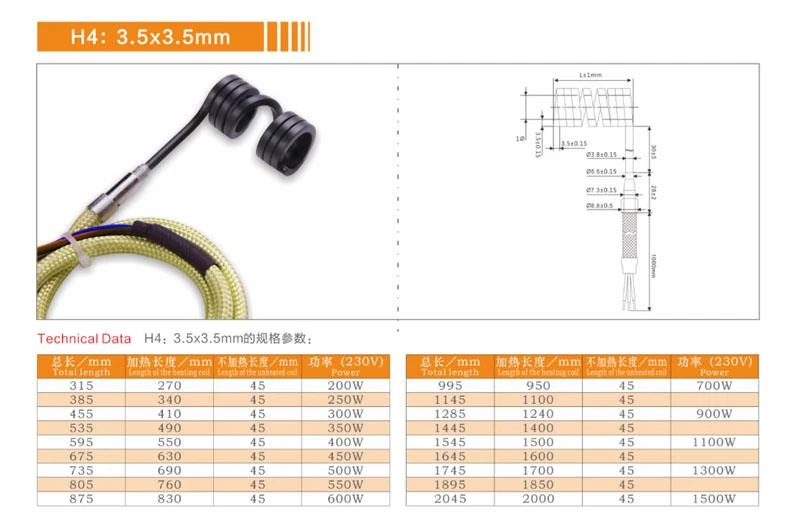

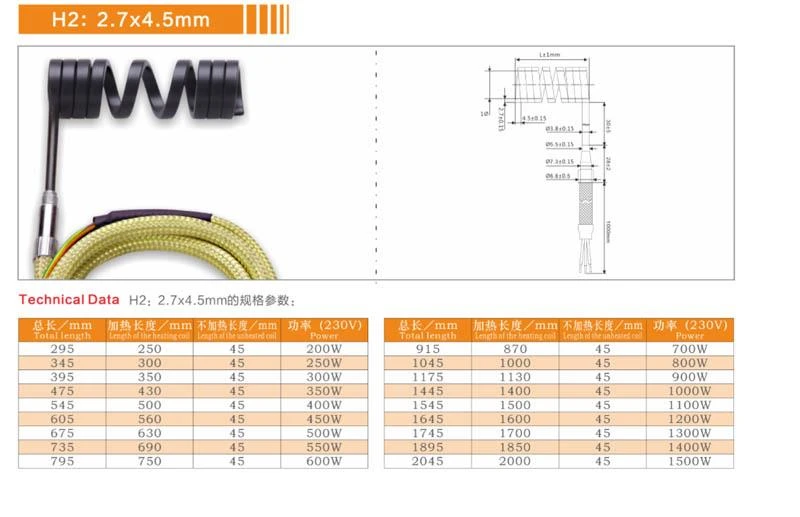

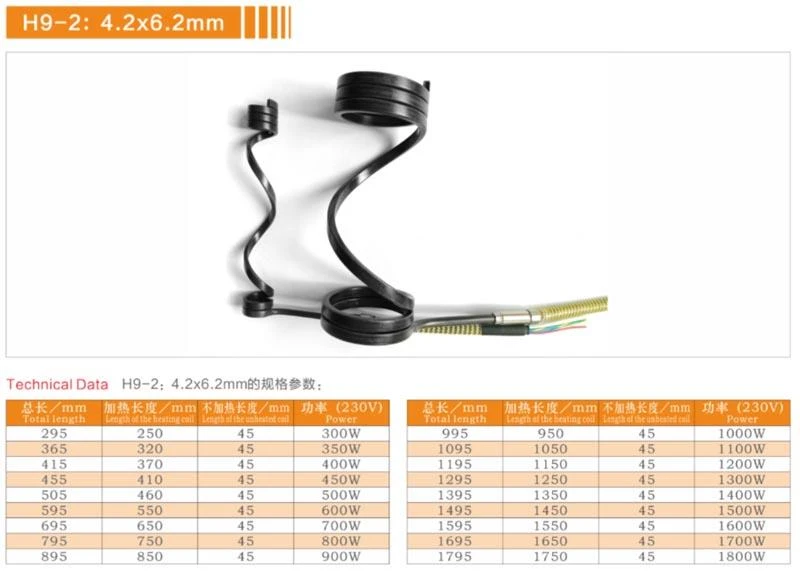

Hot runner coil heater type show

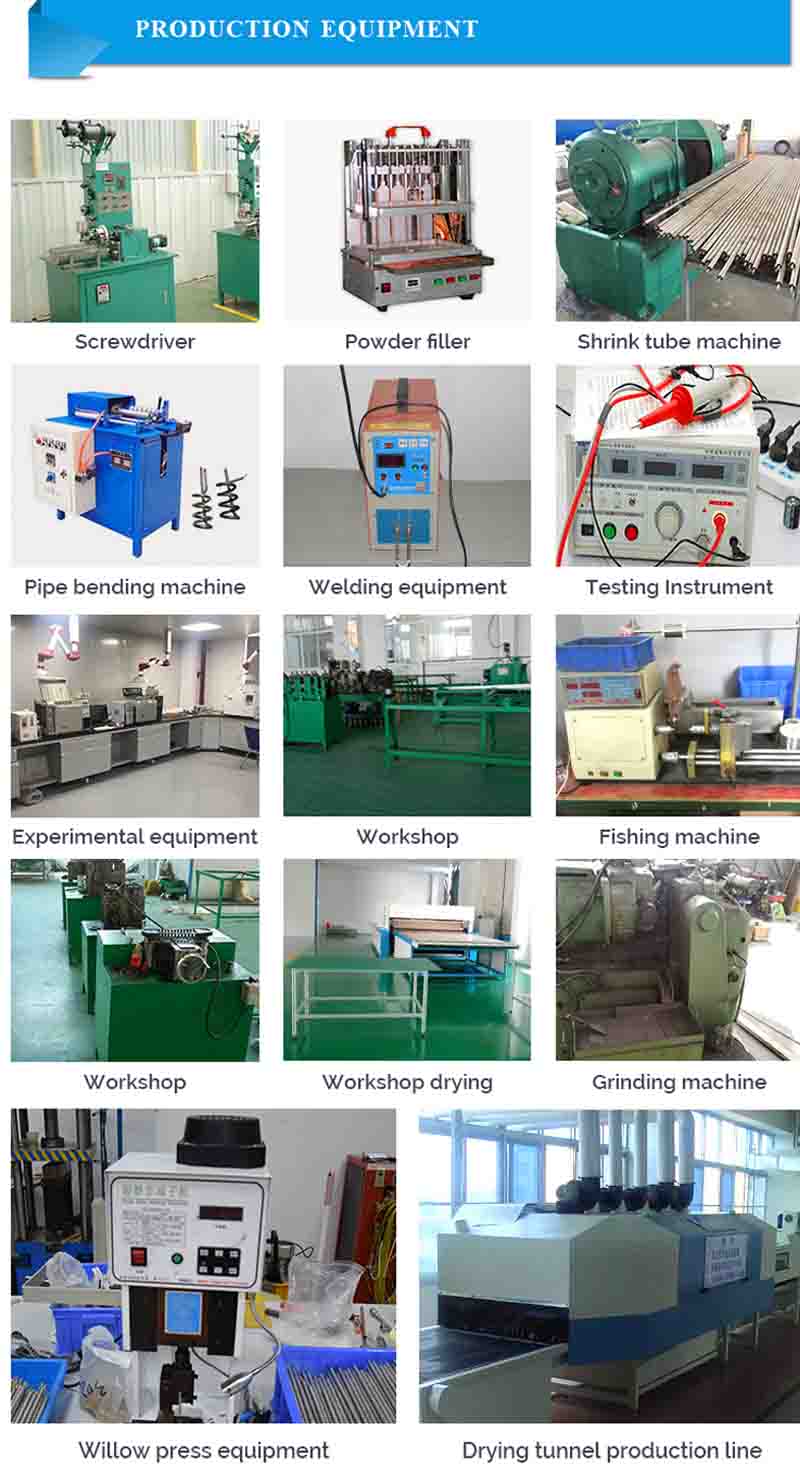

Process show
Packing and shipment
Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of heating element.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ
1. Q: What's your packing?What to do in case of damaged goods during transport?
A1: Our Normal packing is bulking in Cartons, less than 20 kgs/carton, 48 cartons / pallet. We also can pack products according to your requirement.
A2: To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
2. Q: Do you company have the website?
A: Yes, we have two website: www.suwaie.com and www.suwaieheater.com
3. Q: Have the R&D for our company?
A: We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.
