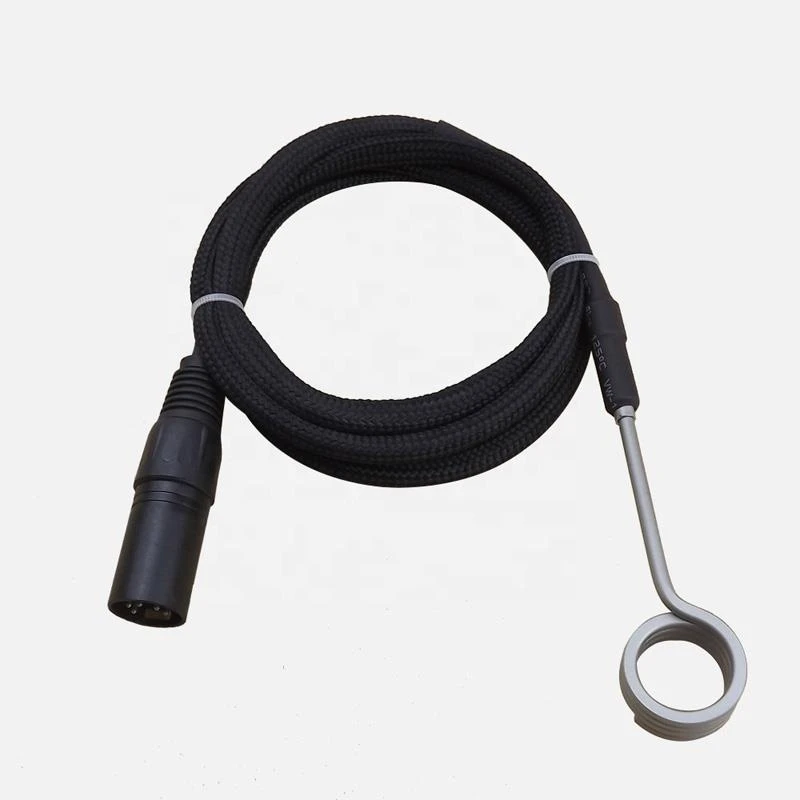

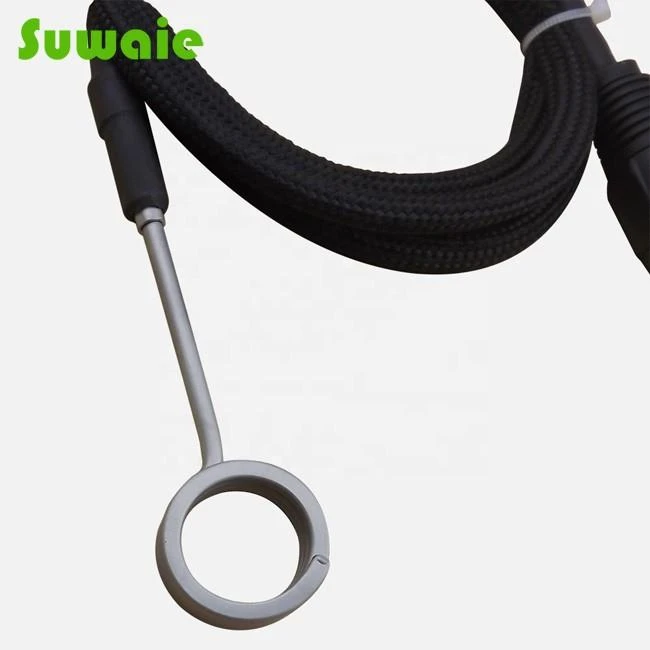

Coil heater description:
Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.
Hot runner Coil heater SERIES:
|
Name of product |
Hot runner coil heater |
|
Inner Diameter of coiled heater |
8/10/14/16/18/20mm ( + 0.05mm) |
|
Coil Height |
13.3mm/12.7mm ( + 0.05mm) |
|
Flat Coil |
ID9mm, OD26mm |
|
Voltage |
12v; 24v; 120v; 220v |
|
Wattage |
100w; 120w; 150w; 250w |
|
Cross-section |
3x3mm; 2.2x4.2mm |
|
Thermocouple |
K or J type |
|

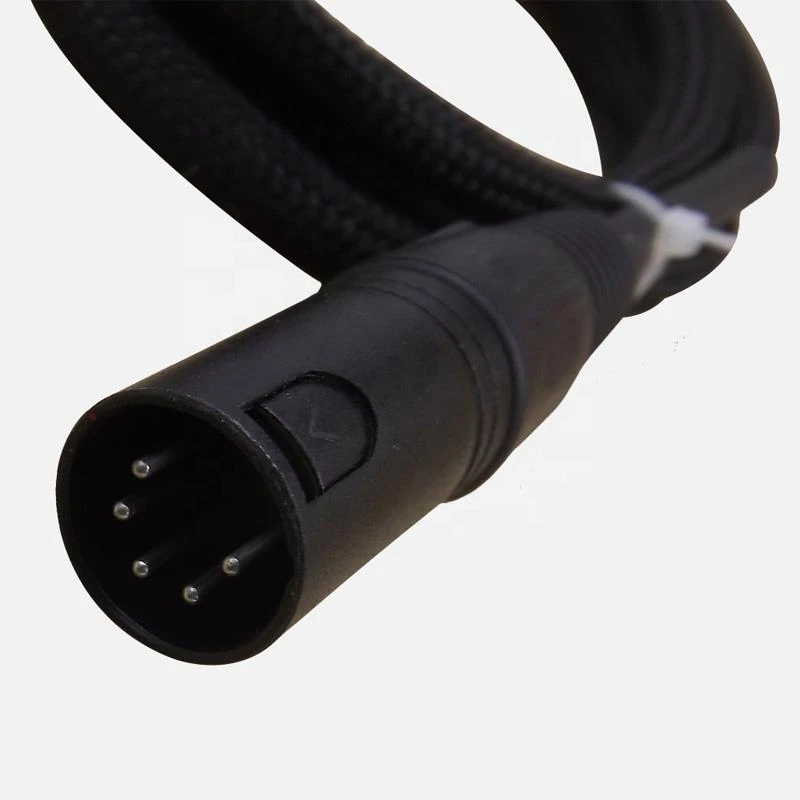

Connector plug |
Xlr female and male 5 pin |
|
Sleeve material |
Kevlar/fiberglass(Fashional) |
|
Sleeve color |
Red, black, yellow, green, blue, and black with yellow strip |
|
PID Temperature controller |
L125xW90xH35mm |

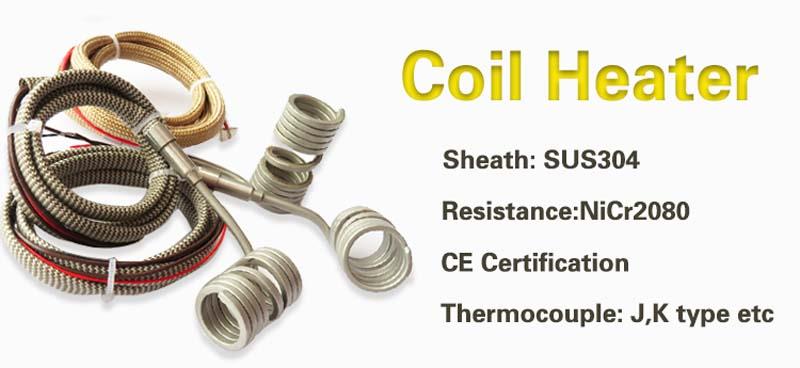

Products show
Specifications:
|
Sheath Material |
Cr Ni-Steel |
|
Insulation Material |
MgO |
|
Resistance Wire |
Ni Cr 80-20 |
|
Maximum Sheath Temperature |
700°C |
|
voltage |
800V A/C |
|
power |
> 5 M W |
|
Thermocouple |
J type (Standard) or K type |
|
Length Tolerance (Straight) |
5% |
|
Wattage Tolerance |
+ 10% ( + 5% Available Upon Request) |
|
Resistance Tolerance |
+ 10% ( + 5% Available Upon Request) |
|
Unheated Length |
35mm (Standard) |
|
Dimensional Tolerance |
Coil I.D + 0.1 to 0.2mm |
|
Coil Length + 1mm |

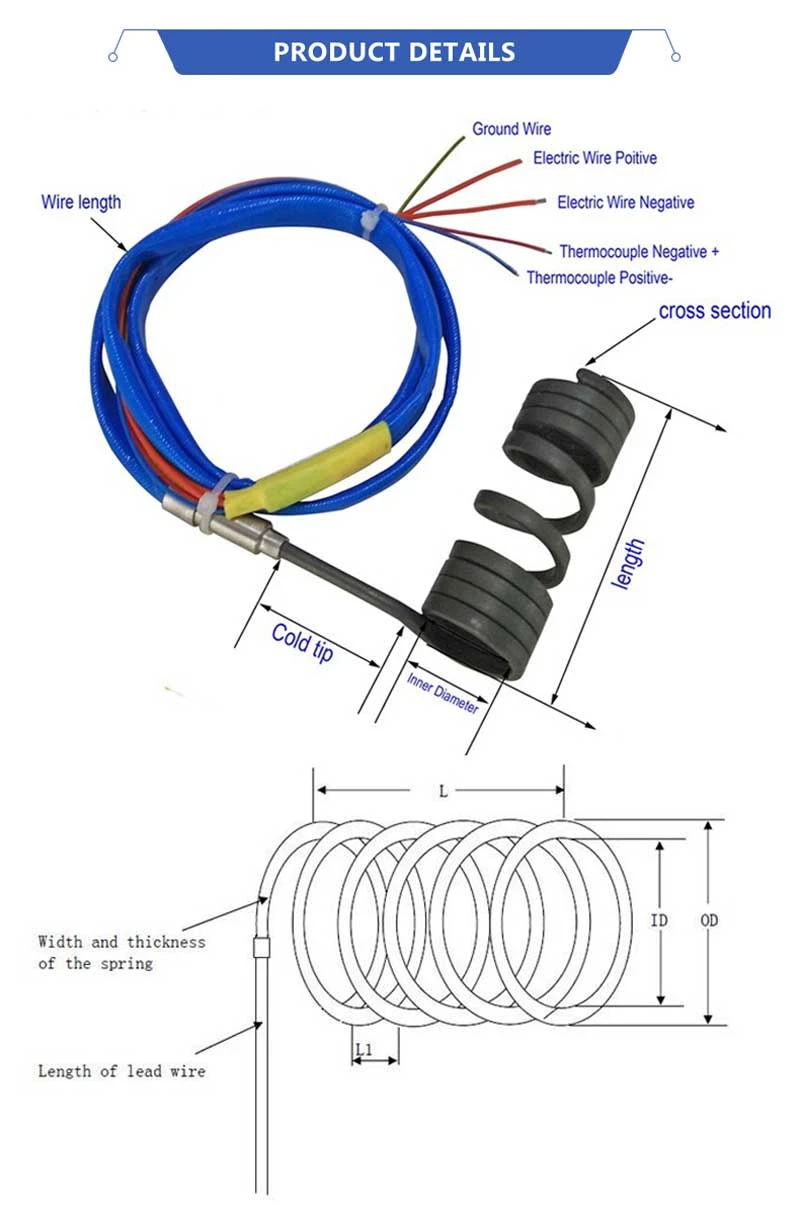

Coil heater drawings:

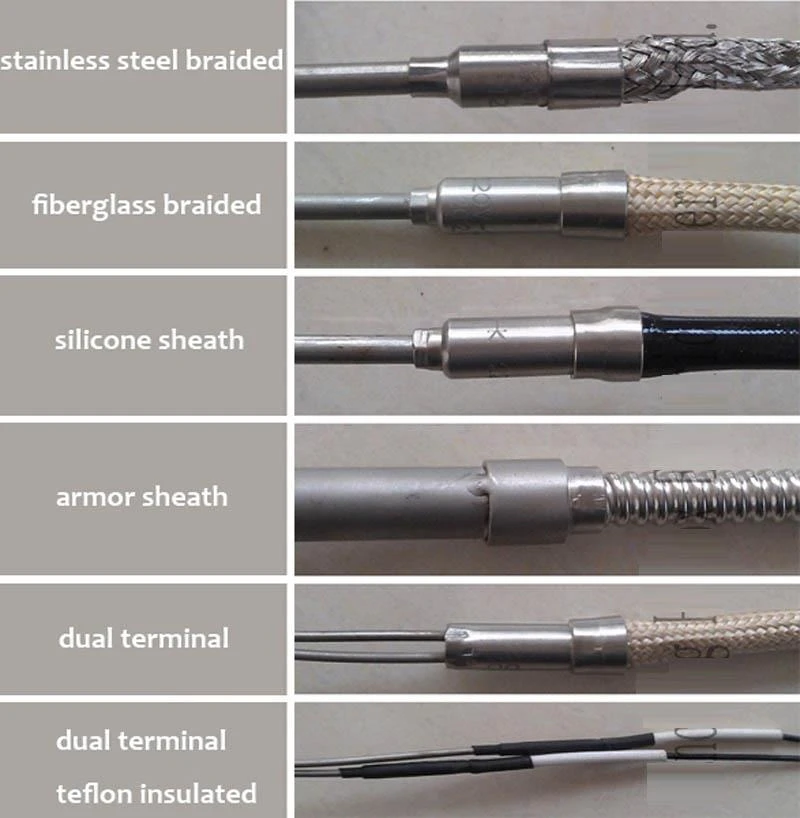

Hot runner heater lead wire type

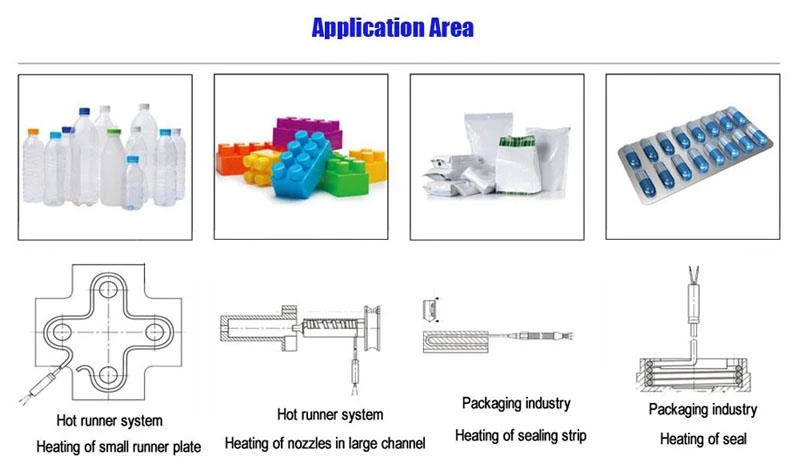

Applications for Industrial Spring Coil Heater
1. Manifolds
2. Hot runner nozzles and spruce bushes
3. Packaging machinery
4. Injection molding machine nozzle
Exhibition

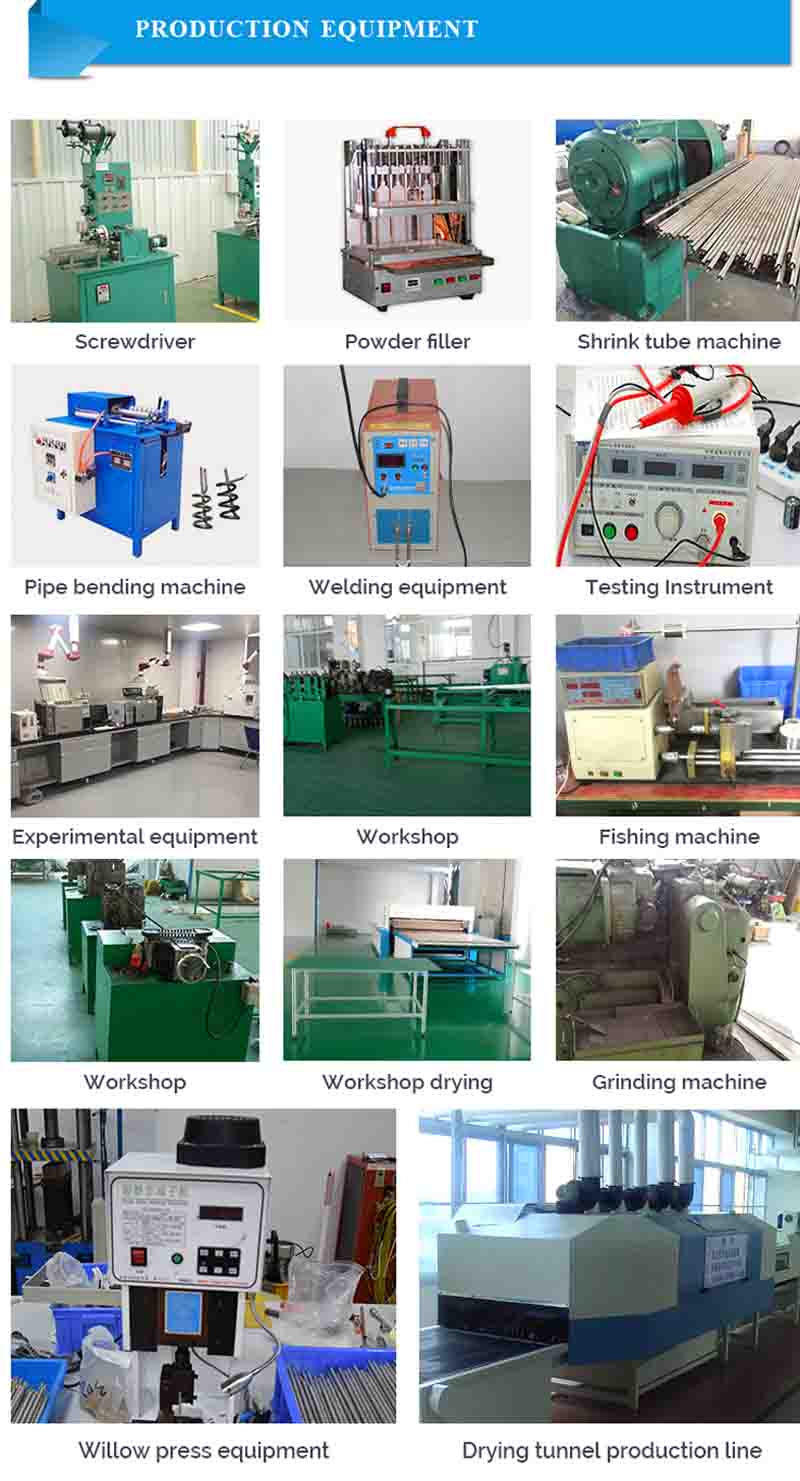

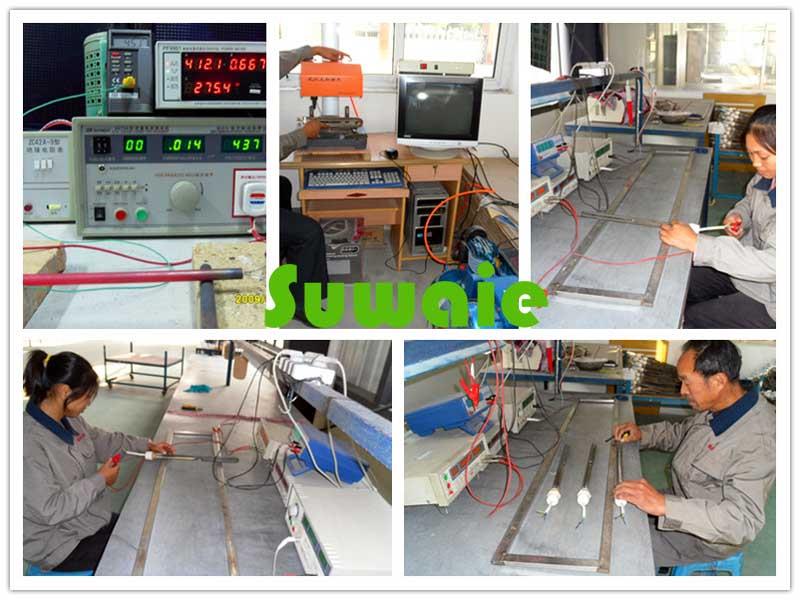

Process and test room
Packing and shipment
Our trade terms:
1. Payment term: 50% deposit by T/T,balance before shipentment
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen,C&F Shenzhen.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.
FAQ
1. Q：What is the main service of your factory?
A: We focus on heating element for more than 12 years!
2. Q: What products can supplier?
A: We can supply all industrial heaters, heating element machinery, raw material and spare parts for heating elements. thermocouples and parts
3. Q: Is small quantity available?
A: Yes, small quantity for trial order is available.
