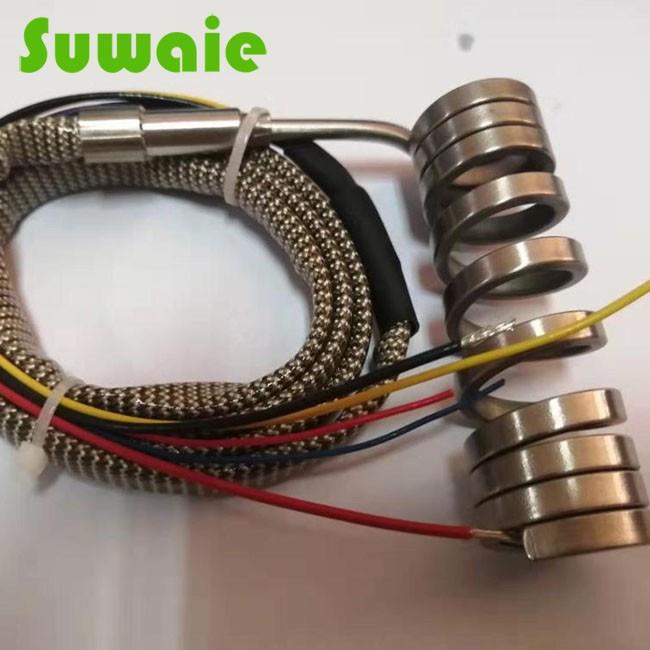

Coil Heater With Thermocouple
Introduction
1. The micro electric heaters of the company adopts imported Donghuang magnesia powder as the insulating filling medium, which has the advantages of fast heat dissipation and high insulation. The heating wire and the wire are made of raw materials imported from Germany, which greatly prolongs the service life of the heater.
2. The hot runner coil heater is wound into a shape and formed by a CNC tube bending machine and a customized special fixture. The inner hole has high dimensional accuracy, the tolerance can reach ±0.05mm, the size is stable, and the consistency is good.
3. The industrial heater coils uses the German imported mirror to detect the position of the hot end and the cold end. It has high temperature measurement accuracy and good consistency, and is especially suitable for multi-cavity hot runner systems.
Technical parameters:
Item description | heat runner heater |
Main application | Mainly used in injection moulding machine, hot runner nozzles and bushings, packaging machine, hot runner injection moulds, injection & blow moulding machine nozzles, hot runner manifolds etc. |
Sectional area | 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5, 3.3X3.3, 3.5X3.5 |
Inner Diameter | 8mm, 10mm, 12mm,ETC |
Sheath material | SS304,SS310 |
Insulation material | High pure MgO |
Resistance wire | Cr20Ni80 |
Max. Sheath Temp. | 700degrees |
Dielectic Electrical Strength | 800V. A/C |
Dimensional Tolerance | Coil ID. +/-0.1~+/-0.2mm; |
Wattage tolerance | +/-10%(+/-5% available upon request) |
Voltage & Wattage | 12-380V/70-1000W |
Build-in thermocouple power | With or Without J/K Type Thermocouple. |
Sheath length | 500/1000/1200/1500/2000mm |
Available Sheath Material | Stainless steel braided/Fiberglass braided/Silicone sheath/Armor sheath/Dual terminal/Dual terminal teflon insulated. |
Order Guider
1.Cross Section
2.Circles / length/ diameter
3.Voltage
4.Wattage
5.Quantity

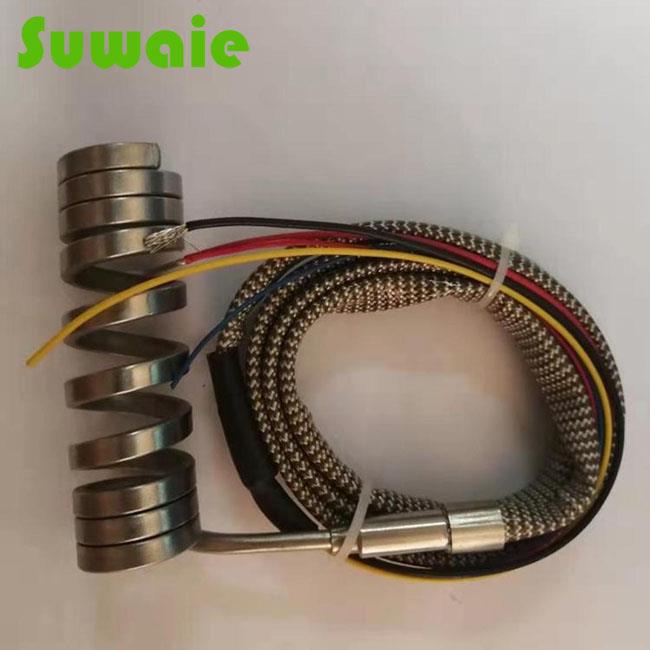

Coil Heater products picture show
Coil Heater Process show
Hot Runner Mold Heater Test room show
Packing and shipment ways
Why Choose us?
1. With R&D department, We can do OEM&ODM orders.
2. Own factory, price can be the lowest during the heating element market.
3. We produce products by ourself, so we can ensure the product quality, package details and delivery time.
4. Our factory local in Shenzhen.
5. For samples, we can delivery 3-7 days.
For bulk order, we can ship it within 7-30 working days.
FAQ
1.
Q:How can I get some samples? A:We don't provide free one, but we will minux the extra price when you reorder with the suitable quantity.
2.
Q: How long should your heater serves?
A: The lifespan of heater is decided by the quality of Mgo and resistance wire quality. With good resistance wire, our heating element can serve 50000 hours.
3.
Q: How can I get the price ?
A: Pls Email/call/levea message to us with you the unit you are looking for with you details (name, telephone, address, etc), and your products details,we will send to you ASAP.
