Shenzhen Suwaie heater are leading manufacturer, Exporters and Service Provider of Hot Runner Heaters and our product is made up of good quality.
These Hot Runner Heaters and Bushes are made up of high-quality nickel chrome resistance wire.
These Hot Runner Heaters and Bushes can be offered as per the client specifications and requirements.
Features:
Sheath temperature up to 800o C
Higher watt densities
Build in Type "J" (or) "K" Thermocouple
Available in following cross sections: 3 mm X 3 mm, 3.3 mm X 3.3 mm, 3.7 mm X 3.7 mm, 4.5 mm X 4.5 mm, 4.2 mm X 2.2 mm, 3.2 mm X 1.8 mm, 1.8 mm, 3.3 mm, 3.7 mm
Rugged & Durable Construction
Available as per customer's specifications

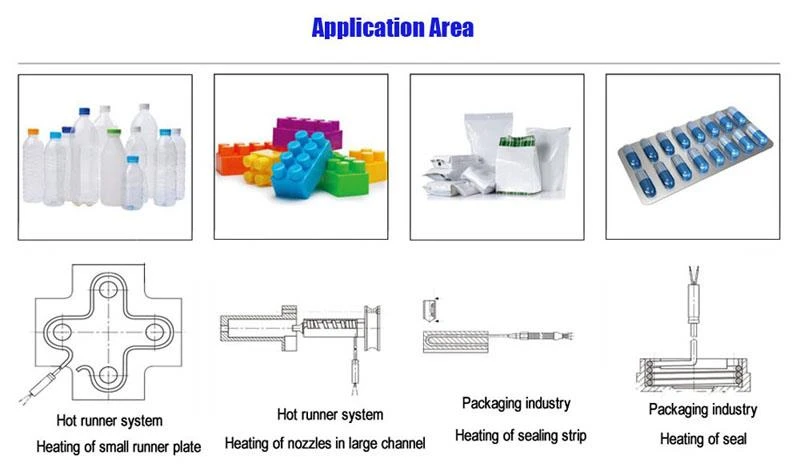

Applications:
Spring coil heater (H series) | 3.0x3.0 | Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 | 5.0x5.0 | |
Voltage | 220V、230V、240V | ||||||
Power tolerance 115W-200W | +/-10% | ||||||
Power tolerance 201W-2000W | +5%-10% | ||||||
Out jacket length | 30mm~280mm | ||||||
Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | ||||||
Unheating length | 45mm | ||||||
Max power density | 9W/cm² | ||||||
Heating Length tolerance | +/-0.05mm | ||||||
Unheating length tolerance | +/-2.5% | ||||||
Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm | ||||||
Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm | ||||||
Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm | ||||||
Tolerance cross section | +/-0.15mm | +/-0.20mm | |||||
Thermocouple | K、J、E | None | |||||
Material | 304、321、316 | ||||||
Maximum working temperature | 650℃ | ||||||
Die electrical strength | 800V | 1000V | |||||

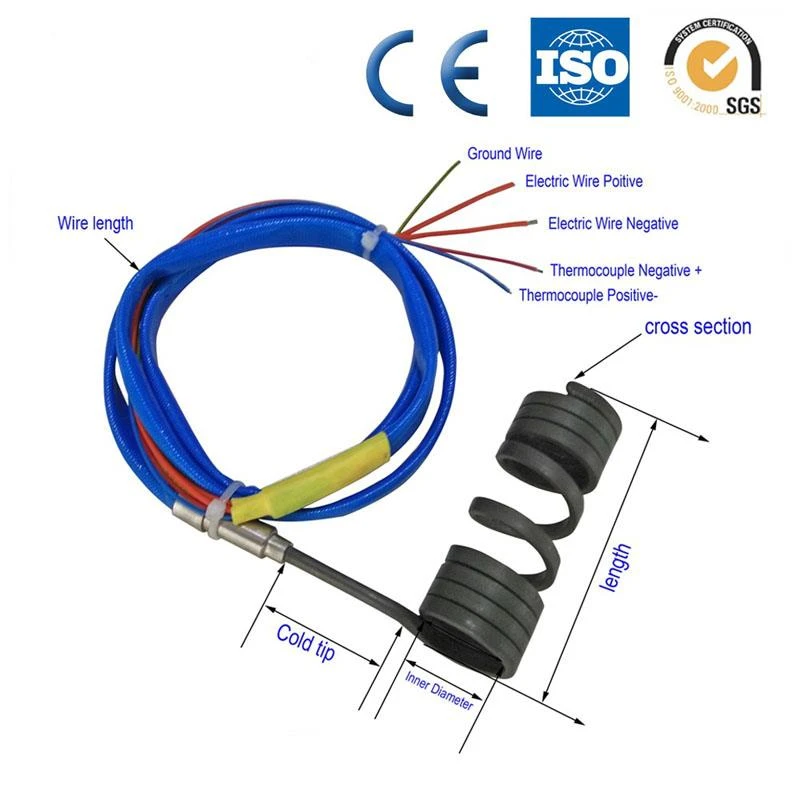

Hot runner heater draiwng show

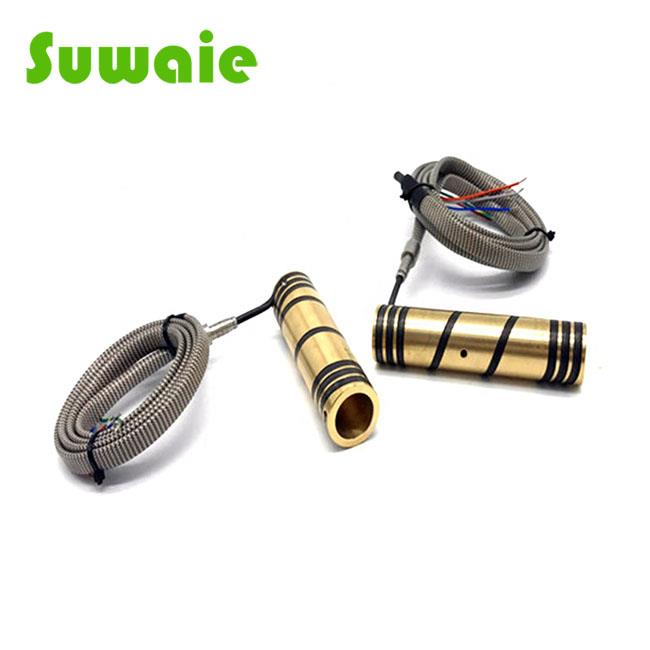

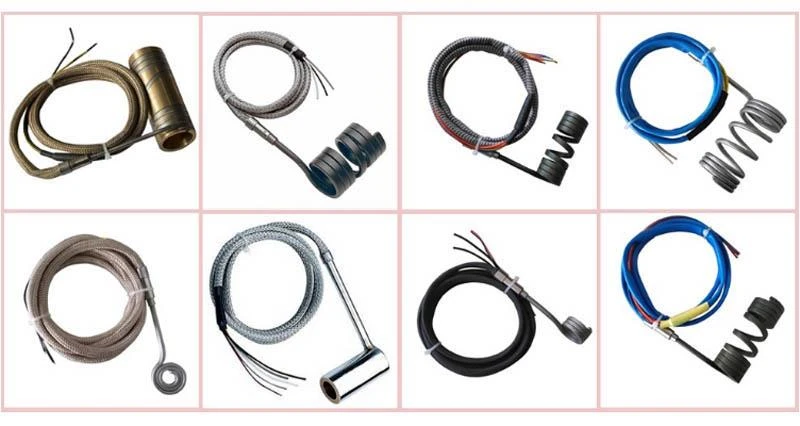

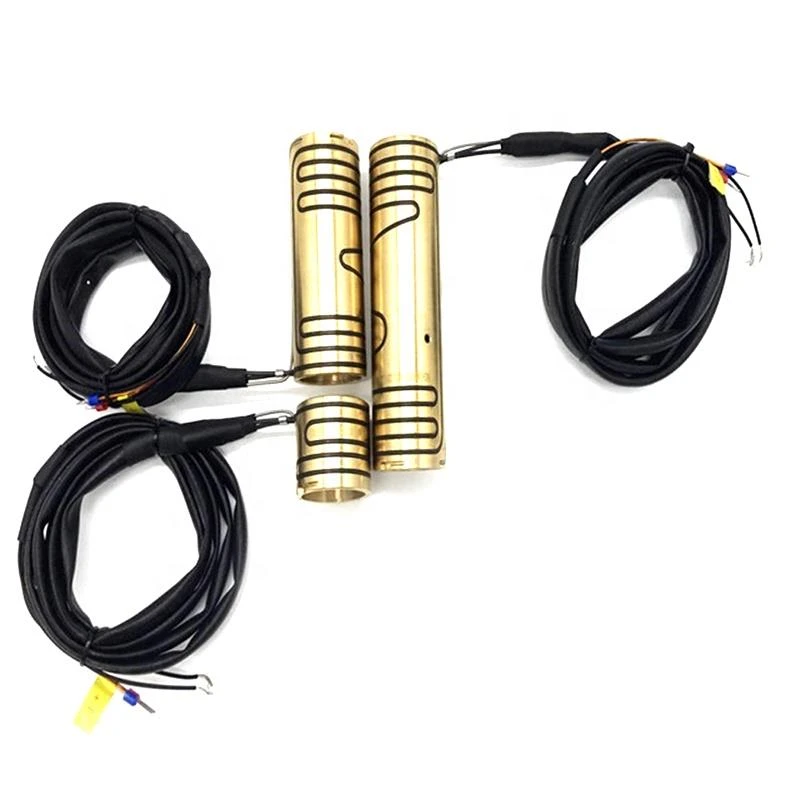

Products show
Quality control test room show
Packing and shipment
Our Advantages
1. We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2. We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3. We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4. We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1. Q: How to proceed the order if I have logo to print?
A: First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
2. Q: What is your minimum order quantity?
A: There's no minimum quantity ,you can buy any quantity. However, few in number, the unit price will be a little higher.
