Provided Cast In & Pressed-In Brass Coil Heaters are known for higher temperature nozzle heating applications. These heaters windings have been appreciated to shift in the direction of the pour-which creates variability from heater to heater. Further, offered heaters is widely used in immersion applications or available with us in all the standard sizes or can be customized as per the specific demand of our valued customer. Further, offered Cast In & Pressed-In Brass Coil Heaters improves quality, reduces cycle time and extends the range of plastic that can be run on a hot runner system.

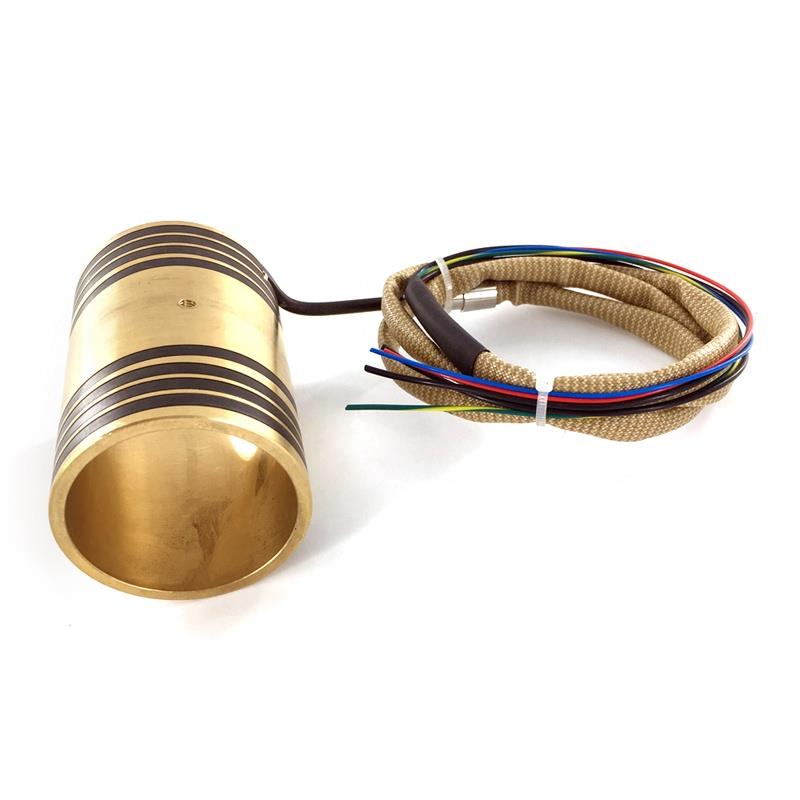

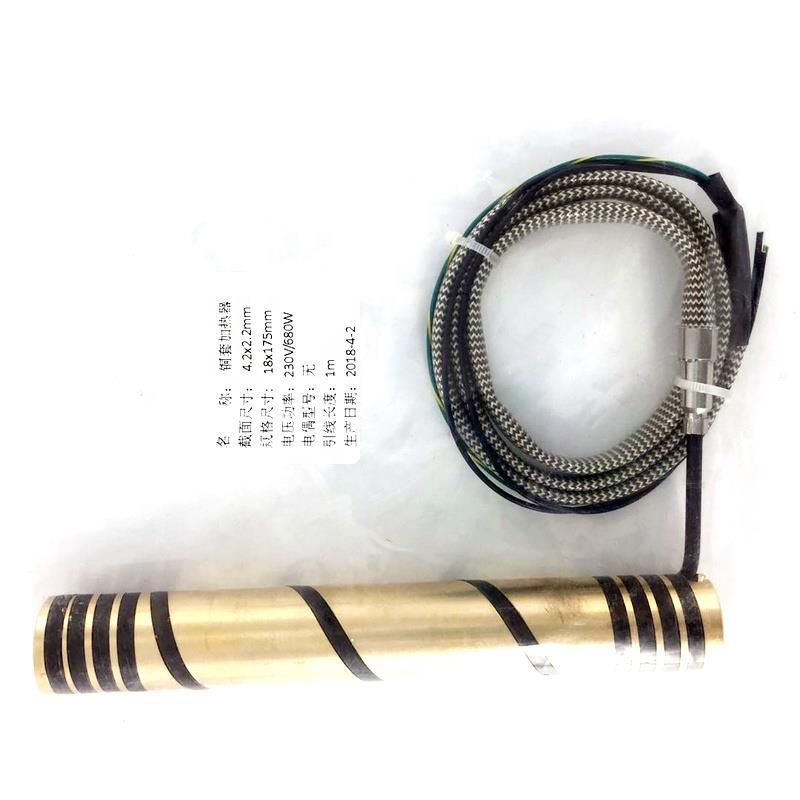

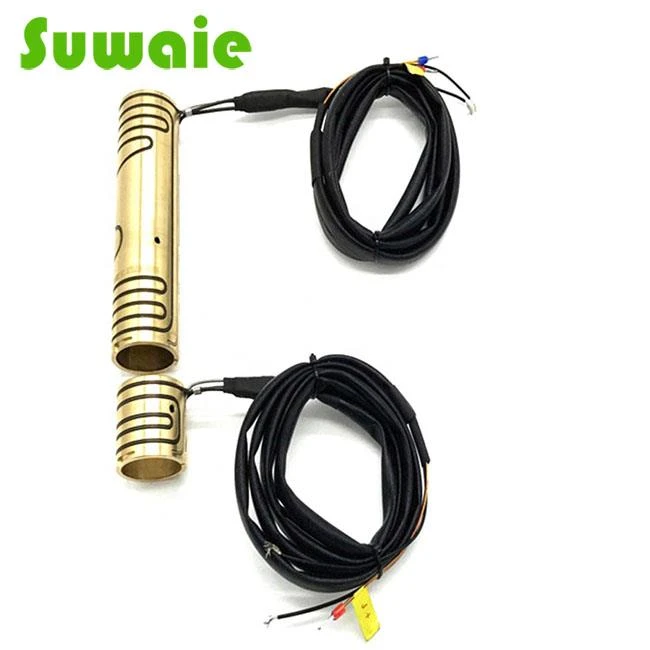

Suwaie Heaters' pressed in brass coil heaters deliver the benefits of cast in brass coil heaters and eliminate known problems associated with the casting process. Originally designed for the mass spectrometry market, SUWAIE pressed in brass coil heaters have measured 8% faster responding than cast in brass heaters. The machined path in the brass for the heater enables exact repeatability of heat profile. By never exposing the coil heater to molten brass there are no risks of shifted heater coils, or destruction of the thermocouple junction.
Technical Specifications:
1. Profile: 1.8mm(.071”) Thick X 3.2mm(.126”) Wide
2. Thermocouple: Integrated type J or type K
3. Maximum Sheath Temperature: 1382 deg. F
4. Sheath Material: Cr-Ni Steel
5. Maximum Total Straight Length: 3000mm (118.11”)
6. Length Tolerance: Heated +/-1%; Unheated +/- 2.5%
7. Maximum Voltage: 250VAC
8. High Voltage Stability: 800 VAC
9. Wattage Tolerance: +/-10% (contact hotset for special)
10. Minimum Bending Radius: 8mm(.315”)
11. Watt Density: 38.7 Watts/In2
12. Insulation Resistance: >=5M Ohm @ 500 VDC (cold)
13. Leakage Current: <= 0.1mA @ 253 VAC (cold)
14. Length of Unheated Zone: 65mm(2.56”); 25mm(1.00”) Transition Head
15. Standard Connection from Stock: 48” Teflon Leads.
Nozzle heaters
High watt density flange-lock nozzle heater bands
Friction Fit (wedge-lock) nozzles heater bands
Brass heater bands
Mineral Insulated high wattage bands

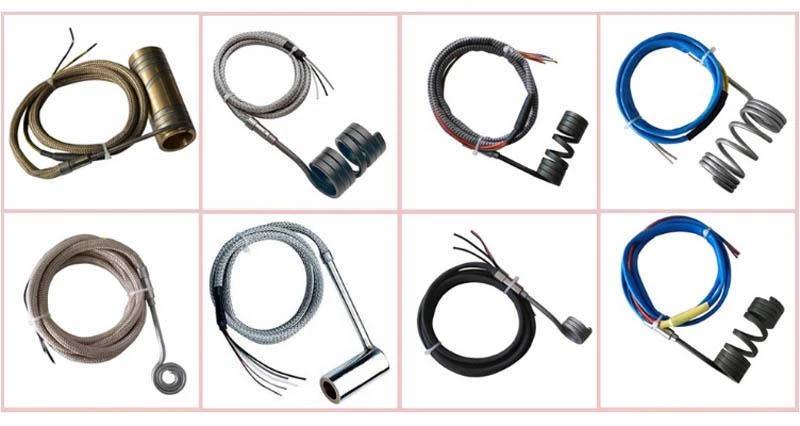

Coil heaters
Products show

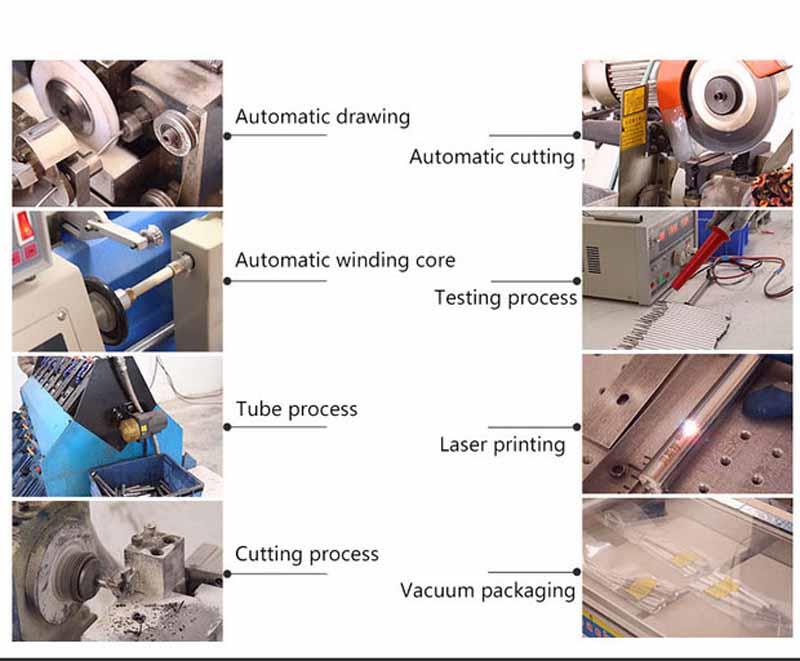

Process and test
Exhibition
Packing and shipment
Quality Control:
1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production finished
4) International sales who were trained the technical know-how spot check before shipping
FAQ
1. Q: How can I know the status of my products ?
A: We will keep you posted for the every production progress like material purchasing, production status, delivery time, tracking number until you recieved the products.
2. Q: How long is the lead time?
A: For large quantity orders, products will depart from Shenzhen within 7-30 days after the deposit received.
