Description

Coil heaters are commonly used for nozzle heating on hot runner systems in the plastic industry but also used for the packaging industry etc. Coil heaters are manufactured in round, square or rectangular section to guarantee the greatest thermal exchange keeping an excellent efficiency and a good reliability.

Application

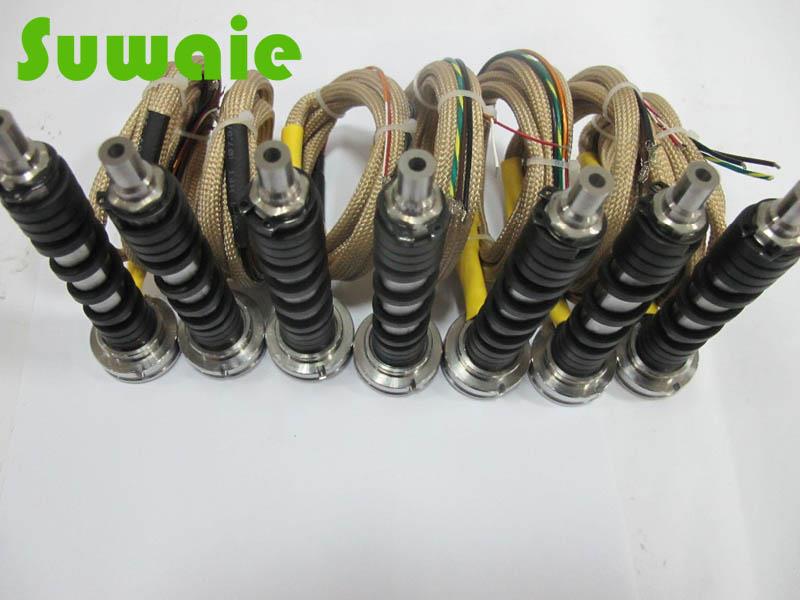

Hot Runner Spiral Coil Nozzle Heater hot system application

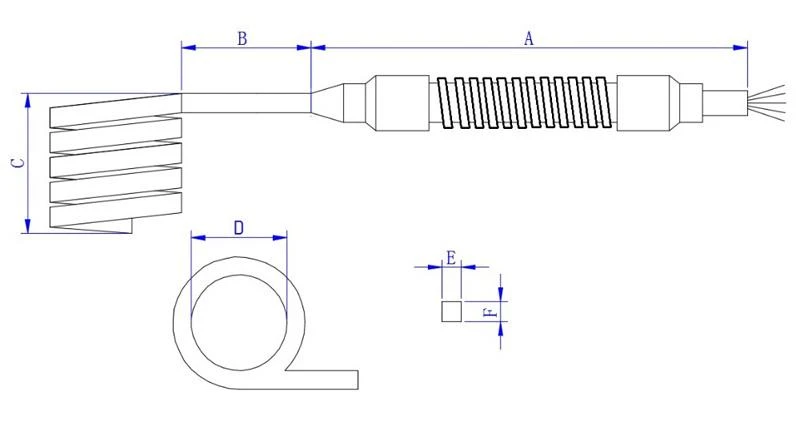

Drawing

Specification:

Name of product	Hot runner heater
Inner Diameter of coiled heater	8-38mm( + 0.05mm)
Coil style Length	40-200mm (+ 0.5mm)
staright style length	200-3000mm (+ 0.5mm)
Cross-section	Round Dia.3mm;3.3mm;3.5mm Square: 3x3mm;3.3x3.3mm,4x4mm, Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
Tube Material	SUS304/SUS/310S/Incoloy800
Tube color	sliver or annealed black
Insulation	High pure Mgo
Inner heating element	NiCr8020
Voltage	12v;24v;110v;220v;240v;380v
Wattage	200-3000w( 6.5W/CM2 ) + 5% tolerance
Max. Temperature:	750°C
Built-in thermocouple	with or without J /K TC(Available)
Delivery Time	3-5 days(10-500pcs) 7 days(more than 500pcs)

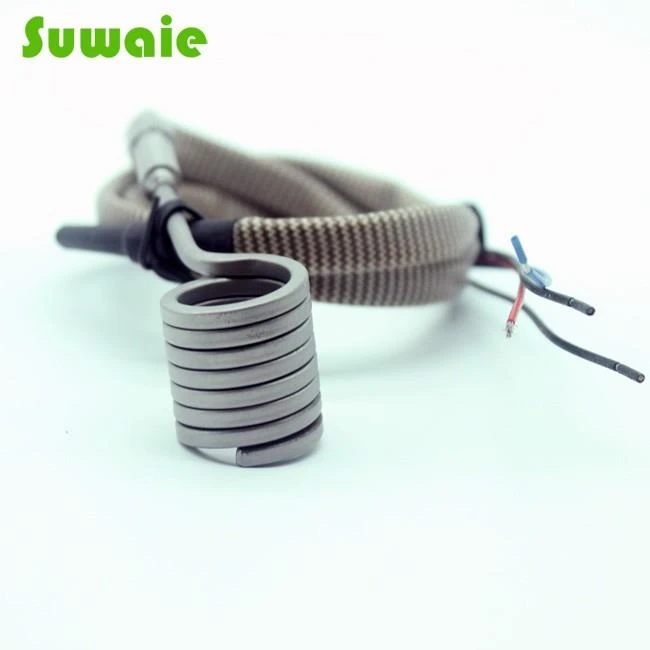

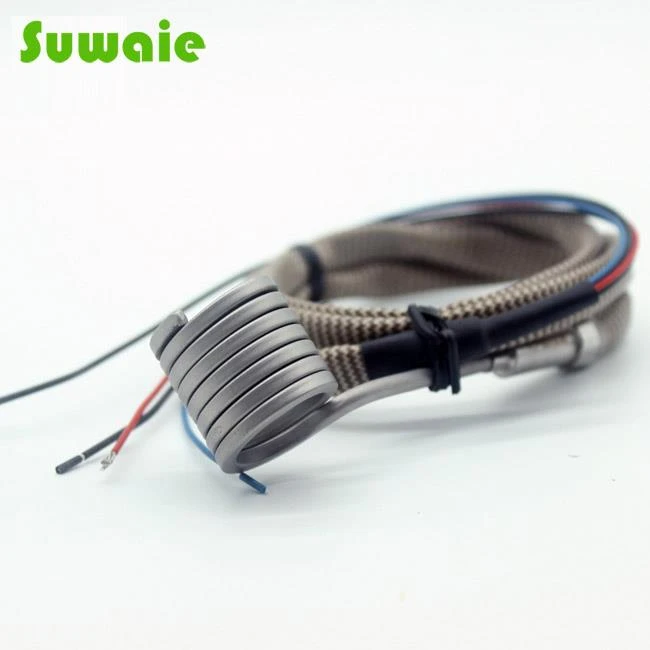

Products show

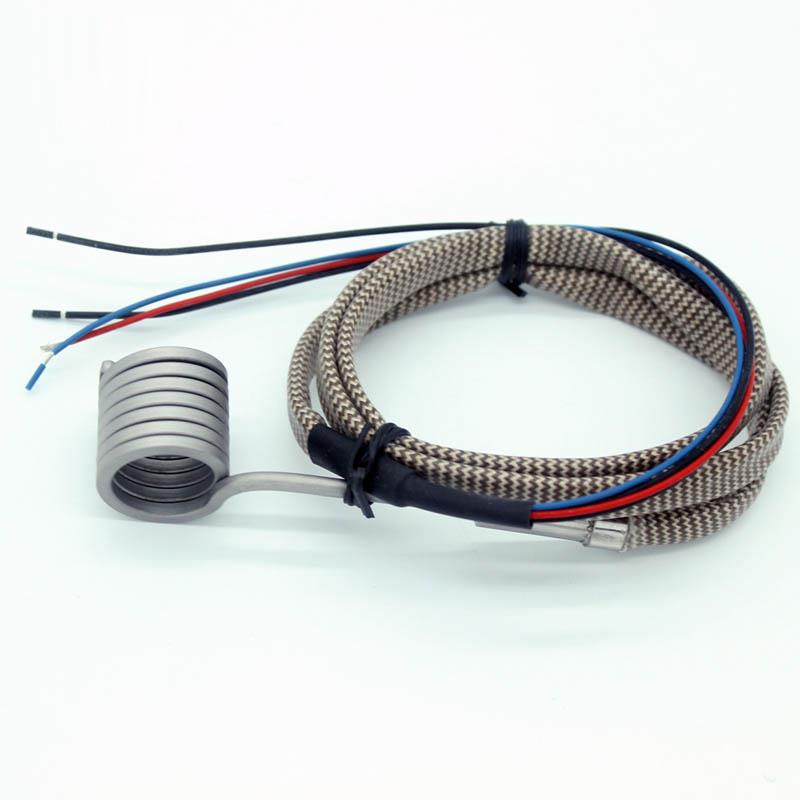

Hot Runner Spiral Coil Nozzle Heater manufacturer

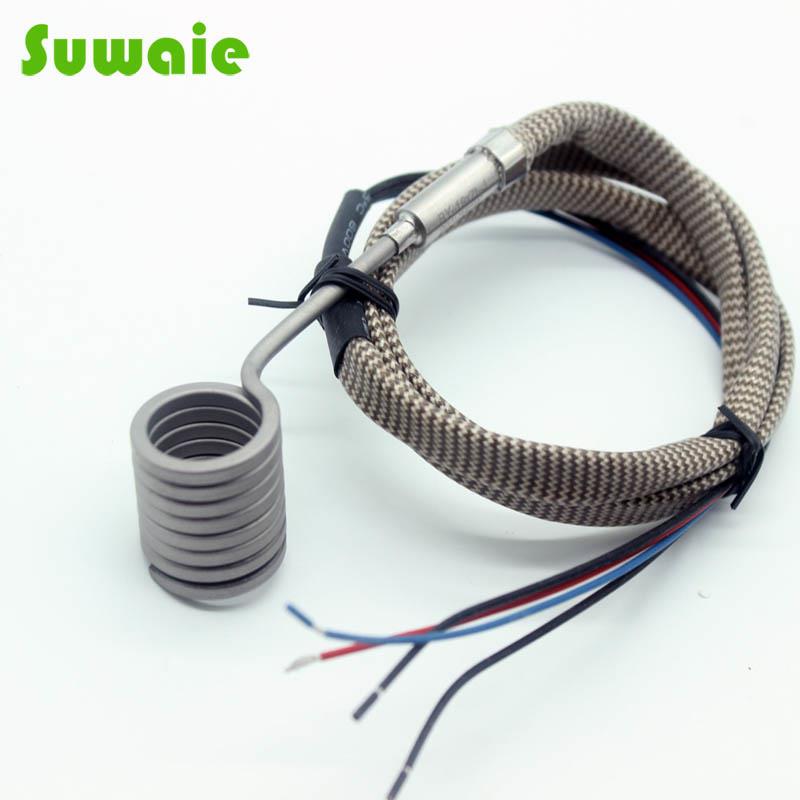

Hot Runner Spiral Coil Nozzle Heater supplier

Process and test

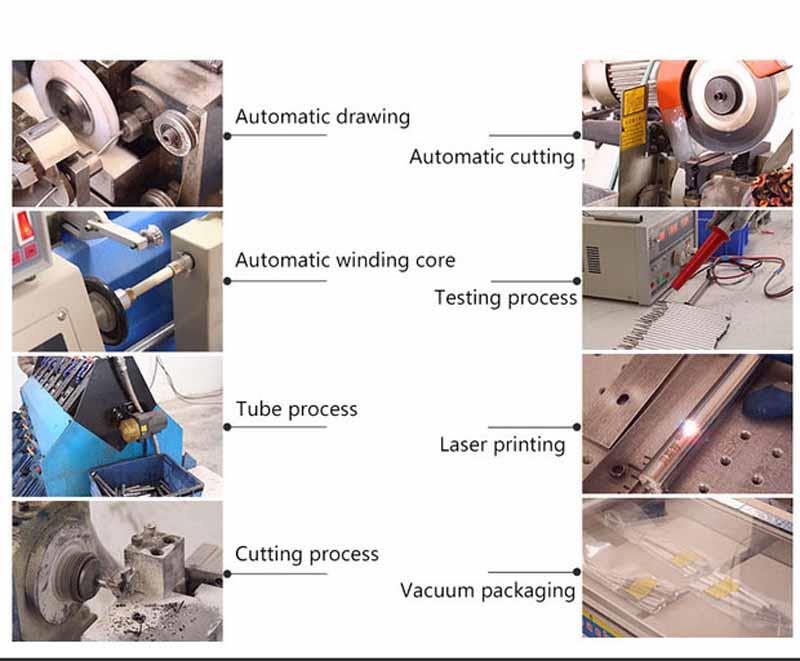

Hot Runner Spiral Coil Nozzle Heater process

Hot Runner Spiral Coil Nozzle Heater test

Packing and shipment

packing 1

shipemt2

Why choose US?

1. Bureau veritas audited supplier

2. Strict confidentiality for customers

3. Have a strong product development capabilities!

4. We have Longterm cooperation forwarders to ensure the quick and safe shipment, avoid goods delay and extra cost.

5. Solve problems for customers in time

6. Good Payment terms and Reasonable price

7. Excellent after-sales service and feedback

8. Potential problems in product handling

9. we can provide installation video and instructions.

FAQ

1. Q: Have the R&D for our company?

A: We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.

2. Q: Do you carry instead of 220v a 110v model ?

A: NO need to any model to change the Voltage.

3. Q: How long is the warranty?

A: I assume warranty will be at least a year.
