Product Parameters:
Insulation Material | High Pure MgO |
Resistance Wire | Cr20Ni80 |
Die Electrical Strength | 800V A/C |
Insulation | > 5 m/w |
Cross sections optional | 4*4mm,3.5*3.5mm,3.3*3.3mm,3*3mm,4.2*2.7mm,4.2*2.5mm,4.2*2.2mm,4*2mm,∅4.5mm, ∅4.2mm, ∅4mm, ∅3.8mm,ø3.45mm, ø3.2mm, and ø3.0mm |
High voltage stability test | Less than 0.5mA leak under 1000V for 30 seconds |
The range of heated length | 100mm----4000mm |
Cold zone length | 50mm standard, and other sizes available |
D of cold zone adaptor | 8x30mm and 6.35x25mm optional |
Standard leads | 1000mm black Teflon wire over 300℃ |
Insulation material | OTC(U.S.A) high purity Mgo tube |
Heating element | High durance and high temperature NiCr2080 heating element from Germany |
High voltage stability test | Less than 0.5mA leak under 1000V for 30 seconds |

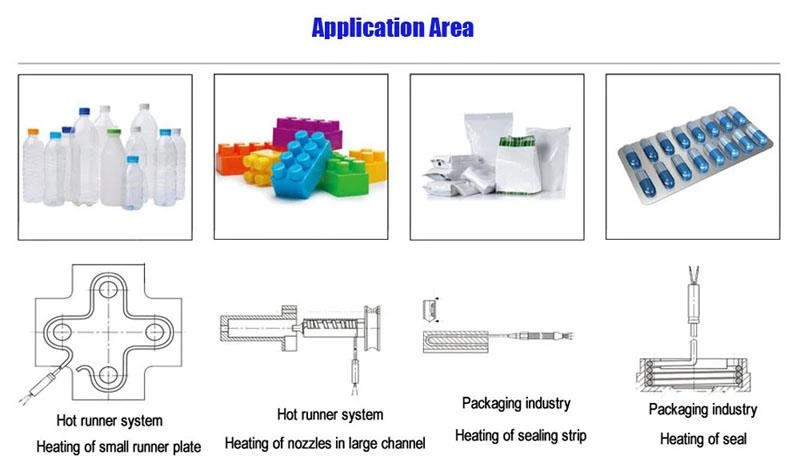

Applications
1. Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds
5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds
Factory
CE certified 230V hot runner coil heaters

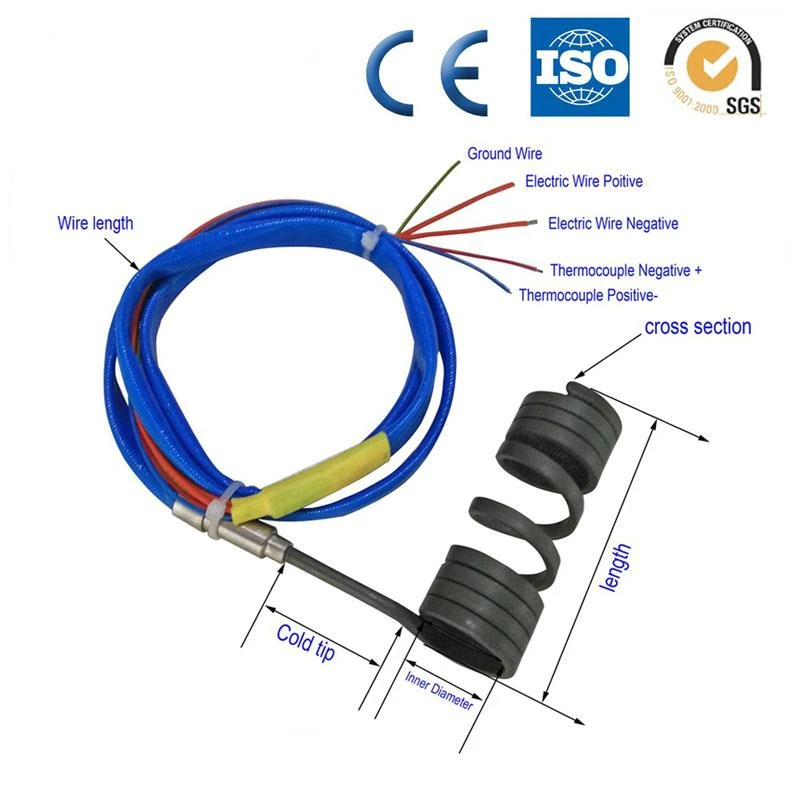

Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.

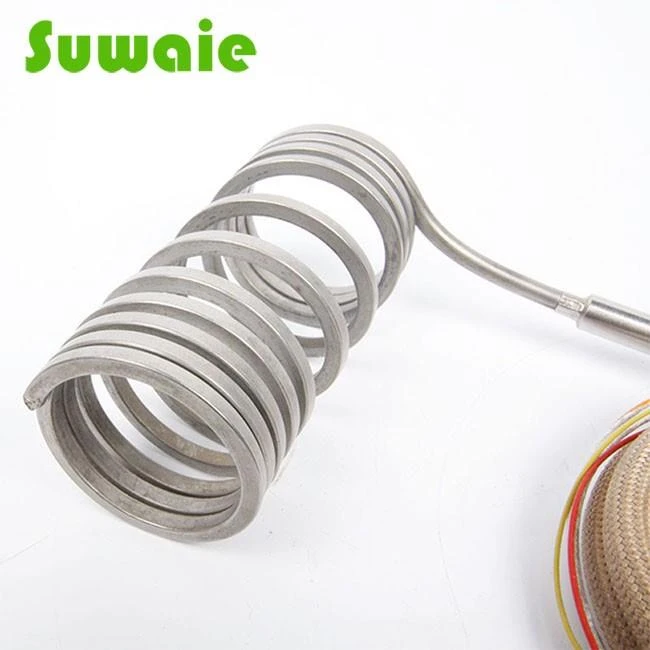

Products show

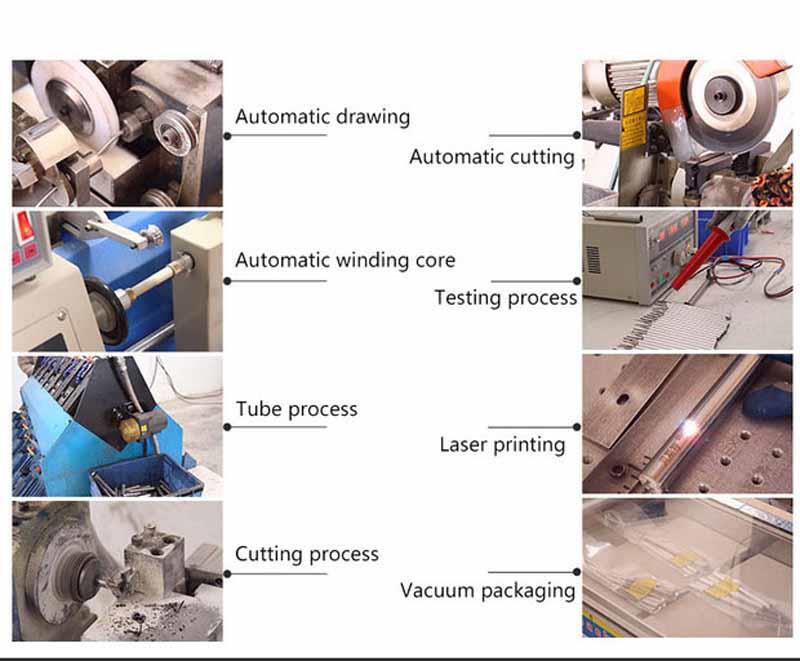

Process and test show
Exhibition
Shipment case
What benefit we can get from you?
1) Competitive price
2) High quality control : 100% full inspection before shipment
3) High precision, tolerance can be ± 0.005mm
4) Fast lead time (5-7days for samples, 7-30 days for mass production)
5) Non-standard//OEM//customized service provided
6) No MOQ, small QTY is acceptable.
7) ISO 9001:2003 and ISO13485:2008 certificated factory, ROHS material used
9) Professional export packing: Carton+Wooded Case, keep no scratch and damage
FAQ
1. Q: have your sale team and service team for you company?
A: Yes, we have sales team and service team, also we have technology D&R team, for service our clients
2. Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact heating elements to your specification and drawing.
