Product Details
SUWAIE manufactures high watt density coil heater for various applications. These coil heater have compact structure, even heating (Watts per sq. inch are equal) and can be installed with ease.
Apart from that SUWAIE offers coil heaters which can be used for hot runner moulds, nozzle (sprue) bush and other applications. These heaters have compact surface which results in exceptionally high levels of thermal conductivity. Moreover our heater have optimal insulation which in long life duration.
SUWAIE offers most of the sizes which are used in hot runner molds. SUWAIE meets the requirements of high wattages, good heat transfer smaller installation area. SUWAIE applies the latest technology to solve the problem created by high temperature materials and latest engineering development.

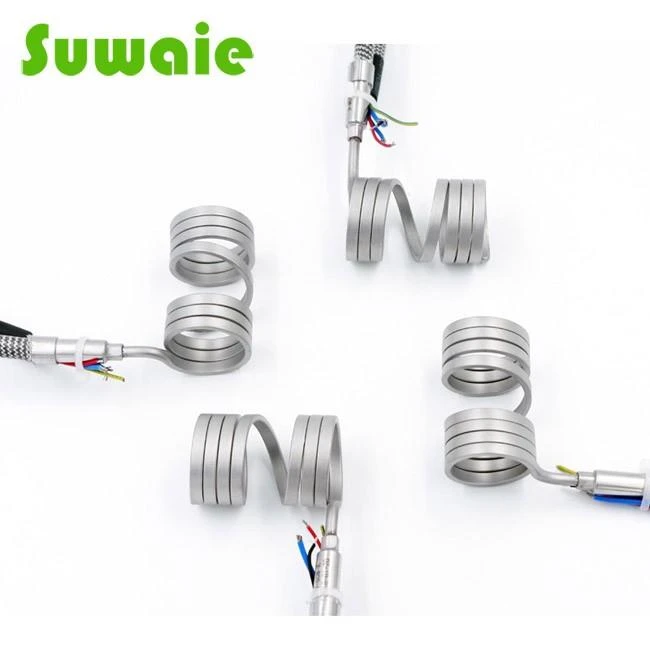

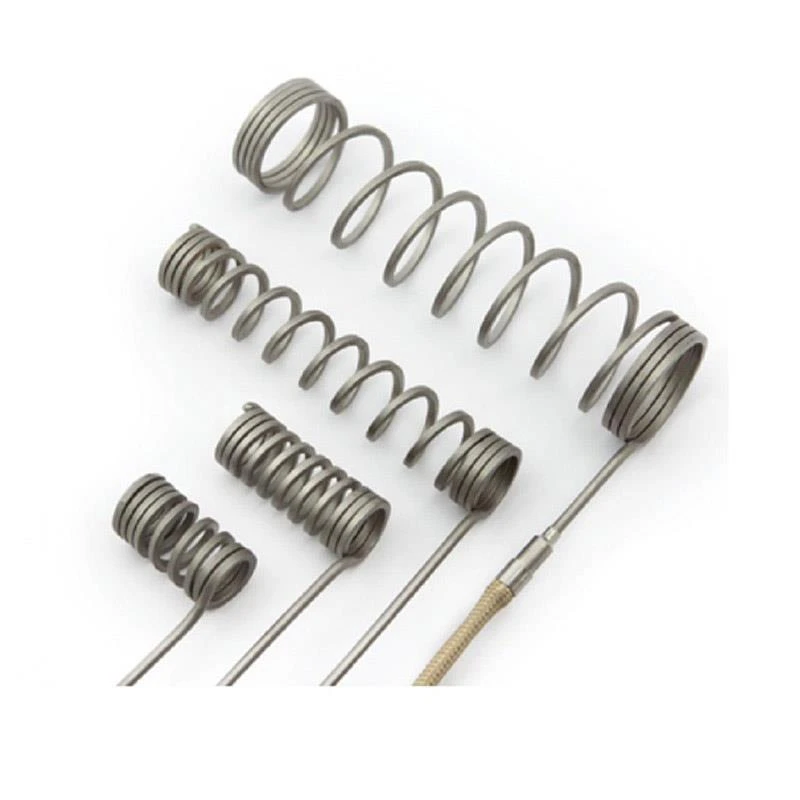

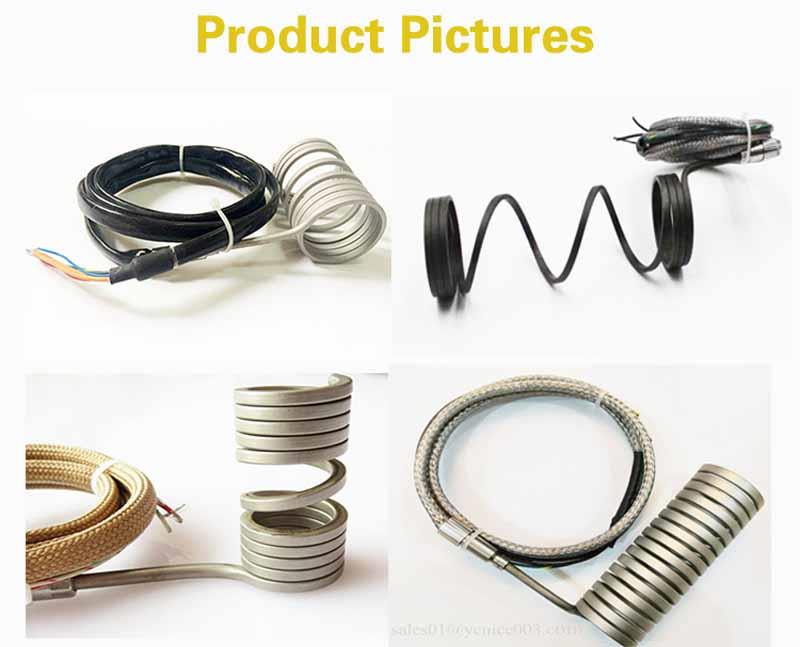

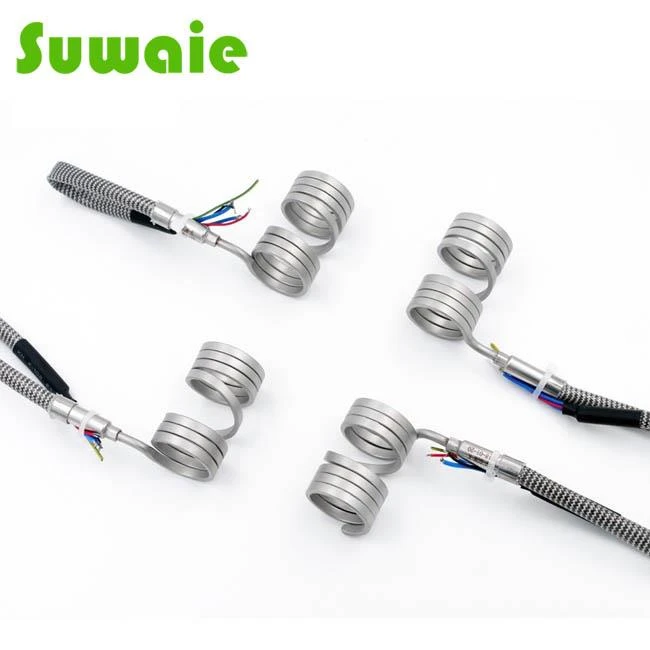

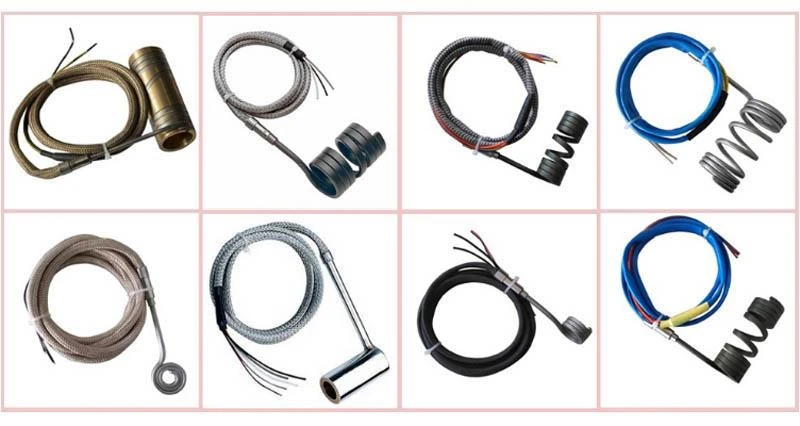

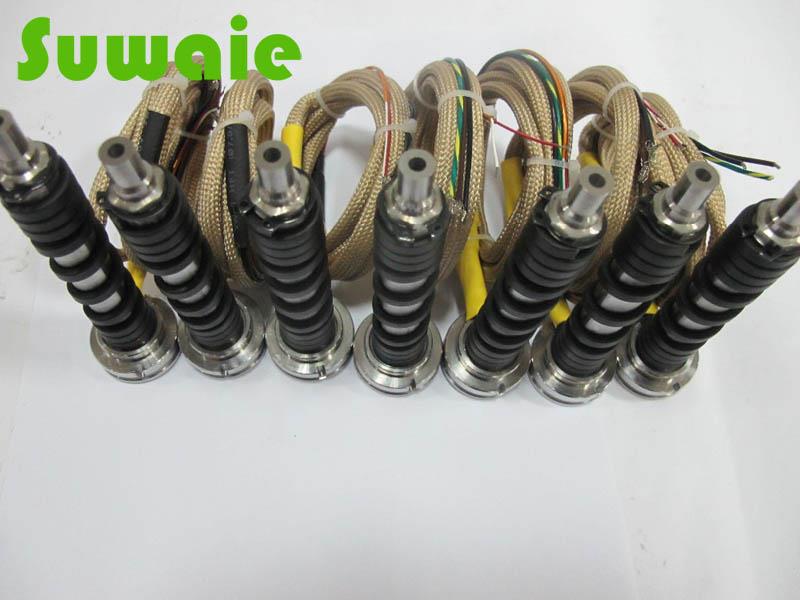

Products show
Technical Data
Sectional area | 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5, 3.3X3.3, 3.5X3.5, 4 X 4, 2.2X1.3 |
Minimum ID | 8mm |
Sheath Material | SS304, SS310 |
Insulation Material | High Pure MgO |
Resistance Wire | NiCr8020 |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | >5 M W |
Dimensional Tolerance | Coil I.D+0.1 to 0.2mm//Coil Length+1mm |
Wattage Tolerance | +10% (+5% Available Upon Request) |
Voltage | 12V~380V |
Wattage | 70W~1000W |
Build-in thermocouple | Without or with J/K type thermocouple |
Sheath's length | 500/1000/1200/1500/2000mm |
Available sheath material | Nylon, metal braided, fiberglass, silicone rubber, kevlar |
Sheath's color | Standard is black, other color is also available |
Connector | Without or with 5 pin xlr, 4 pin min xlr connector |
Connector's color | Silver or fully black |

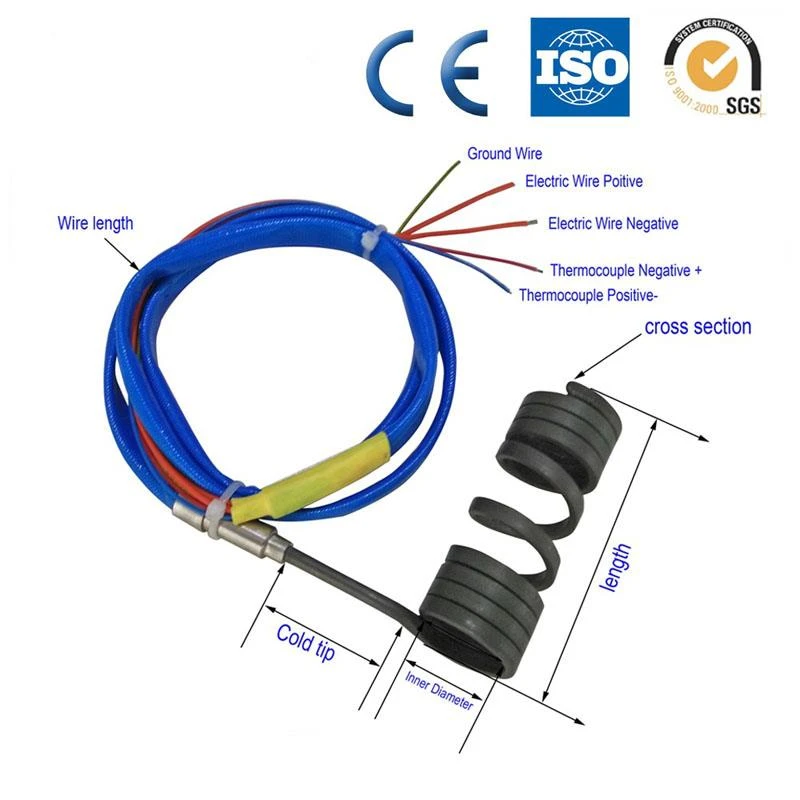

Drawing

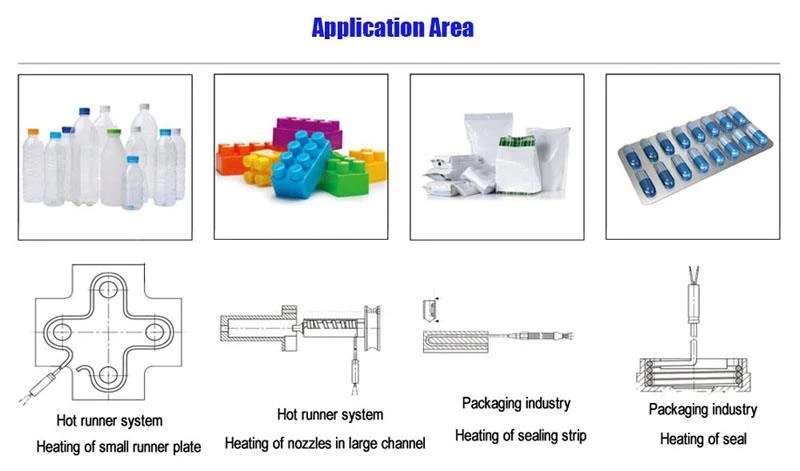

Applications
Plastic Injection Machine
Hot runner mold
Plastic Extruder Machine
Pipe Forming Machine
Tube Extrusion Machine
Industrial - Packaging Equipment

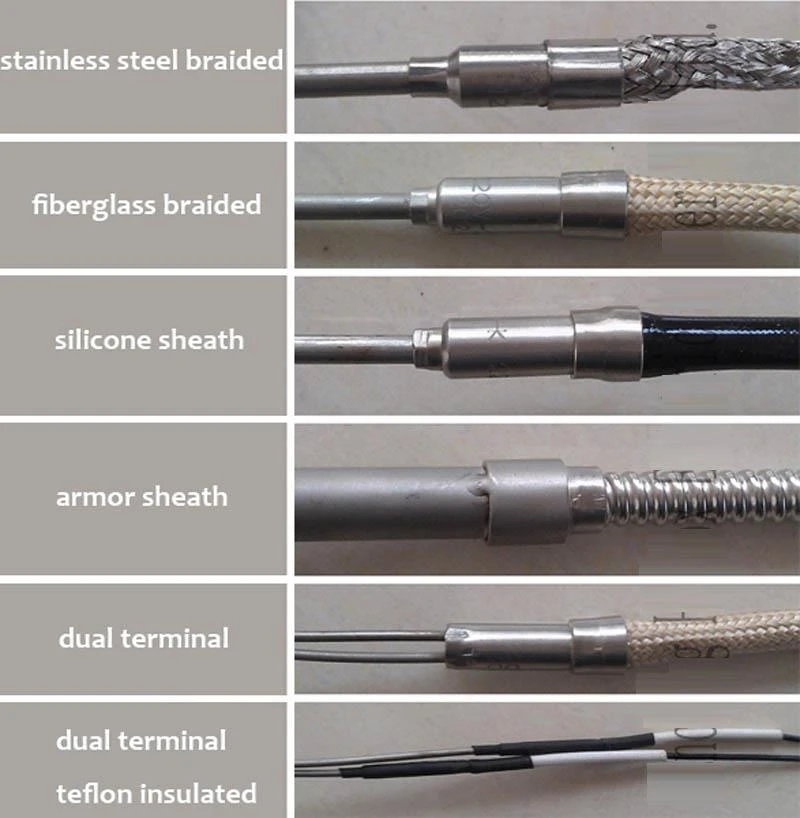

Hot runner heater lead wire type

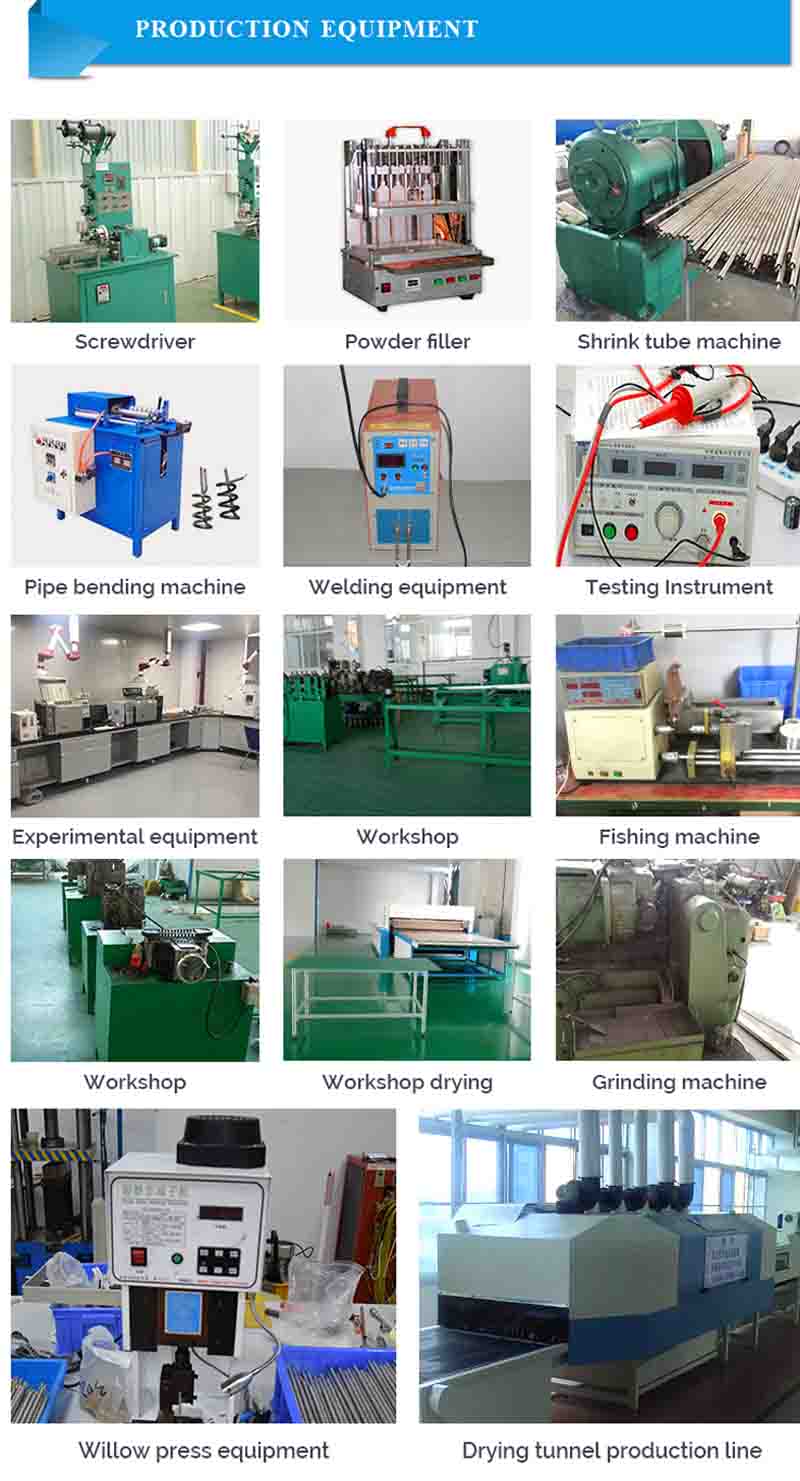

Process and test room show
Packing and shipment ways case
Quality Control:
1) Technicians self-check in production
2) Engineer spot check in production
3) QC inspects after mass production finished
4) International sales who were trained the technical know-how spot check before shipping
FAQ
1. Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2. Q: How long is the warranty?
A: I assume warranty will be at least a year.
3. A: Can we design our own package or print our own logo?
Q: Yes! Package and logo will be made acording to your requirements.
