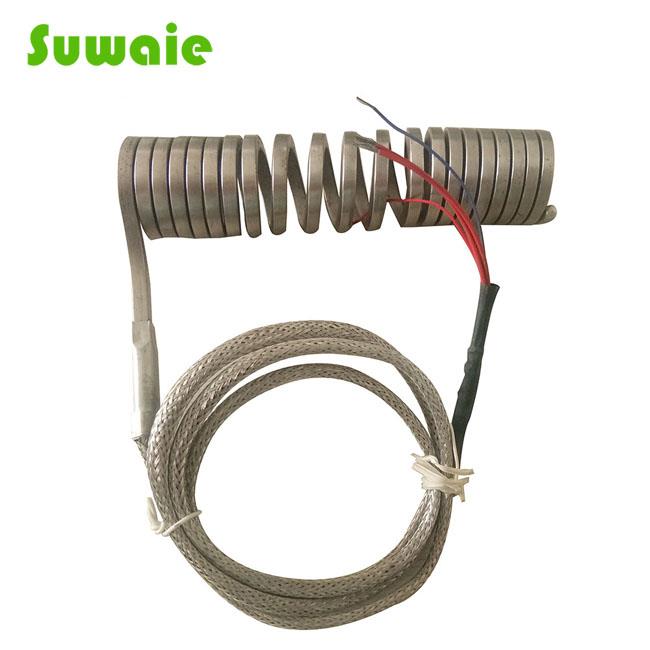

Hot runner coil heaters are narrow and flat heating elements, which can be in different shapes and geometries. They are high performance heaters and used when space is limited but need higher power.
These waxy flexible hot runner coil heaters are used mainly in plastic and packaging industry hot runners and nozzles, to heat the parts in different shapes and geometries. In addition they are used in chemical (rubber process), automotive and glass industries, in hot-stamp, cast and wood processes too.
Sheath material of coil heaters is made of stainless steel and Ni-Cr (80/20) resistance wire (which melts in 1300 C) and magnesium oxide powder (MgO) is gotten into this sheath. Maximum working temperature on sheath can reach to 650 C and on cables and connection points up to 260 C.
Hot runner coil heaters can be manufactured with “j” or “K” type thermocouple inside and with different power fields.

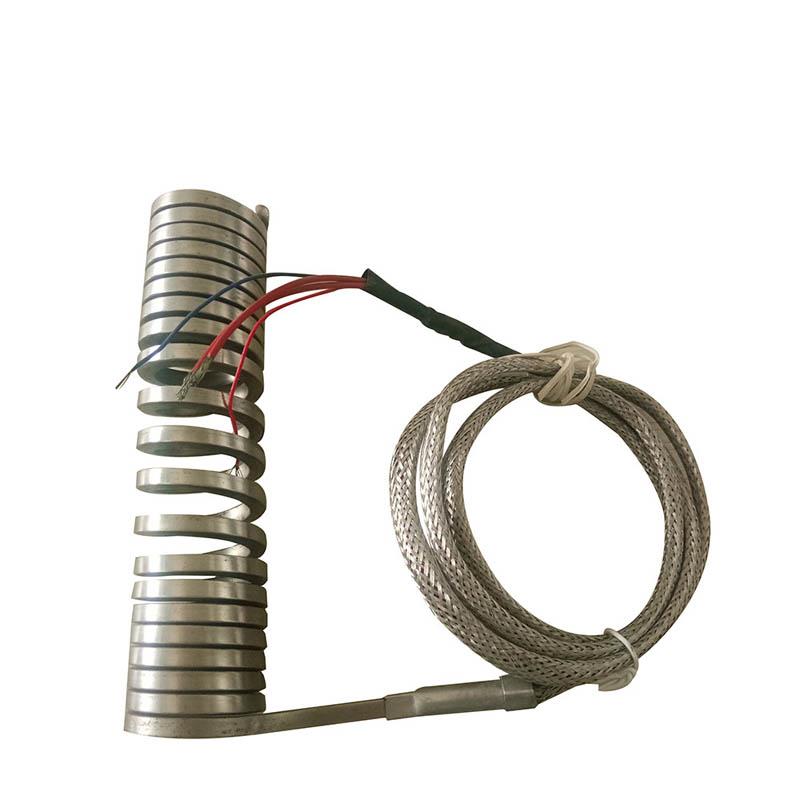

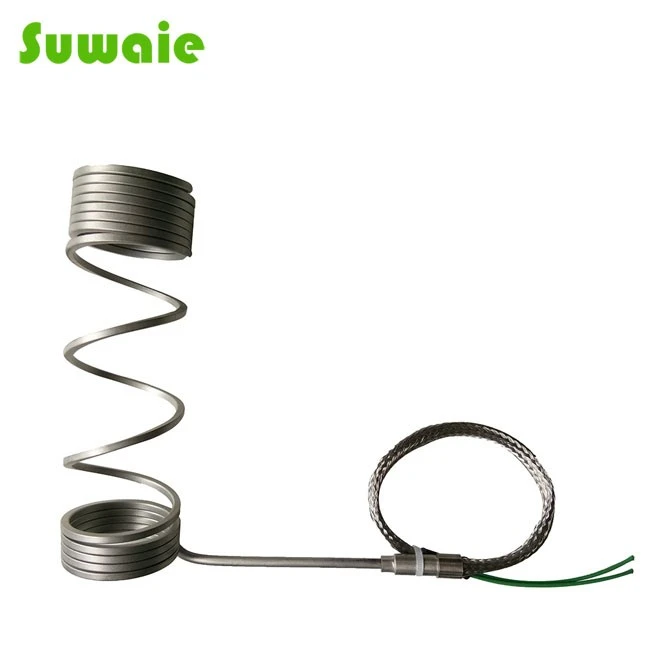

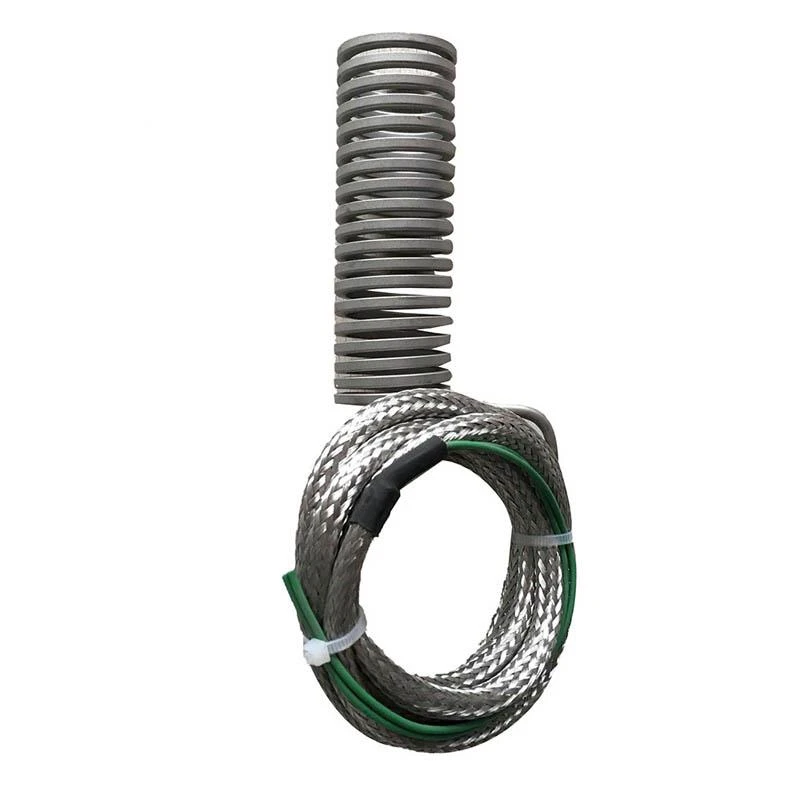

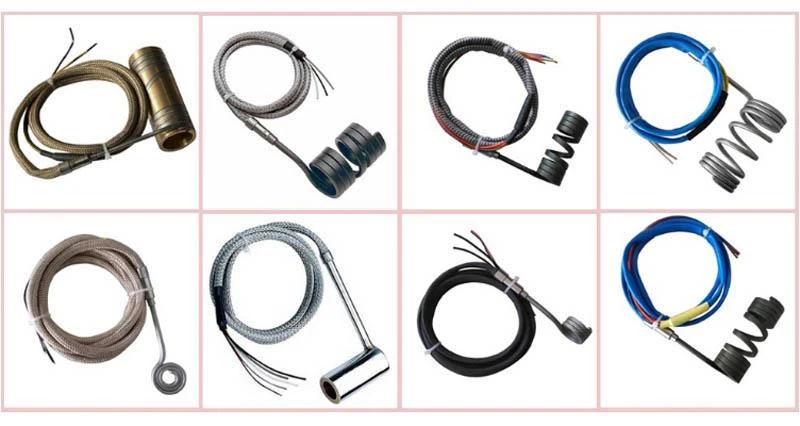

Products show
Specifications:
Sheath Material | Cr Ni-Steel |
Insulation Material | MgO |
Resistance Wire | Ni Cr 80-20 |
Maximum Sheath Temperature | 700°C |
Voltage | 800V A/C |
Power | > 5 M W |
Thermocouple | J type (Standard) or K type |
Length Tolerance (Straight) | 5% |
Wattage Tolerance | + 10% ( + 5% Available Upon Request) |
Resistance Tolerance | + 10% ( + 5% Available Upon Request) |
Unheated Length | 35mm (Standard) |
Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
Coil Length + 1mm |

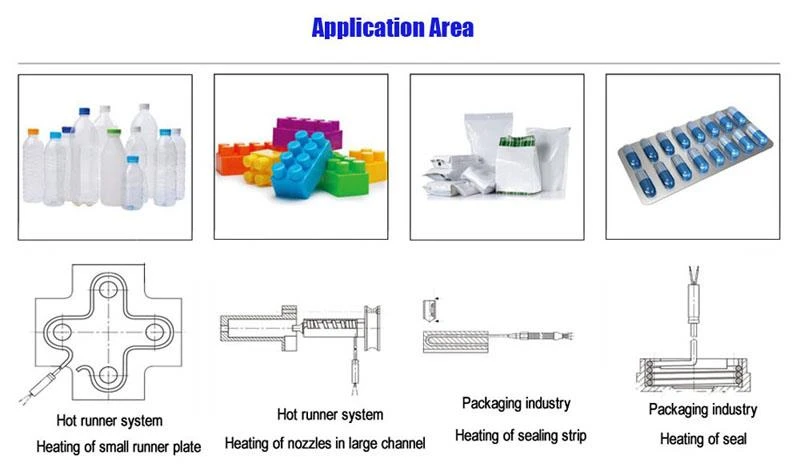

Applications
1. Manifolds
2. Hot runner nozzles and spruce bushes
3. Packaging machinery
4. Injection molding machine nozzle

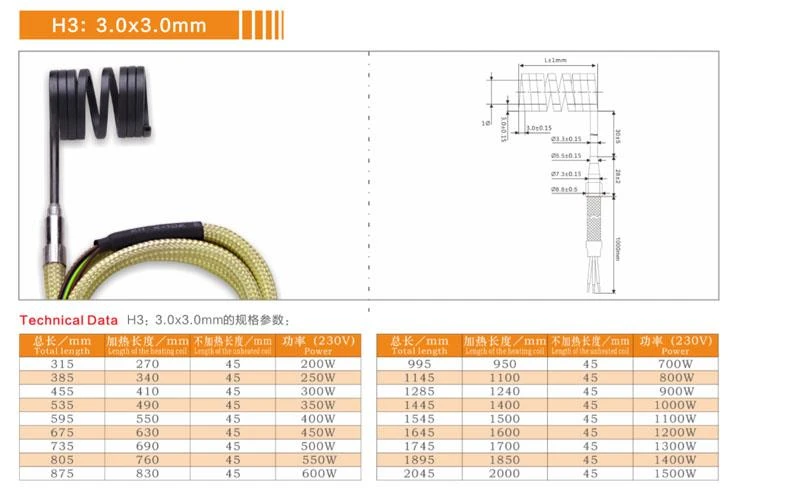

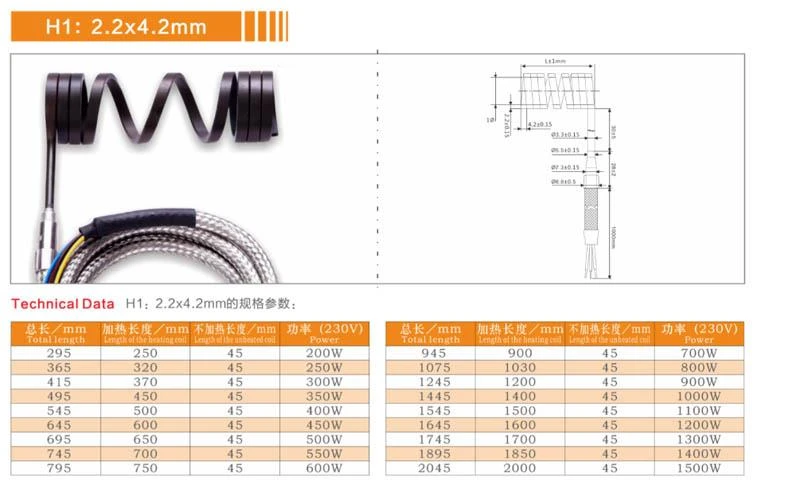

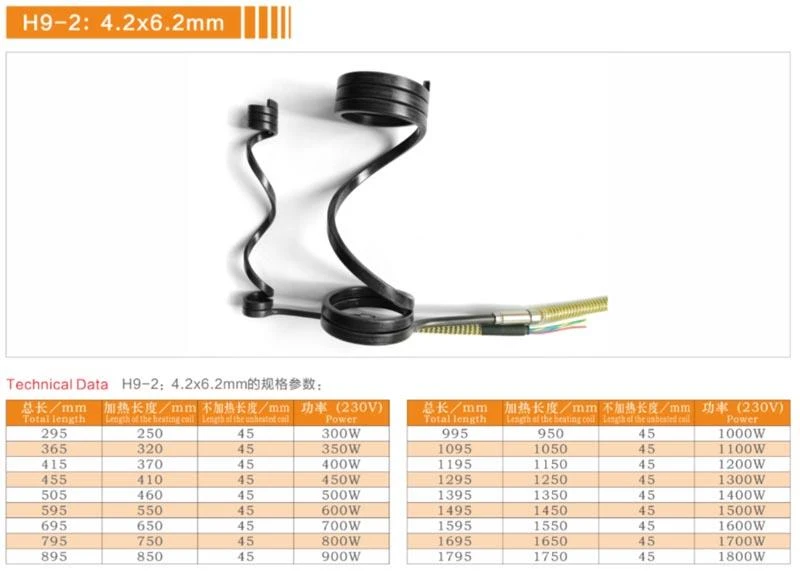

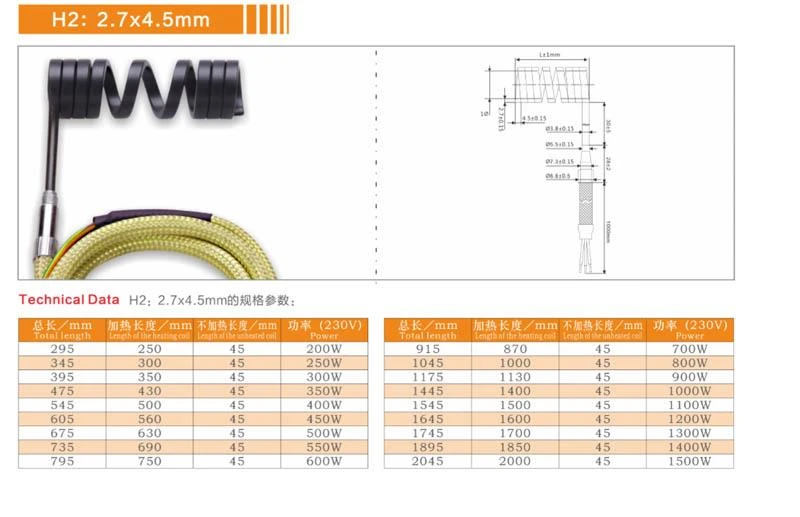

Hot runner heater size type

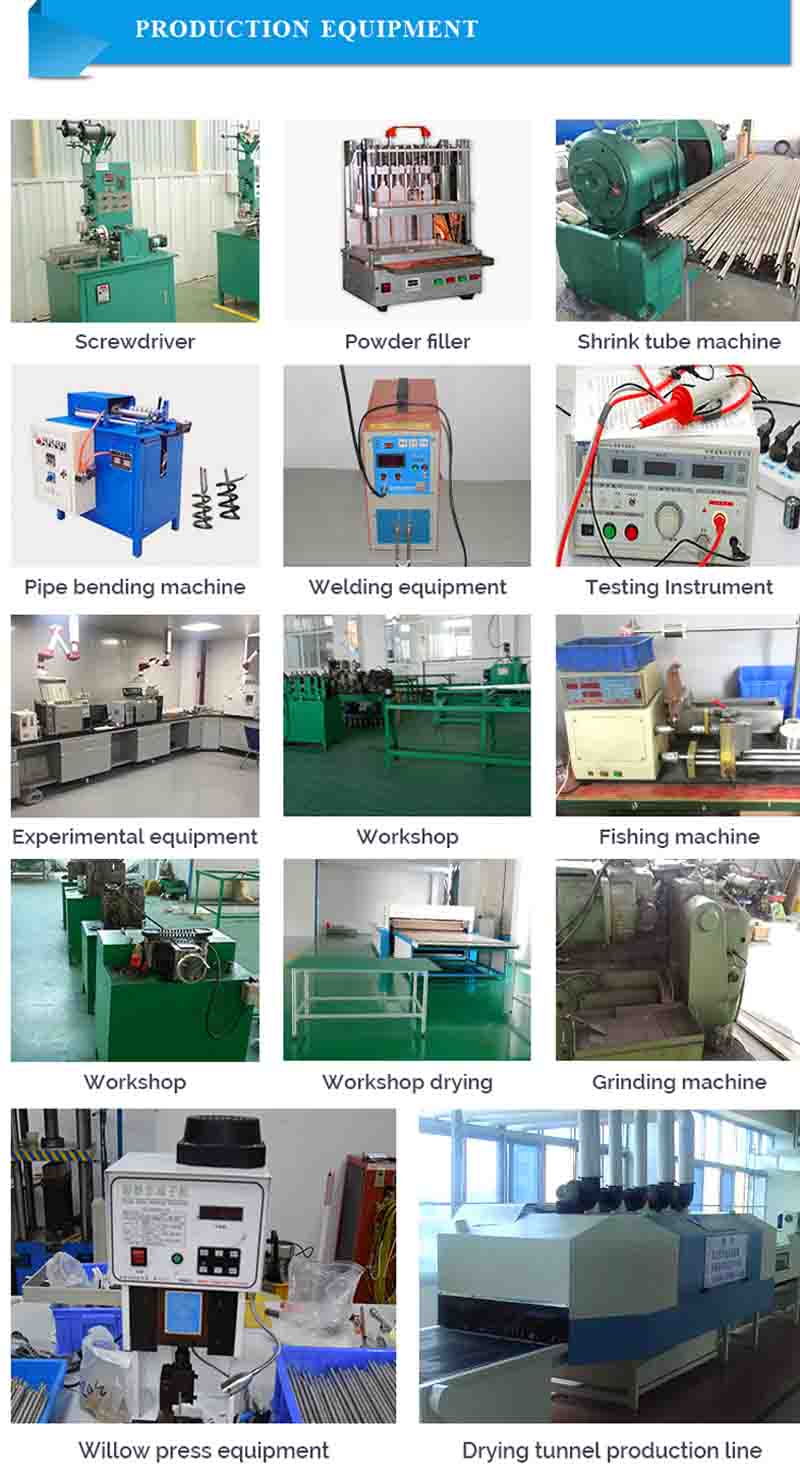

Process and test show
Packing and shipment
Our Advantages:
1. We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2. We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3. We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4. We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1. Q: Can I get some samples ?
A: Yes, Sample orders welcomed.
2. Q: Do you carry instead of 220v a 110v model ?
A: NO need to any model to change the Voltage.
3. Q: Will you give me advice when necessary ?
A: Certainly, we will give you our professional technical advice like material type, surface finish, and drawings-making as long as you need.
