Product introduction
The micro heating element can be made in length of 20-3000mm. It is mainly used for molds or hot runners, as well as other precision heating systems. The outer part of the spring heating coil is made of high quality, nickel-chromium alloy tube, and high-purity magnesium oxide and high-temperature resistance wire are used inside. And state-of-the-art technology. The heating wire is annealed and has a winding shape that can be bent into a curved or circular heating. The utility model has the advantages of high working temperature, fast heating, uniform heating, long service life, automatic control of the area, high heat conduction, and damage of the internal heating material, and the external can still be reused.
Specification
Product name | Hot runner heater / hot runner coil heater / hot runner nozzle heater |
Insulation Material | Mgo |
Resistance Wire | Ni Cr 80-20 |
Thermocouple | Type k, J or E , wihtout |
Heating coil inner diameter | 10-38mm |
Spiral coil heater sizes | 2.2x4.2 3x3 3.4x3.4 3.5x3.5 4x4 |
Voltage | 12V,24V,36V,110V,120V,220V,240V,380V |
Power | 200W-3000W |
Advantages | High working temperature, fast heating, long life and easy installation |
Length Tolerance (Straight) | +-5% |
Wattage Tolerance | +10% (+ 5% Available Upon Request) |
Cold length | 35mm |
Application
1. Hot runner mold
2. Hot runner nozzles & bushing
3. Medical equipment
4. Smoking accessories
5. Other precision heating systems

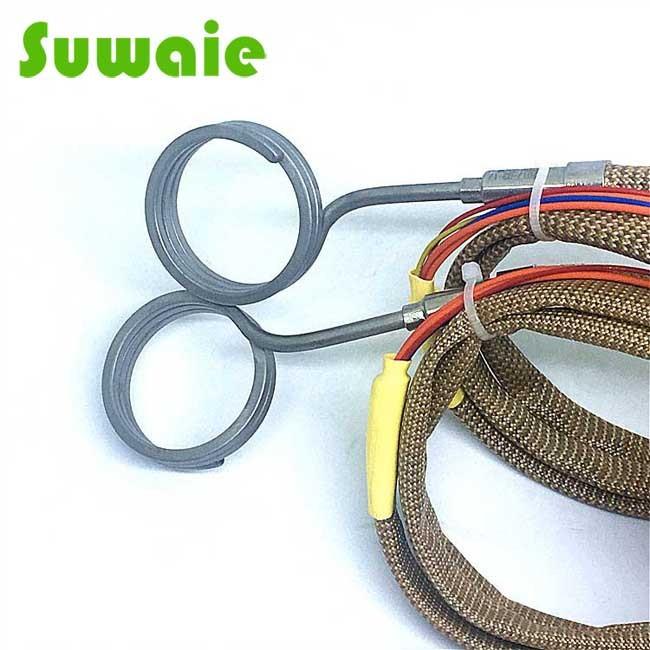

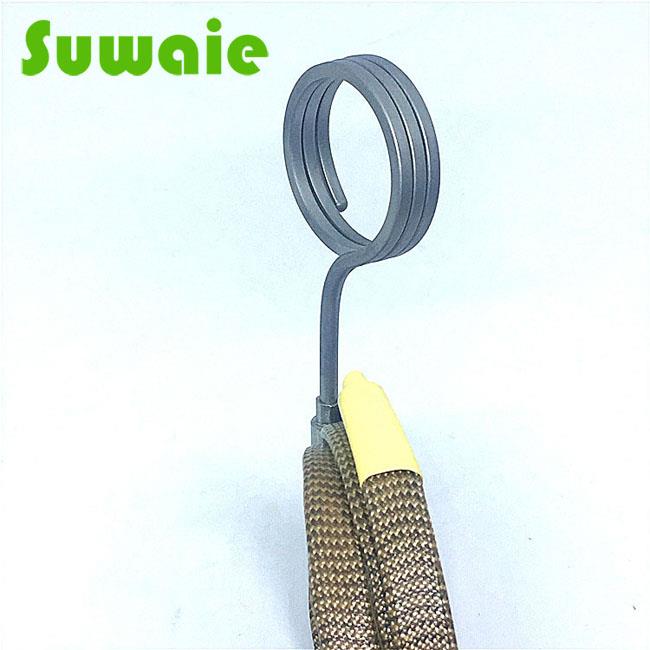

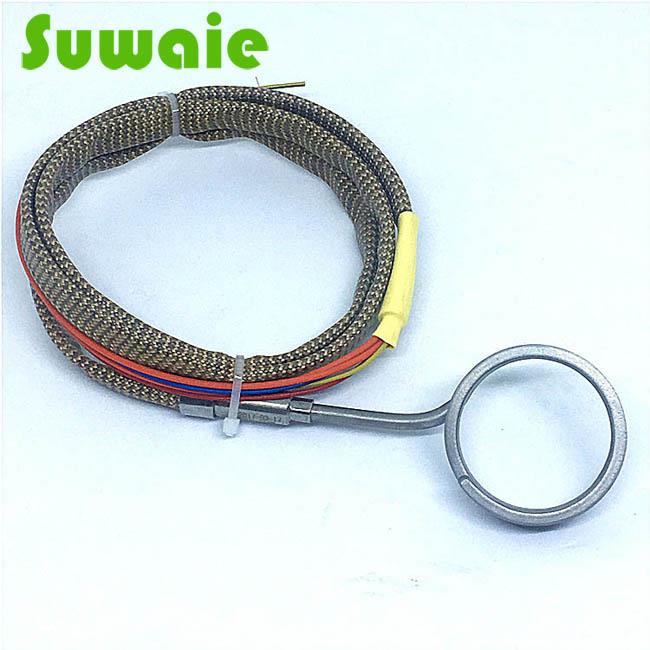

Product show
Our service
1. Fast deilvery: For samples 3-7 working day. For bulk order: 7-30working days.
We produce over 50000pcs heating elements per day.
2. Good Quality control: We have our own test room,
All one years warranty with CE,ISO9001,ROHS certificates.
3. Mature OEM Service: With 12 years heating element manufacture. FREE laser print label, color box design etc.
4. Professional sales team, engineer team, and good after-sales service.
FAQ
1. Q: Do you sell accessaries?
A: Yes, all accessaries can be sold, please contract us for further details.
2. How do you control the quality?
A: All raw materials are sourced by professional buyers, standardized and scientific Quality Controlled Process is in place and strictly executed.
3. Q: What is the standard of package?
A: Professional export packing:
1) Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2) Under 100 KGS parts, use strong DHL export Carton .
3) Above 100 KGS, will customize Wooded case for packing.
