Product introduction
micro coil heater principle is that when a thicker metal is in an alternating magnetic field, current is generated due to electromagnetic induction. When a thicker metal produces an electric current, the current will form a spiral flow path inside the metal, so that the heat generated by the current flow is absorbed by the metal itself, which causes the metal to heat up quickly. The device is an energy-saving device for preheating or secondary heating of fuel oil and a plastic melting channel for constant temperature heating. It is installed in front of the combustion device to warm the fuel oil before combustion, so that it is at a high temperature (105 ° C) At -150 ° C) to reduce the viscosity of the fuel oil, promote the role of full atomization combustion, and ultimately achieve the purpose of energy conservation. It is widely used in the pre-heating or secondary heating of heavy oil, asphalt, oil and other fuel oils and rubber and plastics manufacturing.
Injection Moulding Hot Runner Coil Heater Mold Heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape.Injection Moulding Hot Runner Coil Heater mould heater with built-in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of a different cross-section with inner brass and outer stainless steel cover.
Specification
Tube section | 2.2x4.2mm3x3mm3.4x3.4mm3.5x3.5m4x4mm |
Heating coil ID | 10mm~38mm |
Heater coil length | 40mm~200mm |
Mini heating coil Voltage | 220V~380V |
Micro electric heaters power | 200W~3000W |
Build-in thermocouple | With or without J/K thermocouple |
Small heating coil Lead wire | 500/1000/1200/1500/2000mm |
Application
1. Hot Runner & Bushings
2.Tube Extrusion
3. Pipe Forming
4. Hot Runner Mould
5. Plastic Injection Machine
6. Plastic Extruder Machine

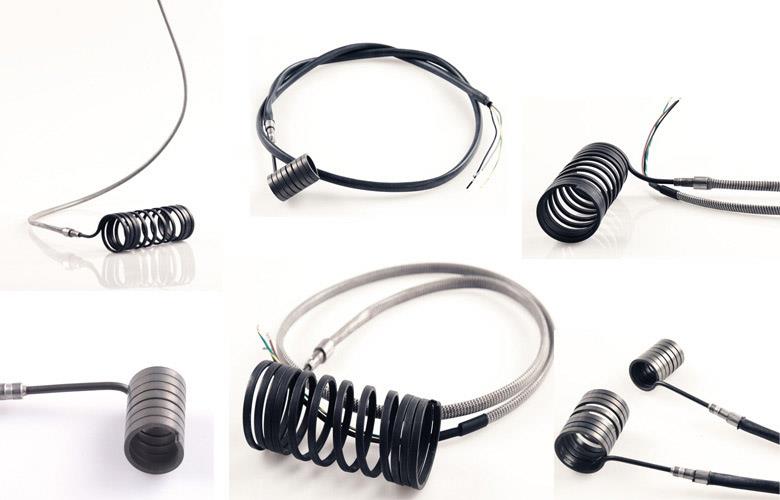

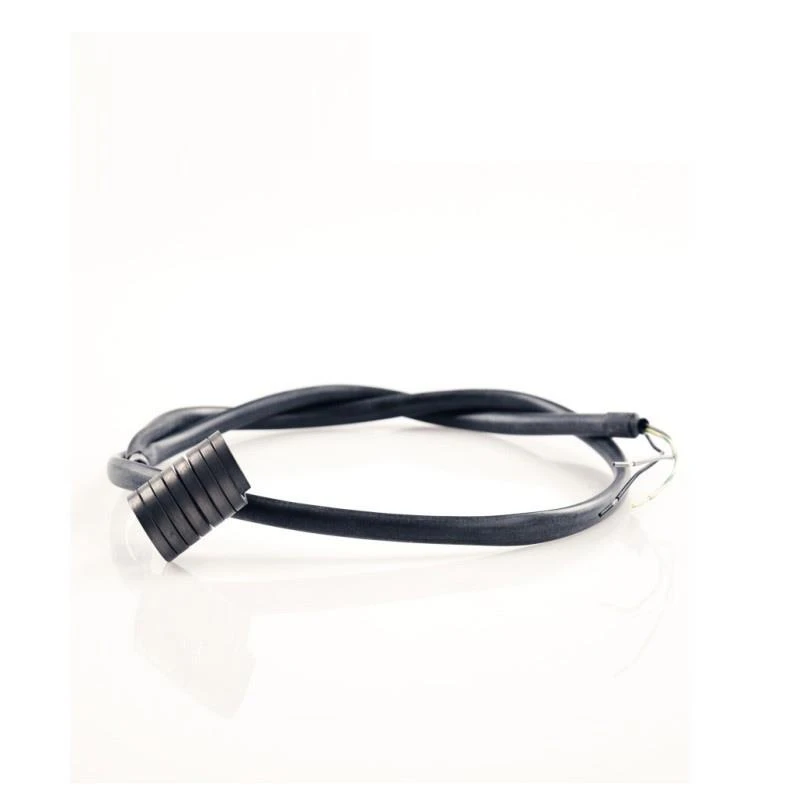

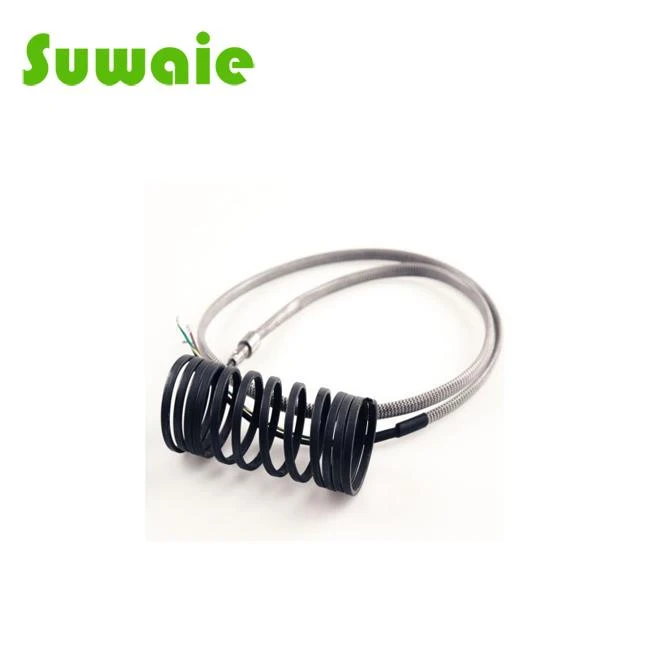

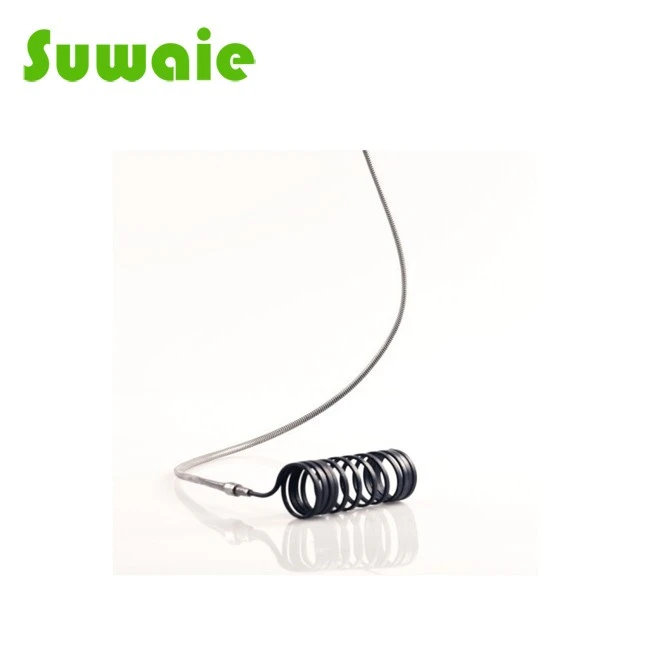

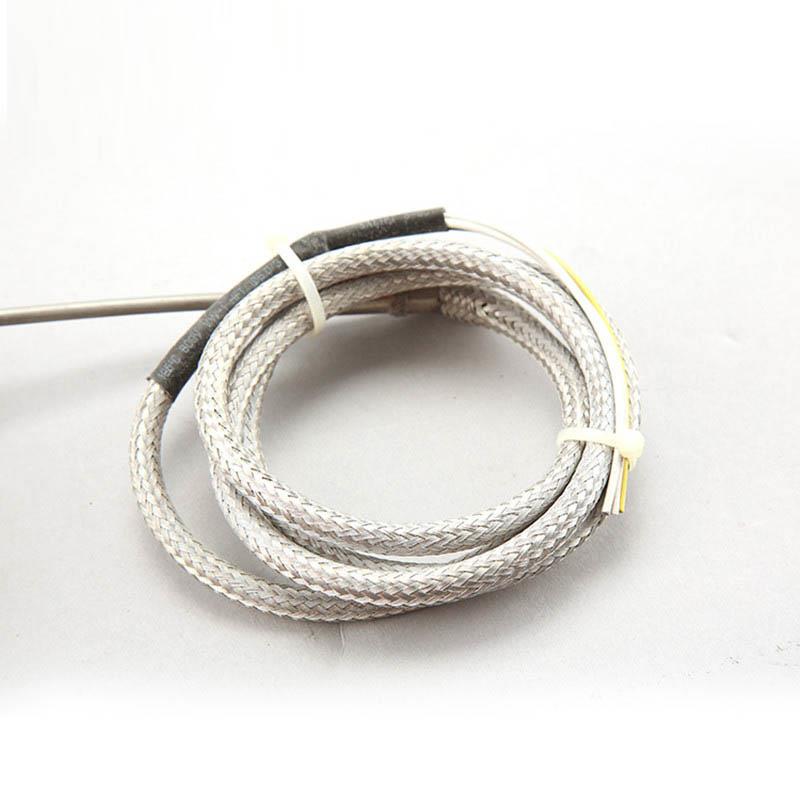

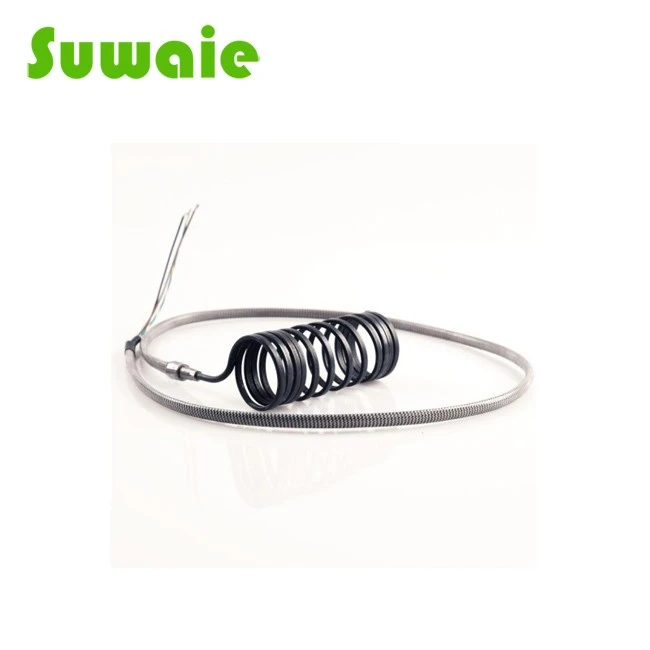

Product show
Our Advantage:
1. Excellent Purchasing Service
Since we have many resources of different ranges of heating element raw material factories, we know their quality level and price level. We can choose the most suitable supplier for customers according to their request.
2. High Quality Products offered
Most of products are from our long-term suppliers. They have been supplying the goods for us for more than 20 years; we can control the quality and price. So the issue for quality is not a problem. Even if the products have met the function problem, we can afford all the consequences. We will never hurt the customer's interests.
3. Rich Factory Resources & heater Marketing Suggestion
After more than 12 years experience accumulated in this filed, we have collected valuable resources of manufacturers and distributors. We are not only able to supply high quality goods; also we can recommend the hot sale products to customers according to different market needs. We help customer save money, but help them earn more money.
4. Perfect After-sale Service
According to our company's rule, we support one-year quality guarantee after you receive the goods. During this time, if you meet any quality problems, please contact with us, we can provide you with any replacement. The premise is non-human damage.
FAQ
1. Q: Where are the main markets for sales?
A: Mainland China, UK, Thailand, Turkey, Canada, Mexico, Brazil, Argentina, Chile, India, Vietnam, Colombia, Malaysia, Australia, etc.
2. Q: How long is the lead time?
A: for large quantity orders, products will depart from Shenzhen within 7-30 days after the deposit received.
3. Q: Can you sent the product drawing to me?
A: Pictures on website was just for reference, More correct information and some special requirements,
Please kindly contact us.
