Pressed in Brass Coil Heater
Introduction
Hot runner heaters are used on injection molding machine nozzles and sprue bushings supplying 360º of heat with optional distributed wattage models also available. Hot runner heaters are also used as cartridge heaters where irregular size bores are found. A straight, round cable heater can snake through a sealing bar in packaging equipment installations
The high performance and fast delivery alternative to a cast in brass heater. The ultimate in nozzle to nozzle repeatability.
Can be built with a Micro, Mini, Flat, Low profile, or Round Nexthermal Coil Heater.
Thermocouple not exposed to molten brass temperatures – Improved durability
Faster responding heater due to eliminated air pockets than cast in brass
Profile and heater orientation precisely repeatable
OEM programs with 1 week delivery compared to traditionally 4-6 Week for cast in brass
Potential for designing thin walled brass heaters to minimize OD impact
Heater Sheath: CrNi Steel
High Voltage Stability: 800VAC
Insulation Resistance: >= 5M ohm at 500 VDC (Cold)
Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%
Maximum Voltage: 230V
Leakage Current: <= 0.5 mA at 250VAC (Cold)
Technical Specifications: Hot Runner Brass Tube Coil Heaters:
Profile: 1.8mm(.071") Thick X 3.2mm(.126") Wide
Thermocouple: Integrated type J or type K
Maximum Sheath Temperature: 1382 deg. F
Sheath Material: Cr-Ni Steel
Maximum Total Straight Length: 3000mm (118.11")
Length Tolerance: Heated +/-1%; Unheated +/- 2.5%
Maximum Voltage: 250VAC
High Voltage Stability: 800 VAC
Wattage Tolerance: +/-10% (contact hotset for special)
Minimum Bending Radius: 8mm(.315")
Watt Density: 38.7 Watts/In2
Insulation Resistance: >=5M Ohm @ 500 VDC (cold)
Leakage Current: <= 0.1mA @ 253 VAC (cold)
Length of Unheated Zone: 65mm(2.56"); 25mm(1.00") Transition Head
Standard Connection from Stock: 48" Teflon Leads.
Applications of Hot Runner Coil Heater:
1. Caustic Cyanide used in gold processing
2.Caustic solutions Detergent
3.Sterilizing equipment
4.Plastic processing&packaging machinery
5.Ovens&dryers
6.Dies&Tools
7.Water& Oil heating appliances
8.Vending machines
9.Medical equipmentstailed information about what you need.
Order Guider
1.Cross Section
2.Circles / length/ diameter
3.Voltage
4.Wattage
5.Quantity

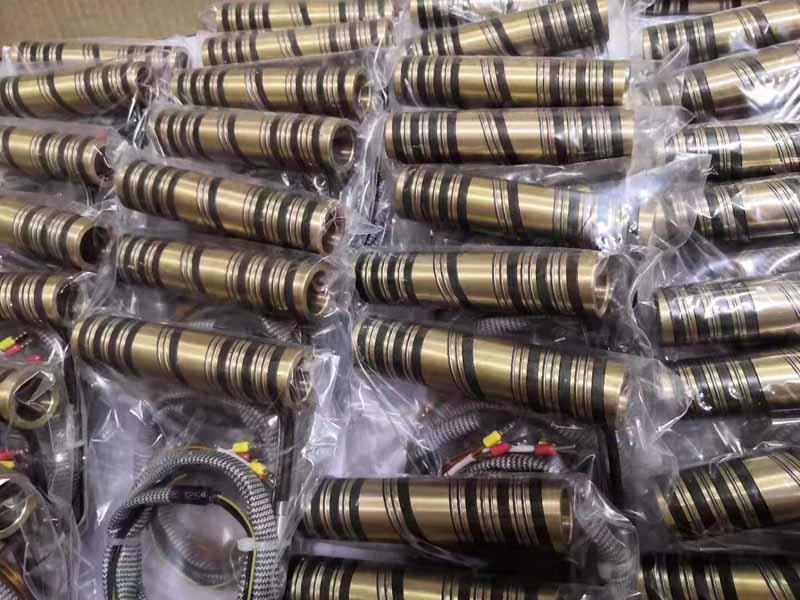

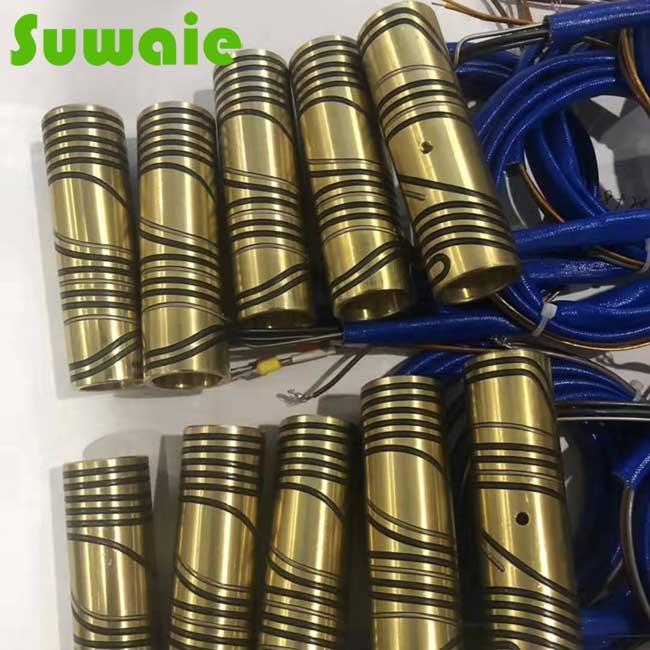

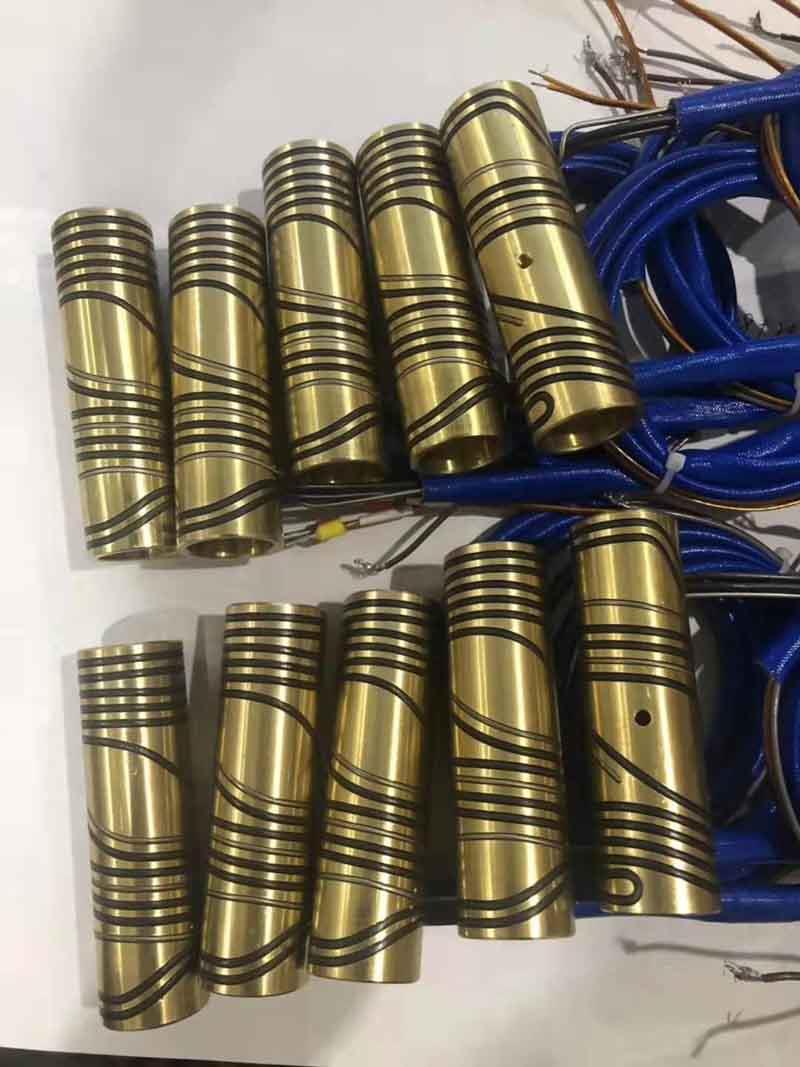

Pressed in Brass Coil Heater products picture show
Pressed in Brass Coil Heater Process show
Hot Runner Mold Heater Test room show
Packing and shipment ways
Advantage:
1. Professional installation instructions
Our company also can arrange our engineers to provide you professional installation guide.
2. Promising the goods quality
All of products will be tested many times and 100% promise the products are well before shipping.
3. Customized products
The products can be customized according to your projects and offer you the drawing for free.
4. After-sale service
We guarantee all of our heating element one years. During the time.
FAQ:
1.
Q: Do you accept OEM manufacturing?
A: Yes! We do accept OEM manufacturing. We will quote you the exact price and make the exact heating elements to your specification and drawing.
2.
Q: What is your main product line made?
A:We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
3.
Q: How can I get the quotation?
A: We will submit the quotation in 8 hours if getting detailed information during working days.
In order to quote for you earlier, please provide us the following information together with your inquiry.
1). Detailed drawings (CAD/PDF/DWG/IGS/STEP/JPG)
2). Material requirement
3). Surface treatment
4). Quantity (per order/per month/annual)
5). Any special demands or requirements, such as packing, labels,delivery,etc.
4.
Q: What is your production capacity?
A: 50000pcs per DAY
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Pressed in Brass Coil Heater. Our company has professional equipment and engineers to provide the production and service of Pressed in Brass Coil Heater.
