Suwaie immersion heaters intruduction:

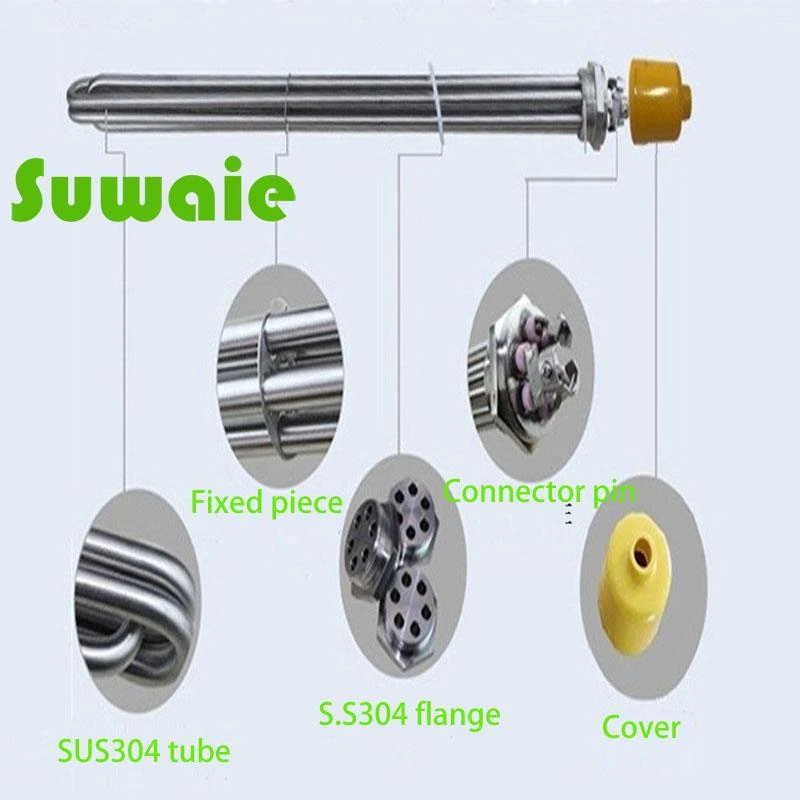

Flanged immersion heaters consist of hairpin tubular elements welded or brazed into an ANSI pipe flange & provided with wiring boxes for electrical connections. Designed for use in tanks and pressurized vessels, flange heaters are commonly used for heating gases & liquids such as water, oil, heat transfer fluid, and corrosive solutions.
Selection suggestion:
Be sure the element sheath material & watt density is compatible with the medium being heated. Listed below are the most common flange sizes, however, other sizes and watt densities are available. We have the capability to design and manufacture to your specifications, with a minimal lead time.
High Watt Density flanged immersion heaters Heater:
Flange heaters are used in industrial water boilers and storage tanks. They feature high watt density for rapid heat transfer. The steam boiler heaters feature the highest quality, high nickel Incoloy sheath that provides the highest practical protection available against hard water containing minerals, scale and salts while resisting stress, corrosion, cracking, and sulphur attack. The water heater has a copper sheath and copper face plate. These heaters are not supplied with enclosures since they are normally mounted in boilers or tanks which have a surrounding enclosure for terminal protection.
Please specify the following when ordering:
The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
Width of heaters
Type, length and position of leads
The position and size of the hole for connecting thermocouple OR of the incision.
Voltage and power density
One piece OR two piece
Special gap between two pieces
Content of the laser stamping on the sheath of heaters if needed
Order quantity
Delivery date
It’s better to provide us with the drawings/pictures

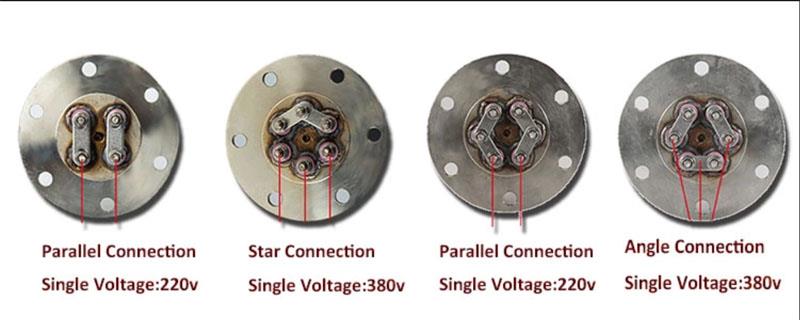

1.5 Inch Stainless Steel Resistance Immersion Heater Wiring

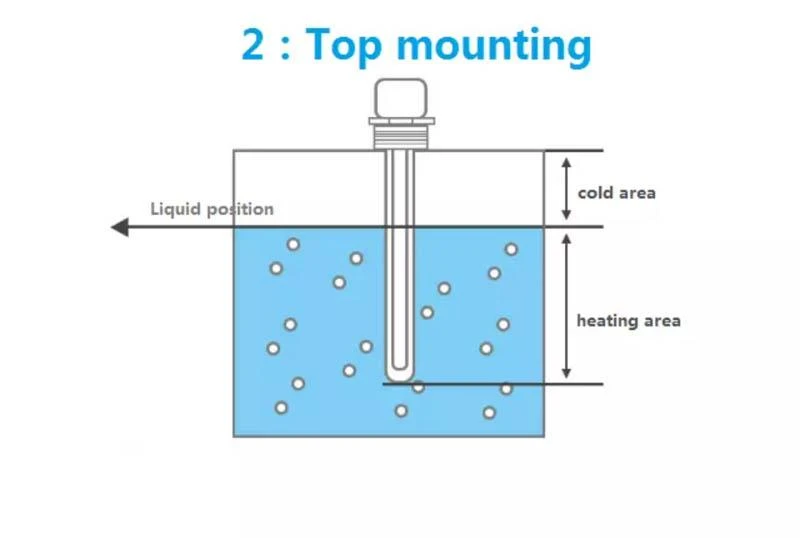

1.5 Inch Stainless Steel Resistance Immersion Heater Top mounting

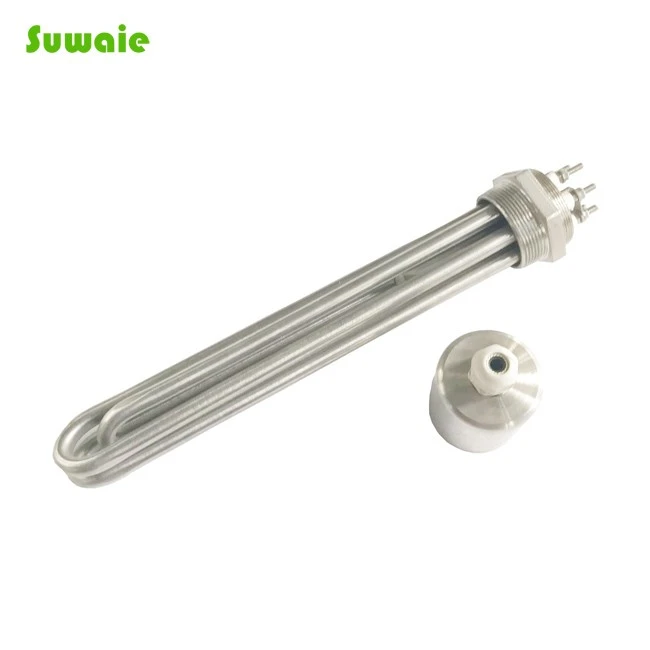

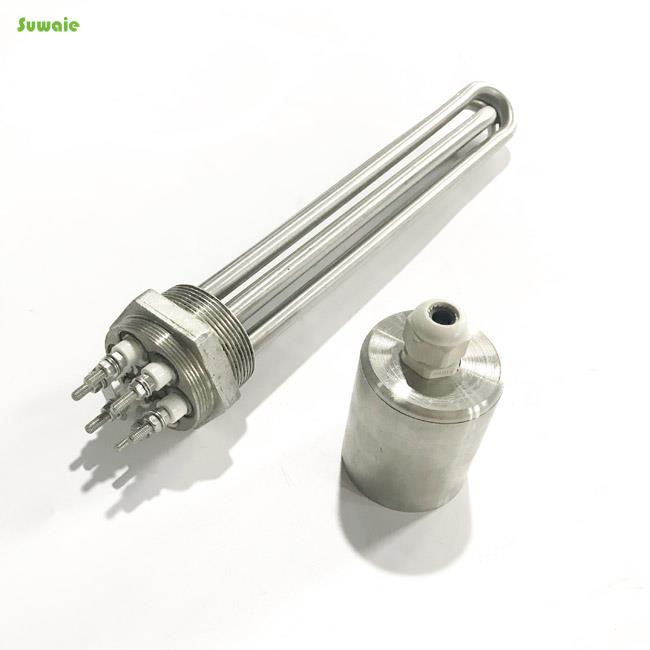

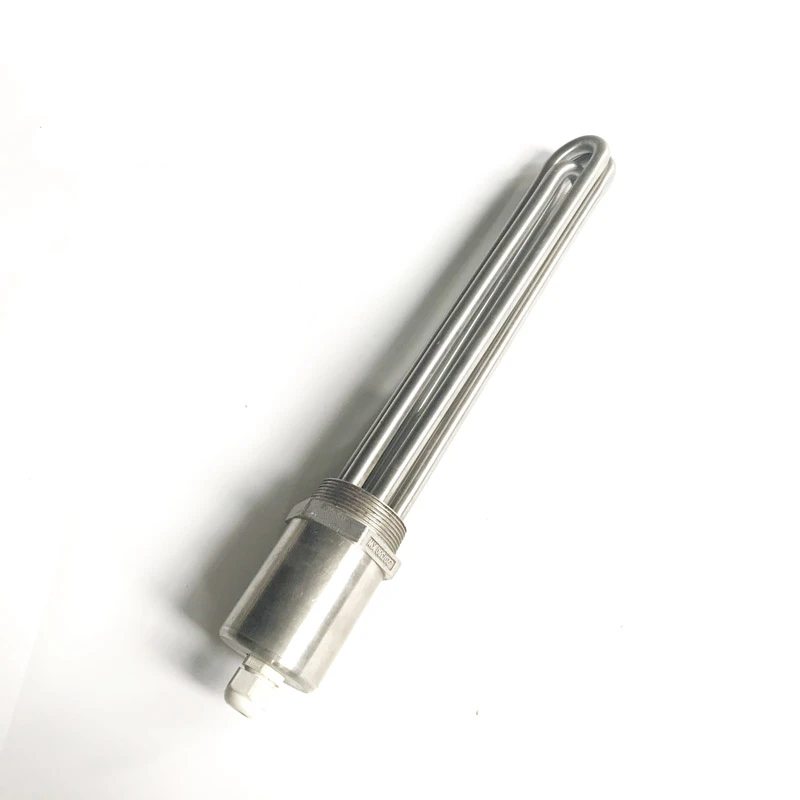

Products show

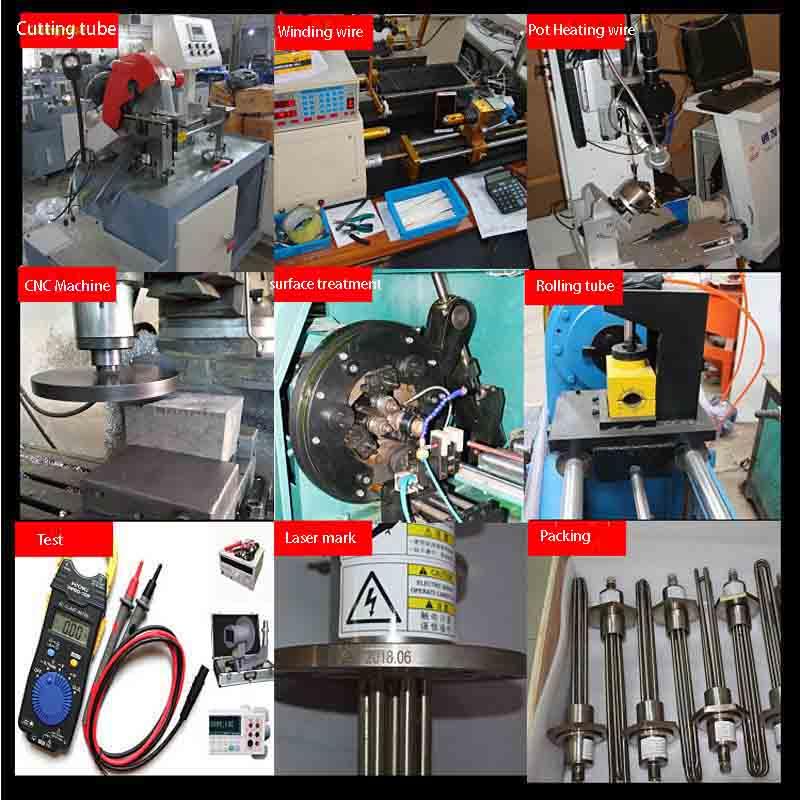

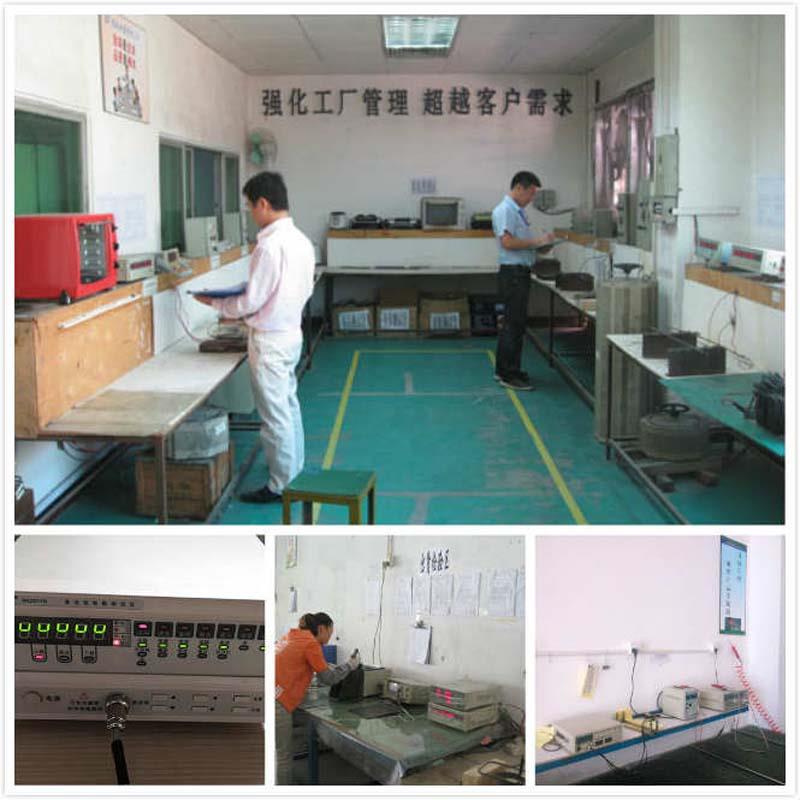

Process and test
Packing details
What can we do for you?
1. Professional, Competitive price and Fast delivery time
We engaged in this area for almost 12yeas, experience engineer can help you process the project well and perfect, also we own our factory that we can control the cost and delivery time very well. We can try best to meet your request.
2. Protect our customer profit well
Even we have very strictly quality control system, but we still can`t promise every part you received will 100% perfect, so if there is any defective parts you received, you just need to offer us the evidence(such as picture),we will check and confirm it.
Because of our strictly quality control system, we have confidence to promise our customer with this. Please kindly noted that it`s our advantage compared with others, we realize that only the high quality and good service can we keep friendly and long-term business relationship with our customer and it`s also the only way for an enterprise to be existed...
FAQ
1. Q: Do you have the ability to do independent research and development?
A: Our engineering department has 5 elites, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement.
2. Q: How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
3. Q: How can I get a sample to check your quality?
A: After price is confirmed, you can require samples to check our quality. Free for existing samples, but you need to paid the express freight. For sample making, we will charge a sample fee. Sample fee will be confirmed according to the products' craftwork.
