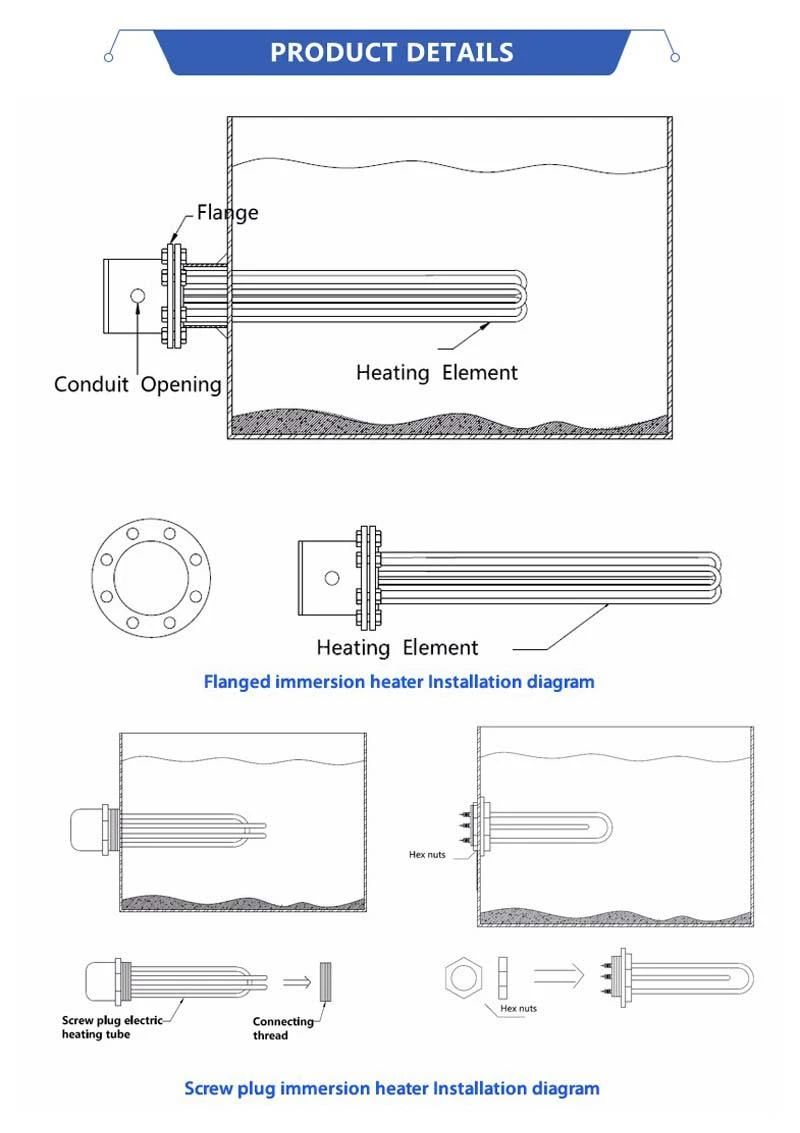

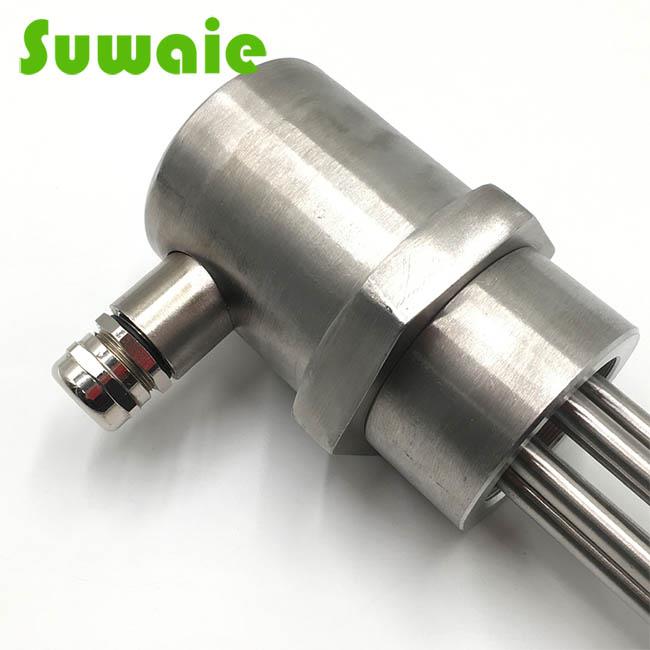

Screw plug immersion heaters consist of tubular elements in a threaded hex plug. Some screw plug immersion heaters are provided with a thermowell for the temperature control sensor and a variety of electrical enclosures for electrical connections. Screw plug immersion heaters screw directly through threaded openings in tank walls to heat liquids, viscous fluids, forced air, and gases by direct contact.
Picking the right screw plug immersion heater for your application is a daunting task. We have been doing it for over 30 years and are here to help you get the right screw plug immersion heater for the right job. There are many screw plug immersion heaters in stock or fast ship at the factories and if not most can be manufactured in 1-4 weeks.
The standard screw plug sizes utilized are 1”, 1 1/4, 2” and 2 1/2” and are either made of steel, brass or stainless steel, depending on the application. Various types of electrical protective enclosures, built-in thermostats, thermocouples and high-limit switches can be incorporated into screw plug immersion heaters.
Screw Plug NPT | Plug Material | Standard Element Diameters | Max Voltage | Phase | Heating Elements Material | Maximum Number of Elements | Power |
1" | BRASS STEEL SS 304 SS 316 | 0.315" | 110V-300 V | 1 | COPPER INCOLOY 800 STEEL SS 304 SS 316 | 1 | 1KW |
1 1/4" | 0.315" | 110V-300 V | 1 | 2 | 2KW | ||
1 1/2" | 10mm | 110V-600 V | 3 | 1KW-15kw | |||
2" | 0.430" | 110V-600 V | 1 or 3 | 3 | 1KW-20KW | ||
2 1/2" | 0.430" | 110V-600 V | 1 or 3 | 3 | 1KW-30KW |

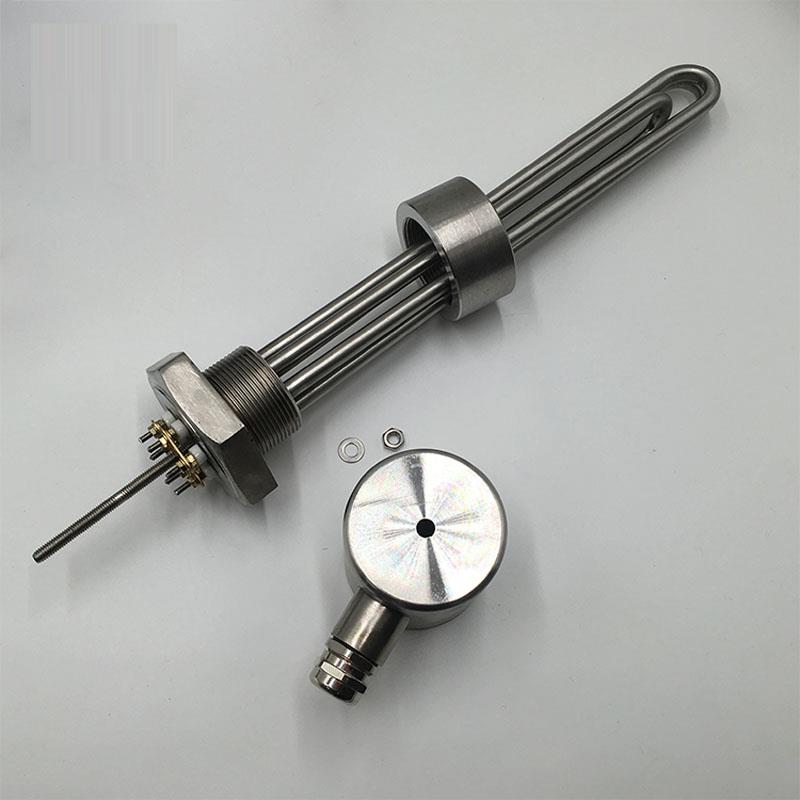

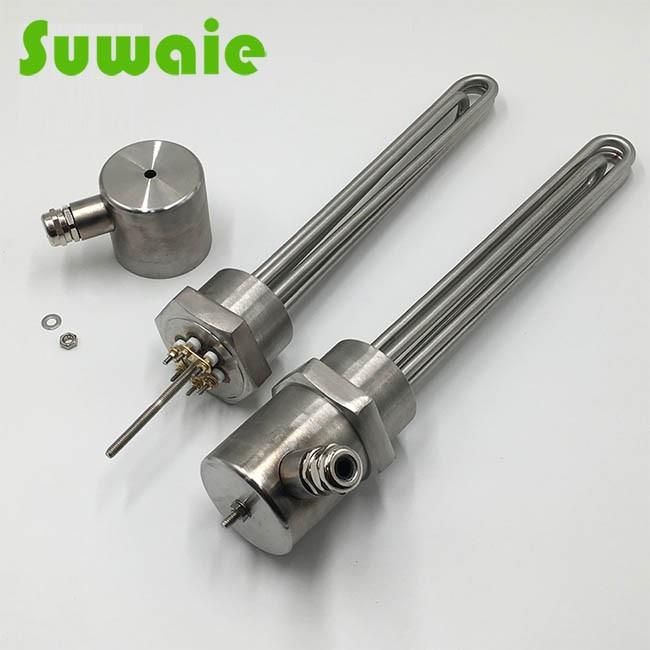

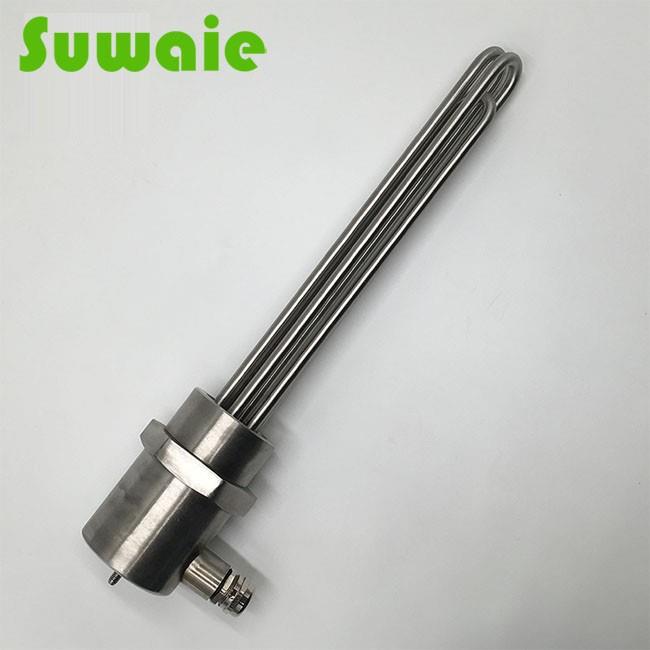

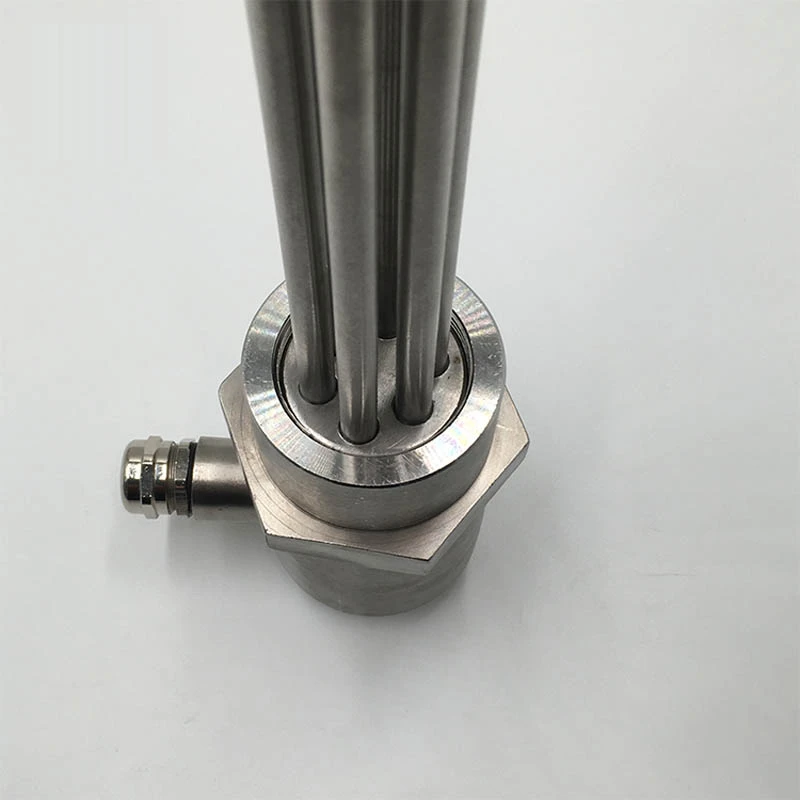

Products show

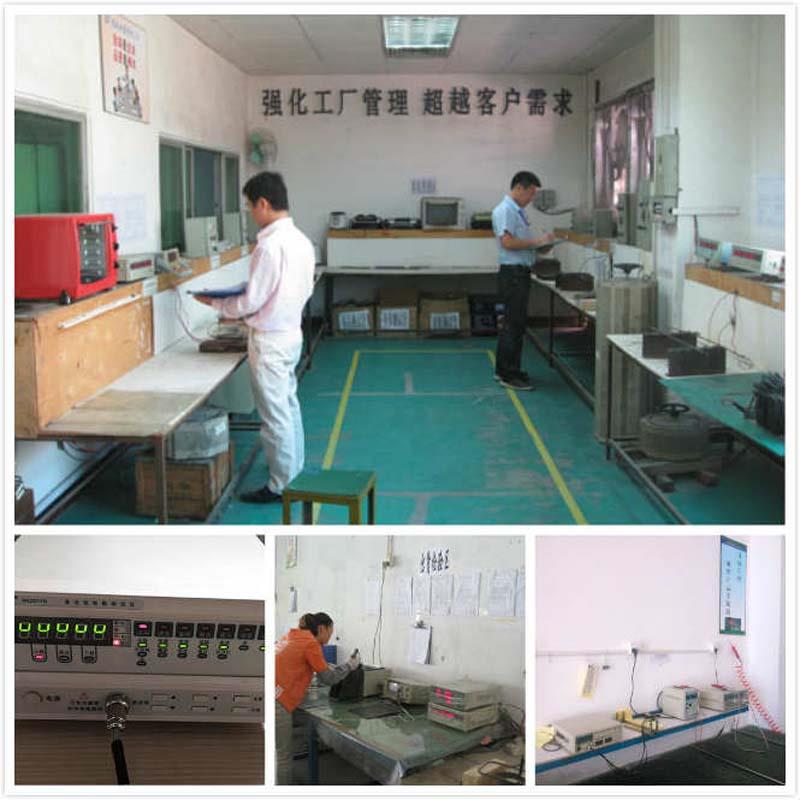

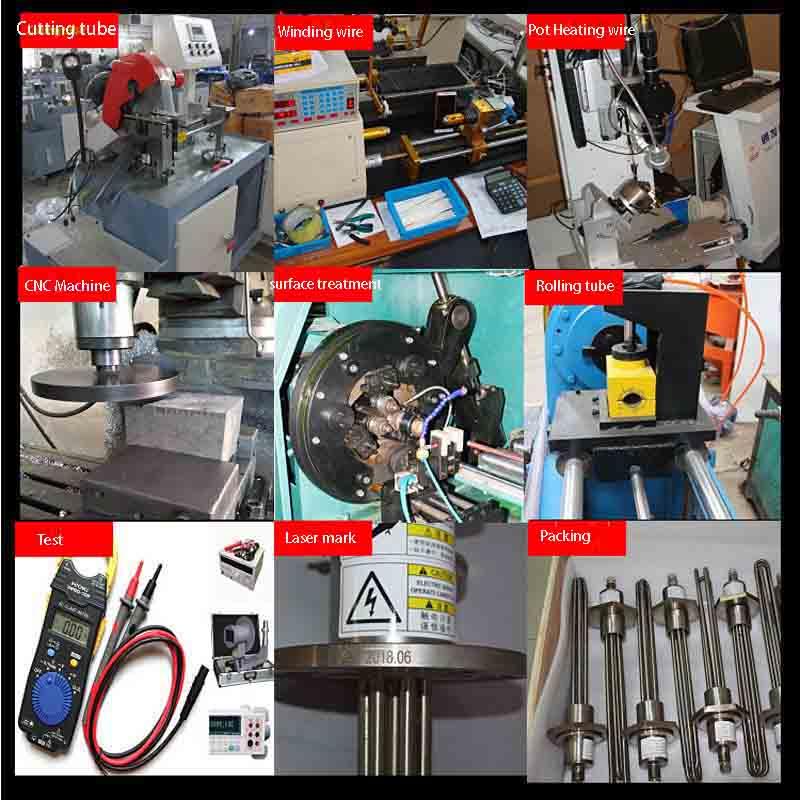

Process and test room show
Office show
Packing and shipment show
Our trade terms:
1. Payment term: 50% deposit by T/T,balance before shipentment
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen,C&F Shenzhen.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.
FAQ
1. Q: How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping also optional. Shipping time depends on distance.
2. Q: How about the machine warranty?
A: Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free
3. Q: What is The Process Of an Order?
A: Send Your Detailed Request→Feedback With Quotation→Confirm Quotation & Make Payment→Make Size Drawing For Approval→Make Production→Production Test→Sample Test(Approval)→Mass Production→Quality Checking→Delivery→After Service→Repeat Order...
