Industrial immersion heaters are medium capacity heating units designed to heat liquids, viscous fluids, forced air and gases inside tanks, vessels and pipes. Screw plug electrical immersion heaters are designed to be immersed directly into the gas or liquid being heated; since these heaters come into direct contact with the gas or liquid, heat-up times are very fast.
Industrial applications for screw plug immersion heaters:
1. Process water heating
2. Heating oils, wax, tar, asphalt, paraffin
3. Mild alkaline & acid solutions
4. Freeze protection
5. Equipment warm-up
6. Heating gases
7. Food processing
Maximum temperature and sheath material selection table:
|
Heater Sheath |
Maximum Sheath Temp. |
Used to heat |
|
Steel |
750°F (400°C) |
Oil, hydraulic oil |
|
Copper |
360°F (180°C) |
Water, tap/municipal only |
|
Incoloy 800® |
1500°F (815°C) |
Water, alkaline solutions, air, gases, radiant |
|
Incoloy 840® |
1400°F (760°C) |
Air, radiant |
|
Inconel 600® |
1600°F (870°C) |
Strong alkaline solutions, high temperature gases |
|
Stainless Steel |
1200°F (650°C) |
De-ionized, de-mineralized, process water, some mild acids |
Brand Name: SUWAIE
Storage / Tankless: Instant / Tankless
Time to market: 2007
Control Mode: Wire Control
Style: Horizontal
Housing Material: Stainless Steel 304, 201
Certification: CE
Voltage (V): 220V/380V
Capacity: 50L-100L
Installation: Screw 1.5inch, 2inch
Power (W): 3KW-15KW
Tube material: SUS304
Tube diameter: 8/10mm
Volt: 220V -380V
Wattage: 3KW/4.5KW/6KW/9KW/12KW/15KW
Thread: 1.5"BSP(SUS304)
Application: Water Heating Element
Type: Immersion Heater Element
Usage: Electric immersion heater

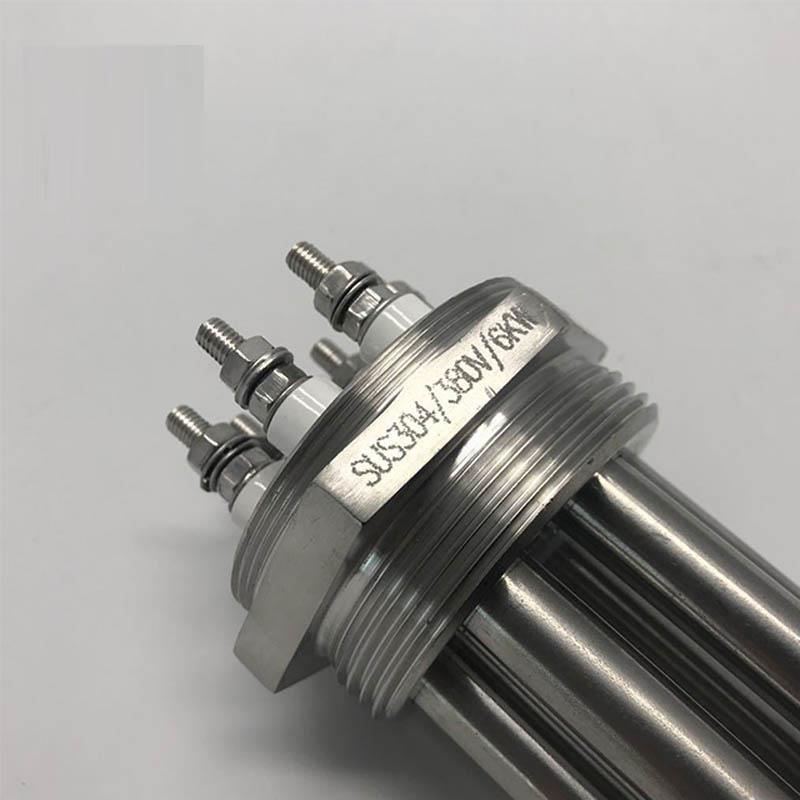

Product picture show

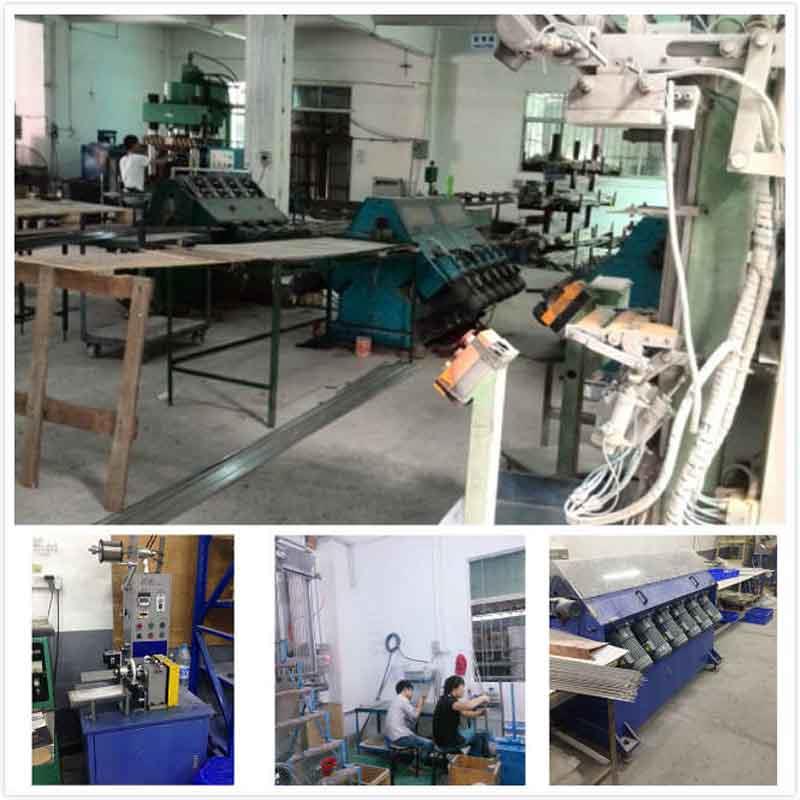

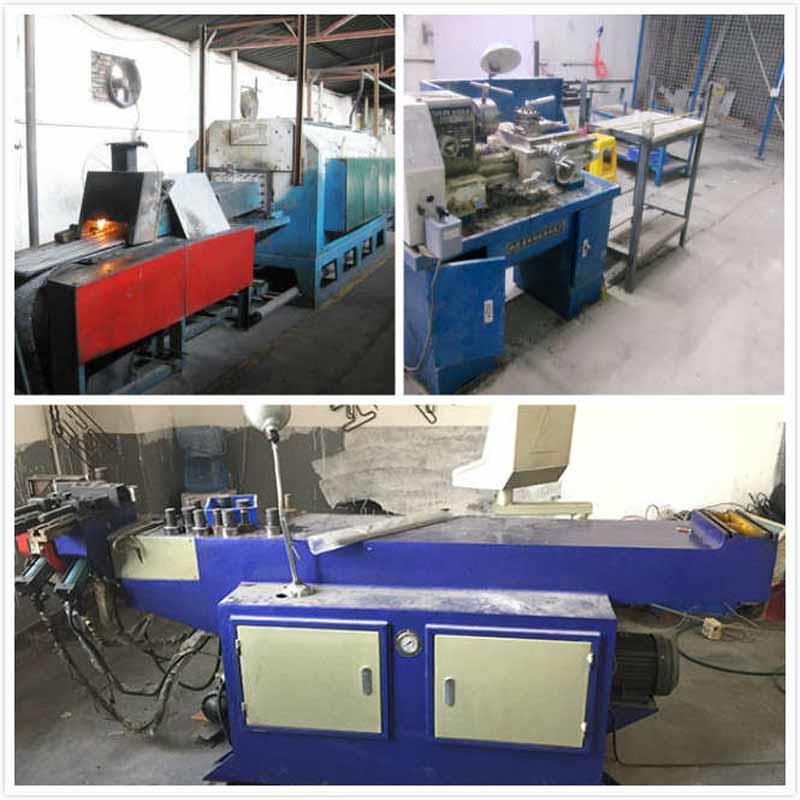

Immersion heater production machine show
Packing details and shipment ways show
Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of heating element.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ
1. Q: Can You Give Me Help If My Products are Very Urgent?
A: Yes, Of Course, We Will Try Our Best to Give You Help. Because We Have Our Own Factory to Produce. We Can Flexible to Adjust Our Production Schedule.
2. Q: Is it OK to print my logo on heating element product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
3. Q: What is your term of delivery ?
A: EX-WORKS, FOB,CIF,C&F,DDP,DDU , etc
4.Q:How much electricity does a 3KW immersion heater use?
A:3 kW immersion heater uses 3 kilowatt-hours (kWh) of electricity per hour when running at full power
