Silicon Carbide Heating Elements(SIC Heater)
When element temperatures up to 1625°C (2927°F) are required, Silicon carbide (SiC) heating elements are a desirable option with an impressive peak power density of 50 watts per square inch. Electric furnace heating with silicon carbide elements is economical, dependable, clean, quiet and safe. There are no fuel storage problems, no worries about fuel availability and no noxious exhaust products to be ducted away. Silicon Carbide equipped furnaces are versatile. They handle a wide range of products and atmospheres efficiently, and temperatures can be controlled as closely as you like. Silicon carbide heating elements are rigid throughout the range of operating temperatures so they can be installed horizontally or vertically without any additional supports. The single ended connection types allow even greater flexibility in furnace design. They can be installed through side walls or rood, or project up through the hearth or used to heat furnaces that are too wide or too long to span with conventional elements.
Rod Specificationsand Resistance Range:
Diameter | Length of hot zone (I) | Length of cold zone | Overall Length | Range of Resistance | Diameter | Length of hot zone (I) | Length of cold zone | Overall Length | Range of Resistance |
8 | 100-300 | 60-200 | 240-700 | 2.1-7.2 | 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 |
12 | 100-400 | 100-350 | 300-1100 | 0.8-6.0 | 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.4 |
14 | 100-500 | 150-350 | 400-1200 | 0.8-5.6 | 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.0 |
16 | 200-600 | 200-350 | 600-1300 | 0.8-4.4 | 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-2.5 |
18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 | 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
20 | 200-800 | 250-600 | 700-2000 | 0.6-5.0 | 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 |
25 | 200-1200 | 250-700 | 700-2600 | 0.6-4.5 |

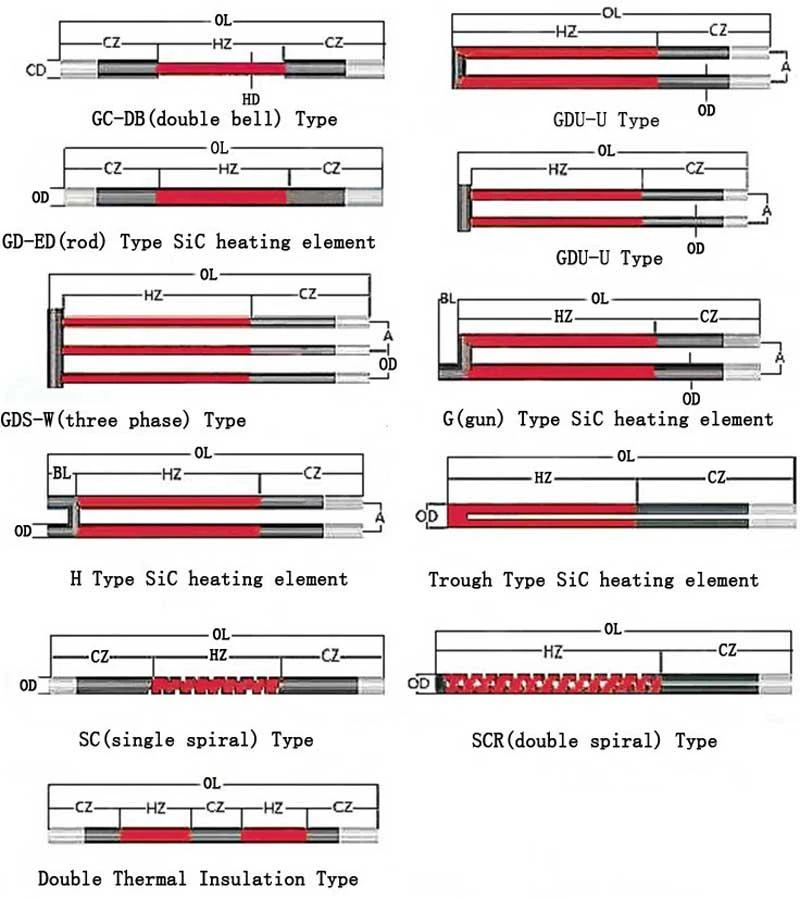

SIC Heater Drawings and type show
Material | SiC |
Voltage | 220 volts, 380 volts, 110 volts |
Shapes | Straight type, U type, W type, and etc. |
SiC Content | Above 99% |
Color | Gray |
Resistence | Uniform resistance |
Power | Adjustable |
Working temperature | Up to 1500C |

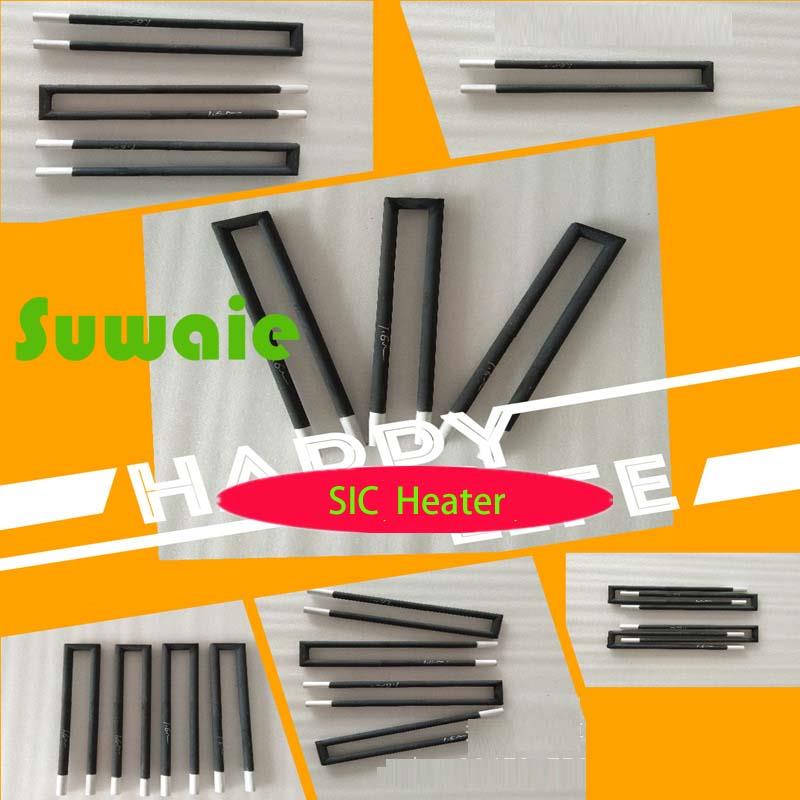

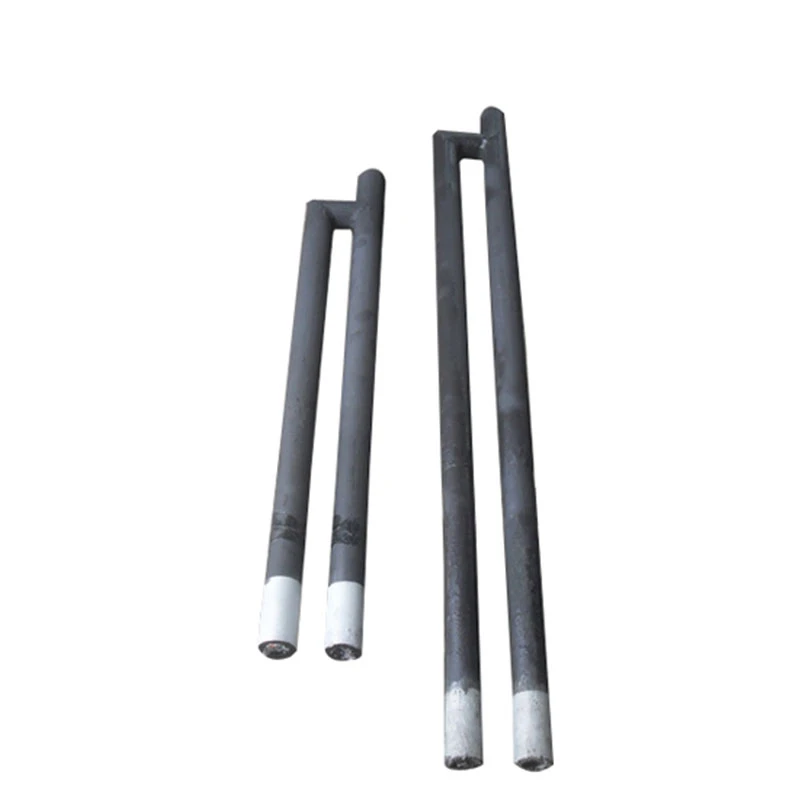

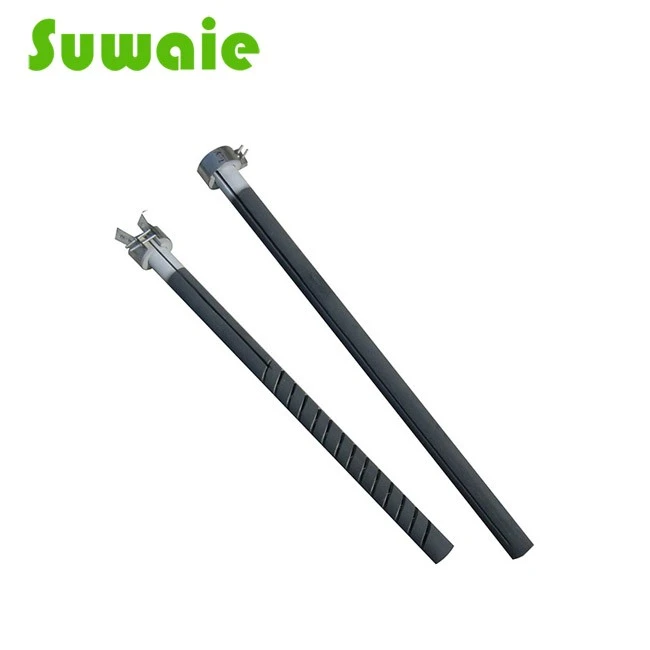

Products show

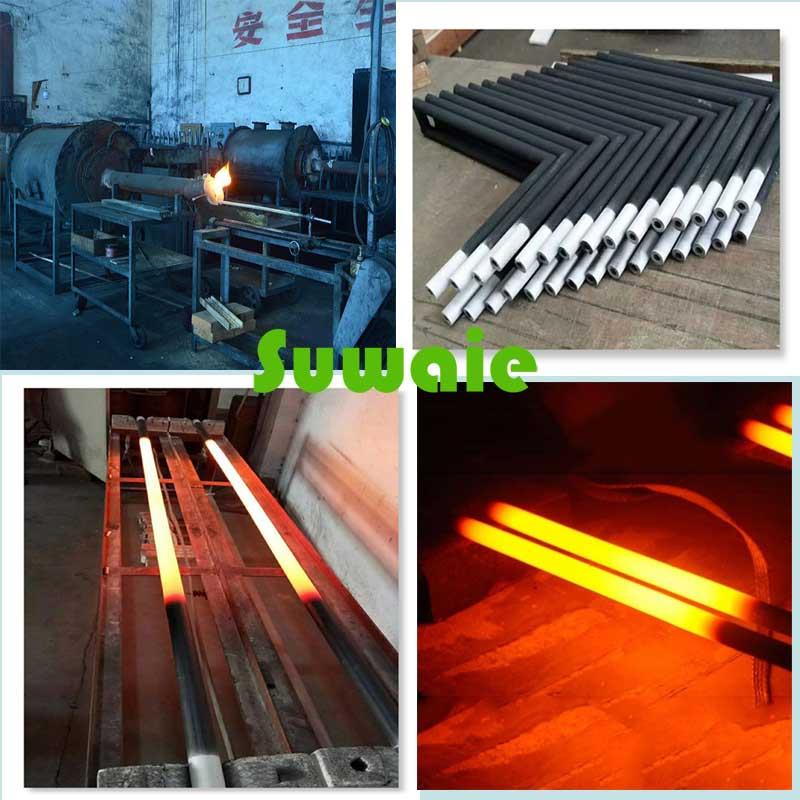

Process show

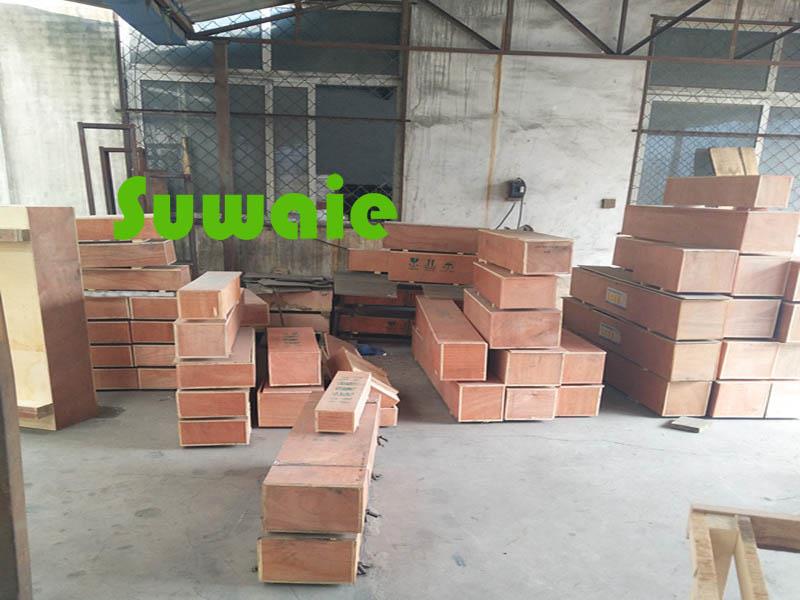

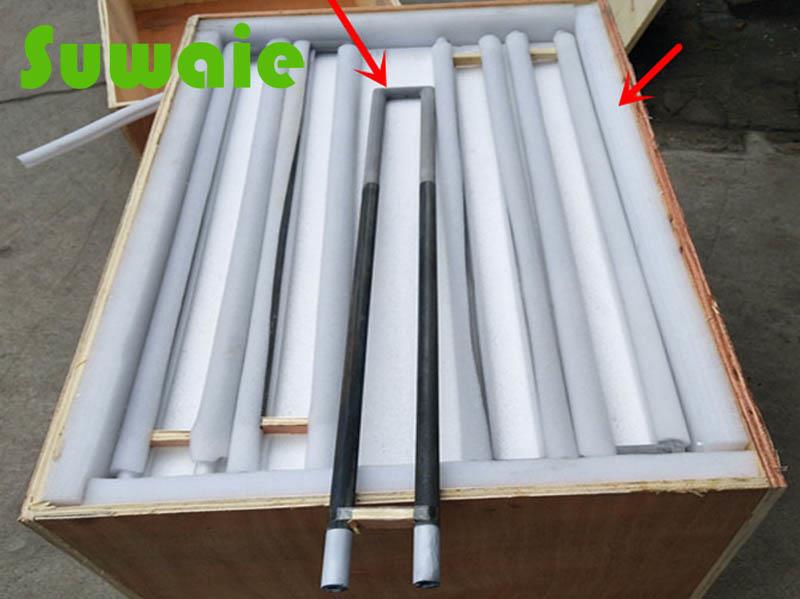

Packing ans shipment
Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of heating element.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ
1. Q: What Production Equipments do we own?
A: Rolling machine,Mgo filling machine,tube cutting machine,banding machine,coiling machine,Swaging machine welding machine, etc.
2. Q: How can I get the quotation?
A: We will submit the quotation in 8 hours if getting detailed information during working days.
In order to quote for you earlier, please provide us the following information together with your inquiry.
1). Detailed drawings (CAD/PDF/DWG/IGS/STEP/JPG)
2). Material requirement
3). Surface treatment
4). Quantity (per order/per month/annual)
5). Any special demands or requirements, such as packing, labels,delivery,etc.
3. Q: How to start the business?
A: We recommend you our product according to your requirement, if you are satisfied with that, then you make a trail order or sample order to check the quality, if all ok, you can place an order then.
