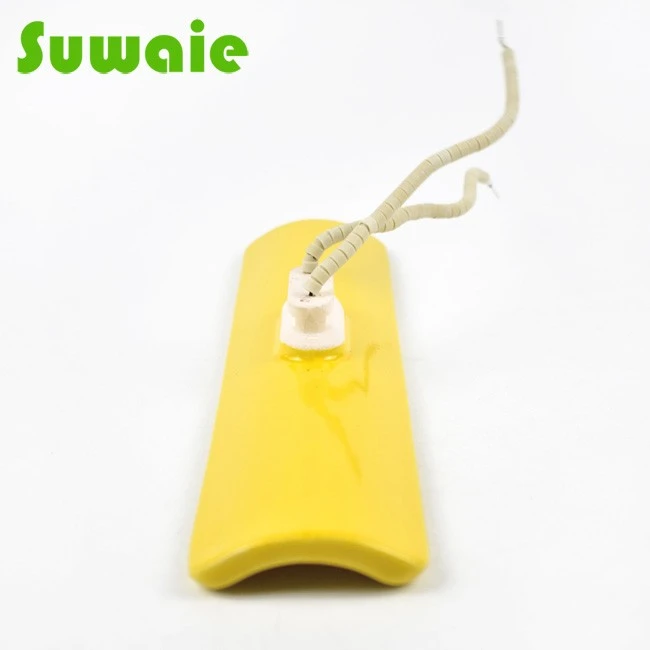

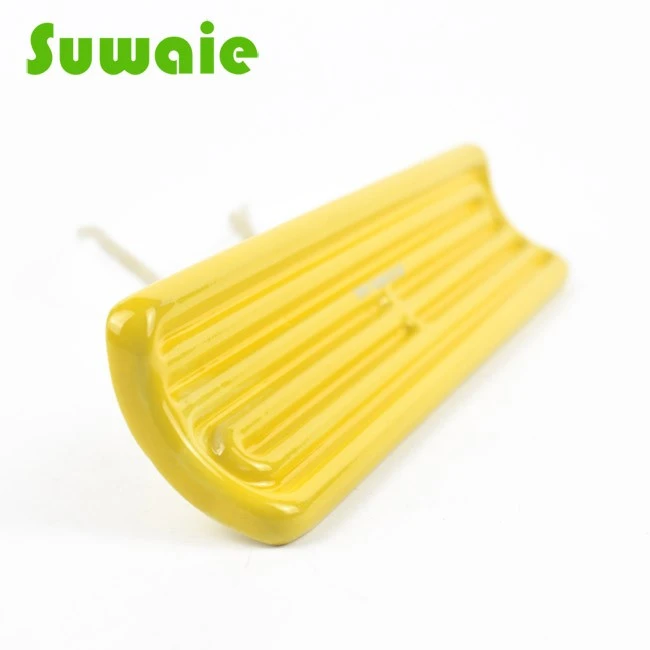

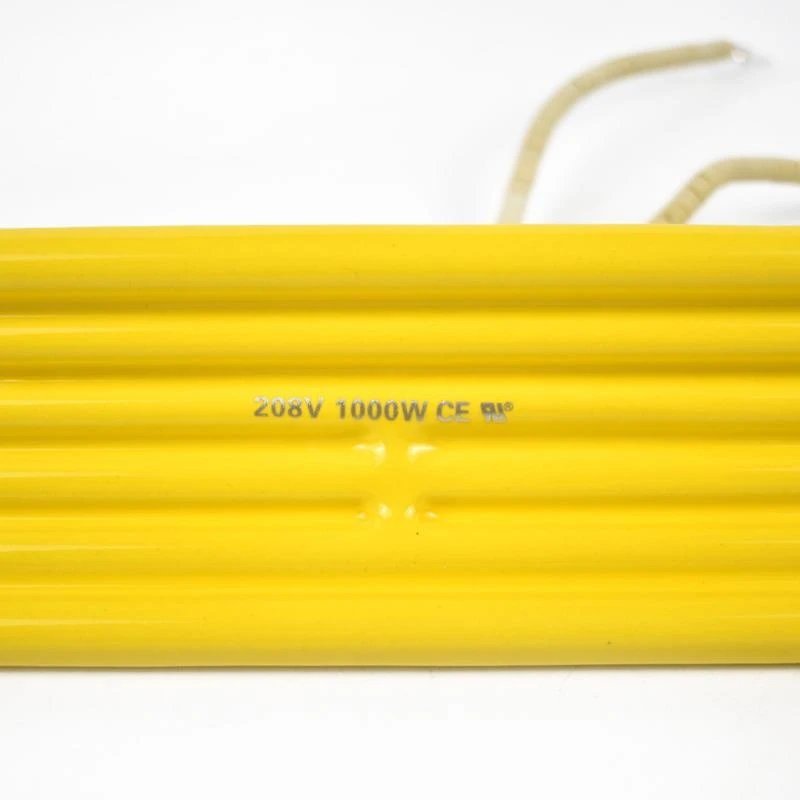

Ceramic infrared heat elements are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas. Ceramic elements produced by SUWAIE include ceramic trough elements, ceramic hollow elements, ceramic flat elements, and ceramic infrared bulbs.
Ceramic elements operate in the temperature of 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the 2 - 10 micron range. Most plastics and many other materials absorb infrared best in this range, which makes the ceramic heater the most popular infrared radiant emitter on the market. A range of aluminised steel reflectors are also available to ensure the maximum amount of infrared radiation is reflected forward to the target area.

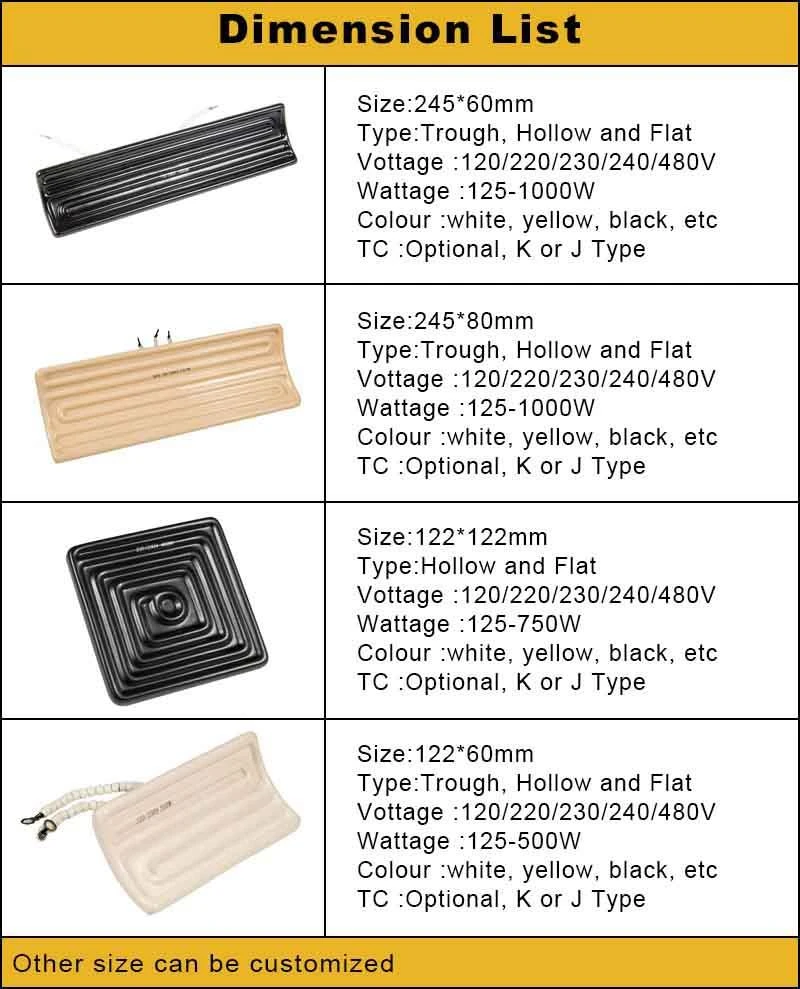

More sizes and shapes for high temperature flexible ceramic heater
Size(mm) | Type | Power |
60*60 | Curved/flat/Hollow | Available in 125w and 250w |
122*60/120*60 | Curved/flat/Hollow | Available from 125w to 500w |
122*122/120*120 | Curved/flat/Hollow | Available from 150w to 750w |
245*60 | Curved/flat/Hollow | Available from 150W to 1000w |
245*80 | Curved/flat/Hollow | Available from 150w to 1000W |
Specification:
Dimension | 240 x 60, 240 x 80, 120 x 120, 120 x 60, 60 x 60 etc. |
Shapes | Trough, Hollow and Flat |
Insulation Material | Ceramic |
Conductor Material | Nichrome Wire |
Voltage | 220 volts, 380 volts, 110 volts |
Wattage | 250 watts - 1000 watts |

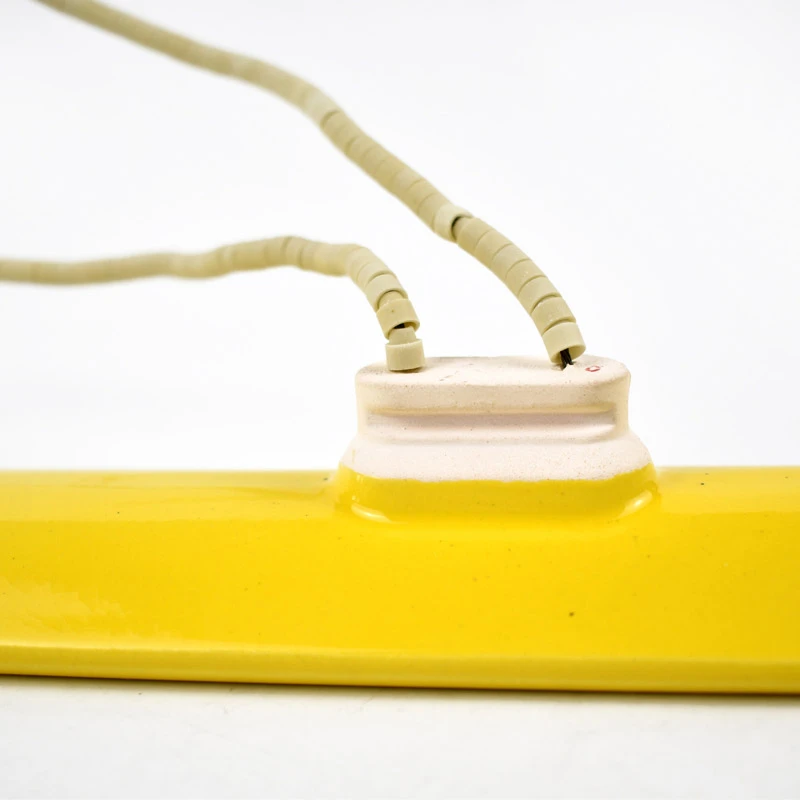

Lead Connection | Ceramic Bead Lead Wire 150mm |
Thermocouple | Optional, K or J Type |
Operating Temperature | 300C - 700C |
Recommended Radiation Distance | 100mm - 200mm |

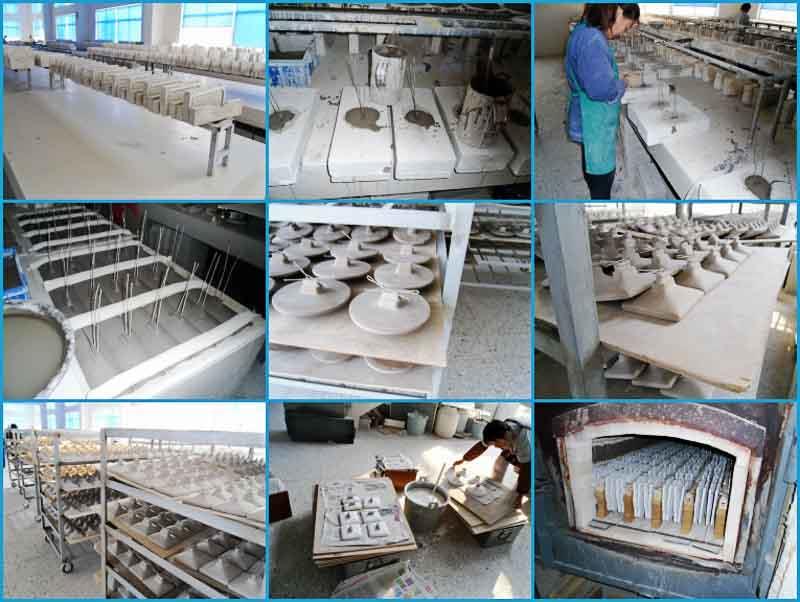

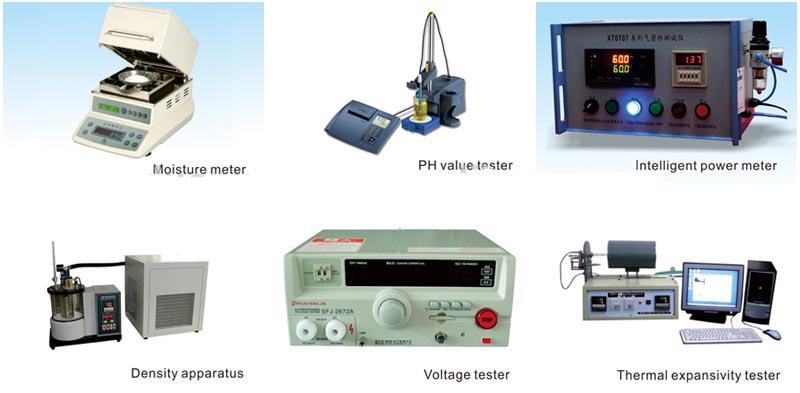

Process and test machine

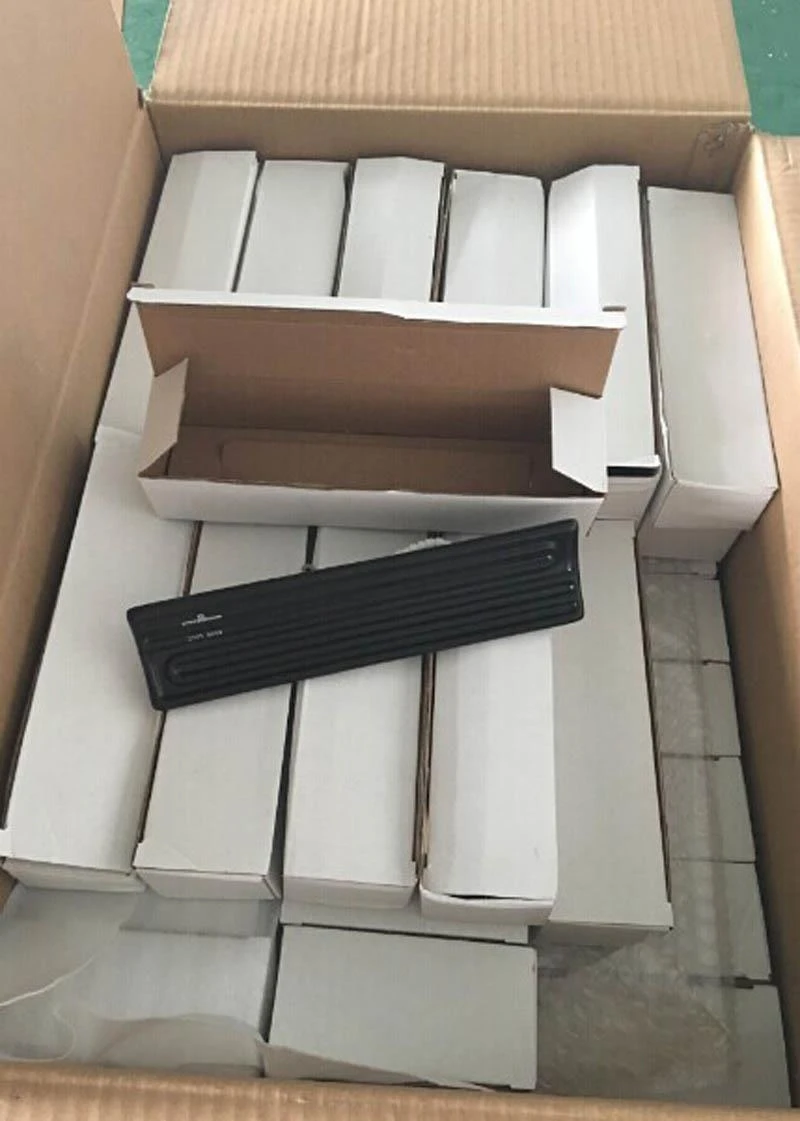

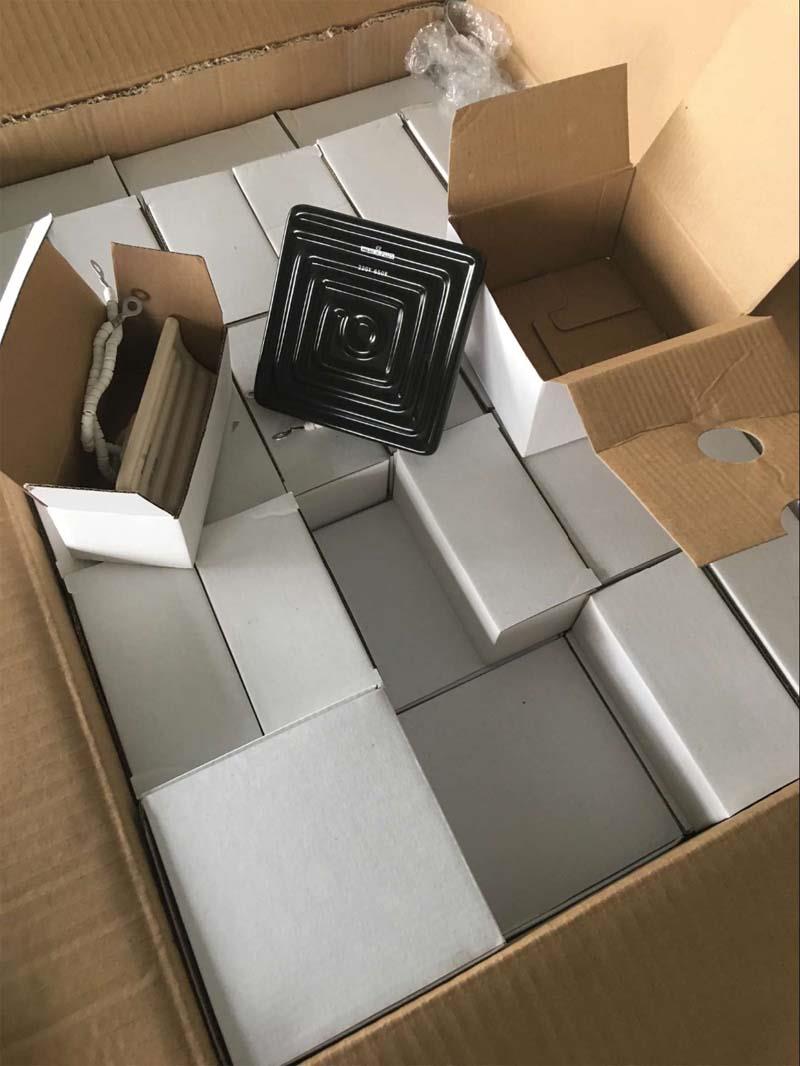

Packing and shipment
After-sales service:
1. We offer 12 months warranty.
2. Guarantee period is subjected to warranty instruction (1 year/ 2000 hours whichever comes first).
3. Free after-sale service during the warranty refers to problems caused by quality issues; any non quality problem occurred, we will charge the maintenance fee according to relevant standard.
4. Service Center all over the world for after sales problems.
5. Various operation instructions such as: products inspect and control, Receiving inspection control, sampling inspection operation instruction, process quality inspection operation instruction etc
6. Pre-sale service and free consultation service.
7. Quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
FAQ
1. Q: What is your production capacity?
A: 50000pcs per DAY
2. Q: What is the standard of package?
A: Professional export packing:
1) Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2) Under 100 KGS parts, use strong DHL export Carton .
3) Above 100 KGS, will customize Wooded case for packing.
3. Q: What is your minimum order quantity?
A: There's no minimum quantity ,you can buy any quantity. However, few in number, the unit price will be a little higher.
