immersion element
An immersion heater is a device which is installed in a tank or container to heat a liquid. The installation can be over-the-side, flanged or threaded.
Over-the-Side Immersion Heaters
Over-the-side immersion heaters are designed for vessels where through the side immersion heaters cannot be conveniently installed. These heaters are installed through the top of the vessel with the heated portion of the unit along the side or at the bottom of the tank. Natural circulation of the fluid inside the vessel allows for even distribution. Terminal houses or lead wires are provided for power connection.
These industrial heaters are available with heating elements made of copper, steel, stainless steel, cast iron, Incoloy, titanium, and PFA coated. A wide selection of kilowatt ratings, shapes and mounting methods are available to suit many different types of applications.
The large variation in heating element material and shapes of over-the-side immersion heaters offers a wide selection in the application of these units. Water, oils, solvent, plating baths, salts and acids are some of the many liquids and viscous materials commonly heated with immersion heaters. Over-the-side types permit portability, easy removal for cleaning of tanks and heaters, and ample working area within the tank when installed.
Product Introduction

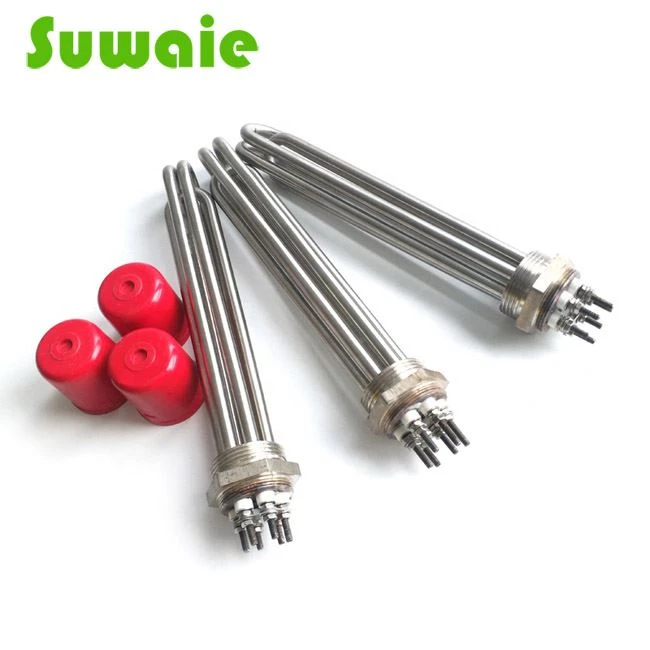

i. Flanged Immersion Heater consists of hairpin bend tubular elements welded or brazed into a flange & provided with wiring boxes for electrical connections.
ii. Flanged Heaters are installed by bolting to a matching flange welded to the tank wall or nozzle.
iii. A wide selection of flange sizes, Kilowatt ratings, Voltages, Terminal Enclosures & Sheath Materials make these heaters ideal for all types of heating applications.
Specification
Characteristics & Properties Of immersion heater
*Tube diameter: Φ8mm-Φ16mm
*Tube Material: SS201, SS304, SS316, SS321, INCOLOY800
*Insulation Material: MgO
*Conductor Material: Nichrome Resistance Wire
*Wattage Density: High/Middle/Low (5-25w/cm2)
*Lead Connection Option: Threaded Stud Terminal or Lead Wire
*Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for immersion flange heater)
What can an SUWAIE heating element applied to?
1. Heating transfer fluids.
2. Heating medium and lightweight oils.
3. Heating water in tanks.
4. Pressure vessels.
5. Freeze protection of any fluids.
6. Food processing equipment.
7. Cleaning and rinsing equipment.
8. Beverage equipment.
And so
Products Show
How To Produce This Immersion Heaters
Quality Control Test Room
Packing and shipment:
Our Advantages:
1.We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2.We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3.We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4.We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1.
Q: How long should your heater serves?
A: The lifespan of heater is decided by the quality of Mgo and resistance wire quality. With good resistance wire, our heating element can serve 50000 hours.
2.
Q: Can you give me a discount price?
A: It is dependng on the quantity. The larger the quantity is, the more discount you can enjoy.
3.
Q:Do you carry instead of 220v a 110v model ? A; NO need to any model to change the Voltage.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of immersion element. Our company has professional equipment and engineers to provide the production and service of immersion element
