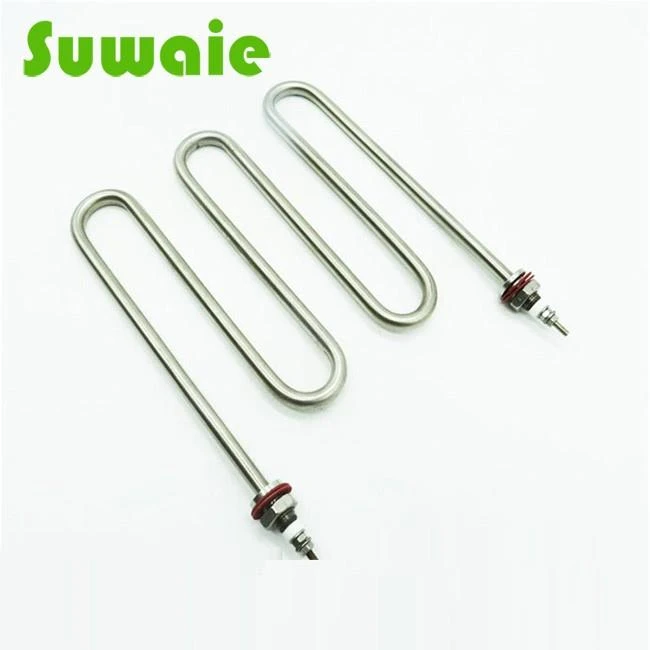

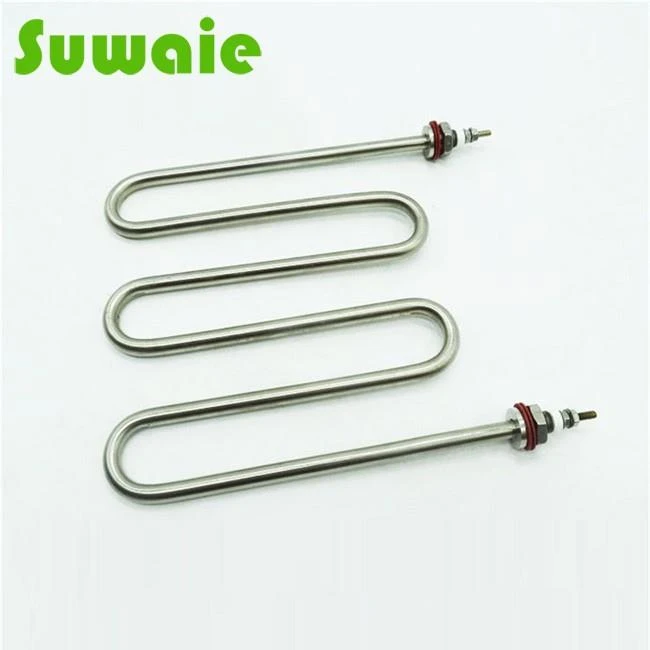

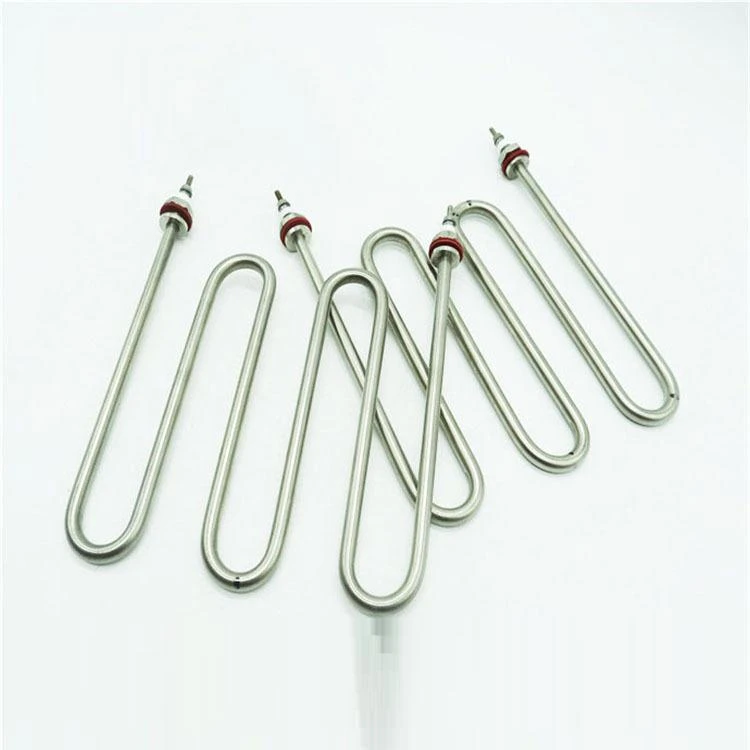

The W Type Tubular Heating Element is a reliable, high-performance electric heating component designed for a wide range of industrial applications. Made from premium stainless steel (SUS304), this tubular heater is specifically crafted for heat transfer in demanding environments such as oil tanks, water heaters, and various heating equipment.
Key Features of the W Type Tubular Heating Element
- Material: Premium stainless steel (SUS304, SUS321, SUS310, SUS316L)
- Customization: Available in various tube diameters (6mm-20mm), lengths, and wattage options (2KW, 3KW, or custom).
- Applications: Ideal for heating oil tanks, water tanks, heat transfer fluids, and more.
- Safety: Explosion-proof, pressure-resistant up to 20MPa, with leak-free sealing rings.
- Power Supply: Can be designed for voltages between 100V-440V.
- Warranty: 1-year warranty, ISO9001 and CE certified.
Product Specification
|
Type |
Kitchen equipment heating element |
|
Power Source |
Electric |
|
Dimensions |
Customized |
|
Warranitty |
1 year |
|
Condition |
New |
|
Brand name |
SUWAIE |
|
Certification |
ISO9001,CE |
|
Power |
2KW,3KW or Customized |
|
Tube diamater |
6-20mm |
|
Place of Origin |
Shenzhen China |
|
Voltage |
100V-440V |
|
Tube material |
SUS304,SUS321,SUS310,SUS316L,Titanium,incoloy800,incoloy840,and son on. |
|
Diameter tolerance |
+-15mm |
|
Power Talerance |
+5%,-10% |
|
Leakage Current |
<0.5mA |
Why Choose the W Type Tubular Heating Element?
-
Fast Heat Response & Precision Control
This tubular heater is designed to respond quickly to temperature changes, ensuring high watt density and excellent temperature control. The stainless steel sheath material guarantees efficient heat transfer and enhanced performance, especially in industries where reliability and precision are crucial. Whether you're heating oil, water, or thermal transfer fluids, our W Type Tubular Heating Element delivers exceptional results with minimal energy loss.
-
Customizable Design for Tailored Solutions
Our heating element offers various customization options including power (2KW, 3KW, or tailored specifications), tube diameter (from 6mm to 20mm), and heating tube length to meet your specific requirements. Additionally, we provide flexibility in the shape and design of the heating element to ensure compatibility with your equipment. This level of customization helps your operation achieve the most efficient heating while saving on energy costs.
-
Long Lifespan & Durability
Manufactured with stainless steel and specialized electrothermal materials, this heater is built to last. With a low design power load, the element can operate for longer periods, ensuring fewer replacements and minimal downtime. The added red rubber sealing rings at the end caps ensure safe, leak-free operation, making it ideal for high-pressure environments.
-
Industry Compliance & Versatility
Our heating element is designed to comply with stringent industry standards, making it suitable for use in industries like semiconductors, metalworking, automotive, electronics, and medical devices. The explosion-proof grade can reach dIIB and C, with a pressure capacity up to 20MPa. This ensures you get a heating solution that not only meets your technical requirements but also adheres to safety and quality regulations.
-
Global Support & Service
At SUWAIE, we take pride in offering excellent customer support, with over 50 senior engineers ready to assist you in designing the heating solution. Since 2007, we have been committed to delivering high-quality tubular heating elements that help our clients in industries worldwide. With OEM and ODM capabilities, we provide personalized services to cater to your unique needs.
Packaging & Shipping
Blister Packaging or Bubble Wrap to ensure the product arrives safely with no scratches or damage.
For weights under 100KG, strong DHL export cartons are used for secure transport.
For shipments over 100KG, custom wooden cases are used to safeguard the product during shipping.
How to Place an Order
When inquiring, please provide the following details to help us fulfill your order efficiently:
- Product drawings (PDF, CAD, or 3D)
- Required voltage, power, tube diameter, and shape
- Surface treatment requirements
- Quantity needed
Why Partner With SUWAIE?
At SUWAIE, we understand the challenges faced by engineers, procurement managers, and quality control personnel in sourcing reliable heating elements. We offer OEM & ODM services and are fully equipped to provide customized heating solutions for complex industrial applications. With over 300 employees and more than 50 senior engineers, our team has the expertise to solve your heating challenges efficiently. Since our inception in 2007, we have helped global companies in electronics, automotive, medical, and aerospace industries with their heating needs. Let us be your trusted partner for high-quality, customizable, and compliant heating elements that drive your business forward.
FAQ
What industries use the W Type Tubular Heating Element?
The W Type Tubular Heating Element is ideal for industries like semiconductors, metalworking, automotive, electronics, and medical equipment. It's perfect for applications that require reliable and precise heating.
How can I customize the W Type Tubular Heating Element?
We offer a wide range of customization options, including tube diameter (6mm to 20mm), length, wattage, voltage, and surface treatment to fit your specific heating requirements.
What is the lifespan of the W Type Tubular Heating Element?
Thanks to the high-quality stainless steel material and low power load design, the element has a long lifespan. It is built to endure continuous operation, even in demanding conditions.
What is the standard lead time for an order?
Lead time can vary depending on customization requirements, but typically, it takes 2-4 weeks for production. We can provide specific timelines upon request.
How do I ensure my heating element is compliant with safety standards?
Our W Type Tubular Heating Element complies with international safety standards, including explosion-proof ratings and pressure resistance. We can also assist in ensuring your specific compliance needs are met.
