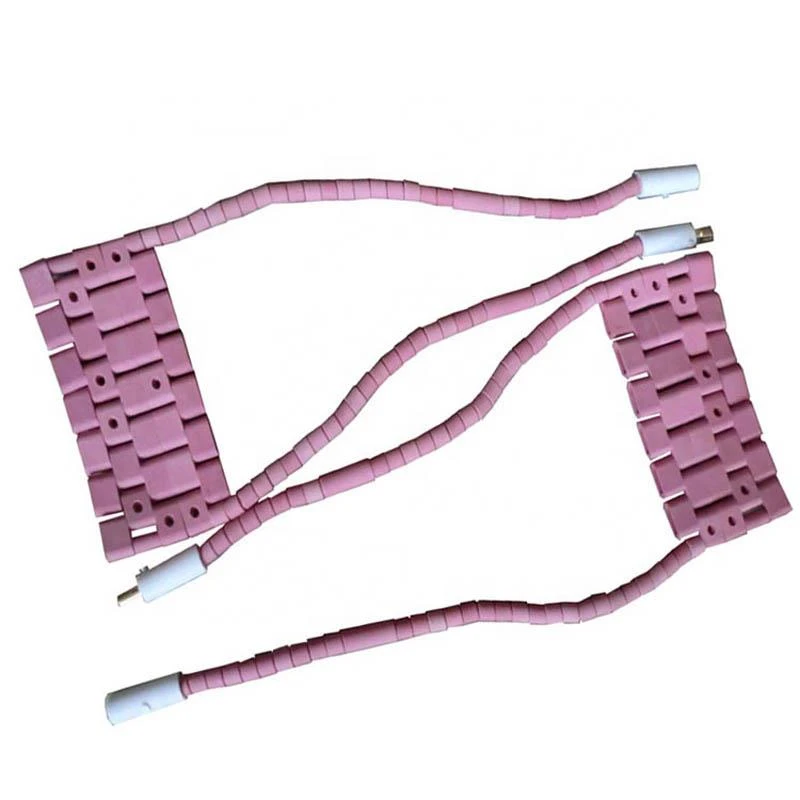

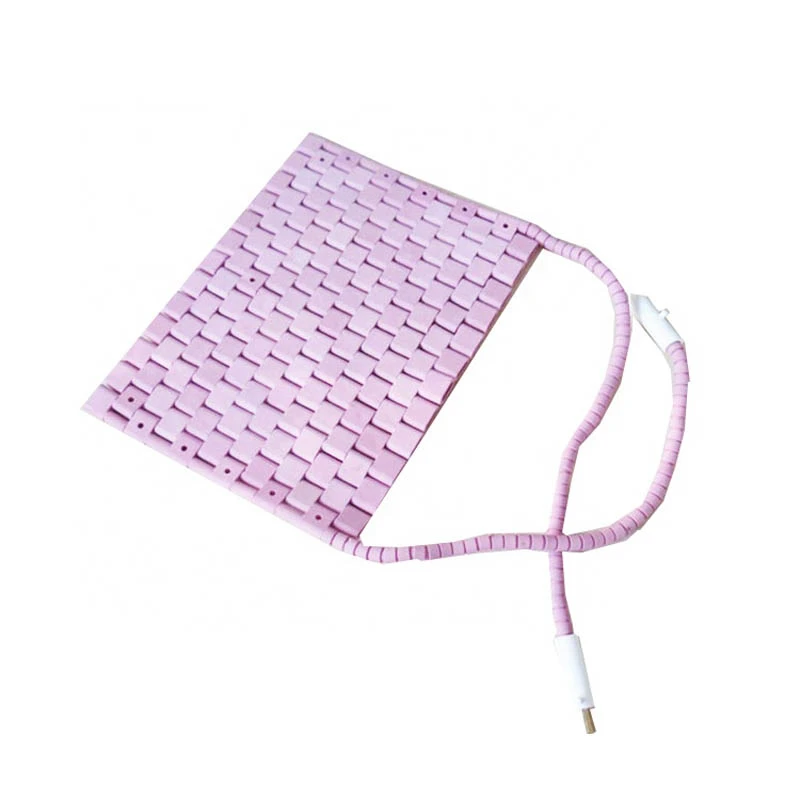

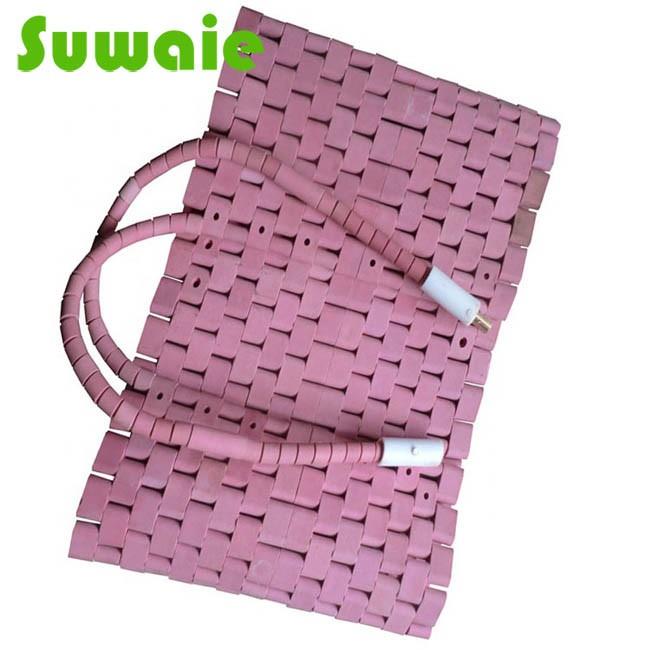

Our flexible ceramic pad heater, also called ceramic mat heater, is manufactured with quality multi-strand 80/20 nichrome heating wire(NiCr80/20)and high alumina ceramic beads. It has standard 9″ cold tail length which is welded to the heating wire with pure nickle wire to keep the 60A brass camlock connector from being heated .
The ceramic bead is made of sintered 95% alumina(95% Al2O3). It enjoys high temperature resistance, excellent insulating property, and efficient thermal conductivity, which provides “FCP” heaters with exceptional electrical insulation,and thermal shock resistance and thermal conductivity qualities.
Designed for pre and post weld heat treatments (PWHT), our flexible ceramic pad heaters (FCP heater) functions efficiently whether they are used in a curved or flat application, and are available in an extensive list of sizes with voltages ranging from 30 volts to 255 volts, using different connectors among different countries, either Engligh camlock connector, or DINSE welding cable connectors.
It is available mainly in two standard voltage, 80V and 60V. We are ready to make any custom design heater as well.
Products show
When you inquire, pls supply some info as the following:
1. Vottage :60V, 80V and other can be customized.
2. Wattage :1000W, 1500W, 2000W and other can be customized.
3. Heater Width.
4. Heater Length.
5. Lead Wire Length.
6. Other special requirements if you have.
7. Quantity :the mini order quantity is 5pcs.

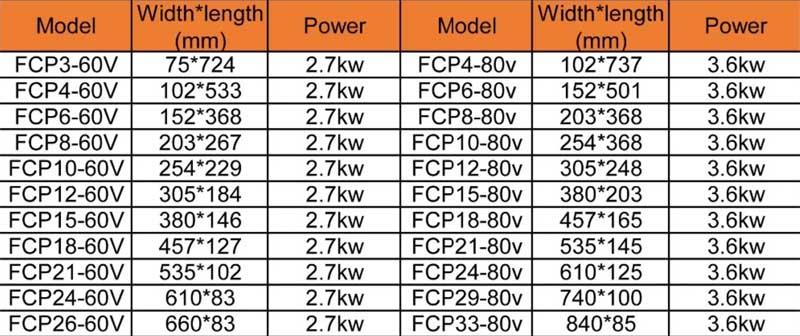

FCP heater size show

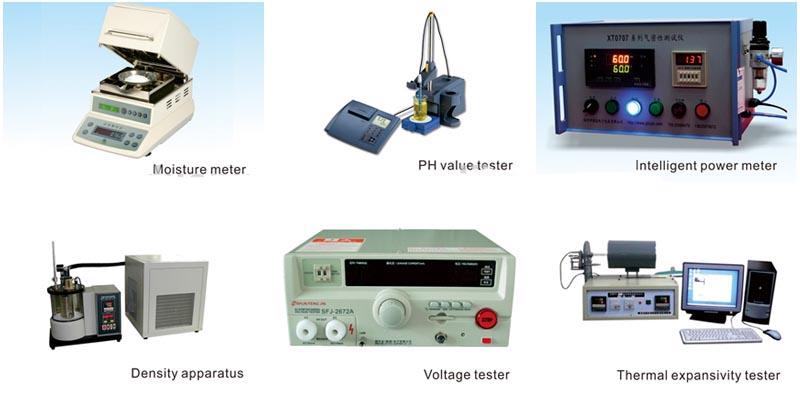

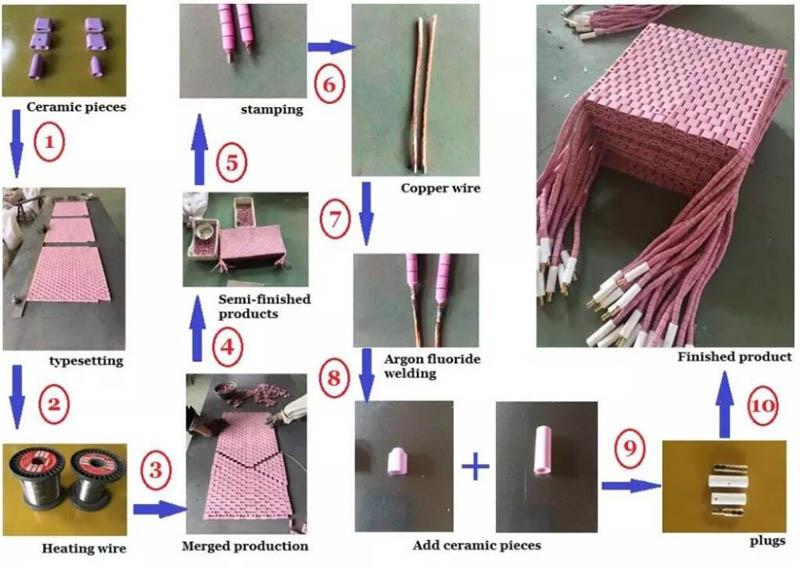

Process and test show

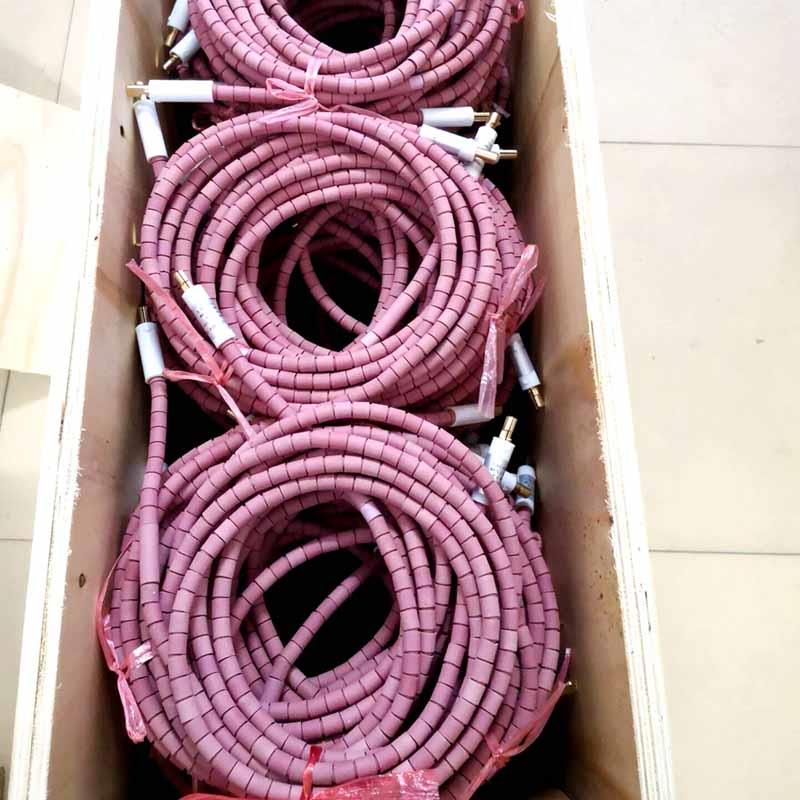

Packing and shipment show
SUWIE HEATER Advantage:
12 years focusing on heating elements;
10 years technical service and proessional sales team;
9 years of independent product research and development;
OEM/ODM is available.
Obtain Obvious Advantages, Provide Best Price, Welcome To Talk More.
FAQ
1. Q: What's the Payment method?
A: Western union, T/T totally or 50% deposit before production, the balance before delivery. We suggest you transfer the full values at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.
2. Q: Can you give me a discount price?
A: It is dependng on the quantity. The larger the quantity is, the more discount you can enjoy.
3. Q: What is your main product line made?
A: We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
4. Q: How do you guarantee the deliver time?
A: We have independent PMC department to arrange the production plan.
We have production meeting every morning to report the production progress and discuss the problems.
We will make production progress report to you every week and take some pictures for your reference, that's you can know our production progress clearly.
Hot Tags: flexible ceramic heater for weld heat treatment, China, manufacturers, suppliers, factory, customized, Full Trough Element infrared Ceramic Heaters, Ceramic Infrared, What Is Quartz Infrared Heat, 60V 80V FCP Ceramic Pad Heater, Far Infrared Ceramic Animal Heating Lamp, 100W 150W Ceramic Infrared Heat Lamp
