Teflon heater is the most versatile solution for a great variety of heating applications, in industry as well as in other fields. They can be shaped into any pattern, can be clamped or wrapped around the bodies that shall be heated. A large range of tubular heaters are available from stock. Standard diameters are 5.3, 6.6, 8,10,11,12 mm.
Teflon Heater Features & Benefits:
1. Available in a broad variety of sheaths, diameters, and ratings;
2. Supplied with electrically insulated sheath;
3. Provide superior internal electrical insulation and heat conductivity;
4. Easy to install;
5. Configurable to virtually any shape;
6. Compact size;
7. Precise and easy control of heat output;
8. Durable;
9. Easy to maintain;
10. Easy to replace thus eliminating long shut-down periods;
Teflon Heater Technical Specification:
1. Wattage Tolerance: +5%, -10%
2. Resistance tolerance: +10%, -5%
3. Voltages available: 380V,240V, 220V,110V,36V,24V or 12V
4. Operating temp: from 370ºC to 760ºC
5. Length tolerance: ± 1.5mm;
6. Delivery time: 7-14 working days.However, many sizes are kept in stock. Please contact the factory for assistance.
7. Insulation resistance (cold): ≥ 1000 MΩ;
8. Maximum leakage current (cold): ≤ 0.5 mA;
Heat intensity | Not exceeding 30w/cm2 (advisable) |
Power | Depends on the dimension |
Exhaust extreme (when cold) | <=0.1mA to 242 v. |
Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
Dielectric strength | 1500v. 1/sec |
Working temperature | 750 Deg C max. |
Length tolerance | +/-1.5% |
Diameter tolerance | -0.02 to -0.06 mm |
Cut off connection tolerance | +/-15 mm |
Power tolerance (w) | +5 % - 10 % |
Cold areas | Depends on length and diameter 5-25mm |

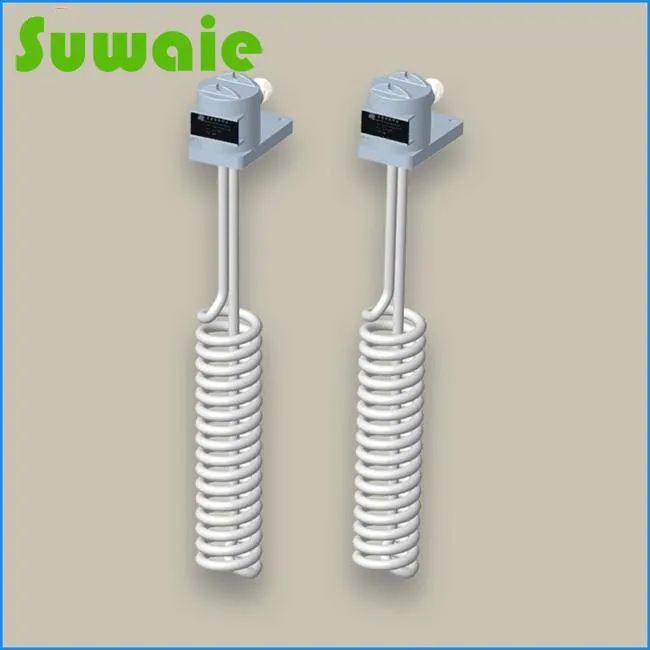

Product pictures show
How to produce the teflon heaters?
The Working process show.
Our Advantage:
1. Excellent Purchasing Service
Since we have many resources of different ranges of heating element raw material factories, we know their quality level and price level. We can choose the most suitable supplier for customers according to their request.
2. High Quality Products offered
Most of products are from our long-term suppliers. They have been supplying the goods for us for more than 20 years; we can control the quality and price. So the issue for quality is not a problem. Even if the products have met the function problem, we can afford all the consequences. We will never hurt the customer's interests.
3. Rich Factory Resources & heater Marketing Suggestion
After more than 12 years experience accumulated in this filed, we have collected valuable resources of manufacturers and distributors. We are not only able to supply high quality goods; also we can recommend the hot sale products to customers according to different market needs. We help customer save money, but help them earn more money.
4. Perfect After-sale Service
According to our company's rule, we support one-year quality guarantee after you receive the goods. During this time, if you meet any quality problems, please contact with us, we can provide you with any replacement. The premise is non-human damage.
Shipment ways
We can send the teflon heater by Air, by Express or by Sea.
FAQ
1. Q: Can I get some samples ?
A: Yes,Sample orders welcomed.
2. Q: Is there cheap shipping cost to import to our country?
A: For small order,express will be best, for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest by express, big quantity by air.
3. Q: How to Choose the System Voltage ?
A: We can design the heater element for 12v or 24v tubular heater or 220-380V for normal tubular heating eleemnt.
4. Q: What is your main product line made?
A: We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
