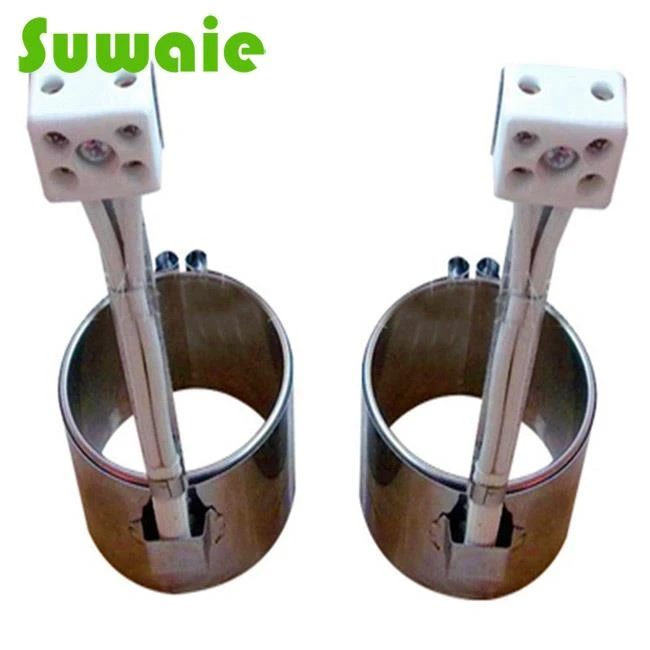

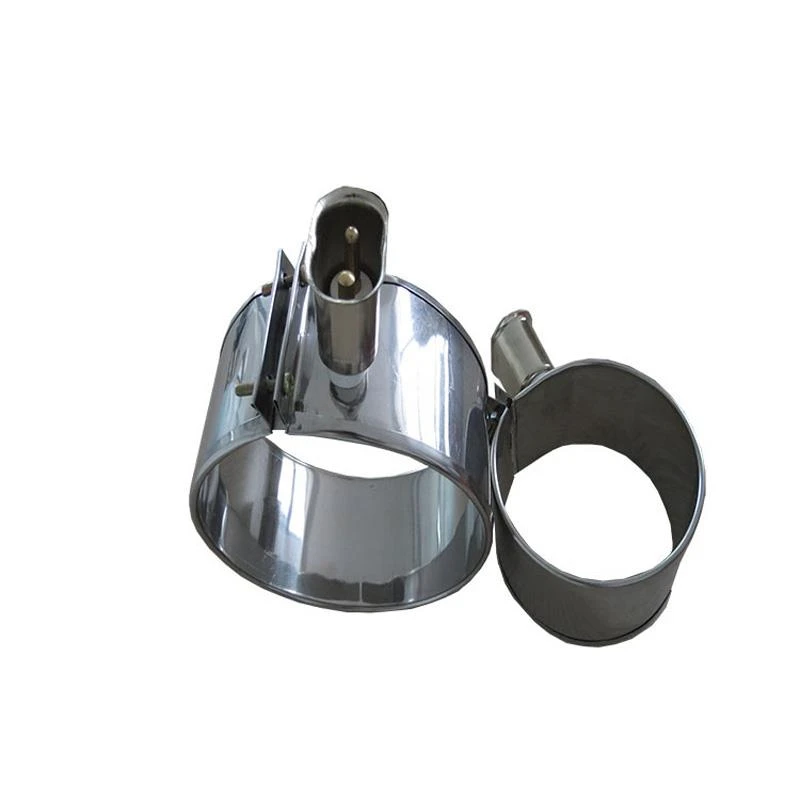

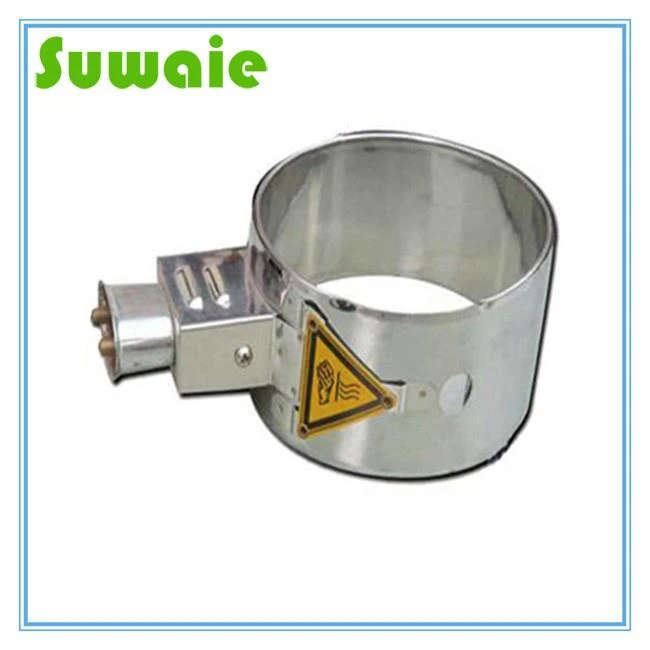

Plastic Machine Mica Band Heater
Mica heater:
Suwaie A mica core produces a thin, efficient heater. Heat from the precisely wound Nichrome element is quickly transferred to the working surface for fast heat-up and response. Mica provides excellent dielectric strength and heat transfer capability for long heater life.
The mica core is encased in a continuous corrosion resistant sheath and formed. All full mica band heaters are designed with closed ends to protect against contamination. Maximum sheath temperature is 600°F.
Mica Band Capabilities and Benefits:
1.Sheath temperature operates up to 900°F
2.Watt densities are up to 45 W/in² (6.0 W/cm²)
3.Clamping straps will assure efficient heat transfer.
4.The low mass design allows quick heat-up and a quick response.
5. Our design variations provide convenience and heater protection
Styles of band heaters
Band Size | Inside | Height | Voltage | Power | Main Material | Temperature Range | Package |
42x40mm | 42mm | 40mm | 110V/220V/380V | 150W | Stainless Steel | 0℃~400℃ | 2pcs |
42x45mm | 42mm | 45mm | 110V/220V/380V | 170W | Stainless Steel | 0℃~400℃ | 2pcs |
42x50mm | 42mm | 50mm | 110V/220V/380V | 190W | Stainless Steel | 0℃~400℃ | 2pcs |
Applications of Barrel Band Heater
Industrial Heater | Barrel Band Heater |
1 | Injection molding |
2 | Blow-molding |
3 | Plastic extrusion |
4 | Container, pipe, or tank heating |
5 | Pharmaceutical applications |
6 | Applications in the food industry |
Products Show
How to produce the Copper Mica Band Heater? Copper Mica Band Heater machinery show
Test room show
Packing details
Packing And Shipments
Why Choose Us?
1. With R&D department, We can do OEM&ODM orders.
2. Own factory, price can be the lowest during the heating element market.
3. We produce products by ourself, so we can ensure the product quality, package details and delivery time.
4. Our factory local in Shenzhen.
5. For samples, we can delivery 3-7 days.
For bulk order, we can ship it within 7-30 working days.
FAQ
1. Q: Is small quantity available?
A: Yes, small quantity for trial order is available.
2. Q: How can I contact with you?
A: Leave a message on our website or sent an email to us , or call +86 15013695186 directly, we will reply you ASAP.
3. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Plastic Machine Mica Band Heater. Our company has professional equipment and engineers to provide the production and service of Plastic Machine Mica Band Heater.
Hot Tags: plastic machine mica band heater, China, manufacturers, suppliers, factory, customized, Mica Heater, Copper Mica Band Heater, 220V 380V Mica Band Heater, Mica Electric Nozzle Heater, Plastic Injection Machine Mica Band Heater, Mica Band Heaters
