Stainless steel mica electric band heating A uniform heat heater and a metal alloy with good thermal conductivity ensure uniform temperature of the hot surface and eliminate hot spots and cold spots of the equipment. It has the advantages of long life, good thermal insulation performance, strong mechanical properties, corrosion resistance and magnetic field resistance. The external heat dissipating surface is increased by the heat preservation device, and the inner heat dissipating surface is sintered with infrared rays, thereby saving 35% of electricity consumption.
Mica band heater performance indicators and technical parameters:
1. Temperature resistance: 550 ° C.
2. Power deviation range: ±5%.
3. Voltage ≤ 380V
4. Insulation resistance: ≥100 MΩ.
5. Withstand voltage: 1500V / 1min.
6. Power 0.5-3.5w/cm2
7. Working temperature 450 ° C
Mica electric heating tape performance and use:
1. Product features: It has the advantages of simple processing, reliable operation, convenient use, rapid temperature rise, high thermal efficiency, low power consumption, long service life and no restrictions on the size and size of the production.
2. Product use: widely used in plastic machinery, packaging and printing, petrochemical, electronic equipment and other industries.
3. The stainless steel mica electric heating ring is made of 0.3~0.5mm stainless steel plate with the high insulation and high temperature resistant mica plate as the core, and the nickel-chromium alloy resistance wire of various standard specifications is uniformly wound as the heating body. Processed into a variety of shapes. According to the wiring requirements of users, the voltage is from 110V, 180V, 220V, 380V, and the high power load is 3.5W per square. The external heat dissipating surface is increased by the heat preservation device, and the inner heat dissipating surface is sintered with infrared rays, thereby saving 35% of electricity consumption. Stainless steel mica electric heating coils are available in ring and plate shapes.

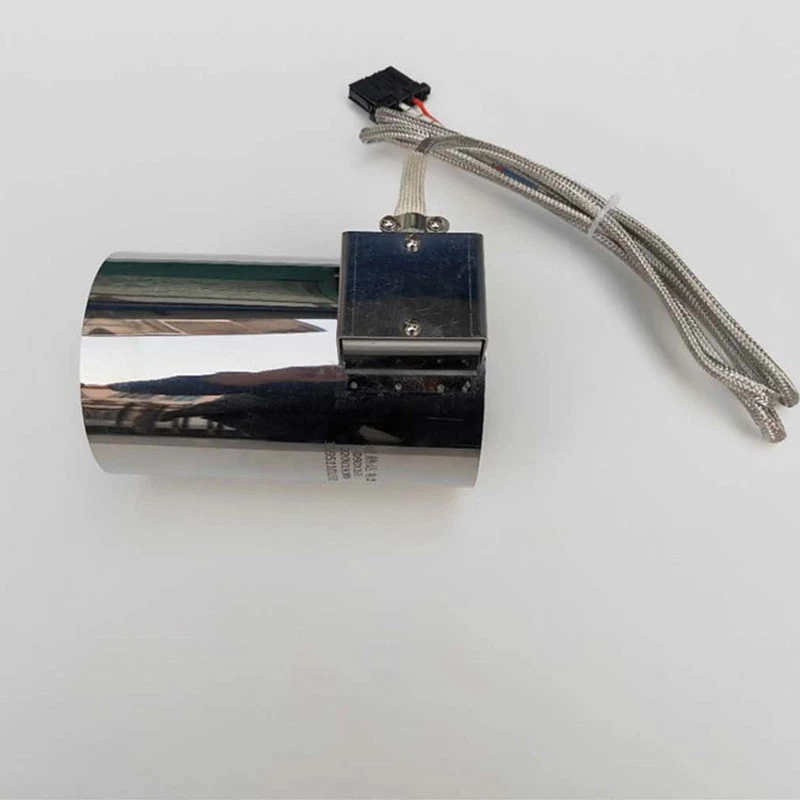

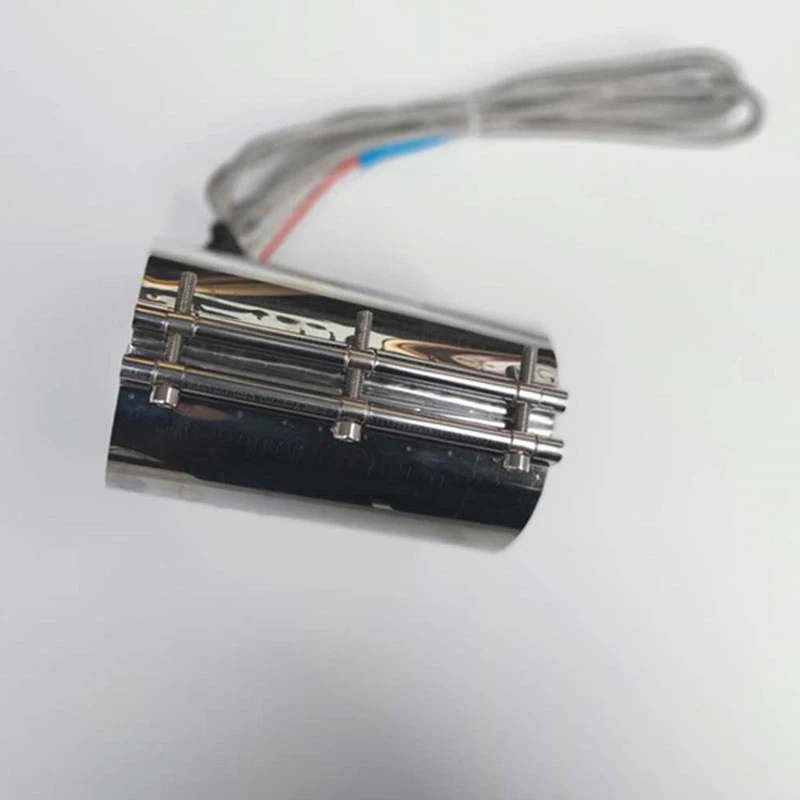

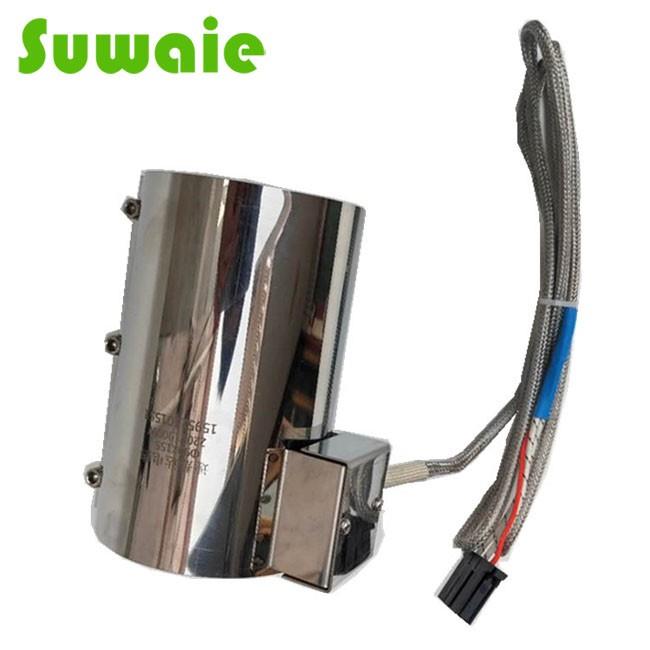

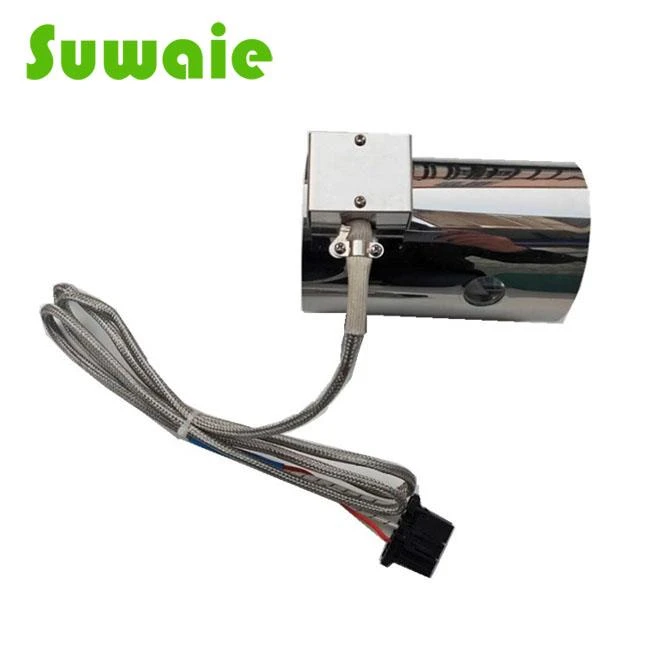

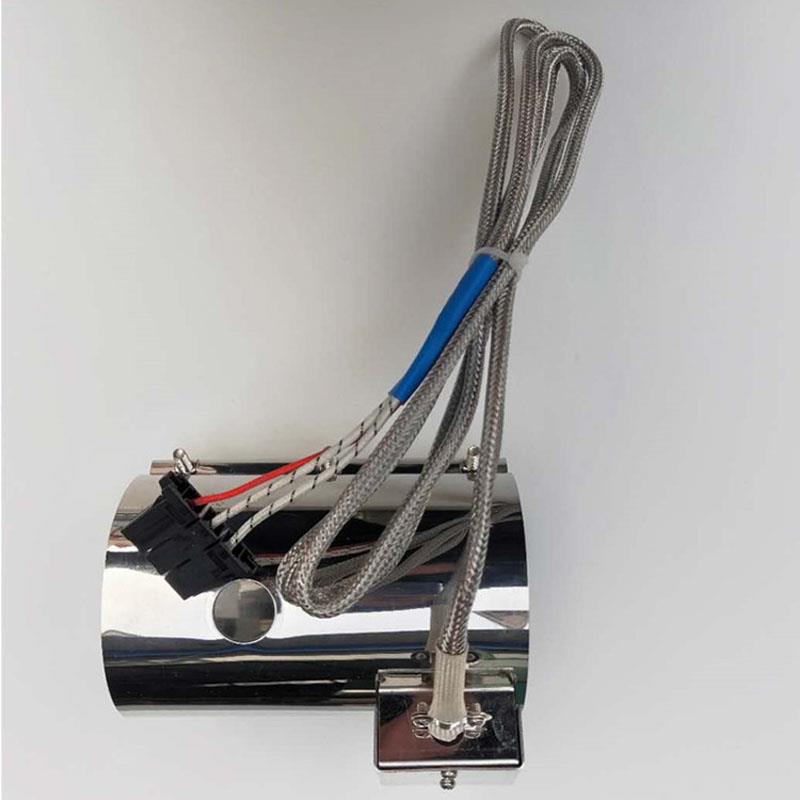

Product pictures

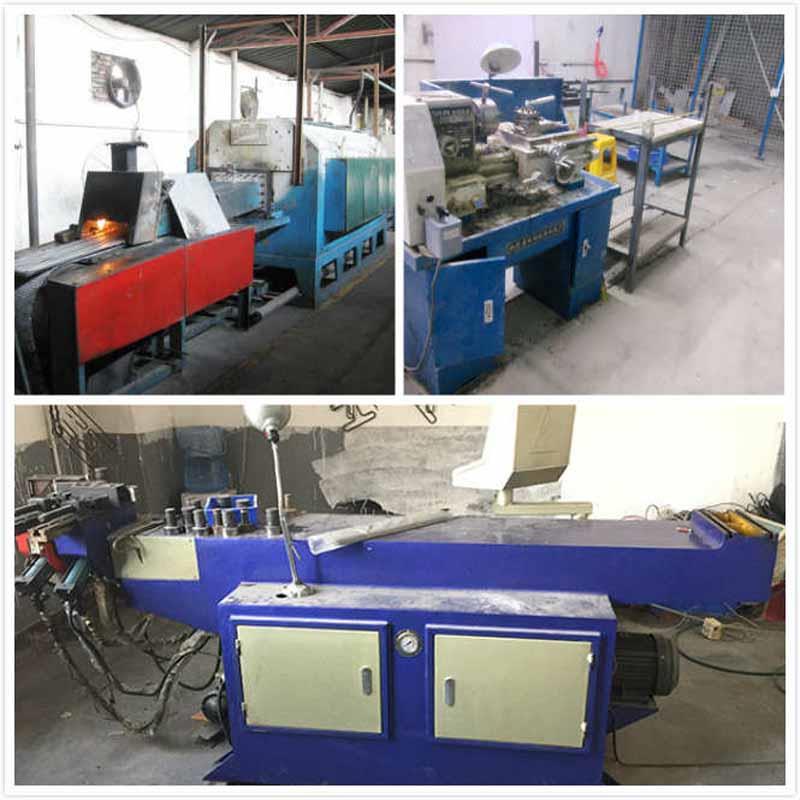

Working show
Our trade terms:
1. Payment term: 50% deposit by T/T,balance before shipentment
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen,C&F Shenzhen.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.
Shipment and Packing
FAQ
1. Q: Where is your factory located?How can I wisit there?
A: Our factory is located in shenzhen City, China.
2. Q: Where are the main markets for sales?
A: Mainland China, UK, Thailand, Turkey, Canada, Mexico, Brazil, Argentina, Chile, India, Vietnam, Colombia, Malaysia, Australia, etc.
3. Q: Can you customize products?
A: Yes, products can be customized according to your requirements. MOQ will be different depending on products available or not.
4. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
Hot Tags: mica insulated band heaters, China, manufacturers, suppliers, factory, customized, Mica Electric Heaters, 220V 380V Mica Band Heater, Electric Mica Band Heater, Plastic Injection Machine Mica Band Heater, Mica Band Heaters, Extruder Mica Band Heater
