The H type and U type silicon carbide heating element rod is a high-temperature electric heating element made of high-purity green silicon carbide, carbon and the like by high-temperature silicidation. The silicon carbide content is above 98%, so it has substantially the same physical and chemical properties as silicon carbide, and other metals. Compared to electric heating elements, it has the following unique advantages:
1. Strong acid resistance, strong antioxidant capacity; good chemical stability.
2. The surface load density is larger than that of the metal electric heating element, the temperature rises quickly, and the thermal efficiency is high;
3. Good resistance to rapid heat and cold, low linear expansion coefficient
4. High thermal conductivity;
5. The use temperature is high, the service life is long, and the normal surface atmosphere, the surface temperature of the rod body can reach 1600 ° C, and the continuous service life can reach 2000 h or more;
6. Easy to install and replace;
7. The source of materials is wide.
Please tell us the following data when you order:
Type: U
Hot Zone: HZ
Cold Zone: CZ
Total Length: OL
Please mark terminal distance A.
Size
U type sic heaterOD (Diameter) | HZ | CZ | TL | Resistance |
8mm | 100-300mm | 60-200mm | 240-700mm | 2.1-8.6 ohms |
12mm | 100-400mm | 100-350mm | 300-1100mm | 0.8-5.8 ohms |
14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
16mm | 200-600mm | 200-350mm | 600-1300mm | 0.7-4.4 ohms |
18mm | 200-800mm | 200-400mm | 600-1600mm | 0.7-5.8 ohms |
20mm | 200-800mm | 250-600mm | 700-2000mm | 0.6-6.0 ohms |
25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
Product show
Service
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of heating element.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
Working process

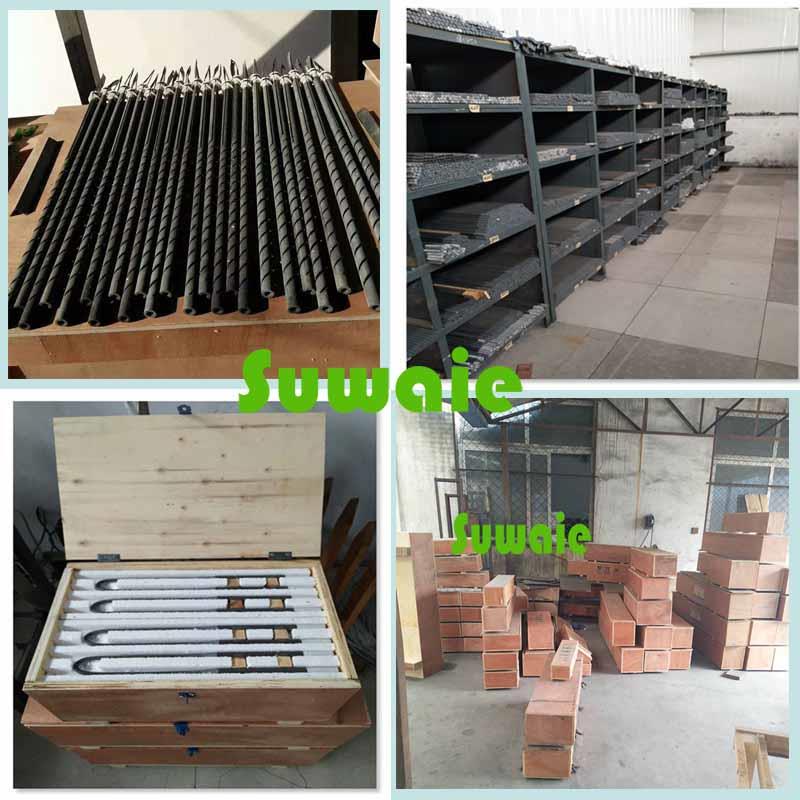

Packing details
FAQ
1. Q: Can you give me a discount price?
A: It is dependng on the quantity. The larger the quantity is, the more discount you can enjoy.
2. Q: Can you do the design of package for us ?
A: Yes, We can. after tell us your idea. and we would make the files of your package according your your requirement.
3. Q: How about the machine warranty?
A: Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
