The sic heating elements start to being oxidized when heated to 800C in air;and Si02 protection film will be generated in surface of hot zone when temperature get to 1000-1300C;Cristobalite crystalized at 1300℃,at 1500℃ the protection film reaches a certain thickness which make the oxidation speed being most slowly and tends to be stable.If continuely heat to over 1627℃,the protection film will be damaged and oxidation speed will be more rapid evidently and make the sic heating elements damaged earlier.
Application:
Porcelain Industry
Fusion, retention, and gradual cooling of glass
Surface treatment of glass
Heat treatment of liquid crystal
Lens matching
Manufacturing of safety glass
Manufacturing of ceramics and glass fibre
Manufacturing of various fine ceramics
Firing of quartz raw materials
Firing of porcelain enamel
Firing of ceramic ware
Firing of grind stone
Test for various refractory products
Chemical Industry
Firing of fluorescent paint
Firing of various pigments
Firing of carriers and catalyst
Heating of reactive gas
Coal carbonization
Firing of activated carbon
Cleaning furnace and deodorizing furnace

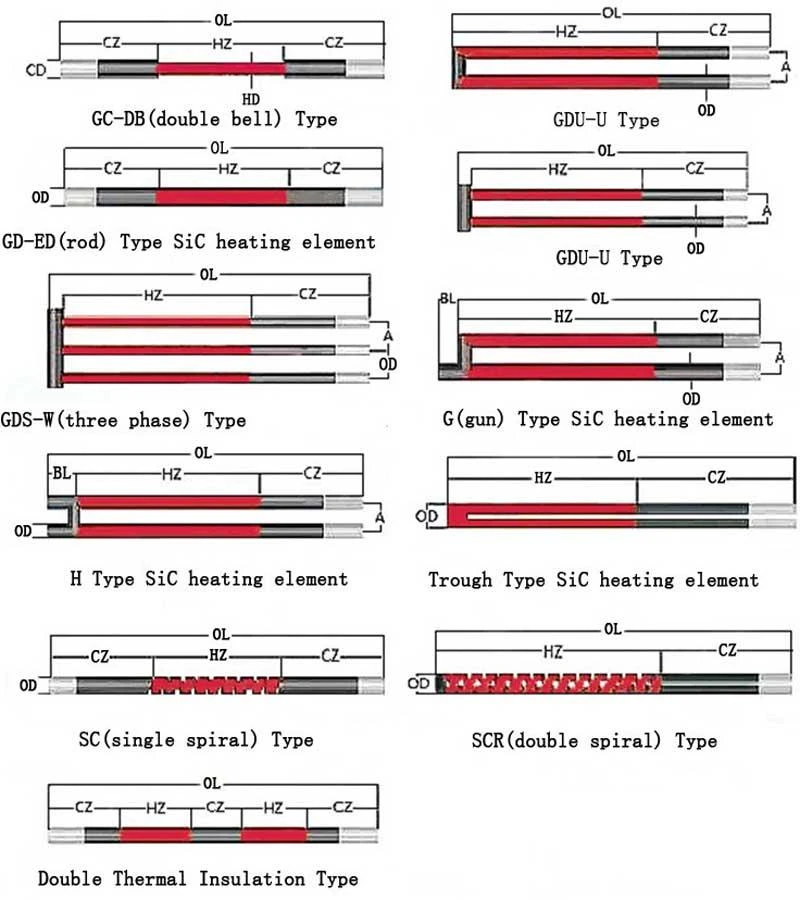

Sic heater drawings
Recommend surface load:
Furnace Temp | 1100 | 1200 | 1300 | 1350 | 1400 | 1450 |
Surface load of hot zone | <17 | <13 | <9 | <7 | <5 | <4 |
Notices:
1. Before installation of SiC heater, we should check the resistance marked on the cold ends. resistance difference of each group is ± 0.1
2. When SiC heaters are through the holes on furnace wall on either side (or up and down), we should rotate them 360 degrees. Do not mandatory installation with the beat.
3. Silicon Carbide heating elements must be equipped with regulating transformers or thyristor voltage regulator and voltage, ampere meter, and automatic temperature control instrument. Due to oxidation, resistance increases gradually, in order to maintain normal temperature we should increase voltages. When voltages reach the maximum of transformer,we can change the connection mode of SiC heaters and then continue to use.

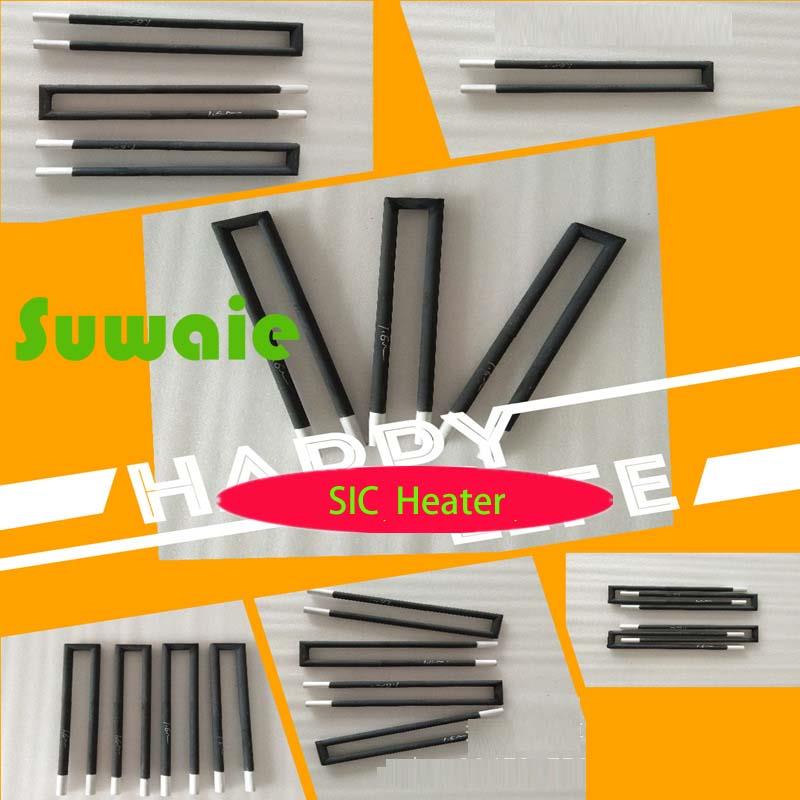

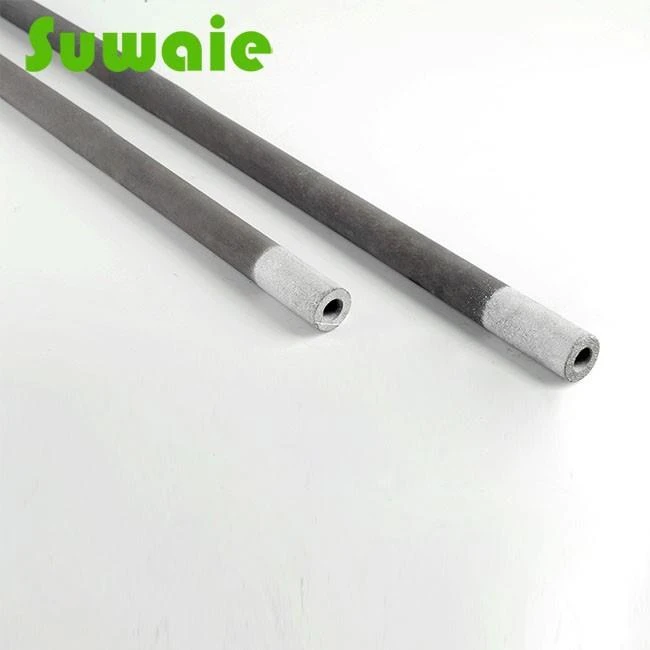

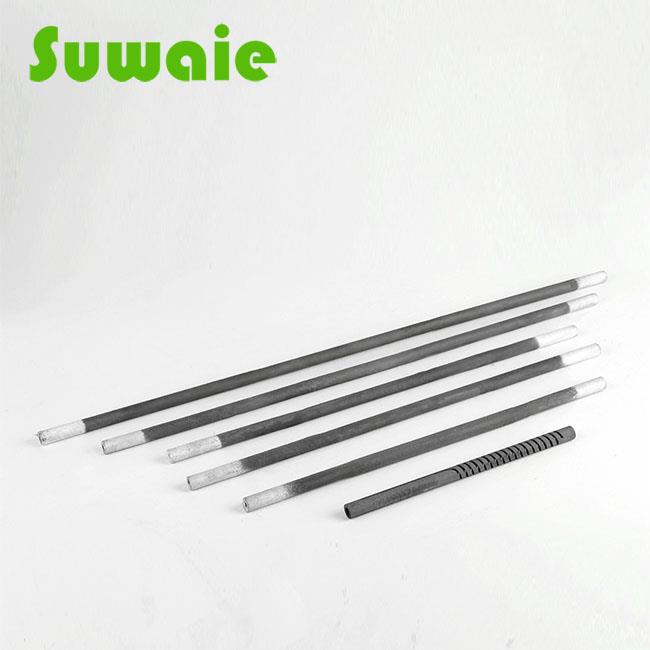

Product pictures show

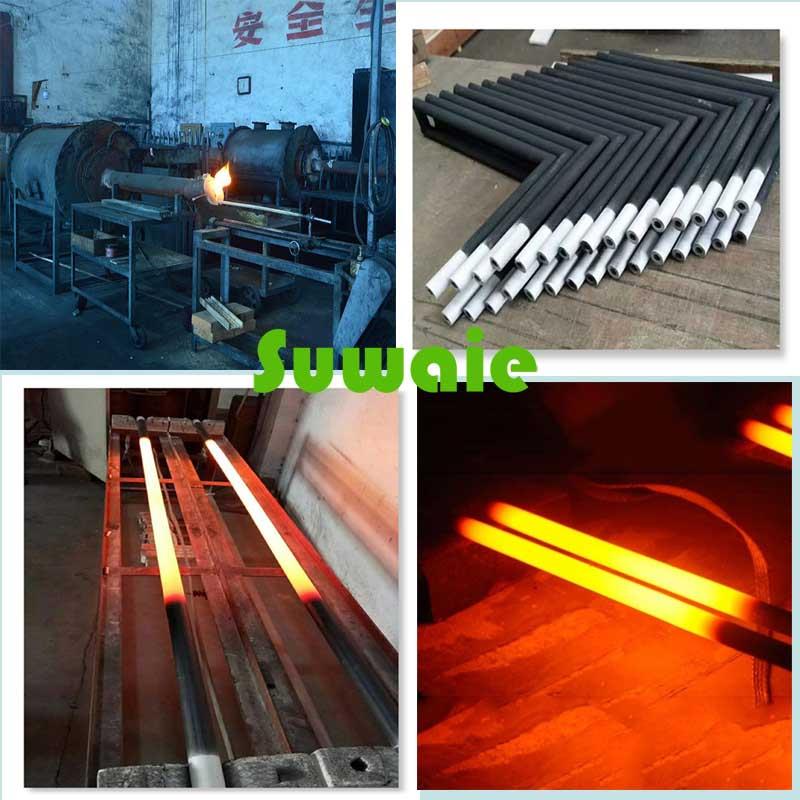

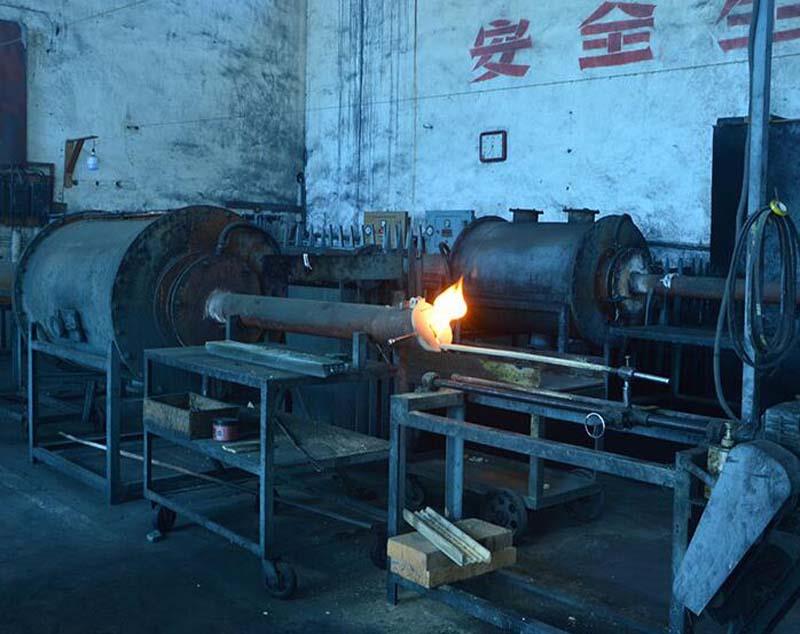

Working process show
Packing details and shipment case
Pre-sale
(1) Instruct customers to choose the most suitable electric heating element.
(2) Designing electric heating components and electric heating equipment for customers free of charge, seeking an ideal solution.
(3) The products can be designed and manufactured according to the special requirements of customers.
Sale
(1) Strict inspection before leaving the factory.
(2) Organize shipments in accordance with the contract.
After sale
(1) Immediately notify the customer of the logistics and express delivery of the goods after delivery, so that the customer can track their goods in time.
(2) Commissioning and trial operation of electric heating elements.
(3) The telephone directs the operator of the heating element.
(4) The problems encountered by domestic customers in the production process, our company's service personnel guarantee to give clear solutions within 24 hours.
FAQ
1. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
2. Q: How to Place an order?
A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.
3. Q: What is your production capacity?
A: 50000pcs per DAY
