Specification
Sensor connection head are available in Cast Aluminum, Stainless Steel, Cast Iron and plastic. All metal heads can accept eithe
temperature sensor connection
Sensor connection head are available in Cast Aluminum, Stainless Steel, Cast Iron and plastic. All metal heads can accept either a sensor terminal block or a DIN size temperature transmitter.They are widely used in the thermocouple and RTD sensors
Usually ,the material is AluminiumADC12 casted.It's anti-dust and water-proof.Bakelite and stainless is also avaiable for anti-erosion.

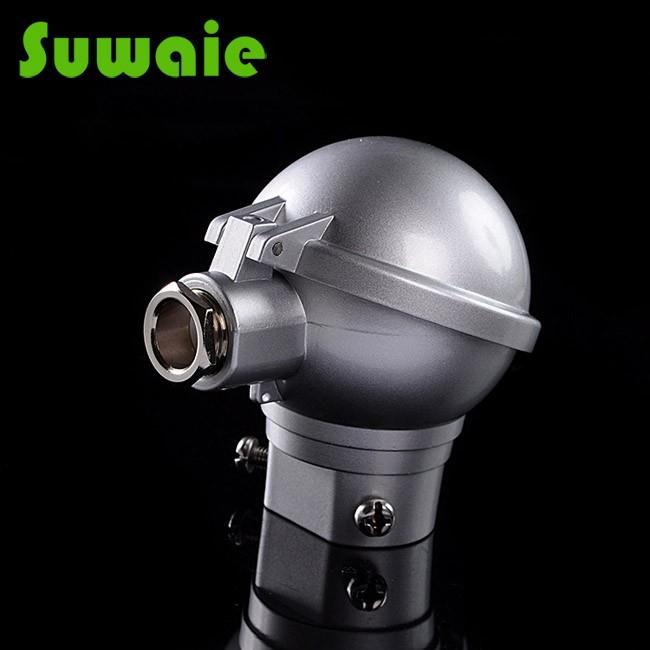

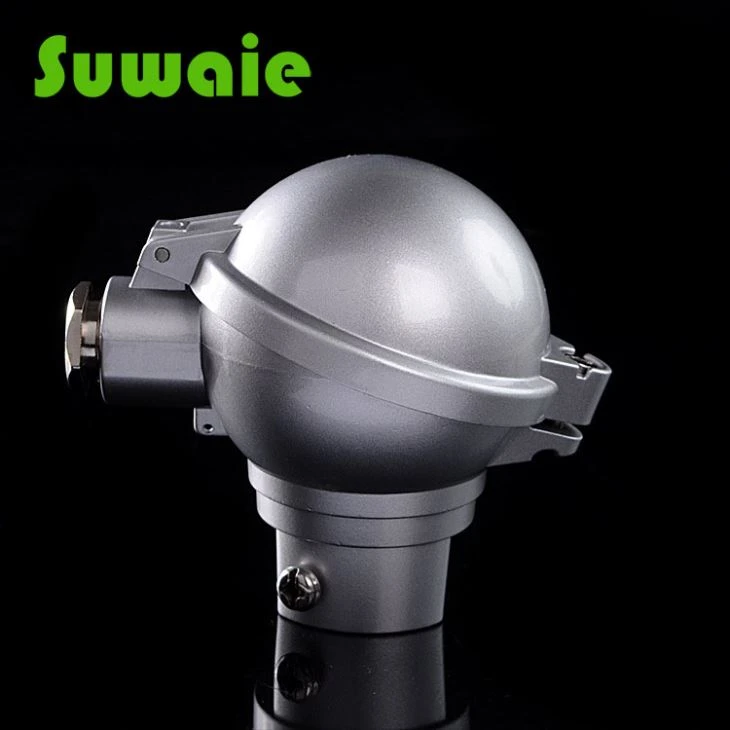

Product Name: Thermocouple Head
Model No.: DANA.
Materials of the heads: Aluminium alloy; or Bakelite.
Painting: lacquer painting or ployester powder coating.
Colour: Silver ,RAl colour code

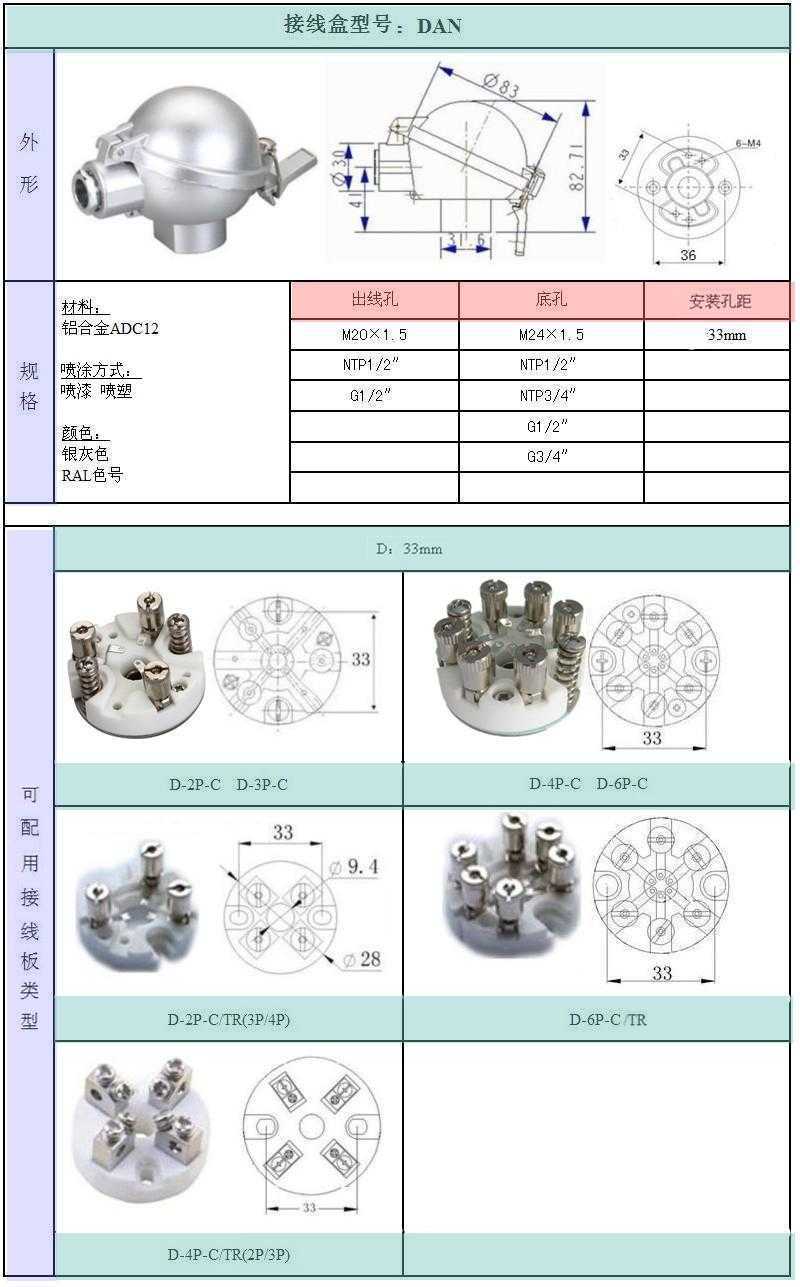

Technical Data:
1) Cover diameter 83mm
2) Probe entry: M24X1.5;M16 X1 ;NPT1/2''; G1/2'';
3) Wire entry: M20X1.5; NPT1/2''; G1/2''
4) Packing Condition: Plastic holder+internal carton( L46X W22X H9cm)+ external carton( 47x 46x 30cm); 60PCS/ex-CTN.
5) N. W: 260g.
Based on IEC529, the protection class is IP65.

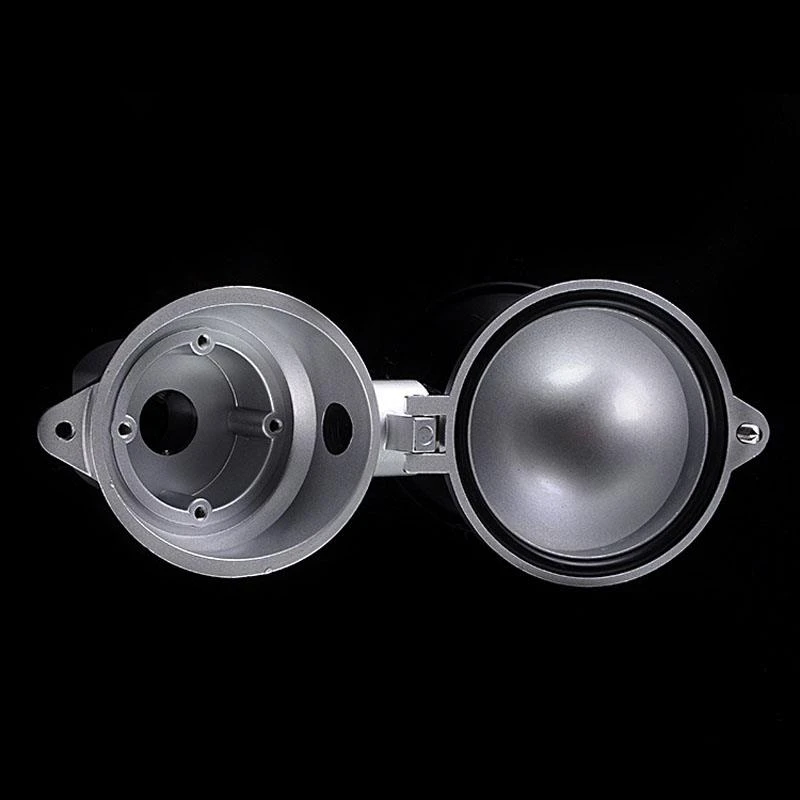

Products show

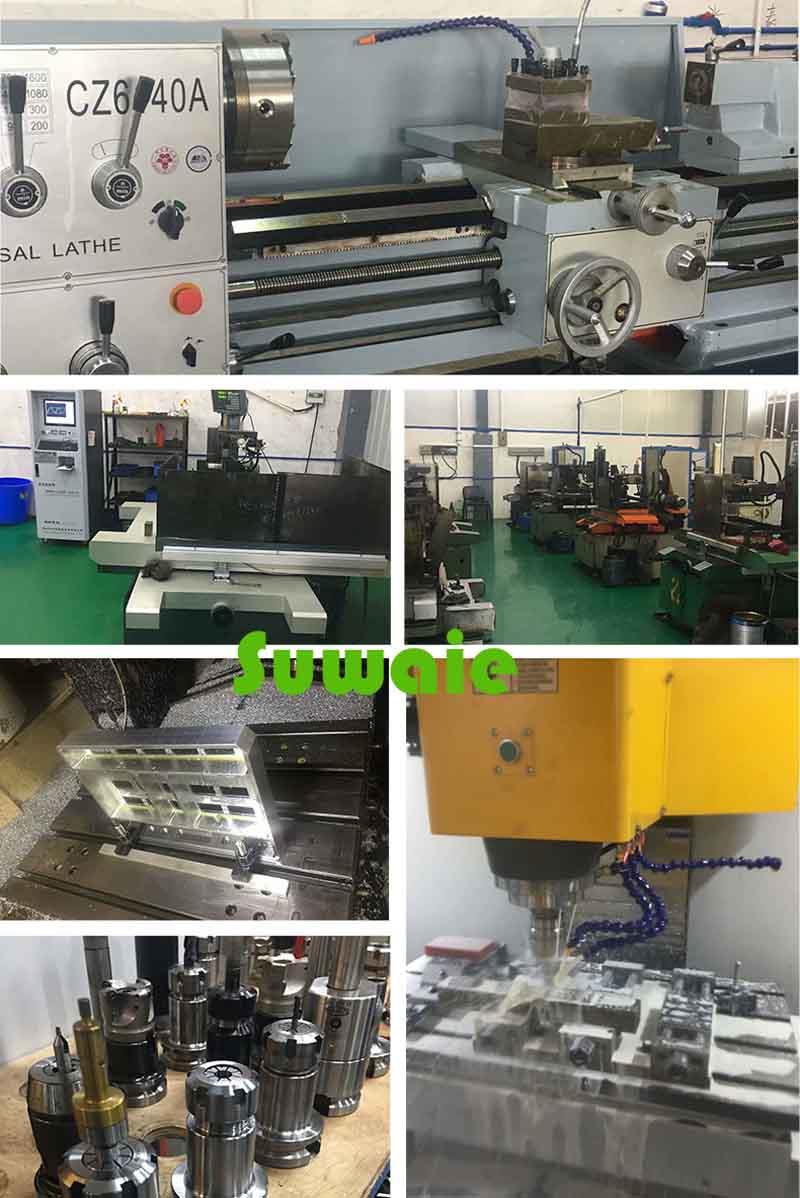

Process show

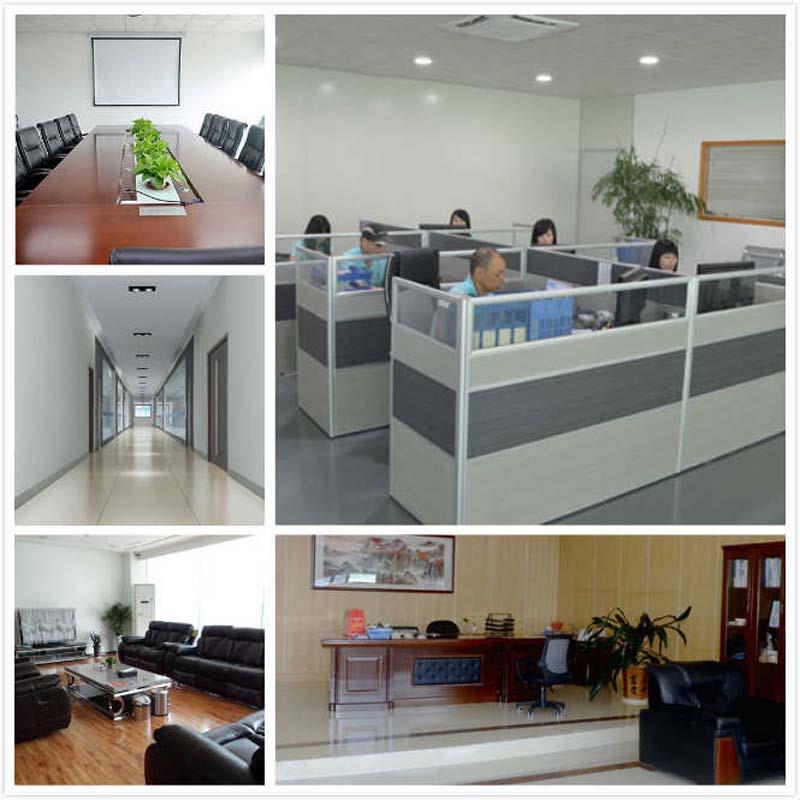

Office and thermocouple packing details
Market:
Currently, Suwaie Technology heating element is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. For more details, please feel free to contact us. We will give you best service and timely reply.
FAQ
1. Q: How long is the lead time?
A: For large quantity orders, products will depart from Shenzhen within 7-30 days after the deposit received.
2. Q: What''''''''''''''''''''''''''''''''s the shipping process?
Ⅰ. For LCL cargos, we arrange reliable logistics company to drive them to the forwarder agent''''''''''''''''''''''''''''''''s warehouse.
Ⅱ. For FLC cargos, the container directly go to the Factory loading. Our professional loading workers, accompanied with our forklift workers arrange the loading in good order even on the condition that daily loading capacity is overloaded.
Ⅲ. Our professional data management is a guarantee of the real-time update and the unification to all the electrical packing list, invoice.
3. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
