High Temperature Thermocouple Extension Wire

Wire that is used in a thermocouple from the point of sensing to the point of cold junction compensation (cjc end) where the signal is measured. A thermocouple is a sensor for measuring temperature, that consists of two dissimilar metals that are joined together at the sensing end. Different thermocouple types (e.g. J, K, T, E, etc) use different mixtures of metals in the wire. At the cjc end, the millivolt value provided by the thermocouple represents the difference in temperature of the sensing end as compared to the cjc end (also called the reference end).

Within a certain temperature range (including room temperature), with the matching thermocouple thermoelectromotive force with the same nominal value of a pair of insulated wire, connect them with thermocouple and measuring device, To compensate for the errors in their temperature changes at the junction with the thermocouple. Divided into extended and compensated.

Structure: different type use different conductor.

Product Size: 2*0.5mm² , 2*0.75mm², 2*1.0mm² , 2*22AWG, 2*20AWG , 2*18AWG or customized.

Insulation: PVC, Asbestos, Silicon, Fiber-glass, PTFE and etc.

Shield: Stainless steel, Tinned plated, Copper wire or silver plated copper wire.

Color code: ANSI, IEC, DIN, JIS, BS etc.

Eco-friendly: Yes

MOQ: 100m

Certificate: ISO,CQC

Sample available: routine size are in stock.

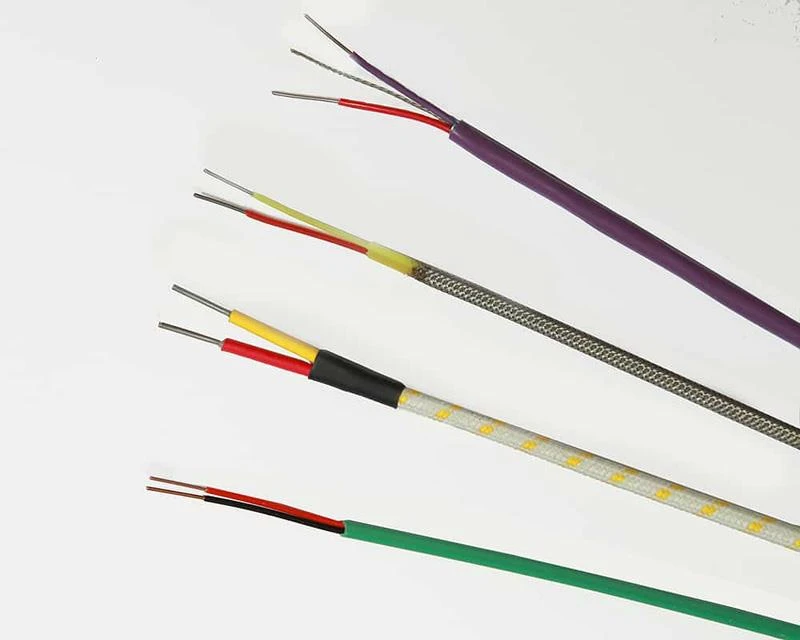

Products show

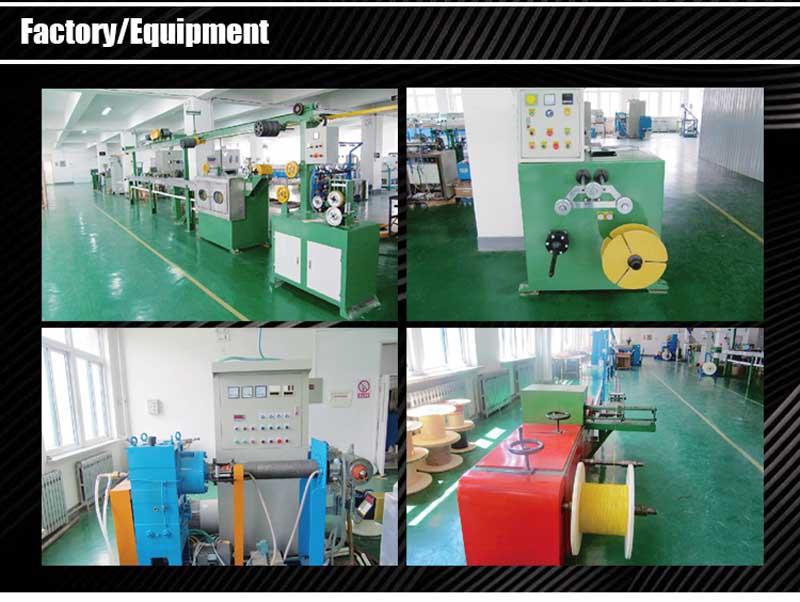

Process show

Packing and shipment details

Our Advantages:

1. We accept Custom-made and OEM, so that we can meet the special requirements from different customers.

2. We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.

3. We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.

4. We promise the high quality with resonable price,and guarantee the lead time for orders.

FAQ

1. Q: How do you make our business long-term and good relationship?

A1: We keep good quality and competitive price to ensure our customers benefit ;

A2: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

2. Q: have your sale team and service team for you company?

A: Yes, we have sales team and service team, also we have technology D&R team, for service our clients

3. Q: How can I contact with you?

A: Leave a message on our website or sent an email to us , or call +86 15013695186 directly, we will reply you ASAP.
