In industrial installations where the recorder and control instruments are located remotely from the thermocouples, compensating cable or extension Cable must be used between the thermocouple and instrument to reduce costs.
Extension cables use the actual thermocouple materials. This is achieved by using cheaper insulations, wider tolerance alloys and thinner conductors. They are produced in multi-stranded forms for ease of installation. Calibration: NX , KX , EX , JX , TX
Compensating cables use completely different alloys that happen to exhibit very similar thermo-electric properties up to a limited temperature (usually 250 °C ).
Product Selection
KX type extension wire
(1) FB insulation + FB insulation + SS braid
(2) Conductor: NiCr-NiSi
(3) Colour: Red +, Black -
(4) Size: 2*7*0.2mm
(FB means fiberglass , SS means Stainless steel)
KC type compensation wire
(1) PVC insulation + Cooper wire braid
(2) Conductor: Cu-CuNi
(3) Colour: Red +, Blue -
(4) Size: 2*1mm
JX type extension wire
(1) PVC insulation + Silicone rubber
(2) Conductor: Fe-CuNi
(3) Colour: Red +, Purple -
(4) Size: 2*7*0.3mm
TXtype extension wire
(1) PVC insulation + PVC insulation
(2) Conductor: Cu-CuNi
(3) Colour: Red +, White -
(4) Size: 2*7*0.1mm
EX type extension wire
(1) PVC insulation + Silicone rubber
(2) Conductor: Iron-CuSi
(3) Colour: Red +, Purple -
(4) Size: 2*7*0.5mm
NC type compensation wire
(1) FB insulation+Cooper wire braid+FB insulation
(2) Conductor: Fe-CuNi
(3) Colour: Red +, Yellow -
(4) Size: 2*7*0.2mm
SC type compensation wire
(1) PVC insulation+SS braid+Silicone rubber insulation
(2) Conductor: Cu-CuNi
(3) Colour: Red +, Green -
(4) Size: 2*7*0.2mm
Pt100 thermocouple grade wire
(1) PVC insulation + PTFE insulation
(2) Conductor: Cu-CuNi
(3) Colour: Red, Blue, Blue
(4) Size: 3*7*0.2mm

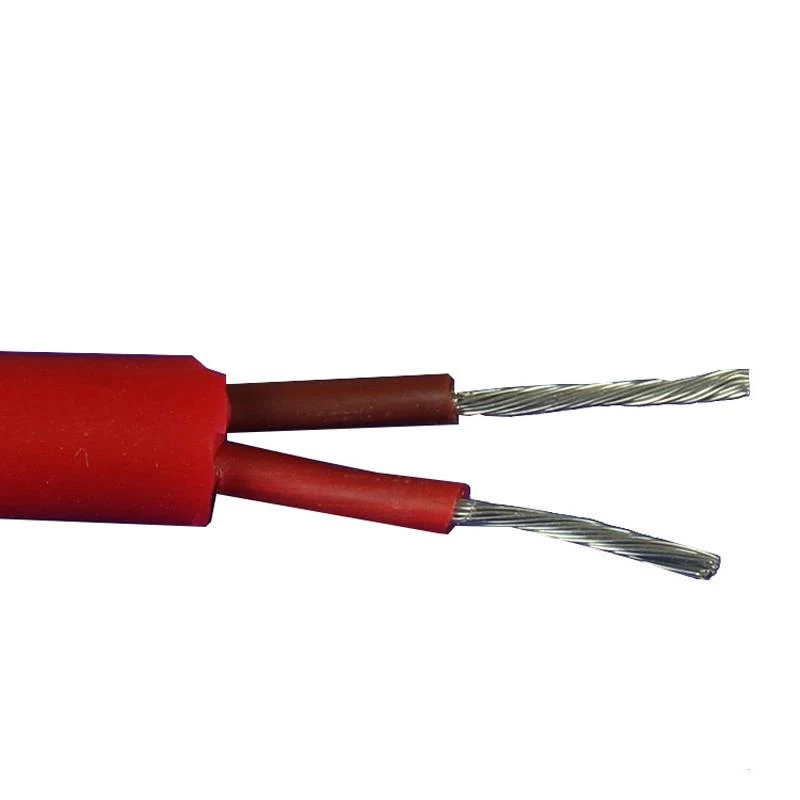

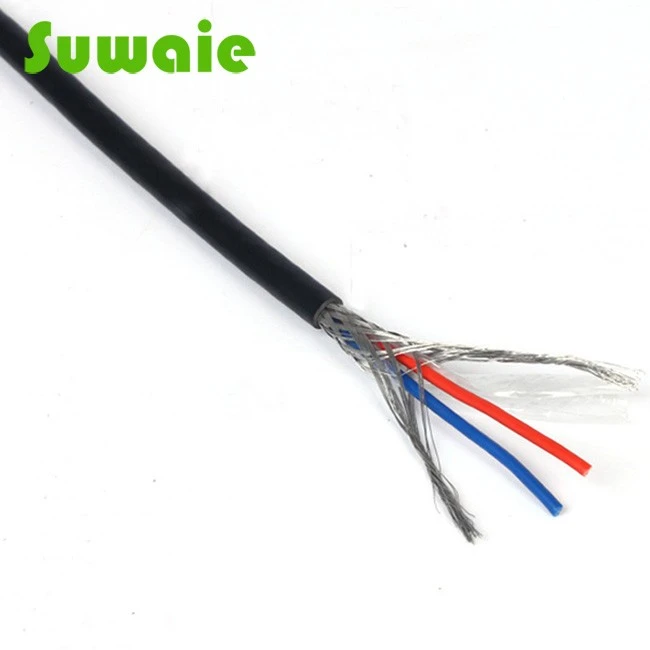

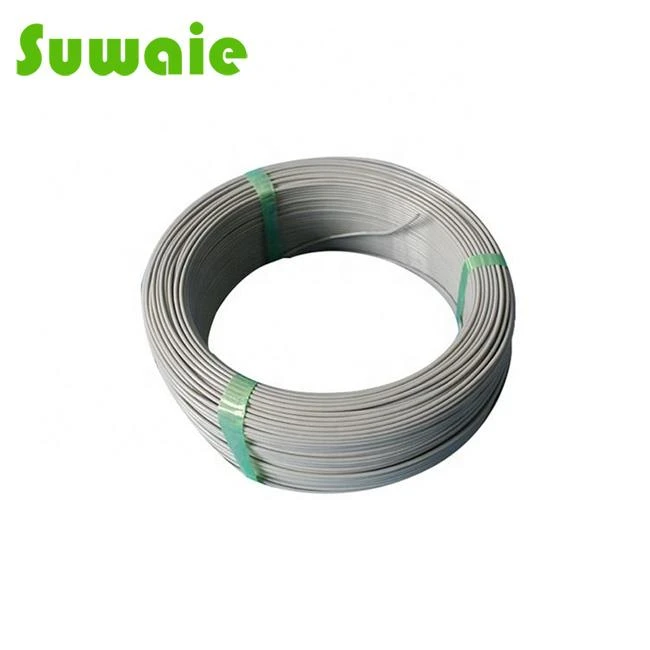

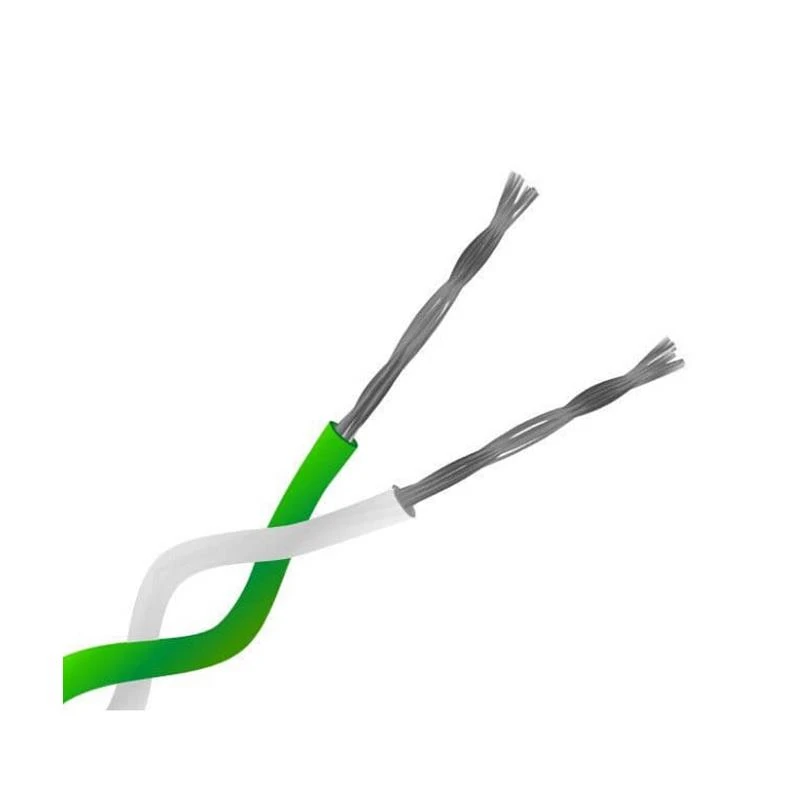

Products show

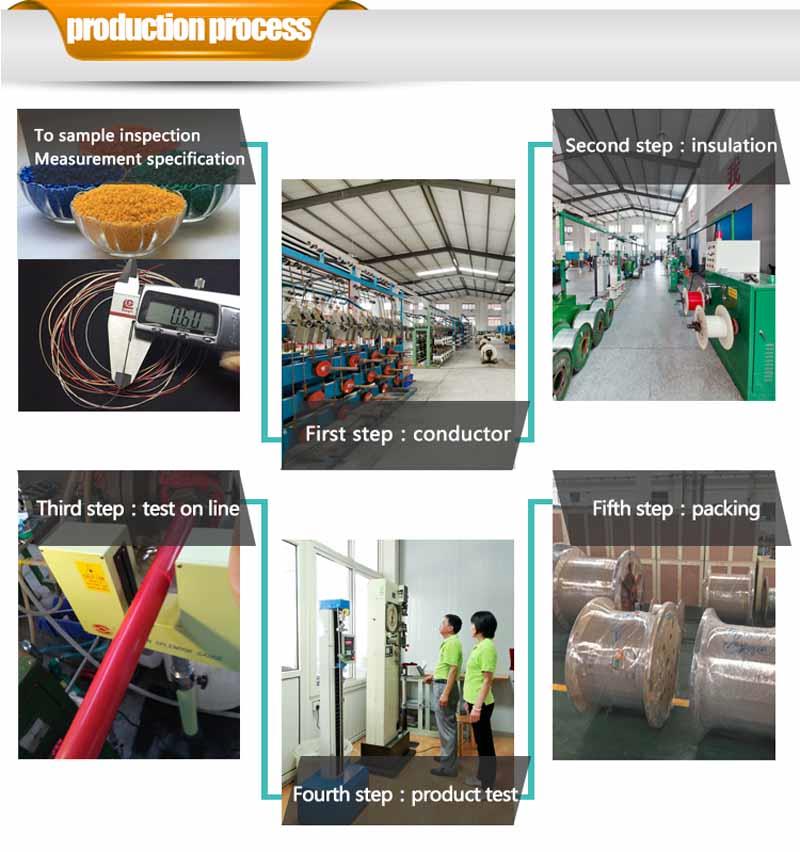

Process show
Packing and details
Advantages:
1. OEM service: No agents, no trading company, reduce all necessary cost for you. Direct communication with our engineer.
2. Professional team: 20 years foreign customers service experience. Over 10 years investment casting manufacture. Almost 35% high educated people.
3. Globally acceptabe quality: The products offered by us are thoroughly examined by our experienced professionals to ensure their durability, reliability and long service life. Full fledged QA department & ISO 9001 certification.
4. MOQ: 100 pcs is even acceptable in some special conditions
5. Annual output
It is more than 3000 metric ton, so we can deliver on time.
The QA department
We have inhouse sophisticated physical and chemical testing laboratory equipped with ultra modern testing equipment.
FAQ
1. Q: Can you customize products?
A: Yes, products can be customized according to your requirements. MOQ will be different depending on products available or not.
2. Q: What''''''''''''''''''''''''''''''''s the shipping process?
Ⅰ. For LCL cargos, we arrange reliable logistics company to drive them to the forwarder agent''''''''''''''''''''''''''''''''s warehouse.
Ⅱ. For FLC cargos, the container directly go to the Factory loading. Our professional loading workers, accompanied with our forklift workers arrange the loading in good order even on the condition that daily loading capacity is overloaded.
Ⅲ. Our professional data management is a guarantee of the real-time update and the unification to all the electrical packing list, invoice.
3. Q: Do you company have the website?
A: Yes, we have two website: www.suwaie.com and www.suwaieheater.com
