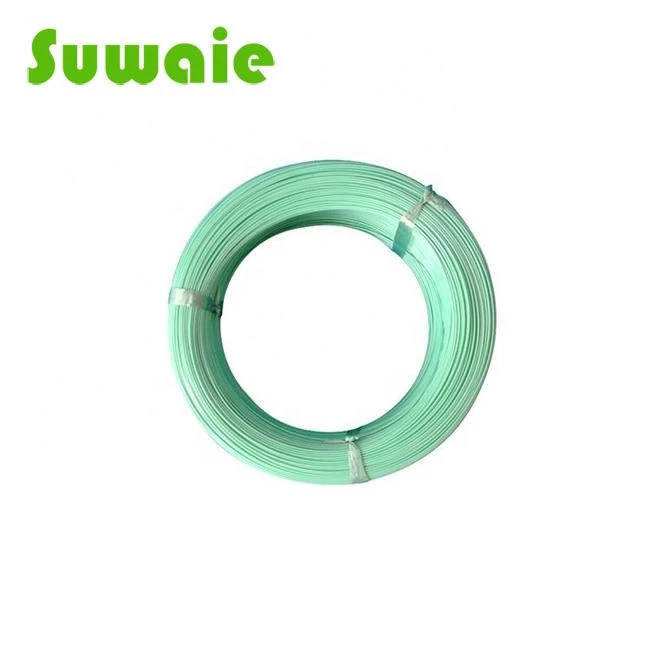

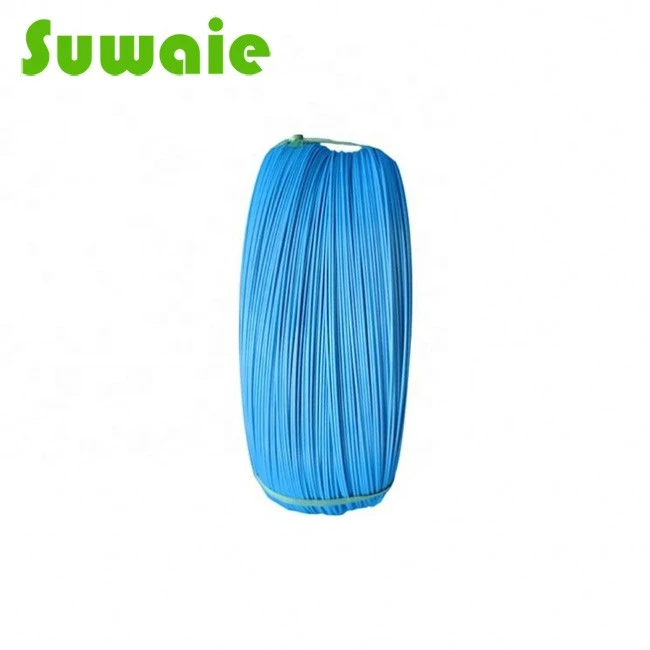

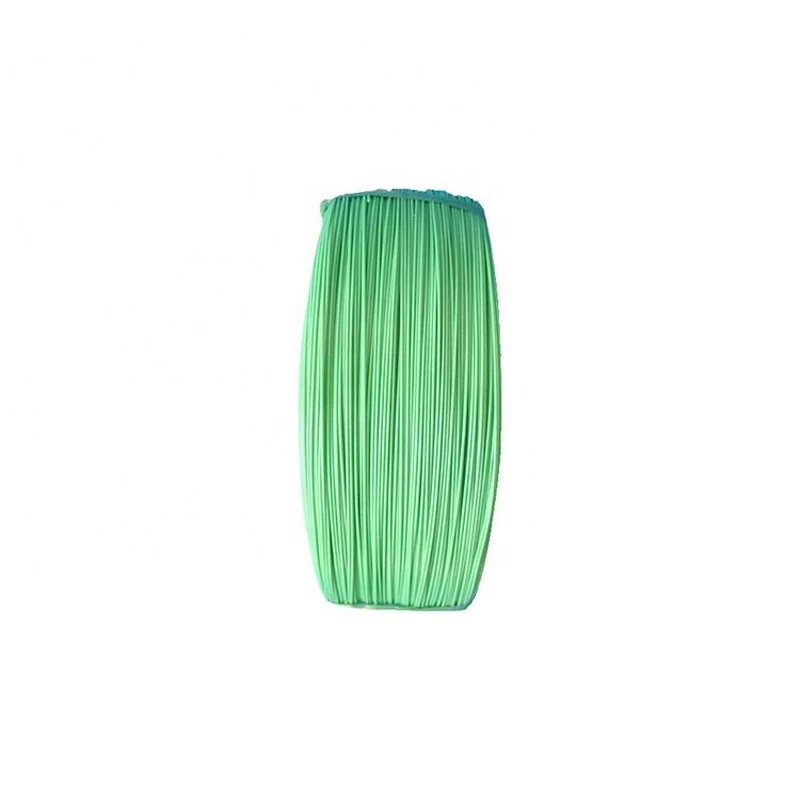

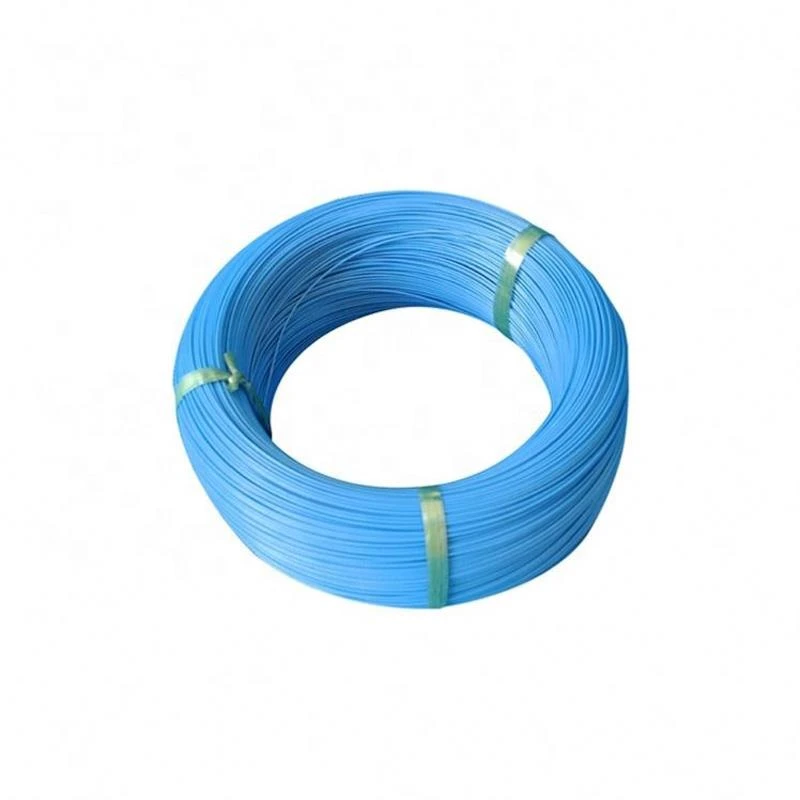

Silicone K Type Thermocouple Extension Wire
Thermocouple grade wire is used in construction of a thermocouple temperature sensor. Thermocouple extension wire is used to carry the signal from the thermocouple sensor to the readout device while maintaining a high degree of accuracy. The extension wire material must match the material used in the positive and negative leg of the thermocouple type (e.g. type K) being used in the application. If a transmitter is installed within the thermocouple sensor assembly, copper wire is typically used in place of thermocouple extension wire to send the scalable (4 to 20) mA signal back to the process control equipment.
|
EMF of Compensating wire and the tolerance |
||||||||
|
|
||||||||
|
Thermocouple No. indexing |
Compensation wire type |
Usag Classification |
Measuring junction temperature / ℃ |
standard EMF value/μV |
Precision grade |
General grade |
||
|
Tolerance μV |
Thermal EMF range μV |
Tolerance μV |
Thermal EMF range μV |
|||||
|
SorR |
SC or RC |
G |
100 |
646 |
±30 |
616~676 |
±60 |
586~706 |
|
H |
100 |
646 |
- |
- |
±60 |
586~706 |
||
|
200 |
1 1441 |
- |
- |
1.381~1 501 |
||||
|
|
|
|
|
|
||||
|
K |
KX,KCA |
G |
-25 |
-968 |
±40 |
-924~-1 012 |
±80 |
-880~-1 056 |
|
or KCB |
100 |
4 096 |
4 052~4 140 |
4 008~4 184 |
||||
|
|
H |
-25 |
-968 |
±40 |
-924~-1 012 |
±88 |
-880~-1 056 |
|
|
|
100 |
4 096 |
4 052~4 140 |
4 008~4 184 |
||||
|
|
200 |
8 138 |
8 094~8 182 |
8 050~8 226 |
||||
|
N |
NX or NC |
G |
-25 |
-646 |
±43 |
-603~-689 |
±86 |
-560~-732 |
|
100 |
2 774 |
2 731~2 817 |
2 688~2 860 |
|||||
|
H |
-25 |
-646 |
±43 |
-603~-690 |
±86 |
-560~-732 |
||
|
100 |
2 774 |
2 731~2 817 |
2 688~2 860 |
|||||
|
200 |
5 913 |
5 870~5 956 |
5 827~5 999 |
|||||
|
E |
EX |
G |
-25 |
-1 432 |
±81 |
-1 351~-1 513 |
±138 |
-1 294~-1 570 |
|
100 |
6 319 |
6 238~ 6400 |
6 181~6 457 |
|||||
|
H |
-25 |
-1 432 |
±81 |
-1 351~- 1513 |
±138 |
-1 294~-1 570 |
||
|
100 |
6 319 |
6 238~6 400 |
6 181~6 457 |
|||||
|
200 |
13 421 |
13 340~13 502 |
13 283~13 559 |
|||||
|
J |
JX |
G |
-25 |
-1 239 |
±62 |
-1 177~-1 301 |
±123 |
-1 116~-1 362 |
|
100 |
5 269 |
5 207~5 331 |
5 146~5 392 |
|||||
|
H |
-25 |
-1 239 |
±62 |
- 177~-1 301 |
±123 |
-1 116~-1 362 |
||
|
100 |
5 269 |
5 207~5 331 |
5 146~5 392 |
|||||
|
200 |
10 779 |
10 717~10 841 |
10 656~10 902 |
|||||
|
T |
TX |
G |
-25 |
-940 |
±30 |
-910~-970 |
±60 |
-850~-1 000 |
|
100 |
4 279 |
4 249~4 309 |
4 189~4 339 |
|||||
|
H |
-25 |
-940 |
±48 |
-892~-988 |
±90 |
-850~-1 030 |
||
|
100 |
4 279 |
4231~4 327 |
4 189~4 369 |
|||||
|
200 |
9 288 |
9 240~ |
9 198~9 378 |
|||||
Product pictures show

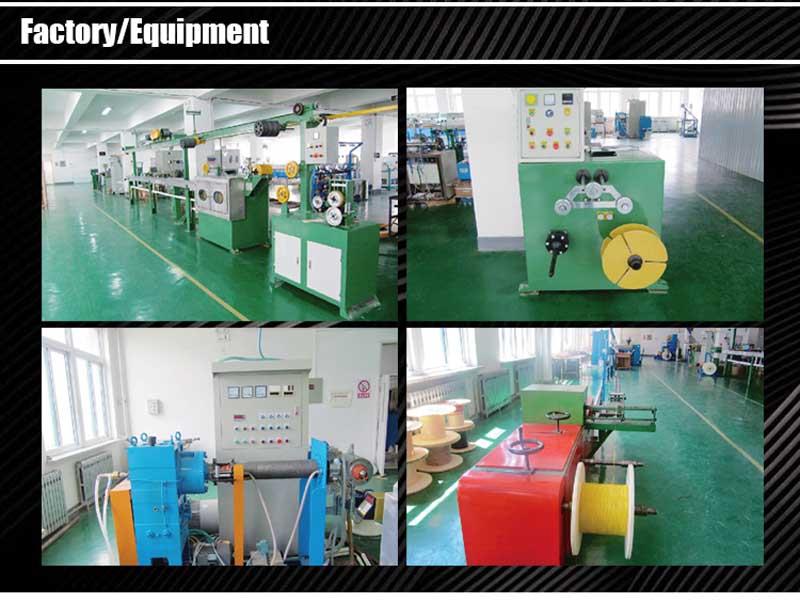

Working process show
