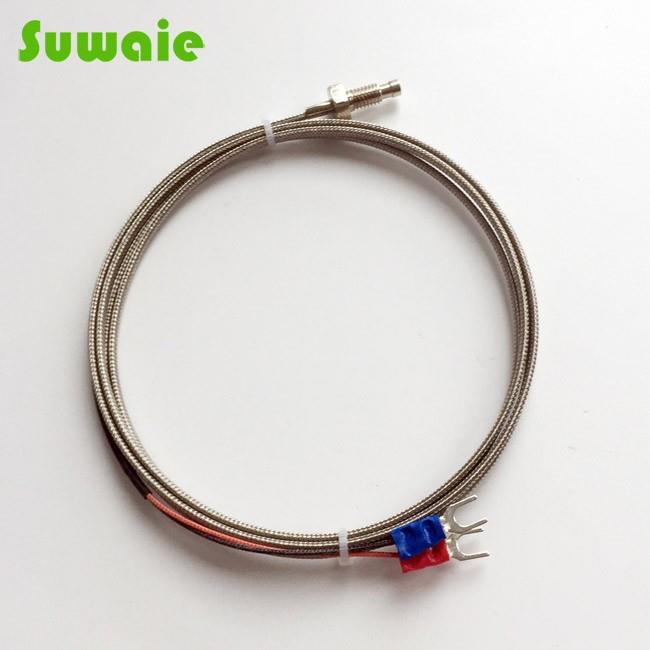

High Accuracy K/J Type Thermocouple Sensor

High Accuracy K/J Type Thermocouple Sensor

Thermocouple/RTD are usually used with display instrument, recording instrument and computer to directly measure the temperature of liquid, gas and solid surface ranging from 0ºC~1800ºC during the production process.
Send Inquiry
Description

Introduction

Thermocouple/RTD are usually used with display instrument, recording instrument and computer to directly measure the temperature of liquid, gas and solid surface ranging from 0ºC~1800ºC during the production process.


Feature

* Simple matching for easy replacemen

* Pressure spring type temperature sensing element, high anti-vibration performance

* Wide measuring range

* High mechanical strength, excellent pressure resistance.


Applications:
Plastic injection molding machinery
Food processing equipment
Engine and turbine exhaust gas
Semiconductor processing
Heat treating and metals processing
Medical equipment
Aerospace industries
Packaging equipment
Test stands


Model and specification:


Type


Code
name


Measure
range (ºC)


Class

Allowable deviation t (ºC), the greater one of two


Specification
length

K


WRN

-
40~1000

I

±1.5ºC or ±0.4%t







0.5M,0.75M,1M,1.5M,2M,2.5M,3M and so on.
Note: The small thermocouple, thermal resistance sensor
measuring range does not exceed 400ºC.
Sensor measuring range according to the real object.


-40~1200


II


±2.5ºC or ±0.75%t

E


WRE


-40~800

I

±1.5ºC or ±0.4%t


-40~900


II


±2.5ºC or ±0.75%t

J


WRJ


-40~750

I

±1.5ºC or ±0.4%t


II


±2.5ºC or ±0.75%t

S


WRP


0~1600


II


±1.5ºC or ±0.25%t

B


WRR


600~1700


II


±1.5ºC or ±0.25%t

T


WRT


-40~350


I


±0.5ºC or ±0.4%t


II


±1ºC or ±0.75%t

CU5O


WZC


-50~150


II


±0.3ºC or ±0.6%t

PT100


WZP

-200~650

I

±0.15ºC or ±0.2%t


-200~850


II


±0.3ºC or ±0.5%t


Products show

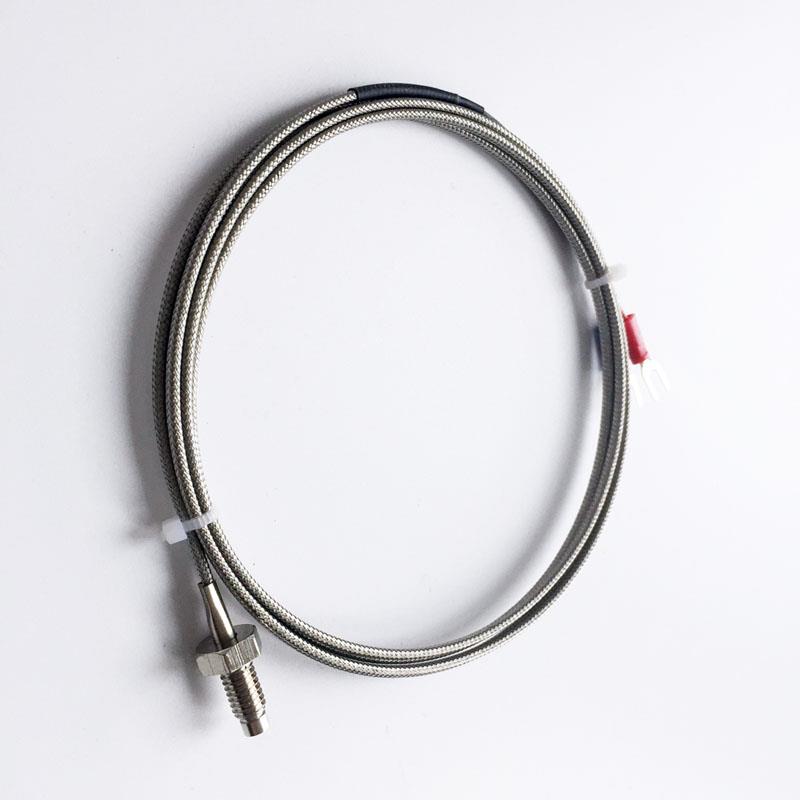

High Accuracy KJ Type Thermocouple Sensor factory

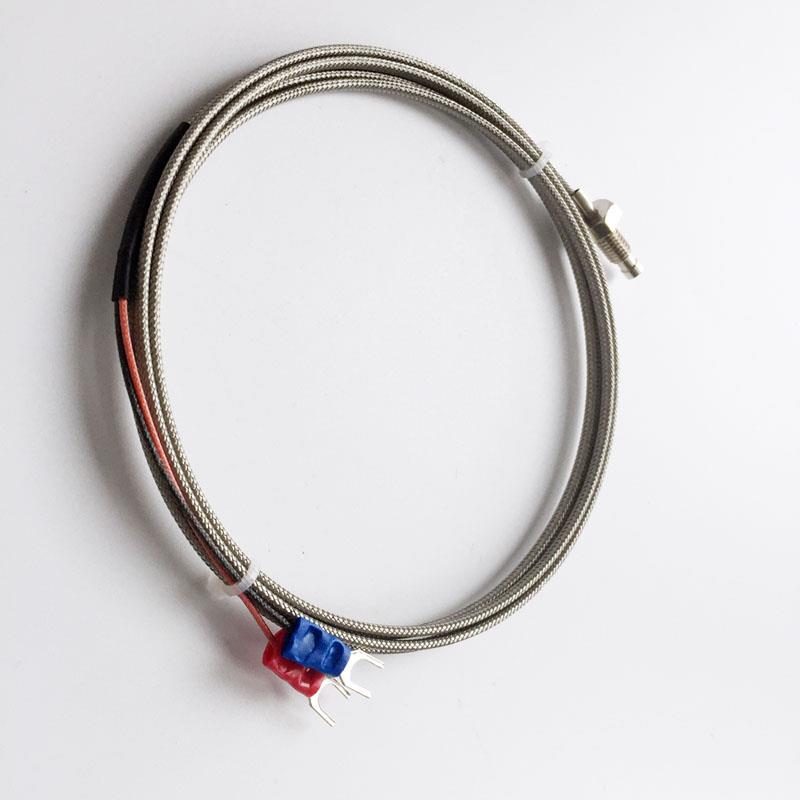

High Accuracy KJ Type Thermocouple Sensor manufacturer


Company office show

office


Packing and shipment details

Suwaie packing2


shipemt2


Our Services

1. We are skilled in producing this type of heating element and have adequate supply of spare parts, so we can guarantee continuous production and keep delivery.

2. Your inquiry related to our products or prices will be replied in 24hrs.

3. Well trained and experienced staffs to answer all your enquiries in fluent English.

4. OEM&ODM, or any your customized lightings, we can help you to design and put into production.

5. Your sales area, ideas of design and all your private information will be protected.

6. If you need more details, please contact our sales service person below online or via email.


FAQ

1. Q: Is it OK to print my logo on heating element product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

2. Q: What is the standard of package?

A: Professional export packing:

1) Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.

2) Under 100 KGS parts, use strong DHL export Carton .

3) Above 100 KGS, will customize Wooded case for packing.

3. Q: What are our after-Sales Services?

a) We are willing to improve the quality of the products if there is any problem with your order.

b) Repairs are free of charge if the problem is due to manufacturing defects.

c) We are willing to comply with customers' reasonable requests.
