Product description:
SUWAIE thermocouple PT100 temperature sensor is used as a transmitter to measure temperature, usually matched with display instruments, recording meter and electronic computer. It can directly measure temperature from 0ºC to 1800ºC of liquid, vapor, gas medium and solid surface during various production processes. According to state regulations, our factory product Pt- Rh30- Pt-Rh6, Pt-Rh10-Pt, nickel chromium nickel silicon, nickel chromium - copper as per IEC and Cu50 as per Professional norm degree.
It is widely used in petroleum, chemical industry, machinery, metallurgy, electric power, textile, food, atomic energy, aerospace and other industrial sectors and field of science & technology.
Assembly thermocouple is made up of temperature sensitive element, Mount fixed device and junction box.
B,S,K and E are optional.
Features:
Simple assembly, convenient replacement; Pressure spring type temperature sensing element, good anti-vibration; High accuracy, wide measuring range(-200ºC~1300ºC,in particular cases:-270ºC~2800ºC); fast response speed; high mechanical strength, good pressure durability; High temperature resistance up to 2800 degree; Long service life.
Type and Specification
|
Product |
Sheath Material |
Type |
Calibration |
Measuring Range |
|
Thermocouple |
PtRh30-Ptrh6 |
WRR |
B |
0-1600°C |
|
PtRh10-PT |
WRP |
S |
0-1300°C |
|
|
PtRh13-PT |
WRB |
R |
0-1300°C |
|
|
NiCrSi-NiSi |
WRM |
N |
0-1000°C |
|
|
NiCr-NiAl(Si) |
WRN |
K |
0-900°C |
|
|
NrCr-constantan |
WRE |
E |
0-600°C |
|
|
Iron- Constantan |
WRF |
J |
0-500°C |
|
|
Copper-Constantan |
WRC |
T |
0-350°C |
|
|
Thermal resistance |
Copper heat |
|
CU50 |
-50-150°C |
|
|
|
CU100 |
-50-150°C |
|
|
|
|
PT100 |
-200-600°C |

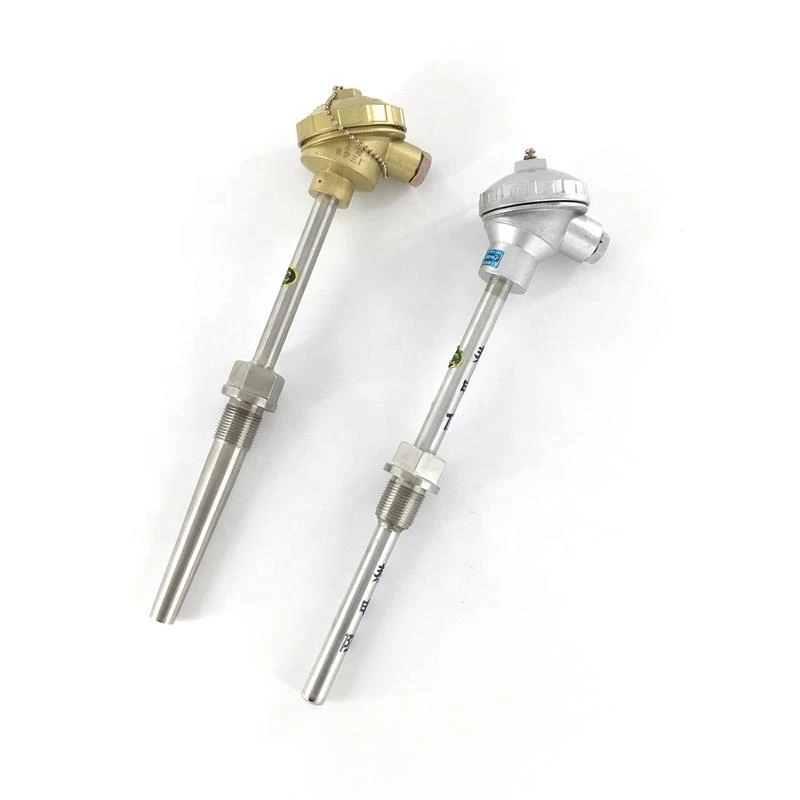

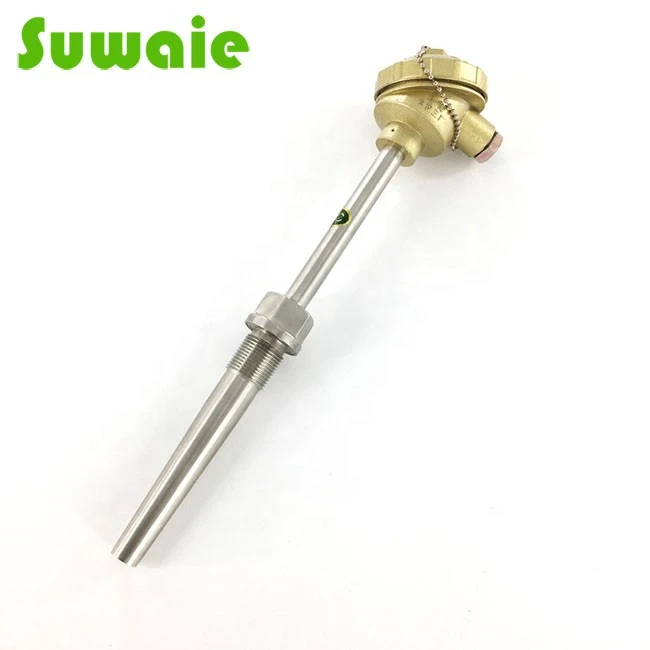

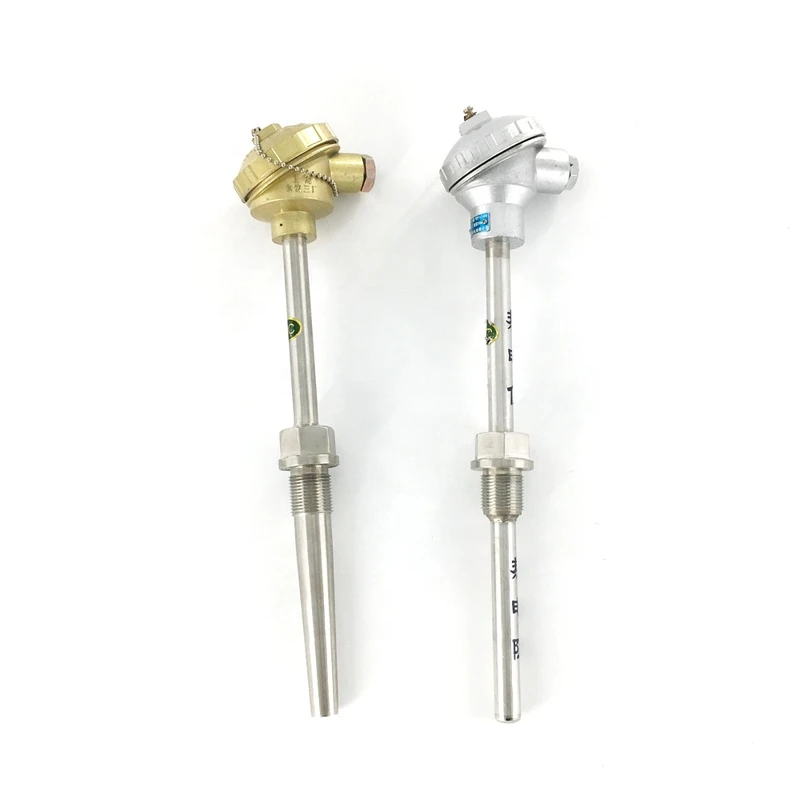

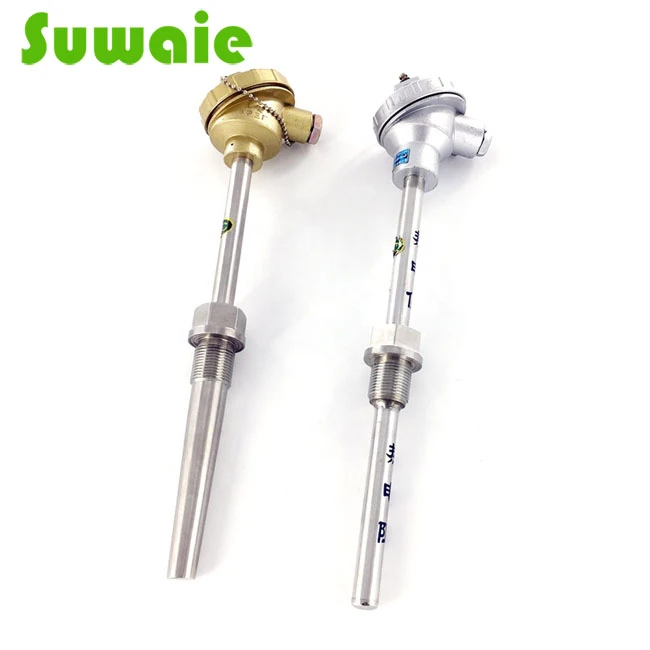

Products show

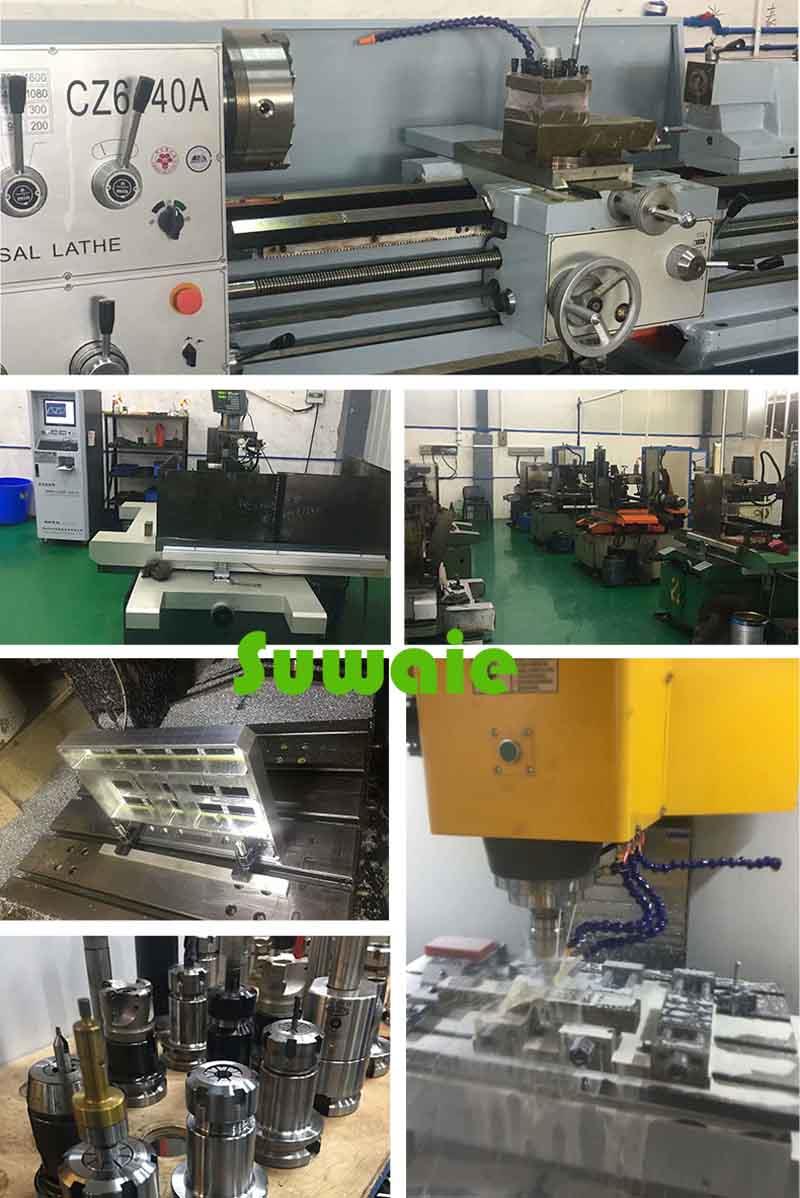

Thermocouple parts process show
Packing and shipment details
Market:
Currently, Suwaie Technology heating element is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. For more details, please feel free to contact us. We will give you best service and timely reply.
FAQ
1. Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50%-70% T/T in advance (depending on different situations.) ,balance before shipment.
2. Q: I have no drawing, how should I start the new project? You can tell us the voltage, power, shape, tube diameter, and send the heating element pictures.
3. Q: How can I get the price ?
A: Pls Email/call/levea message to us with you the unit you are looking for with you details (name, telephone, address, etc), and your products details,we will send to you ASAP.
