Fiber Laser Marking Machine
Product Description
1. Marking / engraving text, logo, serial number, image, photo, bar code and QR code etc
2. All kind of metal, alloy marking,such as Stainless Steel, Brass, Aluminium, Steel, Iron etc.
3. Mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon, (plastic ,keyboard, auto mobile components, IT components etc.).
4. Coating removal for glass, plastic, silicon.
5. Control software running on the WINDOWS operating system, easy to operate.
6. Compatible with AutoCAD, Coreldraw, Photoshop and other software formats, such as PLT, AI, DXF, DWG, BMP, JPG.
7. For serial number, bar code and other online flight marking, with automatic jump function.
Item Name | Technical Parameter | ||
Model | SW- 20W | SW30W | SW-50W |
Laser power | 20W | 30W | 50W |
Laser wavelength | 1064nm | ||
Laser type | Fiberlaser source | ||
Max Pulse Energy | 0.5m J | ||
Repeat frequency | 1KHz-1000KHz | ||
Pulse width | 6-250 ns | ||
Marking depth | 0.01-0.5mm | ||
Marking area | 110*110mm/175*175mm/200*200mm | ||
Rated power consumption | 500W | 800W | 1200W |
Operating voltage | 110V- 240V/50-60 Hz/15A | ||
Cooling | Air Cooling | ||
Packing size | 890*430*860 mm (L*W*H) | ||
Gross weight | 110kg KG | ||
Package | Standard export wooden case | ||

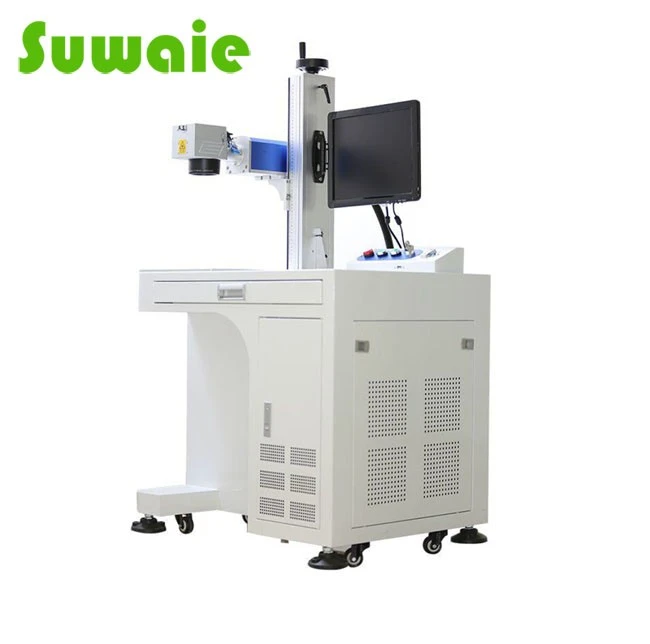

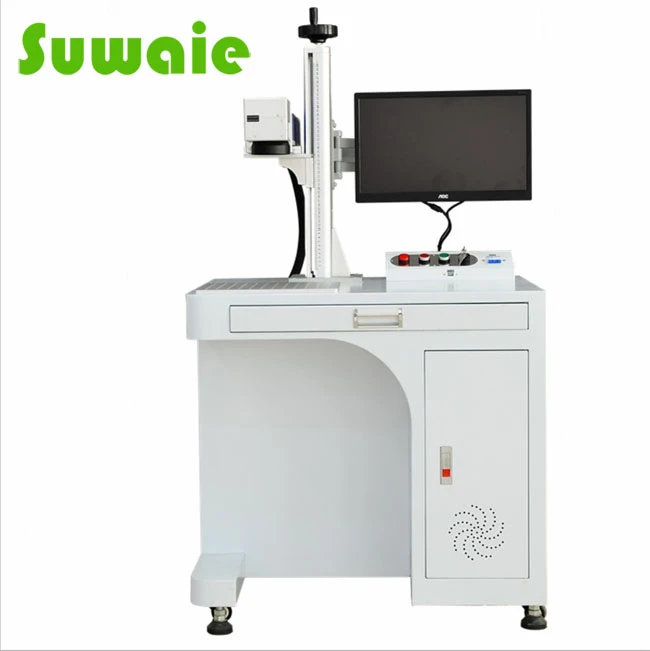

Machine Picture

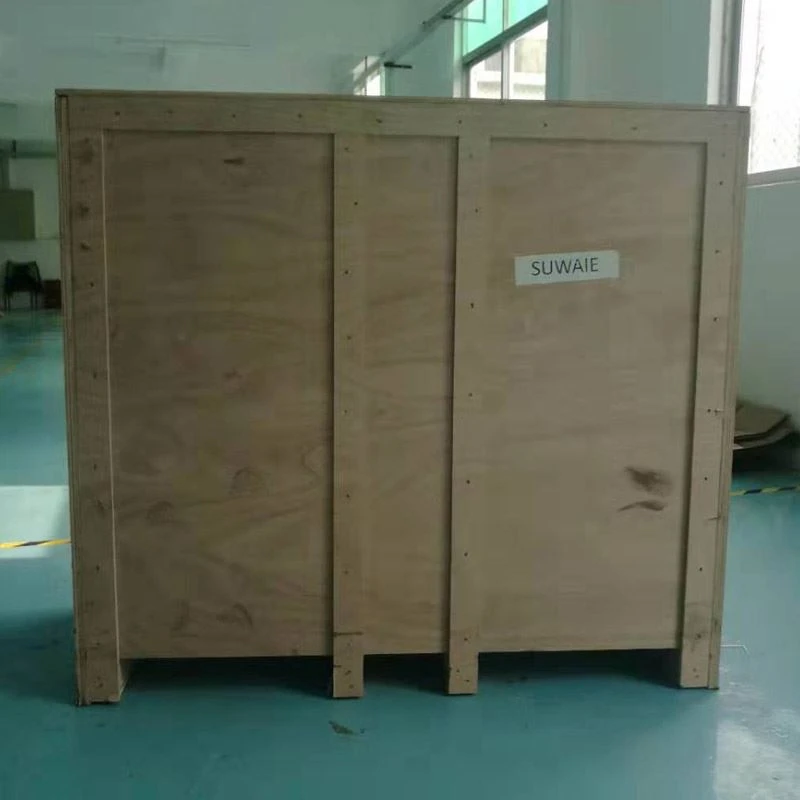

Packing details
Shipment
Why So Many Clients Choose SUWAIE?
Our heating element has applied many countries in the world. Many countries have our projects.
Suwaie heating element advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------Price
Our price is based on the quantity, We have the basic price for 1000pcs. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose SUWAIE, you choose the cost-effective , high quality and good service.
FAQ
1. Q: Do you have the ability to do independent research and development?
A: Our engineering department has 5 elites, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement.
2. Q: What is your production capacity?
A: 50000pcs per DAY
3. Q: Why is your price a bit higher than other Chinese suppliers?
A: We are focusing on manufacuturing high quality performance products in order to establish a long term and friendly cooperation with all customers.Our price maybe not the lowest, but our cost performance is the highest.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Fiber Laser Marking Machine . Our company has professional equipment and engineers to provide the production and service of Fiber Laser Marking Machine.
Hot Tags: fiber laser marking machine, China, manufacturers, suppliers, factory, customized
