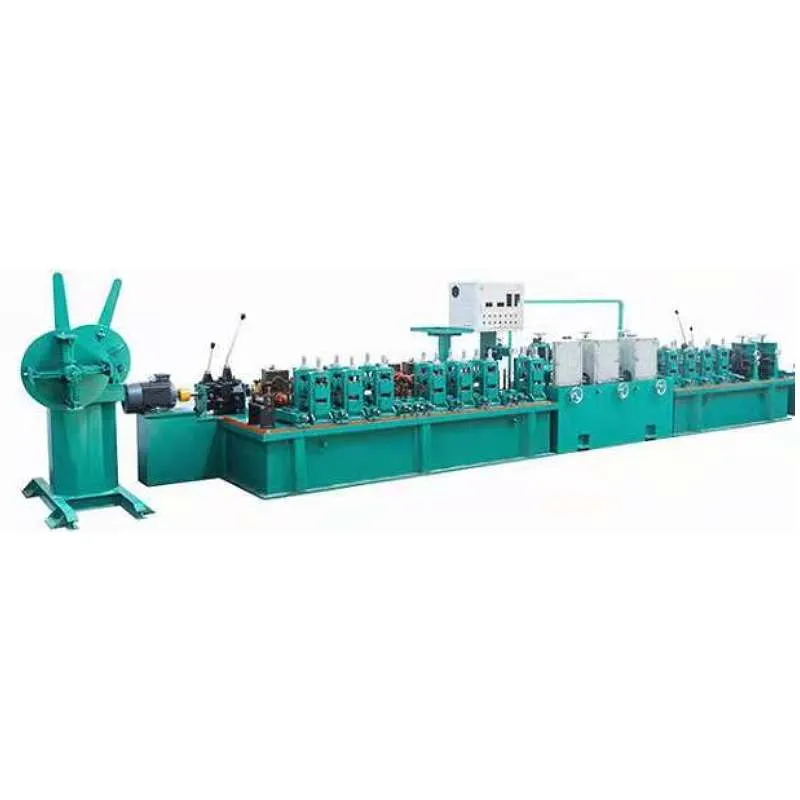

SW-W03 tube welding machine is mainly used to make stainless steel pipes for tubular heater, 201 stainless steel pipes, 304 stainless steel pipes, Incoloy800 pipes, 840 alloy pipes, etc.
Functions
Robust Frame for Stability and Durability
Constructed with premium steel plates, the SW-W03's frame offers excellent stability and long-lasting durability, even during continuous operation in demanding manufacturing environments.
Advanced PLC Control with User-Friendly Interface
The machine is equipped with PLC automatic control and a human-computer interface. This setup ensures precise operations and simplifies monitoring, allowing operators to manage the machine with ease.
Adjustable Speed with Mitsubishi Transduction
The tube-making speed can be conveniently adjusted using the Mitsubishi transduction system, enabling manufacturers to fine-tune production rates to meet specific requirements.
Automated Error and Material Alarms
The SW-W03 is designed for safety and efficiency, with an automatic alarm system that alerts operators in case of errors, abnormalities, or material shortages. This reduces downtime and helps maintain consistent production quality.
Integrated Panasonic Welding Machine
The machine features a high-performance Panasonic welding unit, ensuring superior welding quality for all tube materials. This integration provides a seamless and efficient welding process.
Ergonomic Design for Easy Operation
The fuselage is elevated to an ergonomic height, making it comfortable and convenient for operators to use the machine during extended production periods.
Built-In Straightening Device
Equipped with specialized wheels for tube straightening, the SW-W03 ensures that the pipes produced are uniform and meet strict quality standards.
Precision Cutting Equipment
The machine includes a special cutting system that delivers clean, burr-free cuts, reducing the need for additional finishing work and improving overall production efficiency.
Technical specifications
|
Model |
SW-W03 |
|
Power supply |
380V 3P 50-60HZ 15KW |
|
Pipe wall thickness |
0.3 to 1.0mm |
|
Pipe material |
Iron,copper,stainless steel pipe |
|
Pipe diameter |
5mm-20mm |
|
Tube length |
300-10000mm |
|
Production speed |
6-18M/Min |
|
Outer diameter tolerance |
0.025-0.05mm |
|
Welding form |
Argon arc welding |
|
Machine size(L*W*H) |
12000*1300*1800mm |
|
Packing size(L*W*H) |
5800*1100*1800mm |
|
Control |
PLC system |
|
Weight |
4000KG |
How to order SW-W03 Tube welding machine
To ensure the SW-W03 is tailored to your specific manufacturing needs, please provide the following details when placing an order:
Material of Tube
Specify the type of material you plan to use, such as 201 or 304 stainless steel, Incoloy 800, or 840 alloy.
Tube Diameter
Indicate the diameter of the tubes to ensure the machine is equipped with the appropriate settings and components.
Tube Wall Thickness
Provide the wall thickness of the tubes to ensure compatibility with the welding and cutting systems.
Why Choose the SW-W03 Tube Welding Machine
The SW-W03 combines precision, automation, and versatility to deliver outstanding performance in tube welding and manufacturing. Its user-friendly design, advanced safety features, and high-quality output make it an excellent choice for manufacturers aiming to enhance productivity and maintain high standards.
Contact us today for more information or to place an order. Let the SW-W03 Tube Welding Machine take your production process to the next level with efficiency and precision!
