Cartridge Heating Element
With premium materials and tight manufacturing controls, Suwaie's cartridge heaters (insertion heaters) provide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures. Customers benefit from Suwaie's on-time delivery, quality and technical assistance.
It is important to note that allowable watt density depends on the material being heated. For water heating watt densities of several hundred watts per square inch are possible while oil heating may be limited to 5—to 40 watts per square inch.
2. Cartridge Heating Element Specification
Product nama | Cartridge heater |
Cartridge heater diameter | 3mm,4mm,5mm,6mm,8mm,9mm,10mm ,12,14,16,20,22,30mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V |
Insulation resistance | ≥500M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel321 tube |
color | White |
Size (Dia*L mm) | Power (low density W) | Power (high density W ) | Size (Dia*L mm) | Power(low density W) | Power (high density W) |
φ6*60 | 60 | 120 | φ14*100 | 200 | 450 |
φ6*100 | 100 | 200 | φ14*120 | 250 | 520 |
φ6*200 | 190 | 350 | φ14*150 | 330 | 650 |
φ8*50 | 65 | 120 | φ14*200 | 400 | 880 |
φ8*100 | 125 | 250 | φ14*250 | 550 | 1000 |
φ8*150 | 200 | 350 | φ14*300 | 650 | 1300 |
φ8*200 | 250 | 500 | φ16*100 | 250 | 500 |
φ10*60 | 100 | 200 | φ16*120 | 300 | 600 |
φ10*80 | 125 | 250 | φ16*150 | 350 | 750 |
φ10*120 | 200 | 375 | φ16*200 | 500 | 1000 |
φ10*150 | 235 | 475 | φ16*250 | 600 | 1250 |
φ10*200 | 300 | 600 | φ16*300 | 750 | 1500 |
φ10*300 | 470 | 900 | φ18*100 | 250 | 550 |
φ12*60 | 115 | 225 | φ18*150 | 400 | 850 |
φ12*100 | 200 | 375 | φ18*200 | 550 | 1150 |
φ12*120 | 225 | 450 | φ18*300 | 850 | 1500 |
φ12*150 | 280 | 550 | φ20*100 | 300 | 650 |
φ12*200 | 375 | 750 | φ20*150 | 450 | 950 |
φ12*300 | 550 | 1000 | φ20*300 | 950 | 1800 |
3. Cartridge Type Heater Application
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold
climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment

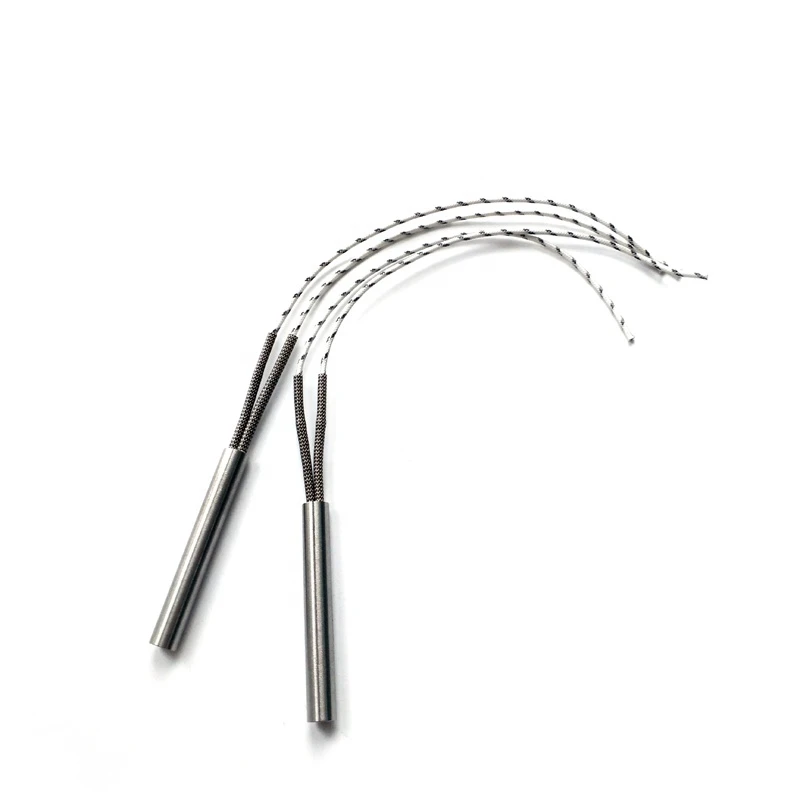

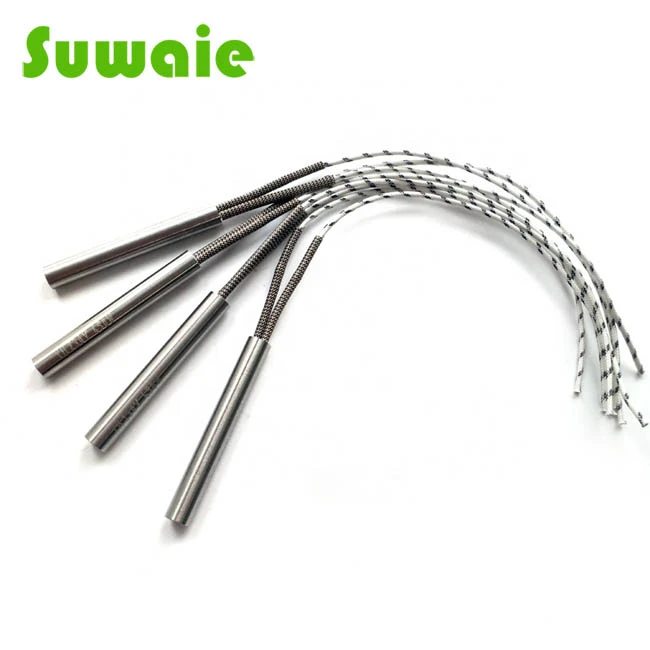

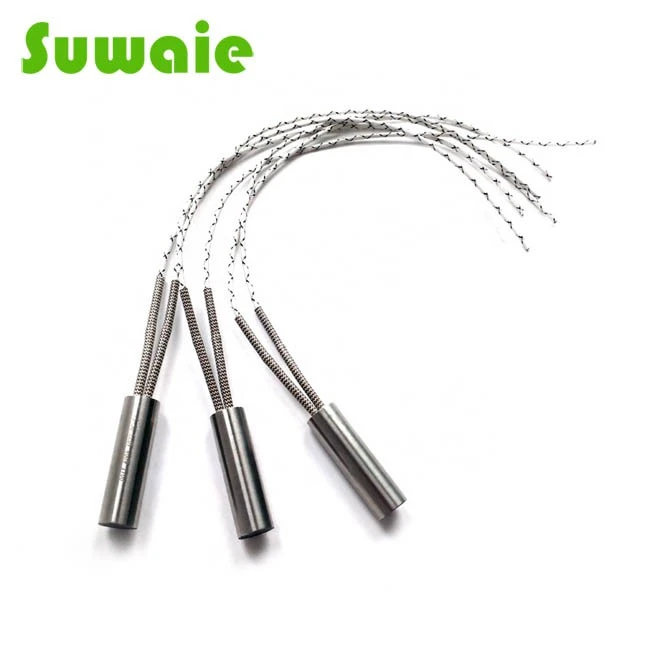

Cartridge Heating Element Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
SUWIE HEATER Advantage:
12 years focusing on heating elements;
10 years technical service and proessional sales team;
9 years of independent product research and development;
OEM/ODM is available.
Obtain Obvious Advantages, Provide Best Price, Welcome To Talk More.
FAQ
1.
Q:How can I get a sample to check your quality?
A: After price is confirmed, you can require samples to check our quality. Free for existing samples ,but you need to paid the express freight. For sample making, we will charge a sample fee. Sample fee will be confirmed according to the products' craftwork.
2.
Q: How to Place an order?
A: Kindly pls send us you order by email, we will confirm the PI with you. we wish to know the followings: Delivery information-company name, address, phone/fax number, destination, transportation way; Product information :item number, size, quantity, or any requirements, etc.
3.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,CIF and so on.
4.
Q:How do you guarantee the deliver time?
A: We have independent PMC department to arrange the production plan.
We have production meeting every morning to report the production progress and discuss the problems.
We will make production progress report to you every week and take some pictures for your reference, that's you can know our production progress clearly.
