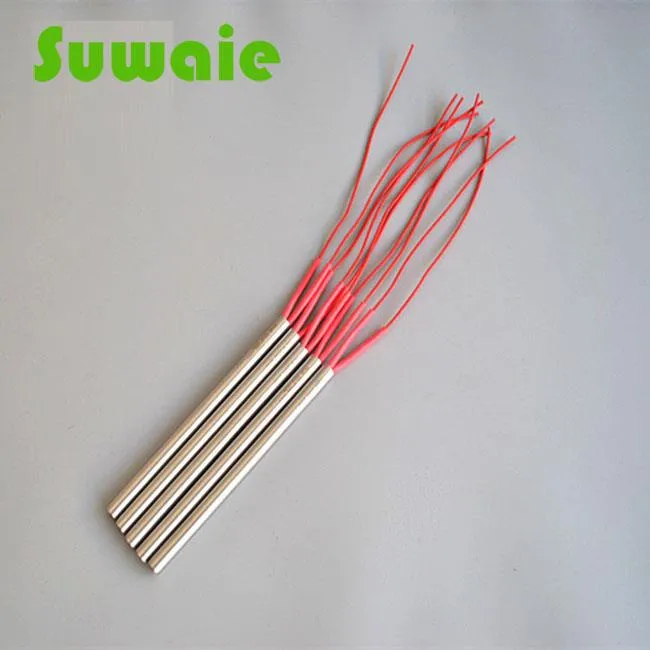

Insertion Cartriage Heater
With premium materials and tight manufacturing controls, Suwaie's cartridge heaters (insertion heaters) provide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures. Customers benefit from Suwaie's on-time delivery, quality and technical assistance.
Cartridge heaters can be fitted with helical fins, enabling them to be used in air heating applications.
As well as cartridge heaters with internal thermocouples, a wide array of special features are available, including: IP terminal boxes, zoned heaters, distributed wattage, formed heaters, finned heaters, and many others. Please contact us for information on all the options available.
Description.
Suwaie cartridge heater is a tube-shaped, heavy-duty, industrial Joule heating element used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Compact designs are capable of reaching a watt density of up to 50W/cm² while some specialty high temperature designs can reach 100W/cm².
Advantages.
1.The diameter is small, can be 3-25mm.
2.The length is not limited, you can do 20-2000mm.
3.High power, can be 2-5 times the power of normal electric heating tube.
2. Insertion Cartriage Heater Specification
Product nama | L Type Cartridge heater |
Cartridge heater diameter | 3mm,4mm,5mm,6mm,8mm,9mm,10mm ,12,14,16,20,22,30mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V |
Insulation resistance | ≥500M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel321 tube |
color | White |
3. Insertion Cartriage Heater Application
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold
climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment
Insertion Cartriage Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
What is the standard of package?
Professional export packing:
1)Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2)Under 100 KGS parts, use strong DHL export Carton .
3)Above 100 KGS, will customize Wooded case for packing.
FAQ
1.
Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
2.
Q:How can I get some samples? A:We don't provide free one, but we will minux the extra price when you reorder with the suitable quantity.
3.
Q: What is your main product line made?
A:We mainly produce heating element,cartridge heater,hot runner heater ,industrial heater and so on.
Focus on heating element.( etc.)
4.
Q:How can I get a sample to check your quality?
A: After price is confirmed, you can require samples to check our quality. Free for existing samples ,but you need to paid the express freight. For sample making, we will charge a sample fee. Sample fee will be confirmed according to the products' craftwork.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Insertion Cartriage Heater. Our company has professional equipment and engineers to provide the production and service of Insertion Cartriage Heater.
