Insertion Rod Heater
Cartridge heater often considered as component heater has a heating coil wound on a ceramic core and are cylindrical-shaped, heavy-duty Joule heating element. Electricity flows through coil when a two or three-phase voltage is applied. The electricity heats the coil and, subsequently, the cartridge sheath. The watt density (in Watt/inch2) depends on the number of spirals or turns per inch. The sheath comes in contact with the surface being heated. Insulation in the cartridge heater ensures that the heating wire never comes in contact with the sheath and protects the sheath from melting in case of any mishap. The leads that come out of the heater terminal have metal conduit, or silicon sleeves to protect from high temperature. Lead wires are often fiberglass or silicon rubber.
Description.
Suwaie cartridge heater is a tube-shaped, heavy-duty, industrial Joule heating element used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Compact designs are capable of reaching a watt density of up to 50W/cm² while some specialty high temperature designs can reach 100W/cm².
Advantages.
1.The diameter is small, can be 3-25mm.
2.The length is not limited, you can do 20-2000mm.
3.High power, can be 2-5 times the power of normal electric heating tube.
2. Insertion Rod Heater Specification
Product nama | L Type Cartridge heater |
Cartridge heater diameter | 3mm,4mm,5mm,6mm,8mm,9mm,10mm ,12,14,16,20,22,30mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V |
Insulation resistance | ≥500M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel321 tube |
color | White |
3. Insertion Cartriage Heater Application
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold
climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment

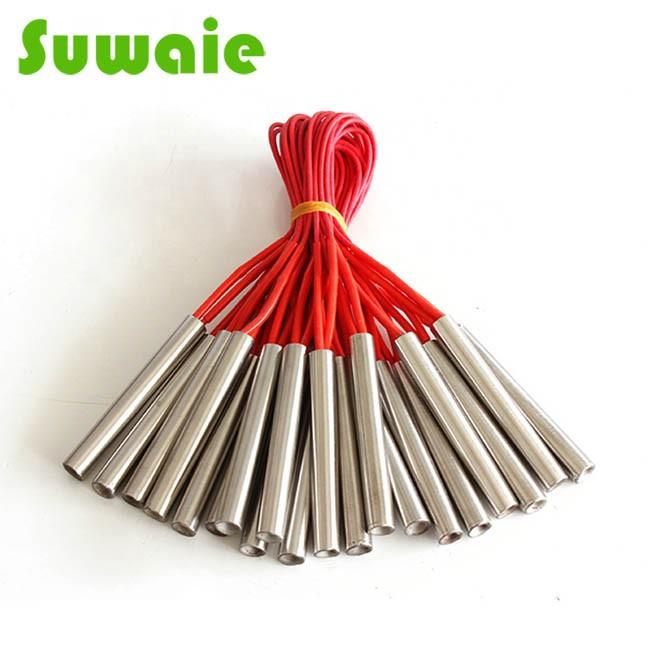

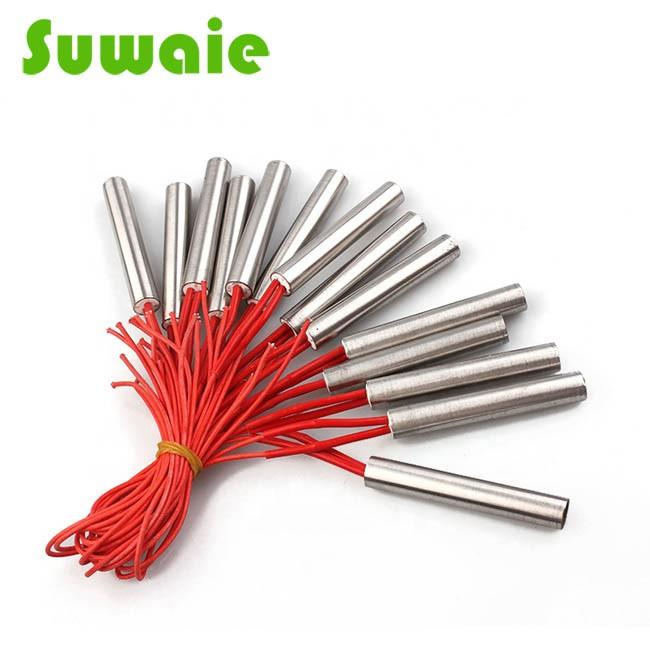

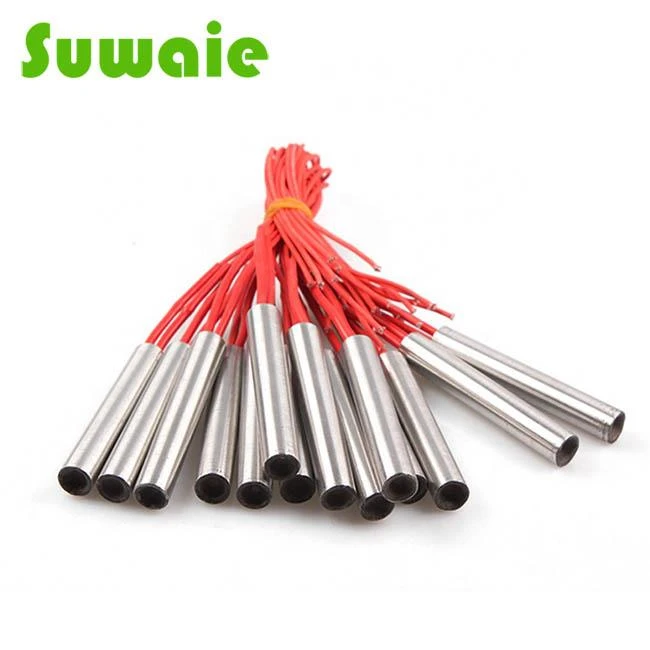

Insertion Rod Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
How does the Suwaie control the quality?
1)During processing, the operating machine worker inspect the each sizes by themselves.
2)After finished the first whole part, will show to QA for full inspection.
3)Before shipment, the QA will inspect according to ISO sampling inspection standard for mass production. Will do 100% full checking for small QTY.
4) when shipping the goods, we will attached the inspection report with the parts.
FAQ
1.
Q:What is your minimum order quantity?
A: There's no minimum quantity ,you can buy any quantity. However, few in number, the unit price will be a little higher.
2.
Q:What Production Equipments do we own?
A:Rolling machine,Mgo filling machine,tube cutting machine,banding machine,coiling machine,Swaging machine welding machine, etc.
3.
Q:How to proceed the order if I have logo to print? A:First, Artwork for visual confirmation, and next is Sample picture or sending sample to you for confirmation, finally we will go to mass production.
4.
Q:How to Choose the System Voltage ?
A: We can design the heater element for 12v or 24v tubular heater or 220-380V for normal tubular heating eleemnt.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Insertion Rod Heater. Our company has professional equipment and engineers to provide the production and service of Insertion Rod Heater.
Hot Tags: insertion rod heater, China, manufacturers, suppliers, factory, customized, 12v DC Cartridge Heater, 12V 24V Electric 3D Printer Cartridge Heater, Cartridge Heaters Australia, Electric Heating Element Cartridge Heater, High Watt Density Cartridge Heaters, Ptc Cartridge Heater
