Fast Heat Cartridge Heater
Shenzhen Suwaie Technology Co., Ltd. has been a worldwide leading expert in the heating element & cartridge heating industry with more than 12+ years of knowledge and experience in the field. We continue to be at the forefront of innovation, designing and manufacturing of heating element & cartridge heater production machinery.
Cartridge heater often considered as component heater has a heating coil wound on a ceramic core and are cylindrical-shaped, heavy-duty Joule heating element. Electricity flows through coil when a two or three-phase voltage is applied. The electricity heats the coil and, subsequently, the cartridge sheath. The watt density (in Watt/inch2) depends on the number of spirals or turns per inch. The sheath comes in contact with the surface being heated. Insulation in the cartridge heater ensures that the heating wire never comes in contact with the sheath and protects the sheath from melting in case of any mishap. The leads that come out of the heater terminal have metal conduit, or silicon sleeves to protect from high temperature. Lead wires are often fiberglass or silicon rubber.
Description.
Suwaie cartridge heater is a tube-shaped, heavy-duty, industrial Joule heating element used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Compact designs are capable of reaching a watt density of up to 50W/cm² while some specialty high temperature designs can reach 100W/cm².
Advantages.
1.The diameter is small, can be 3-25mm.
2.The length is not limited, you can do 20-2000mm.
3.High power, can be 2-5 times the power of normal electric heating tube.
2. Fast Heat Cartridge Heater Specification
Product nama | L Type Cartridge heater |
Cartridge heater diameter | 3mm,4mm,5mm,6mm,8mm,9mm,10mm ,12,14,16,20,22,30mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V |
Insulation resistance | ≥500M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel321 tube |
color | White |
3. Fast Heat Cartridge Heater Application
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold
climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment

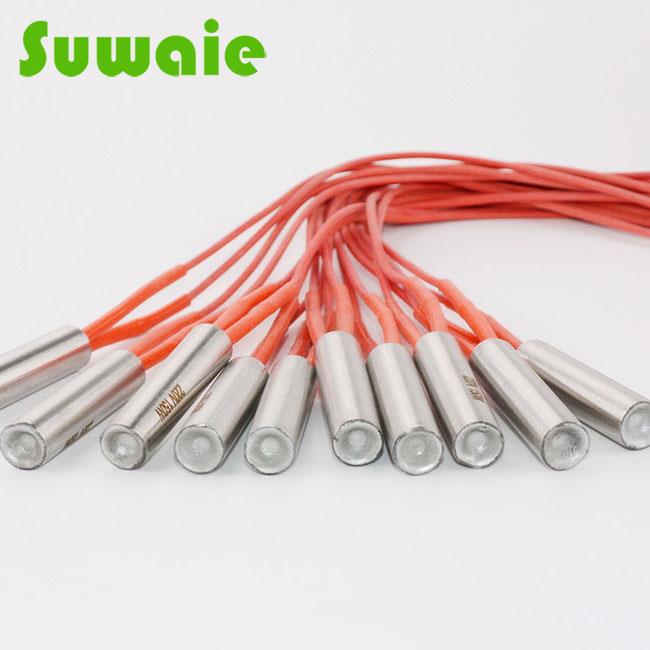

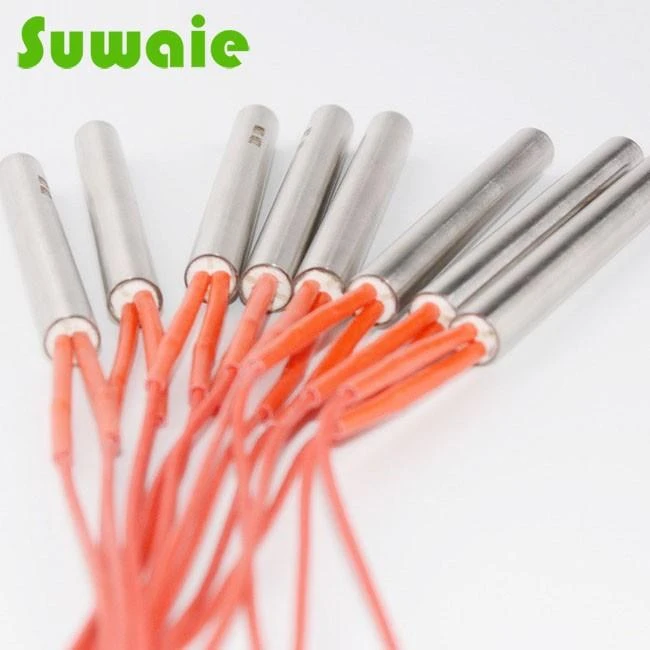

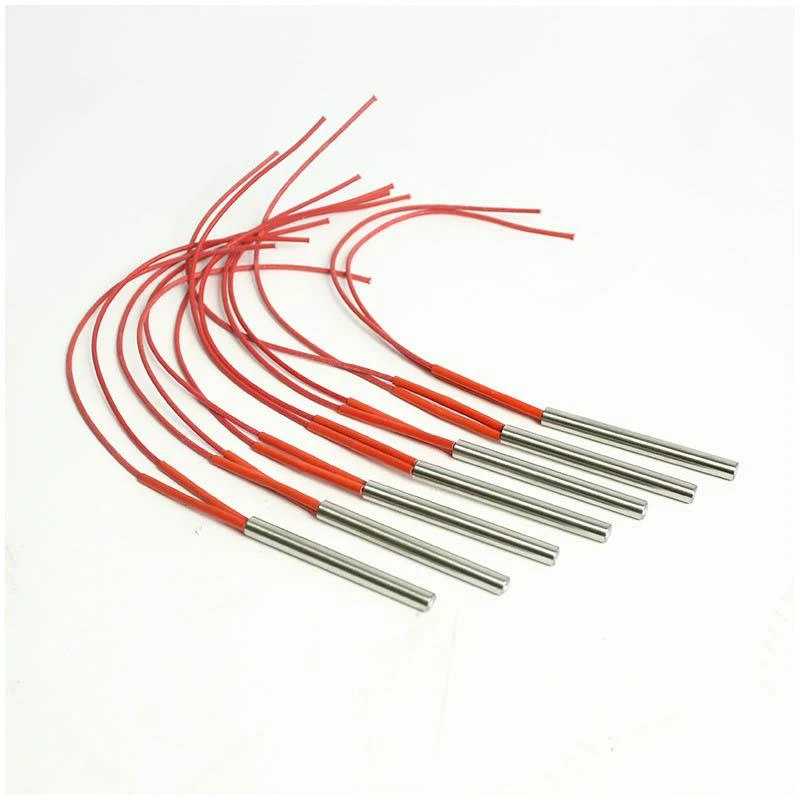

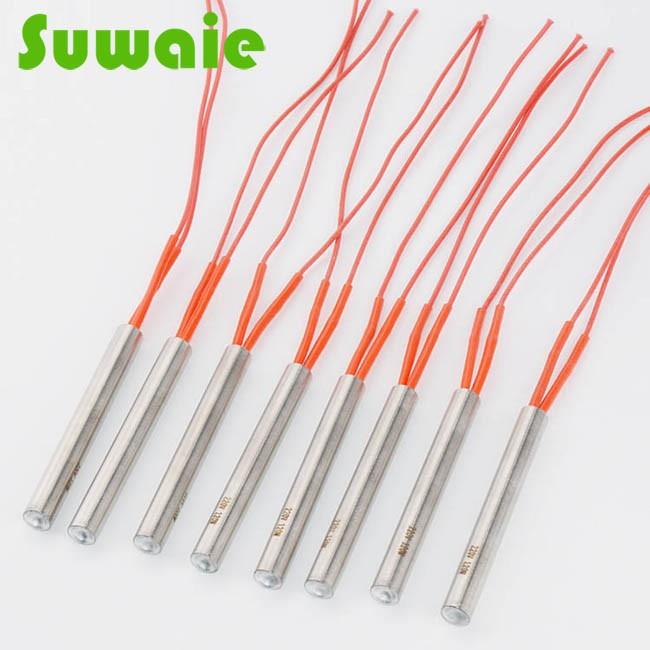

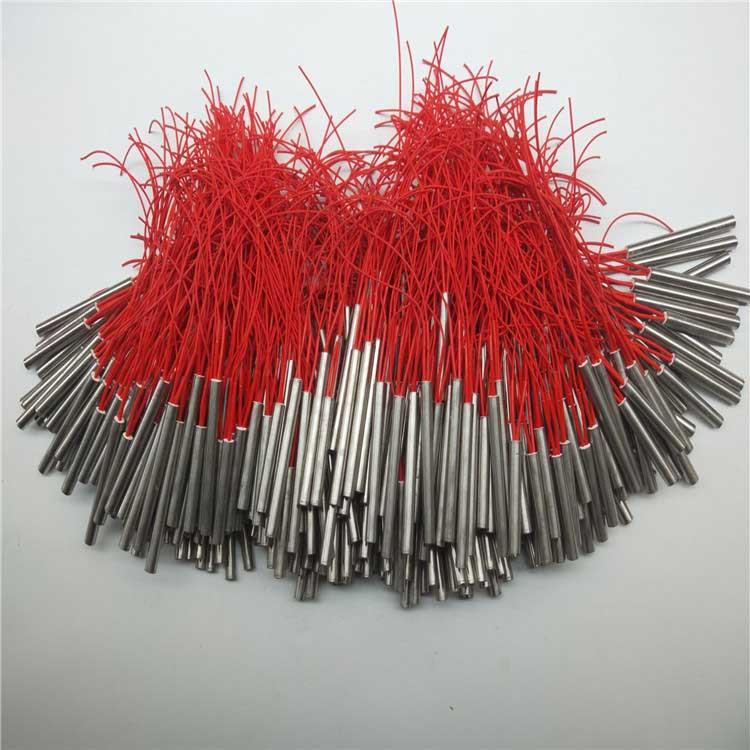

Fast Heat Cartridge Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
Our Advantages:
1.We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2.We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3.We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4.We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1.
Q: What Inspection Equipments do we have?
A:Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.
2.
Q:How does your factory do regarding quality control?
A:Quality is the priority.We always attach great importance to quality controlling fromthe start to the end.Our factory has gained CE, RoHS certification.
3.
Q: How can I know the status of my products ?
A: We will keep you posted for the every production progress like material purchasing, production status, delivery time, tracking number until you recieved the products.
4.
Q:Is there cheap shipping cost to import to our country?
A: For small order,express will be best, for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest by express, big quantity by air.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Fast Heat Cartridge Heater. Our company has professional equipment and engineers to provide the production and service of Fast Heat Cartridge Heater.
