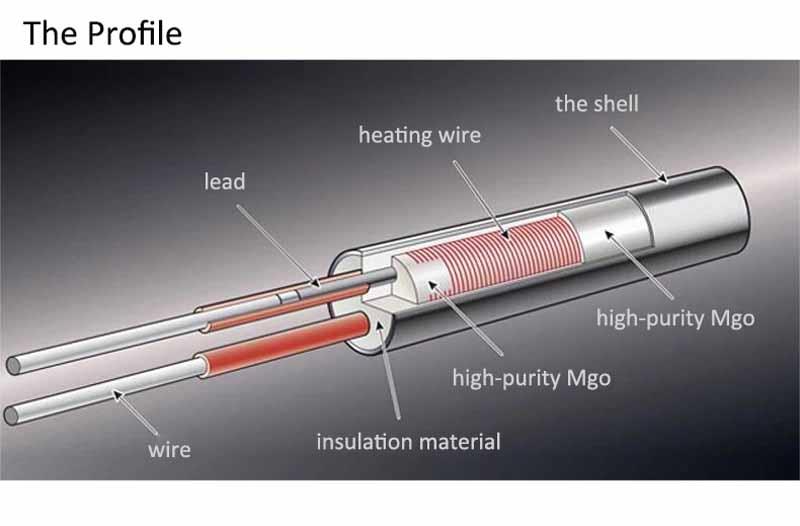

Description
Split-Sheath Design
Uniform Heating
Lengths From ½ Inch to 6 Inches
1/8" and 4mm Diameters
Unique Hot Tip
Calculating Watt-Density
Watt-density is the power loading of the heater, expressed in watts-per-square-inch of active heater surface.
The formula for active heater surface is: (Heater Length – Cold End Length) x Diameter x Pi. For a 1/8” diameter by 1” long heater it is: (1.00 - 0.25) x .38, or .285 square inches.
The formula for watt-density is: Wattage / Active Heater Surface For 1/8” diameter by 1” heater at 80 watts, this is: 80 watts / .285 in sq or 270 watts/sq inch.
Small Diameter, Miniature Cartridge Heaters Selection Guide
The key questions which need to be answered before selecting a cartridge heater for your application are:
How much wattage is required?
What voltage will be used?
What is the heated length? What is the overall length?
How long are the heater leads or what is the lead length required?
What is the dimentions of the cartridge heater?
What is the ambient temperature the cartridge heater will see?
What is the maximum temperature required from the heater?
How quickly do you want to reach your operating temperature or set point in hour/minutes?
What is the type and weight (in lbs.) of the material you want to heat?
Special Modifications
Tube diameter | 3mm-30mm |
Tube Length | 20mm-5000mm |
Resistance heating wire | NiCr 80/20 wire |
Voltage | 12V/24V/36V/48V/120V/220V/230V/380V |
Tube material | Stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
Insulation Material | High-Purity Mgo |
Thermocouple Location | Type J / Type K |
Products show
Application

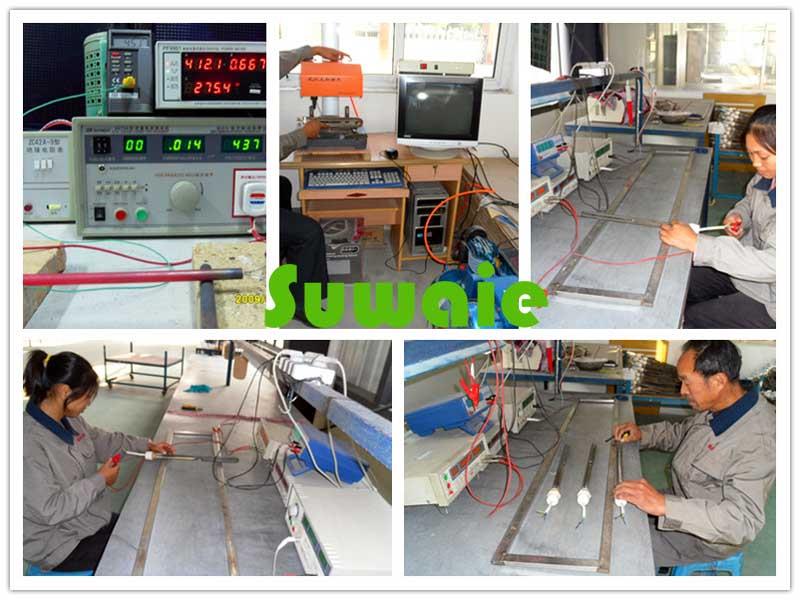

Process and test room show
Packing and shipment
Our trade terms:
1. Payment term: 50% deposit by T/T,balance before shipentment
2. Delivery time: 7-30days according to your order qty.
3. Samples time: 3-7 days.
4. Shipping terms: FOB Shenzhen,C&F Shenzhen.
5. Discounts will be dertermined by quantity.
6. Welcome distributors to cooperate together.
