Pencil Heater
It is important to note that allowable watt density depends on the material being heated. For water heating watt densities of several hundred watts per square inch are possible while oil heating may be limited to 5—to 40 watts per square inch.
Replaceable Immersion Pencil Heater futures:
1.Clean and safe.
2. Heater never comes into contact with tank contents.
3. Easily replaced without draining the vat or tank.
4. Suwaie immersion cartridge heater contracts when de-energized for easy removal.
5. Stainless-steel sheath accommodates standard diameter flanged Suwaie immersion cartridge heaters from 5" to 72" lengths.
6. Solid Construction. Stainless steel sheath with a welded end cap and NPT fitting that screws into and becomes a permanent part of the tank or vat to be heated
2. Pencil Heater Specification
Product nama | L Type Cartridge heater |
Cartridge heater diameter | 3mm,4mm,5mm,6mm,8mm,9mm,10mm and so on. |
Resistance wire | NiCr8020 |
Voltage | 220V |
Insulation resistance | ≥50M Ohm |
Leakage current | ≤0.5mA |
Length tolerance | ±0.5mm |
Wattage tolerance | +5%, -10% |
Input voltage | 12V, 24V,110V,220V,240V |
Material | Stainless steel |
color | White |
3. Pencil Heater Application
cartridge heater uesd for Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more.

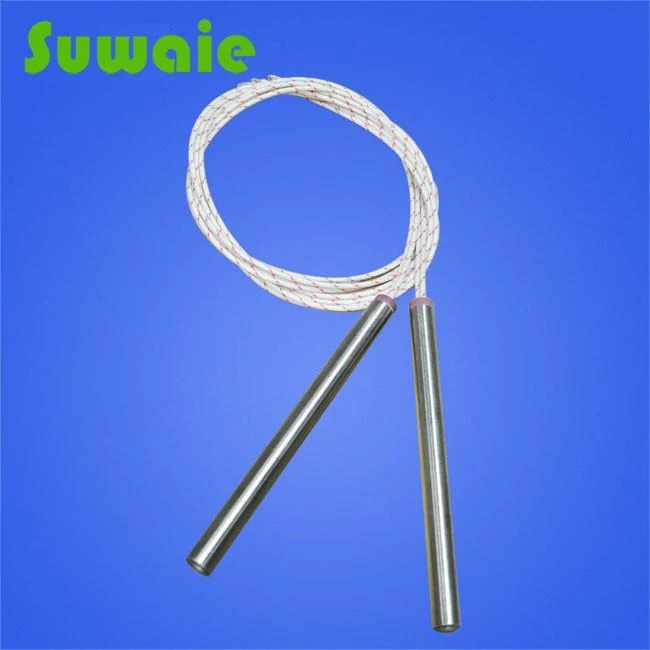

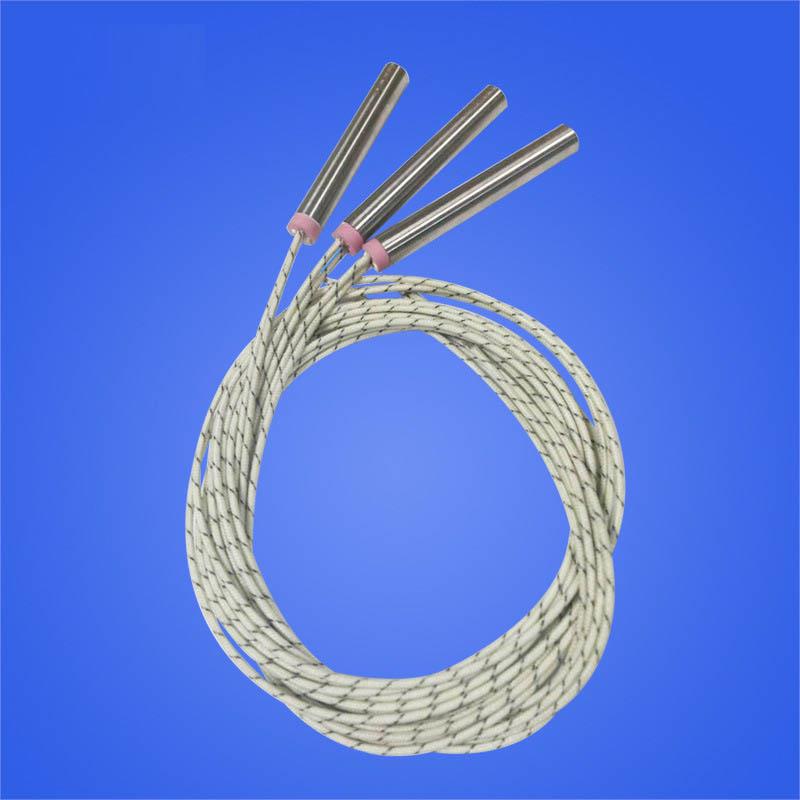

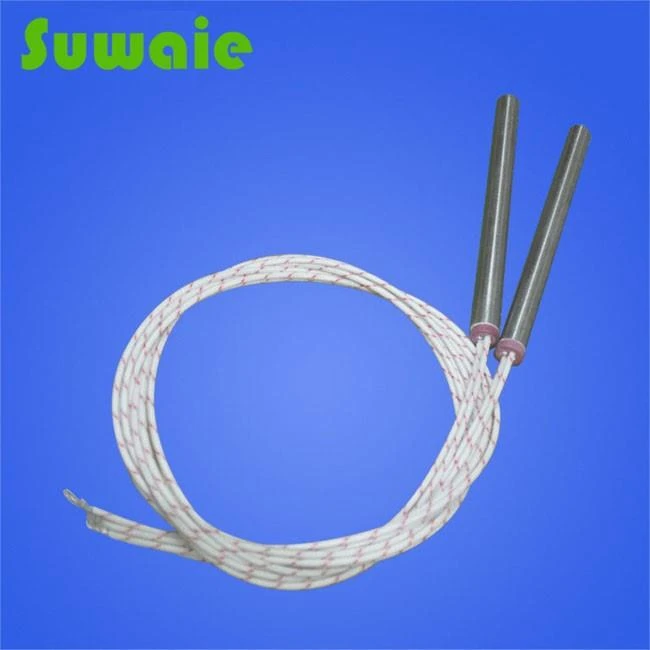

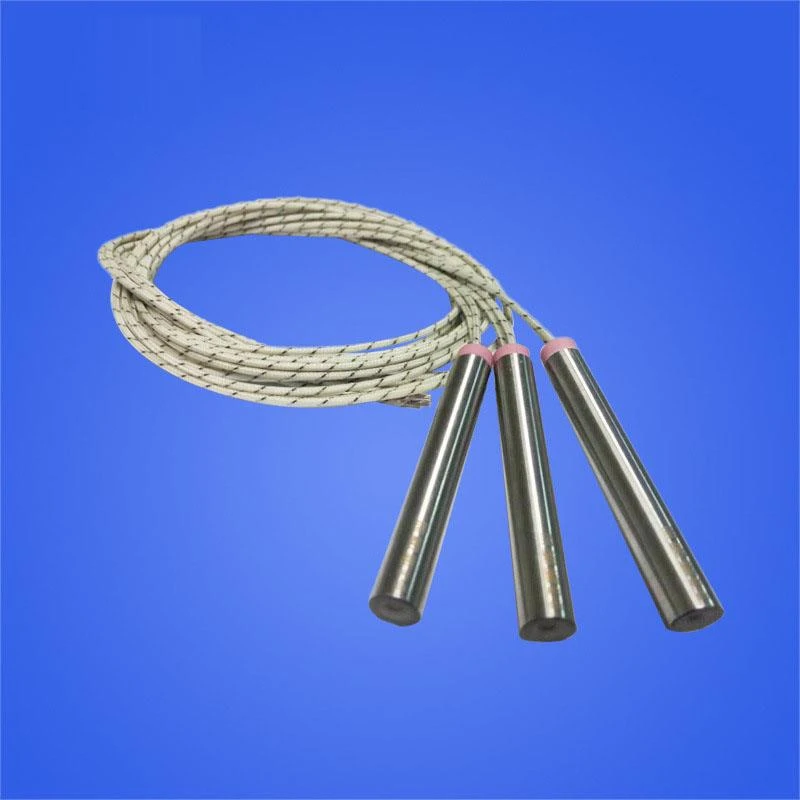

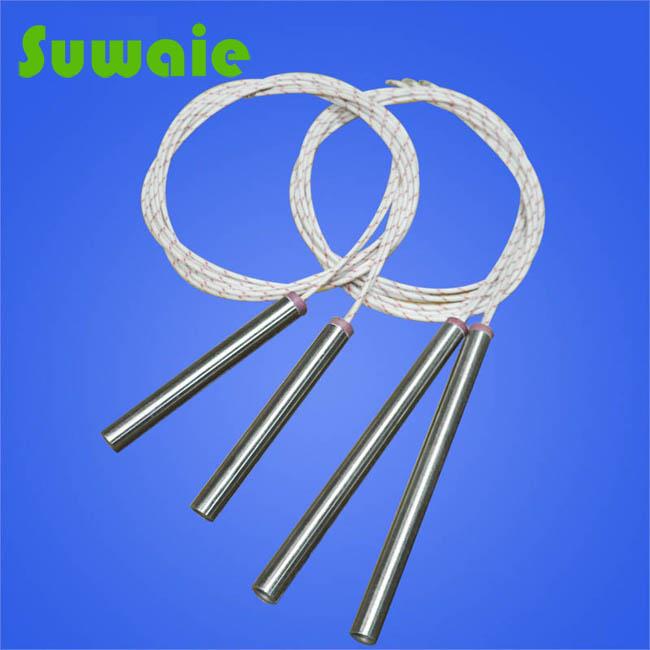

Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
Our Service As a manufacturer with 12 years R&D experience in China, we would like to offer any support you need as following:
1) Immediate reply to your inquiry.
2) Exact recommend of our machine for the job you do.
3) Detail information of our products, and our company if you need.
4) Best quotation.
5) Immediate answers to your questions about our produts.
6) Technical support, or alternative accessories if necessary.
FAQ
1.
Q:Are you a factory or trading company?
A:We are manufacturer.
2.
Q: What are our after-Sales Services?
a).We are willing to improve the quality of the products if there is any problem with your order.
b).Repairs are free of charge if the problem is due to manufacturing defects.
c).We are willing to comply with customers' reasonable requests.
3.
Q:How about the Package & Product design?
A: Based on factory original box, original design on product with neutral laser and label, original package for export carton. Custom-made is OK.
4.
Q: What is your production capacity?
A: 50000pcs per DAY
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Pencil Heater. Our company has professional equipment and engineers to provide the production and service of Pencil Heater.
