Pencil Type Rod Heater
A Industrial Cartridge Heaters belongs to a type of electric heating elements, also called a Cartridge Heaters, and is an electric heating element that is out of the line. It has good insulation performance and uses high-purity magnesium oxide with high thermal conductivity as filler. The product has high inherent power, high thermal efficiency and fast heating dissipation.
Features:
1. Conditions of use: ambient temperature -20 ° C ~ +60 ° C, relative temperature <80%;
2. Electrical strength: cold state withstand voltage AC work 1500V 50HZ duration 1MIN no breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50HZ duration 1MIN no breakdown phenomenon;
4. Leakage current <0.5MA; insulation resistance >30MΩ;
5. Power deviation +5%, -10%; surface load up to 25W per square centimeter;
6. tubu diameter: 3mm - 30mm
7.tube length: 40mm - 1000mm
8.tube material: SUS304, SUS321,INCOLOY800,etc.
9.product name:Low Voltage Industrial Electric Pencil Heater
10.lead-out wire length: 300mm, or clients requriement.
11.lead out wire type: PTFE wire, Silicone wire,etc.
Application
1. Used to dry wood, paper, printing and dyeing, paint and so on.
2. Melting low melting point alloys, such as molten lead furnaces, tin melting furnaces, etc.
3. Infrared radiant heating device
4. In the food industry, it is used to bake various breads, biscuits, pastries, and electric heating devices in flowing water tunnels.
5. Medical sanitation equipment, such as sterilizers, sterilizers, etc.
6. Heating, enameled wire drying device, etc. of motor vacuum dip coating equipment.

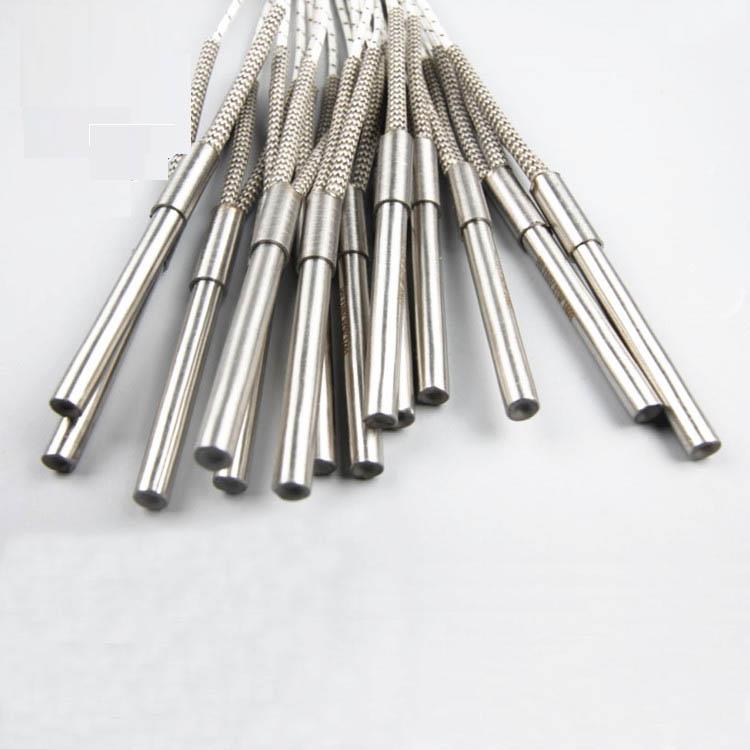

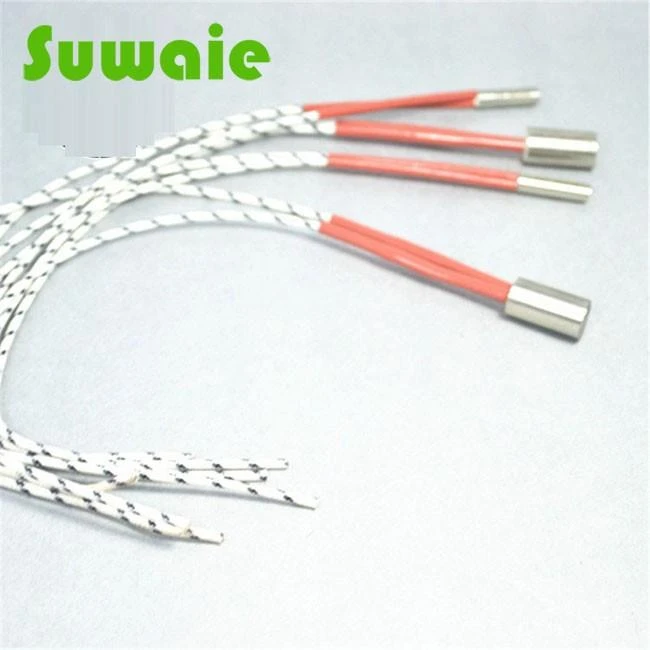

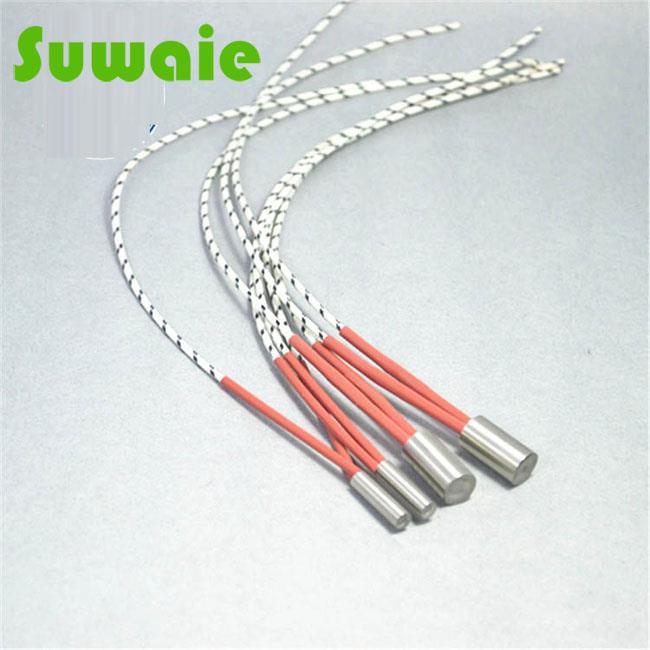

Micro Cartridge Heater Products show
Product Structure show
Pencil heater process and test working show
Packing and shipment case show
Our Services
1. We are skilled in producing this type of heating element and have adequate supply of spare parts, so we can guarantee continuous production and keep delivery.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well trained and experienced staffs to answer all your enquiries in fluent English.
4. OEM&ODM, or any your customized lightings, we can help you to design and put into production.
5. Your sales area, ideas of design and all your private information will be protected.
6. If you need more details, please contact our sales service person below online or via email.
FAQ
1.
Q: What are our after-Sales Services?
a).We are willing to improve the quality of the products if there is any problem with your order.
b).Repairs are free of charge if the problem is due to manufacturing defects.
c).We are willing to comply with customers' reasonable requests.
2.
Q:When can I get the price? A: We usually quote within 2-3 days after we receive the RFQ or feedback within 2 days if any questions on prints need to be confirmed.
3.
Q:What is the standard of package?
A:Professional export packing:
1)Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2)Under 100 KGS parts, use strong DHL export Carton .
3)Above 100 KGS, will customize Wooded case for packing.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Pencil Type Rod Heater. Our company has professional equipment and engineers to provide the production and service of Pencil Type Rod Heater.
