Watt Flex Cartridge Heaters

Watt Flex Cartridge Heaters

Watt-Flex cartridge heaters last up to 5 times longer than conventional heaters with less downtime for heater replacements and lower maintenance costs. Watt-Flex heaters contract when de-energized, eliminating bore seizure and the need for expensive drill-outs.
Send Inquiry
Description

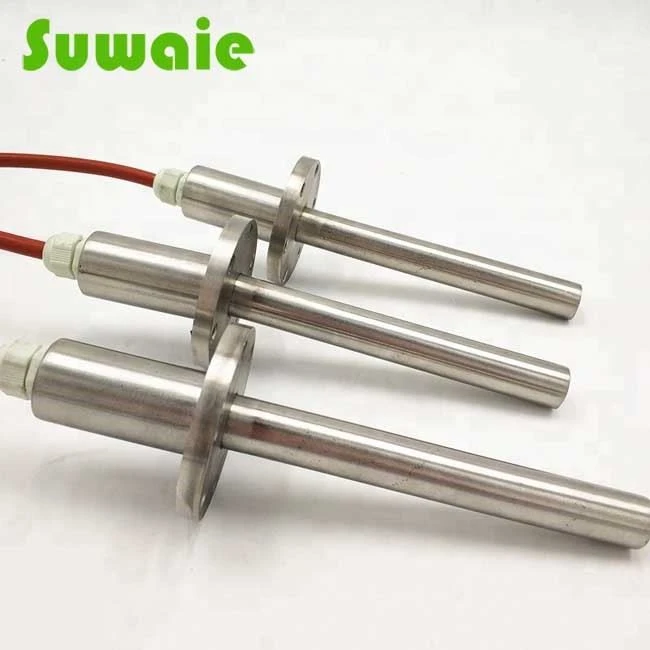

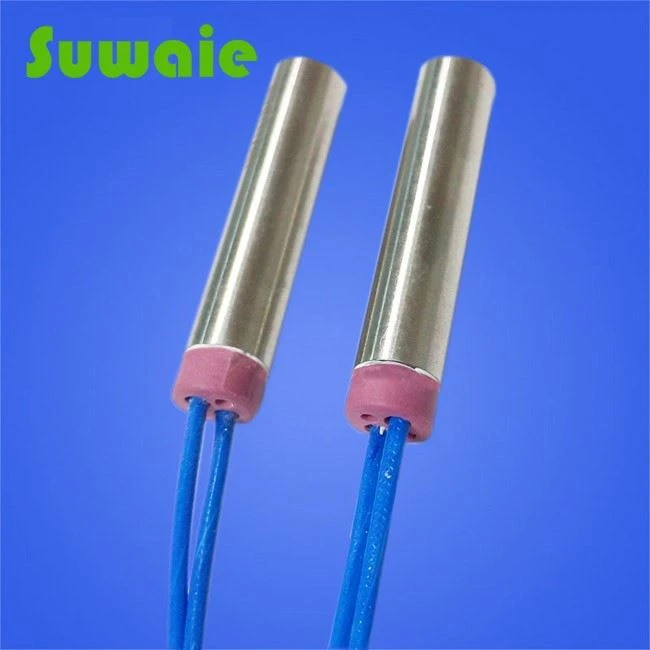

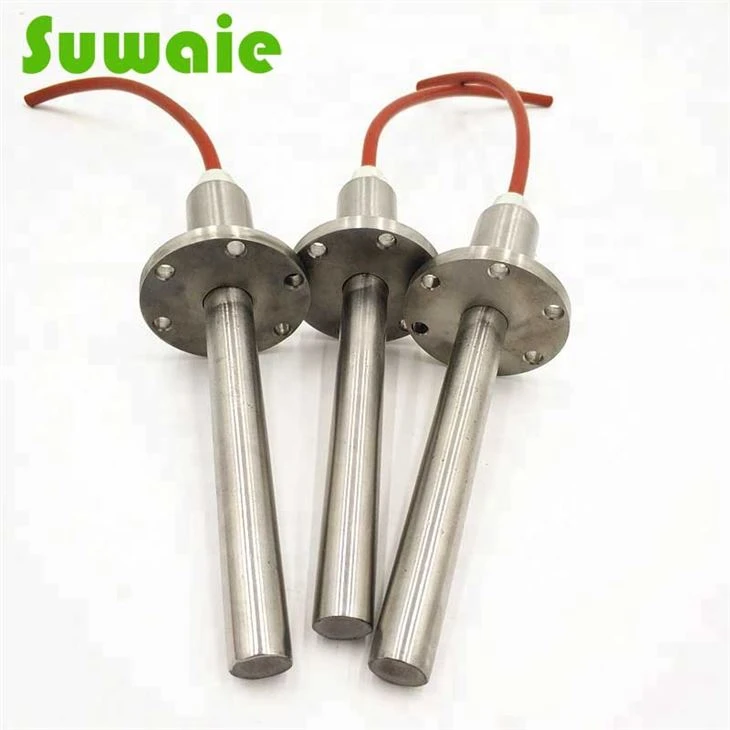

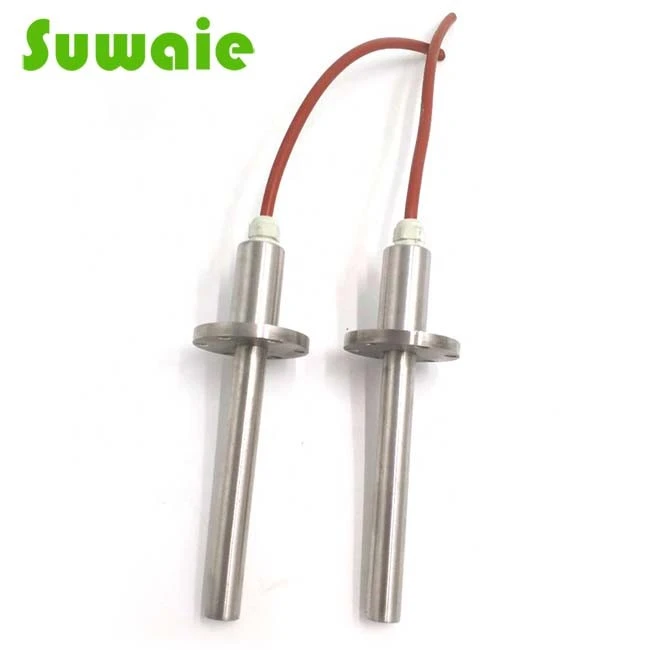

Watt flex cartridge heaters

Watt-Flex cartridge heaters last up to 5 times longer than conventional heaters with less downtime for heater replacements and lower maintenance costs. Watt-Flex heaters contract when de-energized, eliminating bore seizure and the need for expensive drill-outs.



Material
stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
Insulation
High-purity Mgo



Resistance Heating Wire
Ni-Cr or FeCr
Tube Diameter
3-30mm
Tube Length
20-5000mm
Voltage Available
12V/24V/36V/48V/120V/220V/230V/380V
Surface Loading
1-30w/cm2
Application
Used For Injection Molding ,Plastic Molds ,Packaging Equipment
Lead Wire
300mm length; Different type of wire (Teflon/silicone high temperature frberglass) is available

Application



Cartidge heater heating rods are suitable for working in heating media that cannot be wired at both ends, such as high and low temperature plug-in heating of various sizes of molds and mechanical equipment, including die and other molds, medical equipment, plastic sealing machines, bottle caps Machine, continuous automatic sealing machine, cigarette making machine, etc.

1. Mold heating has been accepted by a wide range of customers in modern industrial applications.

2. In the plastic mechanical heating system.

3. Pharmaceutical production line.

4. Laboratory heat treatment test.

5. Chemical industry and so on.



Small Diameter Miniature Cartridge Pencil Heaters application

Micro Cartridge Heater Products show

12V 24V 50W Mini Cartridge Heater manufacturer

China 220V High Density High Temperature Cartridge Heater

Product Structure show

Structure diagrams

Pencil heater process and test working show

Cartridge heater process

test

Packing and shipment case show

packing 1

Advantages:
1.OEM service:
No agents, no trading company, reduce all necessary cost for you. Direct communication with our engineer.
2.Professional team:
20 years foreign customers service experience. Over 10 years investment casting manufacture.
Almost 35% high educated people.
3.Globally acceptabe quality:
The products offered by us are thoroughly examined by our experienced professionals to ensure their durability, reliability and long service life.
Full fledged QA department & ISO 9001 certification.
4. MOQ:
100 pcs is even acceptable in some special conditions
5.Annual output
It is more than 3000 metric ton, so we can deliver on time.
The QA department
We have inhouse sophisticated physical and chemical testing laboratory equipped with ultra modern testing equipment.

FAQ

1.

Q: Where are the main markets for sales?

A: Mainland China, UK, Thailand, Turkey, Canada, Mexico, Brazil, Argentina, Chile, India, Vietnam, Colombia, Malaysia, Australia, etc.

2.

Q:What Production Equipments do we own?
A:Rolling machine,Mgo filling machine,tube cutting machine,banding machine,coiling machine,Swaging machine welding machine, etc.

3.

Q:How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.

Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Watt flex cartridge heaters. Our company has professional equipment and engineers to provide the production and service of Watt flex cartridge heaters.
