Electric Band Heater
Product introduction
The specific advantages are as follows:
1. It has a winding property. For example, when heating a container or a pipe, it can be bent into a curved shape or a circular shape to heat the surface, such as heating a large workpiece, and partially recovering the form, and the large-area workpiece can be tiled. Cover form. In addition, it can be adapted to the heating of workpieces of various geometric shapes.
2, high operating temperature, fast heating, high thermal efficiency, no pollution, uniform heating and accurate, can achieve automatic control.
When ordering Ceramic Heater please specify:
1, Inside diameter and width of the heater
2, Construction type
3, Wattage and voltage
4, Type of terminal
5, Drawing where the special type of holes or cutouts required
Features of electric band Ceramic heater
Insulation: 1/4" thick ceramic fiber insulation
Sizes: Minimum 2" Diameter & 1" wide and up
Terminals: Post Terminals Standard (1/4"-20 Thread or custom thread)
Sheath: Corrosion Resistant Stainless Steel
Lock-Up: Barrel Nut Standard (Optional Flange)
Standard Gap: 1/4" when tightened
Wall Thickness: 11/32" (+1/32", -.00)
Temperature: Up to 1500 F
Watt Density: Up to 60W/Sq. in.
Voltage: Up to 480 V (Single or three phase)
Resistance Tolerance: +10%-5%
Wattage Tolerance: +5%-10%
Application of Ceramic Band Heater
1, Injection molding
2, Blow-molding
3, Plastic extrusion
4, Container, pipe, or tank heating
5, Process applications

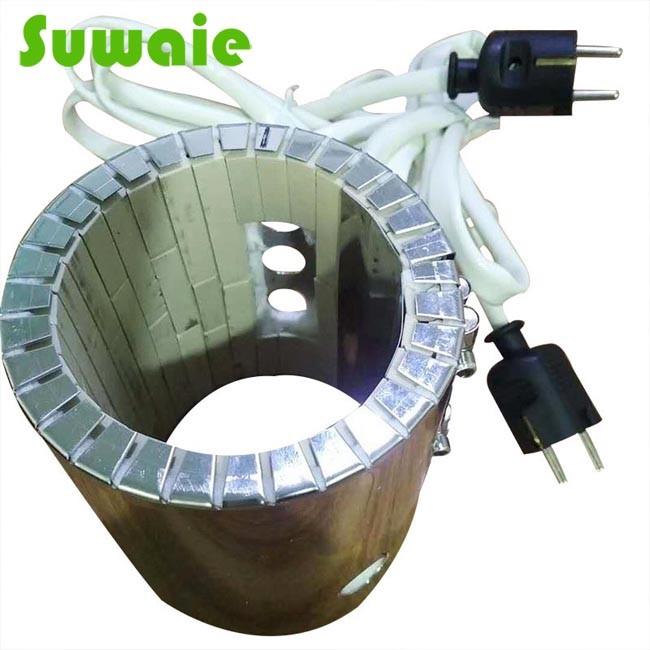

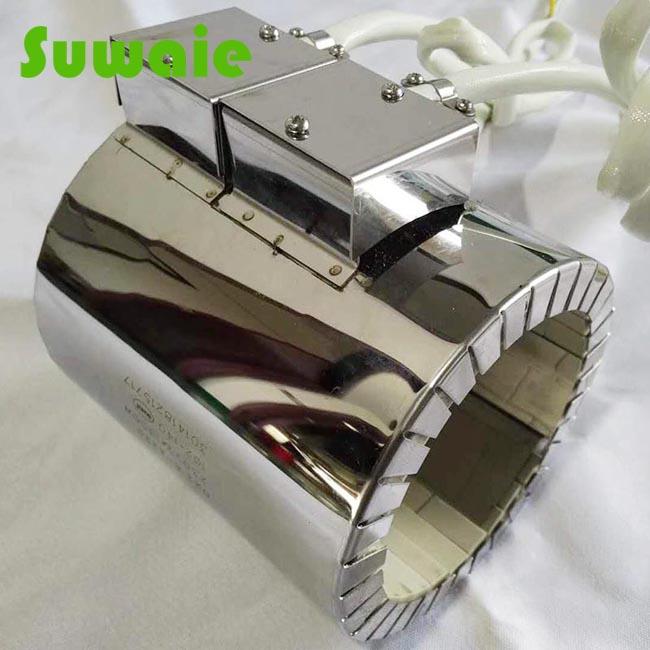

Products pictures show
Packing and Shipment
What Can We Do For You?
1. Professional, Competitive price and Fast delivery time
We engaged in this area for almost 12yeas, experience engineer can help you process the project well and perfect, also we own our factory that we can control the cost and delivery time very well. We can try best to meet your request.
2. Protect our customer profit well
Even we have very strictly quality control system, but we still can`t promise every part you received will 100% perfect, so if there is any defective parts you received, you just need to offer us the evidence(such as picture),we will check and confirm it.
Because of our strictly quality control system, we have confidence to promise our customer with this. Please kindly noted that it`s our advantage compared with others, we realize that only the high quality and good service can we keep friendly and long-term business relationship with our customer and it`s also the only way for an enterprise to be existed...
FAQ
1. Q: Who bears the bank transfer fee?
A:The total amount of the order is relatively small, the clients bears bank transfer fee, and the amount of the order is large, we bear bank transfer fee.
2. Q: Can you sent the product drawing to me?
A: Pictures on website was just for reference, More correct information and some special requirements,
Please kindly contact us.
3. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the quote;
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Electric Band Heater. Our company has professional equipment and engineers to provide the production and service of Electric Band Heater.
