Nozzle Heater Bands
Product introduction
The specific advantages are as follows:
1. It has a winding property. For example, when heating a container or a pipe, it can be bent into a curved shape or a circular shape to heat the surface, such as heating a large workpiece, and partially recovering the form, and the large-area workpiece can be tiled. Cover form. In addition, it can be adapted to the heating of workpieces of various geometric shapes.
2, high operating temperature, fast heating, high thermal efficiency, no pollution, uniform heating and accurate, can achieve automatic control.
When ordering Ceramic Heater please specify:
1, Inside diameter and width of the heater
2, Construction type
3, Wattage and voltage
4, Type of terminal
5, Drawing where the special type of holes or cutouts required
Features of electric band Ceramic heater
Insulation: 1/4" thick ceramic fiber insulation
Sizes: Minimum 2" Diameter & 1" wide and up
Terminals: Post Terminals Standard (1/4"-20 Thread or custom thread)
Sheath: Corrosion Resistant Stainless Steel
Lock-Up: Barrel Nut Standard (Optional Flange)
Standard Gap: 1/4" when tightened
Wall Thickness: 11/32" (+1/32", -.00)
Temperature: Up to 1500 F
Watt Density: Up to 60W/Sq. in.
Voltage: Up to 480 V (Single or three phase)
Resistance Tolerance: +10%-5%
Wattage Tolerance: +5%-10%
Application of Ceramic Band Heater
1, Injection molding
2, Blow-molding
3, Plastic extrusion
4, Container, pipe, or tank heating
5, Process applications

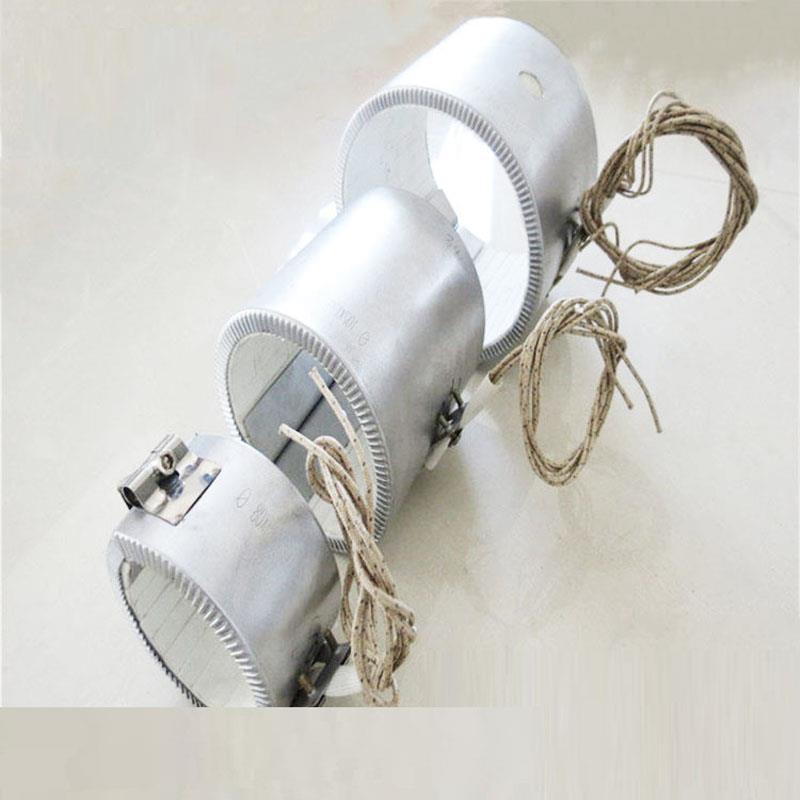

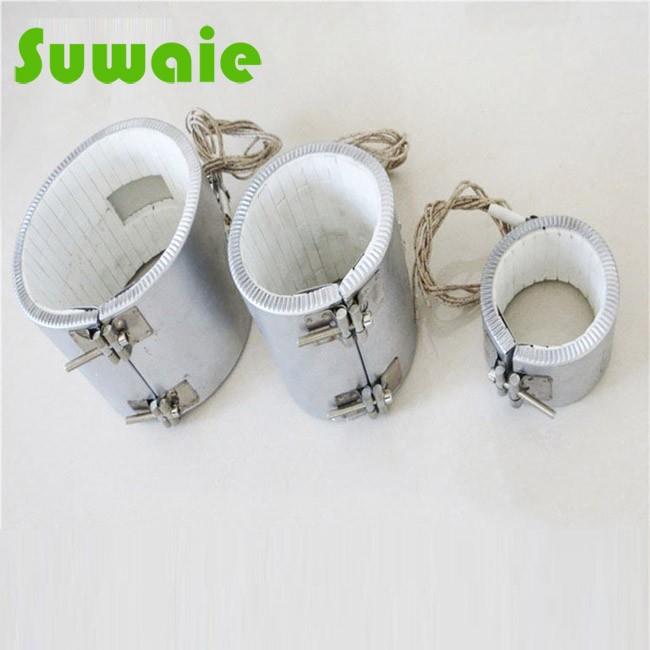

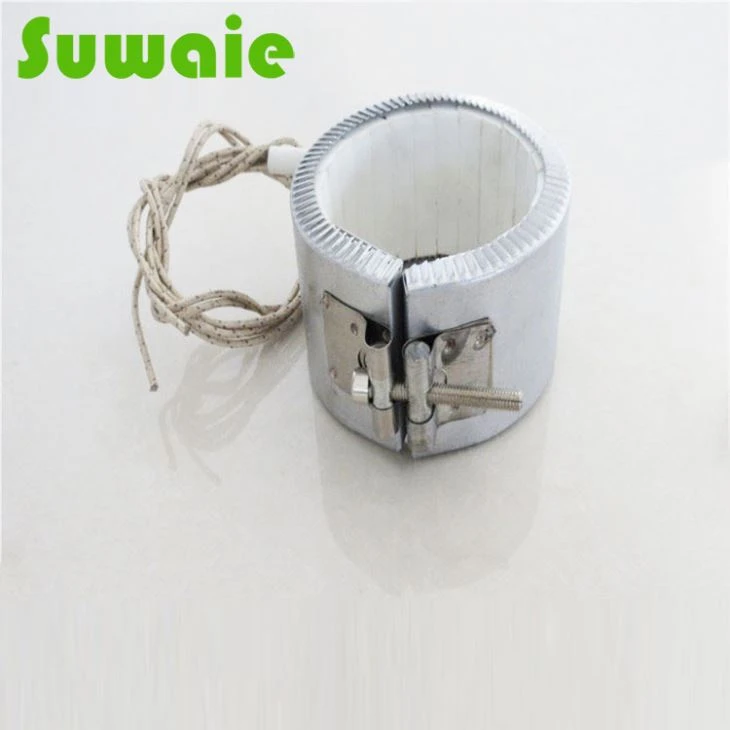

Products pictures show
Packing and Shipment
Our Service
1. Fast deilvery: For samples 3-7 working day. For bulk order: 7-30working days.
We produce over 50000pcs heating elements per day.
2. Good Quality control: We have our own test room,
All one years warranty with CE, ISO9001, ROHS certificates.
3. Mature OEM Service: With 12 years heating element manufacture. FREE laser print label, color box design etc.
4. Professional sales team, engineer team, and good after-sales service.
FAQ
1. Q: How can you ensure the HEATING ELEMENTS product quality?
A: Before shippment, all the HEATING ELEMENT have aging test. And then we also have Withstand voltage test and Insulation resistance test, ensure products can transportation safety and normal use.
2. Q: What Production Equipments do we own?
A: Rolling machine, Mgo filling machine, tube cutting machine, banding machine, coiling machine, Swaging machine welding machine, etc.
3. Q: What Inspection Equipments do we have?
A: Current tester, withstand voltage tester, X-ray machine, insulation current tester, insulation voltage tester, pressure tester, salt spray tester, micrometer, etc.
4. Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Nozzle Heater Bands. Our company has professional equipment and engineers to provide the production and service of Nozzle Heater Bands.
