Extruder Heater Bands
Ceramic Band Heater Characteristics

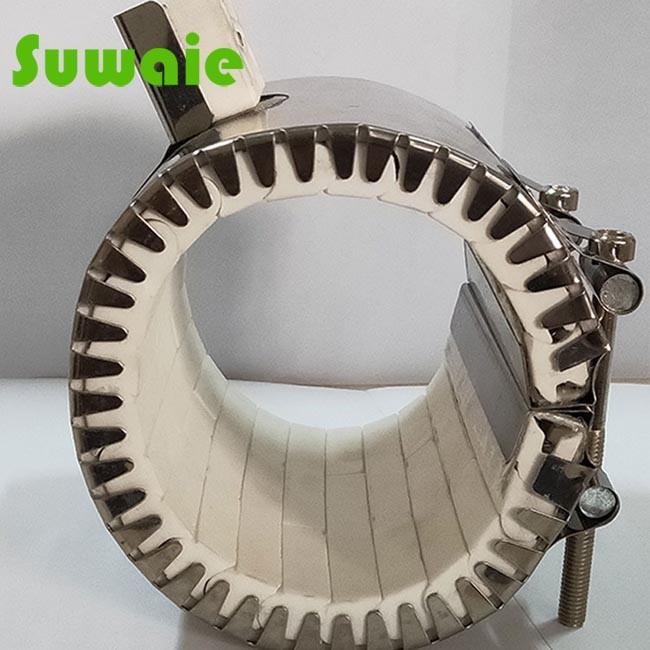

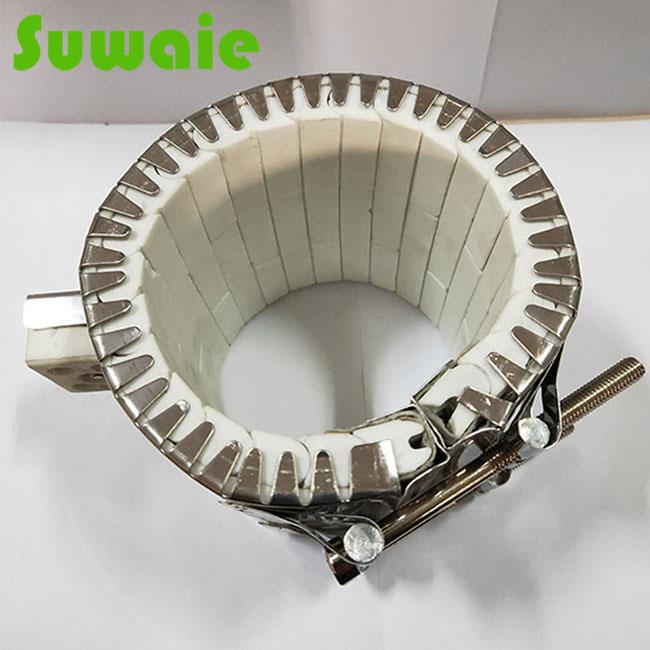

Ceramic band heaters are designed with spirally wound inner resistance coils evenly threaded through interlocking insulated ceramic “tiles”. The ceramic core, or “mat” of tiles is housed beneath a stainless steel sheet with serrated edges.
The notched edges fold over to secure the ends and a protective inner liner (to be removed at installation) secures the placement of the tiles. This combined assembly of the Ceramic Band Heater offers a flexible heating system that yields efficient transmission of conduction and radiated heat. The heat of the Ceramic Band originates from the inner coils that conduct heat at maximum temperatures.
Ceramic Band Diagramed The heated coils evenly deliver heat through the ceramic tiles which radiate energy to the barrel. We offer a variety of Ceramic Band styles from standard to custom configurations. When selecting a ceramic heater, select a heater that best matches the wattage requirements – to decrease the frequency of cycling and temperature overshooting, and thereby increase the life of the heater. When installing a ceramic band heater to replace a non-insulated heater, decrease the total operating wattage by approx. 15-20 percent.
Product Name: Ceramic Band Heater for extruder
Material: Ceramic, SUS304
Custom processing: Yes
Voltage: 110V, 220V,240V,etc
Power: 2000W (other power can be customized)
Inner diameter: 100mm
Length: 200mm (customized to any size)
Be sure to provide when ordering:
1. Specific size requirements: inner diameter (mm) * height (mm)
2. The use of voltage: 380V, 220V, 110V, 36V. . . Etc., customized according to customer needs
3. Power: we generally do according to a square centimeter 3-5W.
4. Wiring method, if there is no requirement, the general angle cable is used.

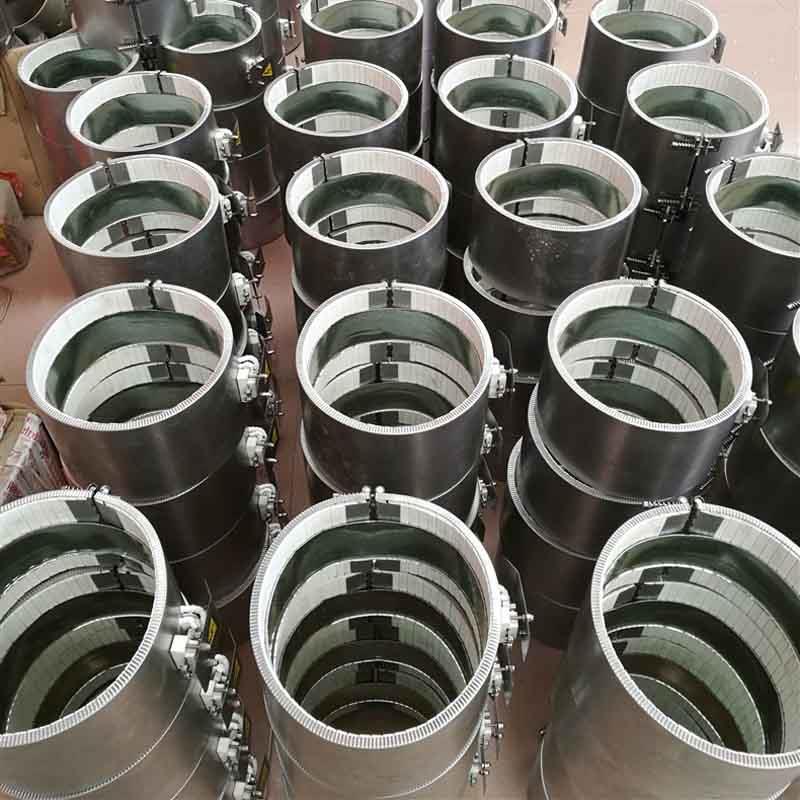

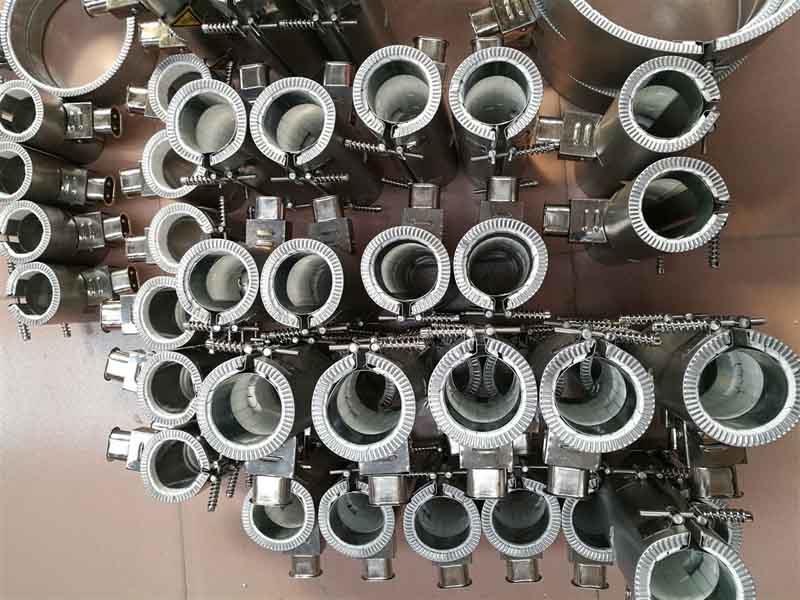

Product pictures
Our Advantage:
1. Excellent Purchasing Service
Since we have many resources of different ranges of heating element raw material factories, we know their quality level and price level. We can choose the most suitable supplier for customers according to their request.
2. High Quality Products offered
Most of products are from our long-term suppliers. They have been supplying the goods for us for more than 20 years; we can control the quality and price. So the issue for quality is not a problem. Even if the products have met the function problem, we can afford all the consequences. We will never hurt the customer's interests.
3. Rich Factory Resources & heater Marketing Suggestion
After more than 12 years experience accumulated in this filed, we have collected valuable resources of manufacturers and distributors. We are not only able to supply high quality goods; also we can recommend the hot sale products to customers according to different market needs. We help customer save money, but help them earn more money.
4. Perfect After-sale Service
According to our company's rule, we support one-year quality guarantee after you receive the goods. During this time, if you meet any quality problems, please contact with us, we can provide you with any replacement. The premise is non-human damage.
Packing

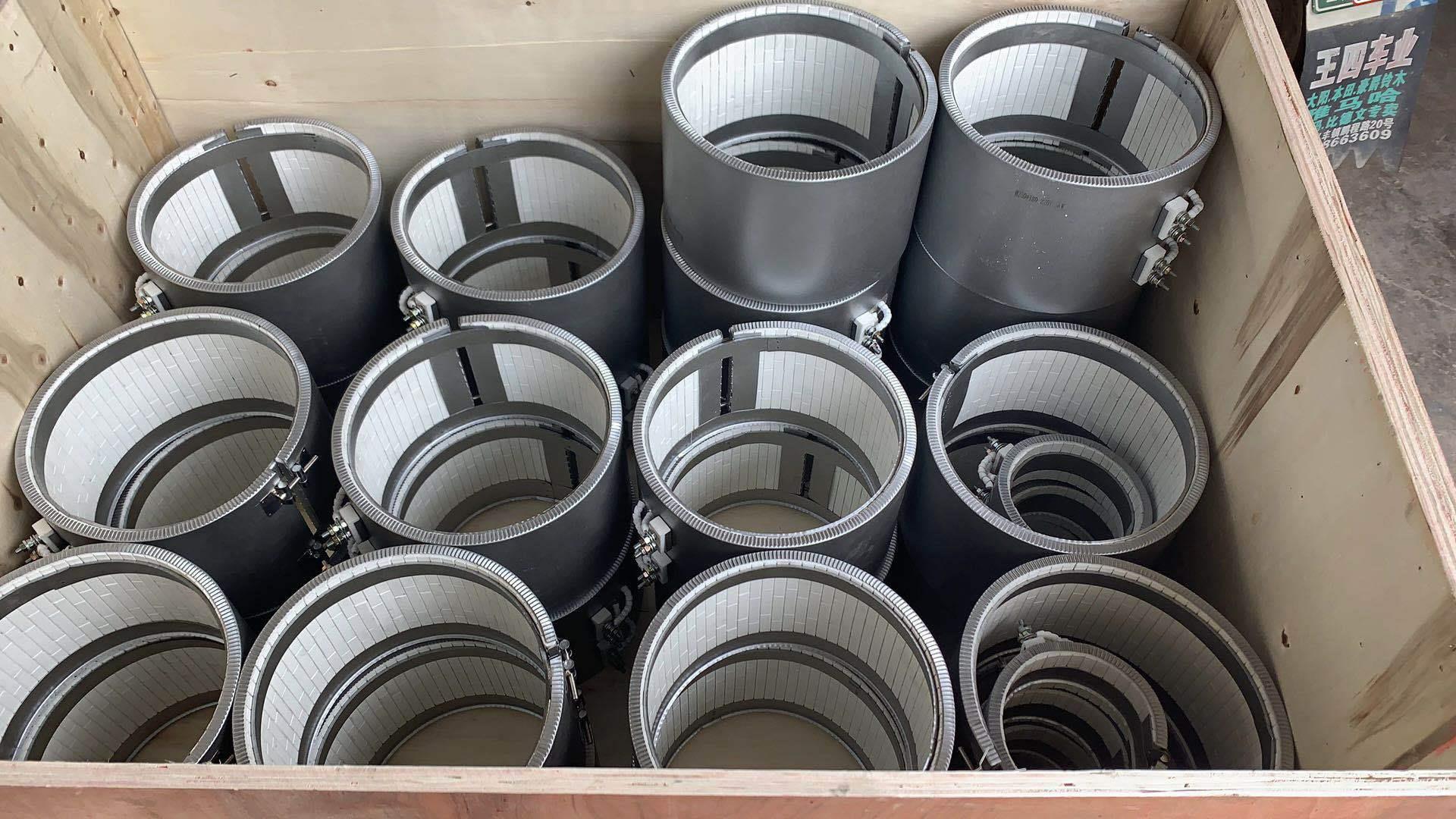

We can packing it by Carton box or wooden box
FAQ
1. Q: What's the Payment method?
A: Western union, T/T totally or 50% deposit before production, the balance before delivery. We suggest you transfer the full values at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.
2. Q: How about the machine warranty?
A: Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free
3. Q: Have the R&D for our company?
A: We have professional R&D team with rich design experience.We also establish strict but scientific product testing system so that products have perfect.
Shipment
