Heater Bands For Extruders
Product introduction
Ceramic Band Heater consists of helically wound Nickel-Chrome heating coil, evenly stretched and precisely stretched inside the insulating ceramic bricks to create uniform heating. 1/4" thick Ceramic fiber insulation gives minimum heat loss. Sensor holes can be provided according to requirement.
When ordering Ceramic Heater please specify:
1, Inside diameter and width of the heater
2, Construction type
3, Wattage and voltage
4, Type of terminal
5, Drawing where the special type of holes or cutouts required
Features of electric band Ceramic heater
Insulation: 1/4" thick ceramic fiber insulation
Sizes: Minimum 2" Diameter & 1" wide and up
Terminals: Post Terminals Standard (1/4"-20 Thread or custom thread)
Sheath: Corrosion Resistant Stainless Steel
Lock-Up: Barrel Nut Standard (Optional Flange)
Standard Gap: 1/4" when tightened
Wall Thickness: 11/32" (+1/32", -.00)
Temperature: Up to 1500 F
Watt Density: Up to 60W/Sq. in.
Voltage: Up to 480 V (Single or three phase)
Resistance Tolerance: +10%-5%
Wattage Tolerance: +5%-10%
Application of Ceramic Band Heater
1, Injection molding
2, Blow-molding
3, Plastic extrusion
4, Container, pipe, or tank heating
5, Process applications

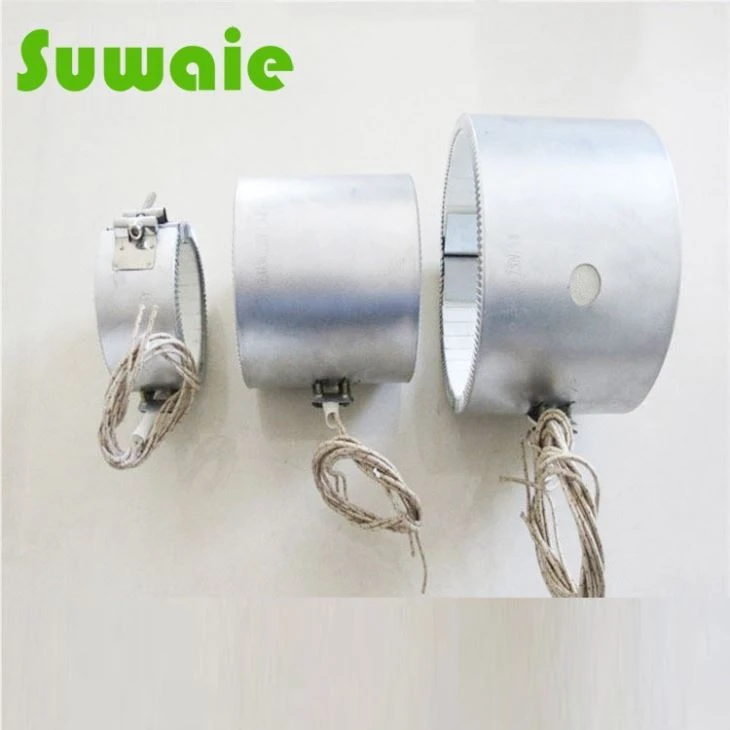

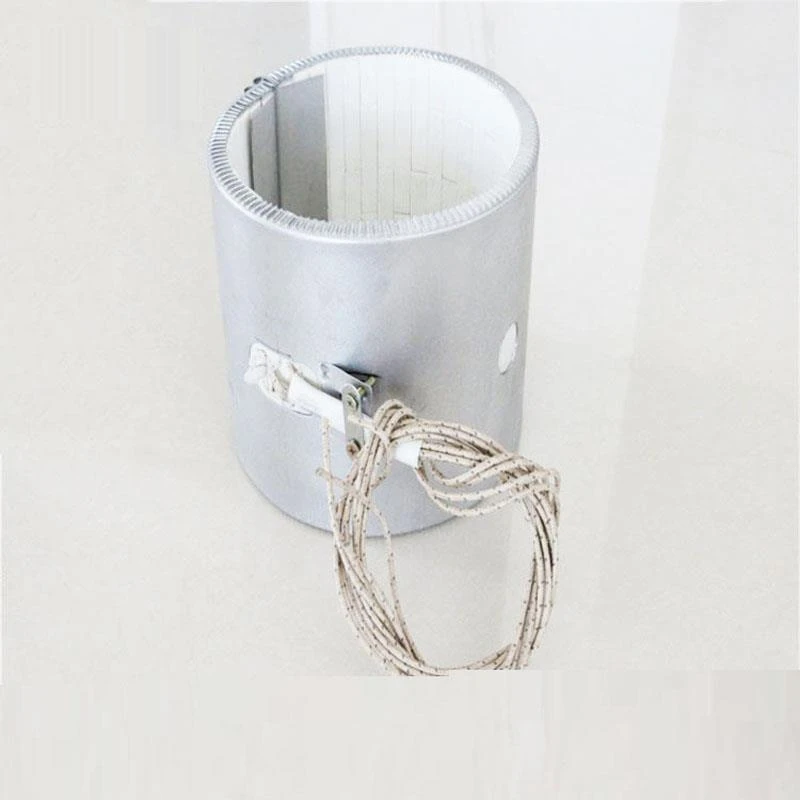

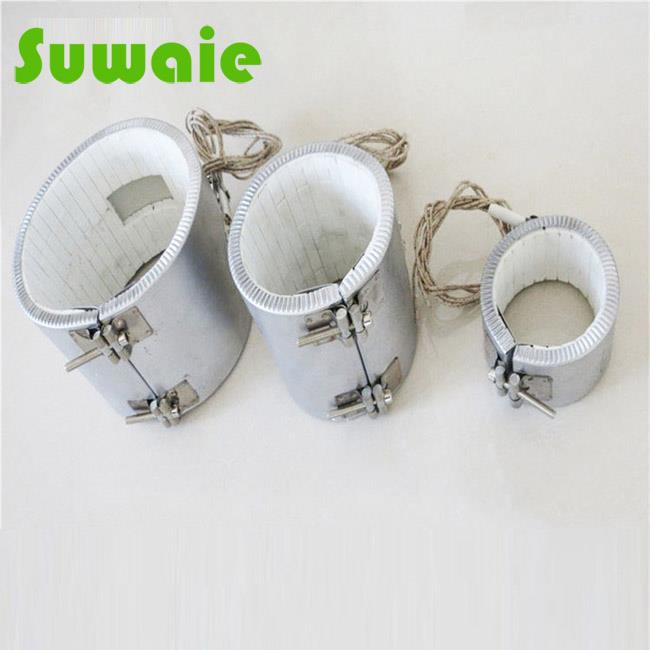

Products pictures show
Packing and Shipment
Our Advantages:
1. We accept Custom-made and OEM, so that we can meet the special requirements from different customers.
2. We can produce Moulds/Tooling by ourself, it can help to save your cost and time while in volume production.
3. We have a group of experienced technical engineers to help customers solve the problems and requirements at any time.
4. We promise the high quality with resonable price,and guarantee the lead time for orders.
FAQ
1.Q: What is the main service of your factory?
A: We focus on heating element for more than 12 years!
2. Q: Who bears the bank transfer fee?
A: The total amount of the order is relatively small, the clients bears bank transfer fee, and the amount of the order is large, we bear bank transfer fee.
3. Q: Do you have the ability to do independent research and development?
A: Our engineering department has 5 elites, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement.
Shenzhen Suwaie Technology Co., Ltd. Focus on the production of Heater Bands For Extruders. Our company has professional equipment and engineers to provide the production and service of Heater Bands For Extruders.
