Micro Tubular
Introduction
1. The micro electric heaters of the company adopts imported Donghuang magnesia powder as the insulating filling medium, which has the advantages of fast heat dissipation and high insulation. The heating wire and the wire are made of raw materials imported from Germany, which greatly prolongs the service life of the heater.
2. The hot runner coil heater is wound into a shape and formed by a CNC tube bending machine and a customized special fixture. The inner hole has high dimensional accuracy, the tolerance can reach ±0.05mm, the size is stable, and the consistency is good.
3. The industrial heater coils uses the German imported mirror to detect the position of the hot end and the cold end. It has high temperature measurement accuracy and good consistency, and is especially suitable for multi-cavity hot runner systems.
Specification
tube section | 2.2x4.2mm3x3mm3.4x3.4mm3.5x3.5m4x4mm |
Heating coil ID | 10mm~38mm |
heater coil length | 40mm~200mm |
mini heating coil Voltage | 220V~380V |
micro electric heaters power | 200W~3000W |
Build-in thermocouple | With or without J/K thermocouple |
small heating coil Lead wire | 500/1000/1200/1500/2000mm |
micro coil heater Standard Sizes
Cross Section | Total Length | T/C | WATT/VOLT | Lead Wire |
2,2x4.2 | 300/250mm | J or K | 195W x 230V | 1000mm |
2,2x4.2 | 330/280mm | J or K | 215W x 230V | 1000mm |
2,2x4.2 | 385/335mm | J or K | 240W x 230V | 1000mm |
2,2x4.2 | 450/400mm | J or K | 300W x 230V | 1000mm |
2,2x4.2 | 510/460mm | J or K | 350W x 230V | 1000mm |
2,2x4.2 | 570/520mm | J or K | 400W x 230V | 1000mm |
2,2x4.2 | 650/600mm | J or K | 460W x 230V | 1000mm |
2,2x4.2 | 750/700mm | J or K | 530W x 230V | 1000mm |
2,2x4.2 | 850/800mm | J or K | 610W x 230V | 1000mm |
2,2x4.2 | 950/900mm | J or K | 690W x 230V | 1000mm |
2,2x4.2 | 1160/1110mm | J or K | 850W x 230V | 1000mm |
2,2x4.2 | 1360/1310mm | J or K | 950W x 230V | 1000mm |
2,2x4.2 | 1600/1550mm | J or K | 1100W x 230V | 1000mm |
2,2x4.2 | 1850/1800mm | J or K | 1200W x 230V | 1000mm |
2,2x4.2 | 2300/2250mm | J or K | 1300W x 230V | 1000mm |
2,2x4.2 | 2550/2500mm | J or K | 1500W x 230V | 1000mm |
Order Guider
1.Cross Section
2.Circles / length/ diameter
3.Voltage
4.Wattage
5.Quantity

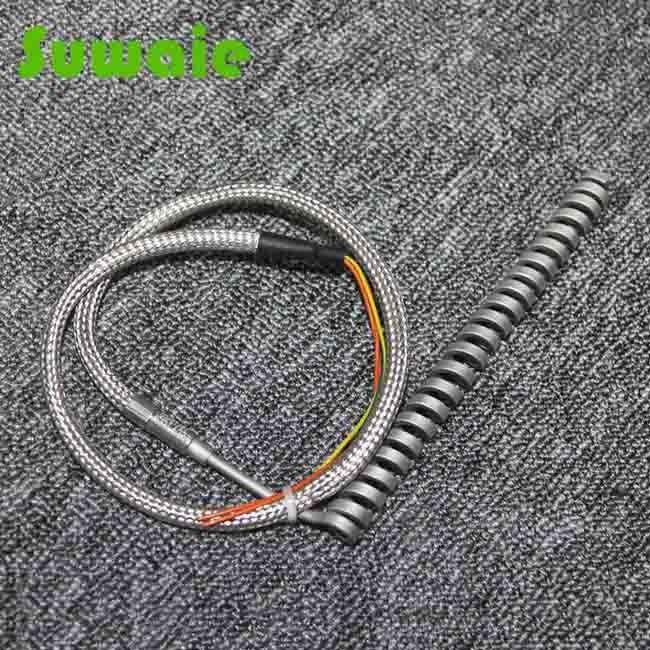

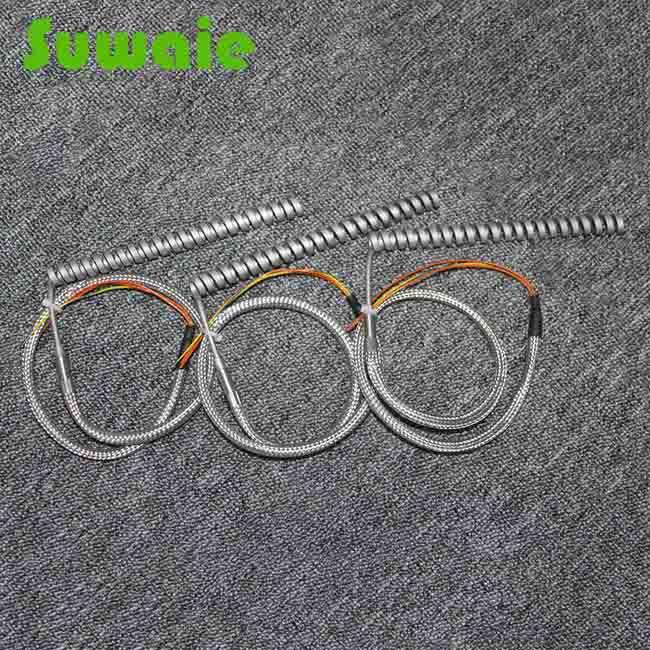

Coil Heater products picture show
Coil Heater Process show
Hot Runner Mold Heater Test room show
Packing and shipment ways
Our advantages:
a).Manufacturer, in house mould design and assembly, competitive price.
b).10 years’ of experience working with OEM's various materials
c). QC:100% inspection
d).Confirm sample: before start mass production we will send the pre-production samples to customer for confirmation. We will modify the mould until customer satisfied.
e). Small Order Allowed
f). Strict QC and high quality.
g). Highly skilled manufacturing process
h). A broad variety of OEM product range
